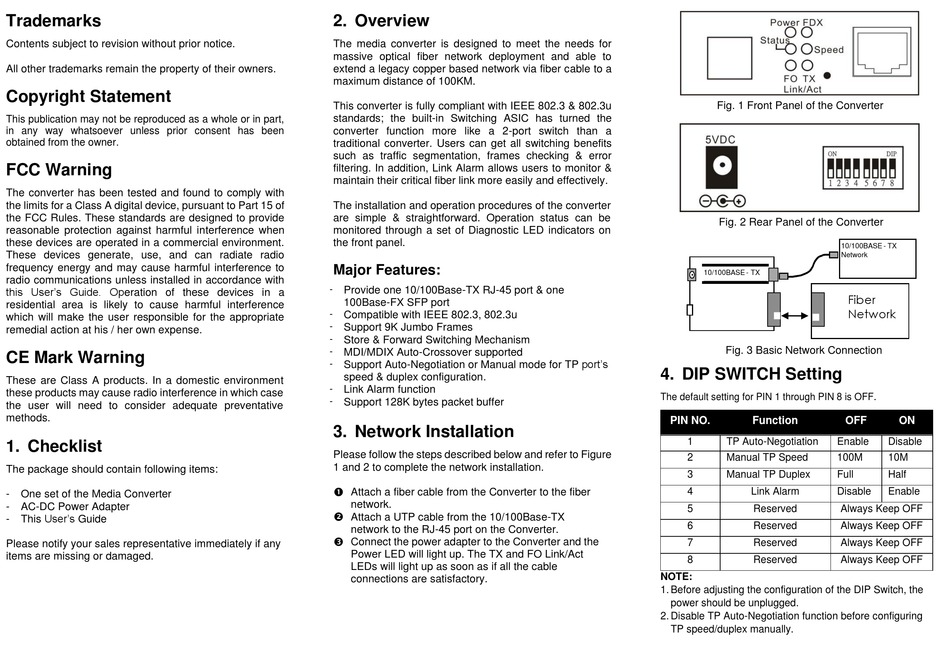

ANTAIRA EMC-0201-WX Quick Installation Manual

Trademarks
Contents subject to revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
This publication may not be reproduced as a whole or in part,
in any way whatsoever unless prior consent has been
obtained from the owner.
FCC Warning
The converter has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These standards are designed to provide
reasonable protection against harmful interference when
these devices are operated in a commercial environment.
These devices generate, use, and can radiate radio
frequency energy and may cause harmful interference to
radio communications unless installed in accordance with
this User's Guide. Operation of these devices in a
residential area is likely to cause harmful interference
which will make the user responsible for the appropriate
remedial action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment
these products may cause radio interference in which case
the user will need to consider adequate preventative
methods.
1. Checklist
The package should contain following items:
- One set of the Media Converter
- AC-DC Power Adapter
- This User's Guide
Please notify your sales representative immediately if any
items are missing or damaged.
2. Overview
The media converter is designed to meet the needs for
massive optical fiber network deployment and able to
extend a legacy copper based network via fiber cable to a
maximum distance of 100KM.
This converter is fully compliant with IEEE 802.3 & 802.3u
standards; the built-in Switching ASIC has turned the
converter function more like a 2-port switch than a
traditional converter. Users can get all switching benefits
such as traffic segmentation, frames checking & error
filtering. In addition, Link Alarm allows users to monitor &
maintain their critical fiber link more easily and effectively.
The installation and operation procedures of the converter
are simple & straightforward. Operation status can be
monitored through a set of Diagnostic LED indicators on
the front panel.
Major Features:
- Provide one 10/100Base-TX RJ-45 port & one
100Base-FX SFP port
- Compatible with IEEE 802.3, 802.3u
- Support 9K Jumbo Frames
- Store & Forward Switching Mechanism
- MDI/MDIX Auto-Crossover supported
Support Auto-Negotiation or Manual mode for TP port's
-
speed & duplex configuration.
-
Link Alarm function
- Support 128K bytes packet buffer
3. Network Installation
Please follow the steps described below and refer to Figure
1 and 2 to complete the network installation.

Attach a fiber cable from the Converter to the fiber
network.

Attach a UTP cable from the 10/100Base-TX
network to the RJ-45 port on the Converter.

Connect the power adapter to the Converter and the
Power LED will light up. The TX and FO Link/Act
LEDs will light up as soon as if all the cable
connections are satisfactory.
Fig. 1 Front Panel of the Converter
Fig. 2 Rear Panel of the Converter
10/100BASE - TX
Fig. 3 Basic Network Connection
4. DIP SWITCH Setting
The default setting for PIN 1 through PIN 8 is OFF
PIN NO. Function
1 TP Auto-Negotiation Enable
2 Manual TP Speed 100M
3 Manual TP Duplex Full
4 Link Alarm Disable
5 Reserved
6 Reserved
7 Reserved
8 Reserved
NOTE:
1. Before adjusting the configuration of the DIP Switch, the
power should be unplugged.
2. Disable TP Auto-Negotiation function before configuring
TP speed/duplex manually.
10/100BASE - TX
Network
Fiber
Network
.
OFF ON
Disable
10M
Half
Enable
Always Keep OFF
Always Keep OFF
Always Keep OFF
Always Keep OFF
