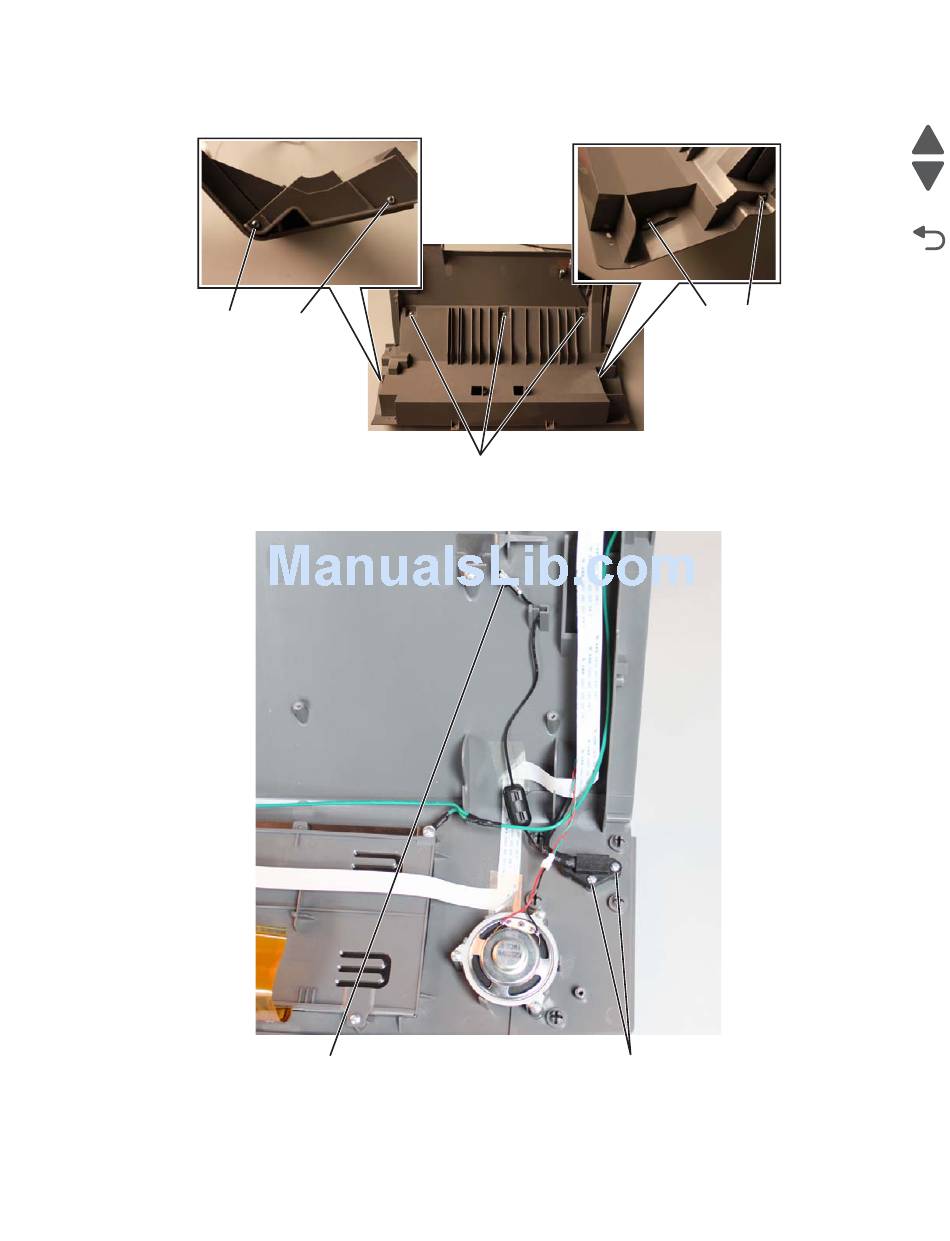

Remove the five larger screws (B) and the two smaller screws on the side (C), then remove the position
4.
guide cover to access the cables.
B
C
5.
Disconnect the USB ground cable (D) and remove the screw (E) securing the USB connector.
Note: Pay attention to the routing of the ground cable
D
Remove the USB connector cable with the ground cable
6.
B
E
7526
B
C
Repair information
4-199
