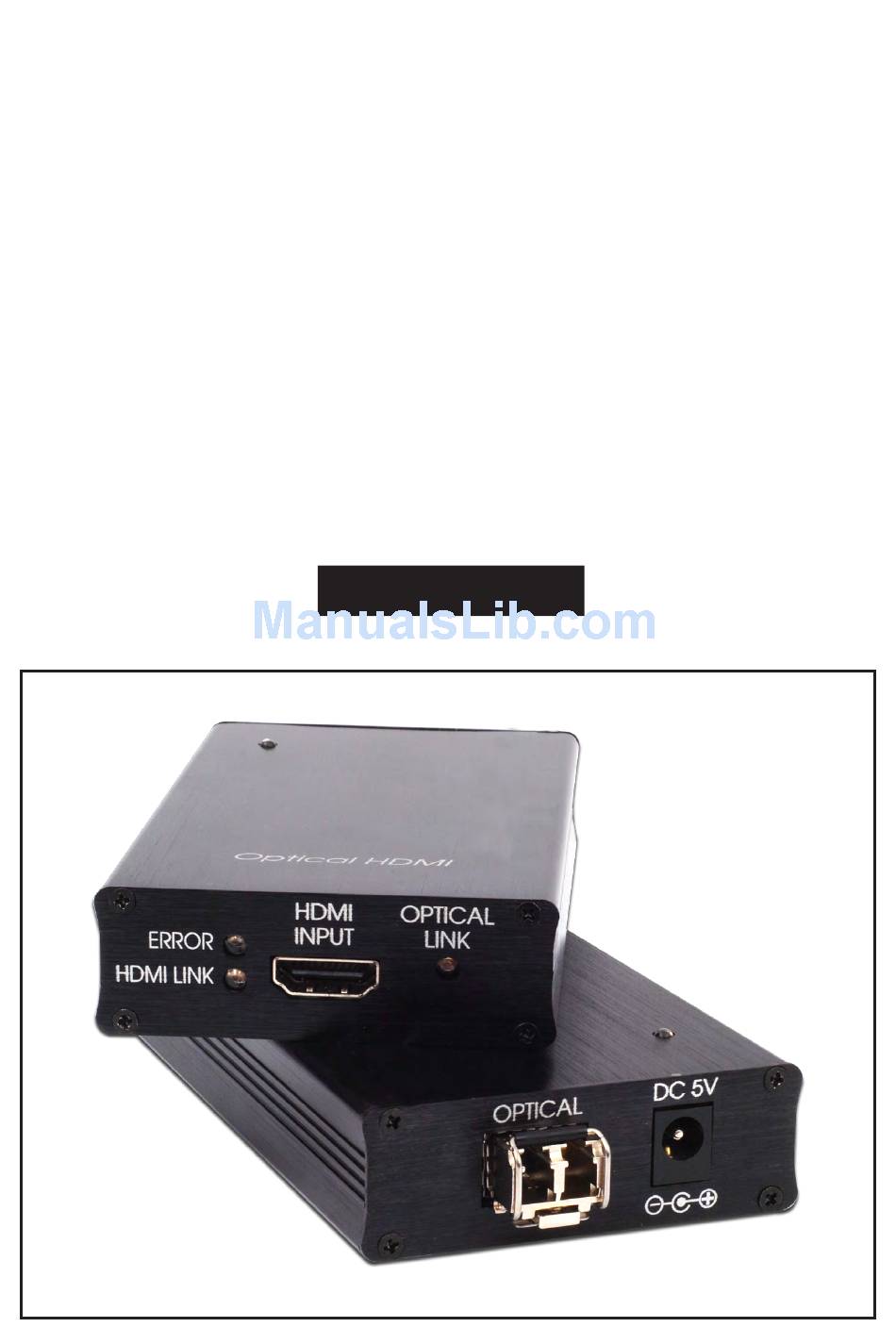

- Page 1 COH-Tx & COH-Rx HDMI to Optical Transmitter and Receiver Operation Manual COH-Tx & COH-Rx...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Transmitter Side .…………………………………..…...….… Receiver Side .………………………………….…..…...….… Support Timing Chart .......…..………..…..…..…... TV Timing.................. PC Timing................. Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction While HDMI is becoming more common around the world, some consumers have been wishing for a way to transmit HDMI signals at very long distances. Enter the HDMI to Optical Transmitter and Receiver which uses fiber optical cables to give you a longer transmission distance, up to 300m while also providing you with thinner lighter cables for easy installations. -
Page 6: Specifications
6. Specifications Transmitter Input Port 1 x HDMI Output Port 1 x Duplex Multi-Mode Fiber Optical with LC connector Receiver Input Port 1 x Duplex Multi-Mode Fiber Optical with LC connector Output Port 1 x HDMI Dimensions (mm) 114(W) x 65(D) x 26(H) Weight(g) Chassis Material Metal... -
Page 7: Operation Controls And Functions

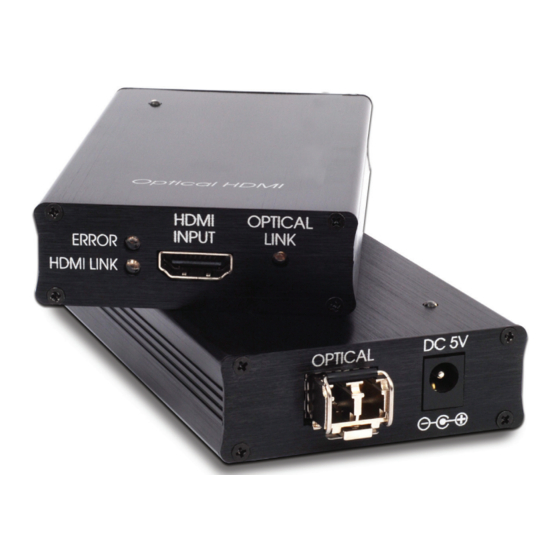

7. Operation Controls and Functions 7.1 Transmitter Front Panel Rear Panel DC 5V OPTICAL HDMI OPTICAL INPUT LINK ERROR HDMI LINK ① ② ③ ④ ⑤ ⑥ ① HDMI LINK: This LED will illuminate in blue when at least one optical cable is connected and has successfully detected and communicated between Tx and Rx with video or audio data sending. -
Page 8: Receiver Side
7.2 Receiver Front Panel Rear Panel DC 5V OPTICAL OPTICAL HDMI LINK OUTPUT ERROR HDMI LINK ① ② ③ ④ ⑤ ⑥ ① HDMI LINK: This LED will illuminate in blue when at least one optical cable is connected and has successfully detected and communicated between Tx and Rx with video or audio data sending. -
Page 9: Support Timing Chart
8. Support Timing Chart 8.1 TV Timing Formats Field Rate Picture Aspect Ratio 720x480p 59.94Hz/60Hz 720x480p 59.94Hz/60Hz 16:9 1280x720p 59.94Hz/60Hz 16:9 1920x1080i 59.94Hz/60Hz 16:9 720(1440)x480i 59.94Hz/60Hz 720(1440)x480i 59.94Hz/60Hz 16:9 720x576p 50Hz 720x576p 50Hz 16:9 1280x720p 50Hz 16:9 1920x1080i 50Hz 16:9 720(1440)x576i 50Hz 720(1440)x576i... -
Page 10: Connection And Installation
9. Connection and Installation Fiber COH-TX COH-RX HDTV/Monitor Blu-ray... -
Page 11: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100803 MPM-COHRXTX...
