- Page 1 CPLUS-V11PE8 4K UHD+ LPCM 7.1 Audio Extractor Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 RS-232 Commands ......5 6.4 EDID Manager ........6 7. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD LPCM 7.1 Channel Audio Extractor can extract up to 8 channels of LPCM audio from an HDMI source, allowing the user to convert high quality lossless HDMI audio into multi-channel analog signals for use with powered speakers or non-HDMI AV receivers. Bitstream extraction is also supported via an optical S/PDIF output. -
Page 7: Features
• The use of “Premium High Speed HDMI” cables is highly recommended. 5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant •... -
Page 8: Operation Controls And Functions

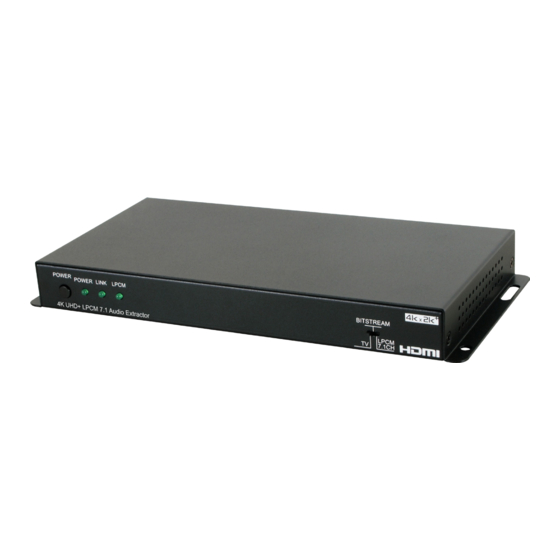

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER LINK LPCM BITSTREAM LPCM 4K UHD+ LPCM 7.1 Audio Extractor 7.1CH POWER/POWER LED: Press this button to power the unit on or off. The LED will be lit GREEN when the unit is receiving power. Note: Press and hold the Power button for 3 seconds to perform a factory reset. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI IN HDMI OUT SERVICE DC 5V OPTICAL HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. -
Page 10: Rs-232 Commands
6.3 RS-232 Commands Command Name Description Parameters SET UNIT POWER OFF NONE SET UNIT POWER ON NONE GET POWER STATUS NONE SOURCEDET SHOW INPUT NONE INFORMATION SINKINFO SHOW SINK NONE INFORMATION HDCPIN SET/SHOW INPUT HDCPIN N [N=1~3, ?] HDCP STATUS 1: FOLLOW IN 2: FOLLOW OUT 3: APPLE MODE... -
Page 11: Edid Manager
6.4 EDID Manager This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. - Page 12 Save/Upload/Analysis: EDIDs may also be saved, uploaded or analyzed. Any EDID from the unit or the connected HDMI display can be • saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save” icon. Previously saved EDID files (*.bin format) can be re-uploaded •...
- Page 13 EDID Creator Tab Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a .bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyzer’s edit option.
- Page 14 The following tabs provide access to a wide range of EDID information which can be edited: Descriptor: This tab allows for the editing of various description • and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. PC Timing and SD/HD/UHD: These tabs allow for the selection •...
-
Page 15: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply AUDIO OUT HDMI IN HDMI OUT SERVICE DC 5V OPTICAL Digital Optical Audio Output Multichannel Audio Output AV Receiver HDMI Output 7.1 Channels Active Speaker System... -
Page 16: Specifications
8. SPECIFICATIONS Video Bandwidth 600MHz/18Gbps Input Ports 1 x HDMI 1 x Mini-USB (service & control only) Output Port 1 x HDMI 1 x Optical S/PDIF (Digital Audio) HDMI Audio Sampling Up to 192 kHz Rate Optical Audio Sampling Up to 192 kHz Rate HDMI Cable I/O 10 meters, 1080p@12-bit... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control COAX Coaxial Digital Theater System Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Optical Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce Blanking) - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
