5.

CONNECTIONS

WARNING!
In case of a generator connection or unstable Auxiliary Mains,
only the common connection can be used.

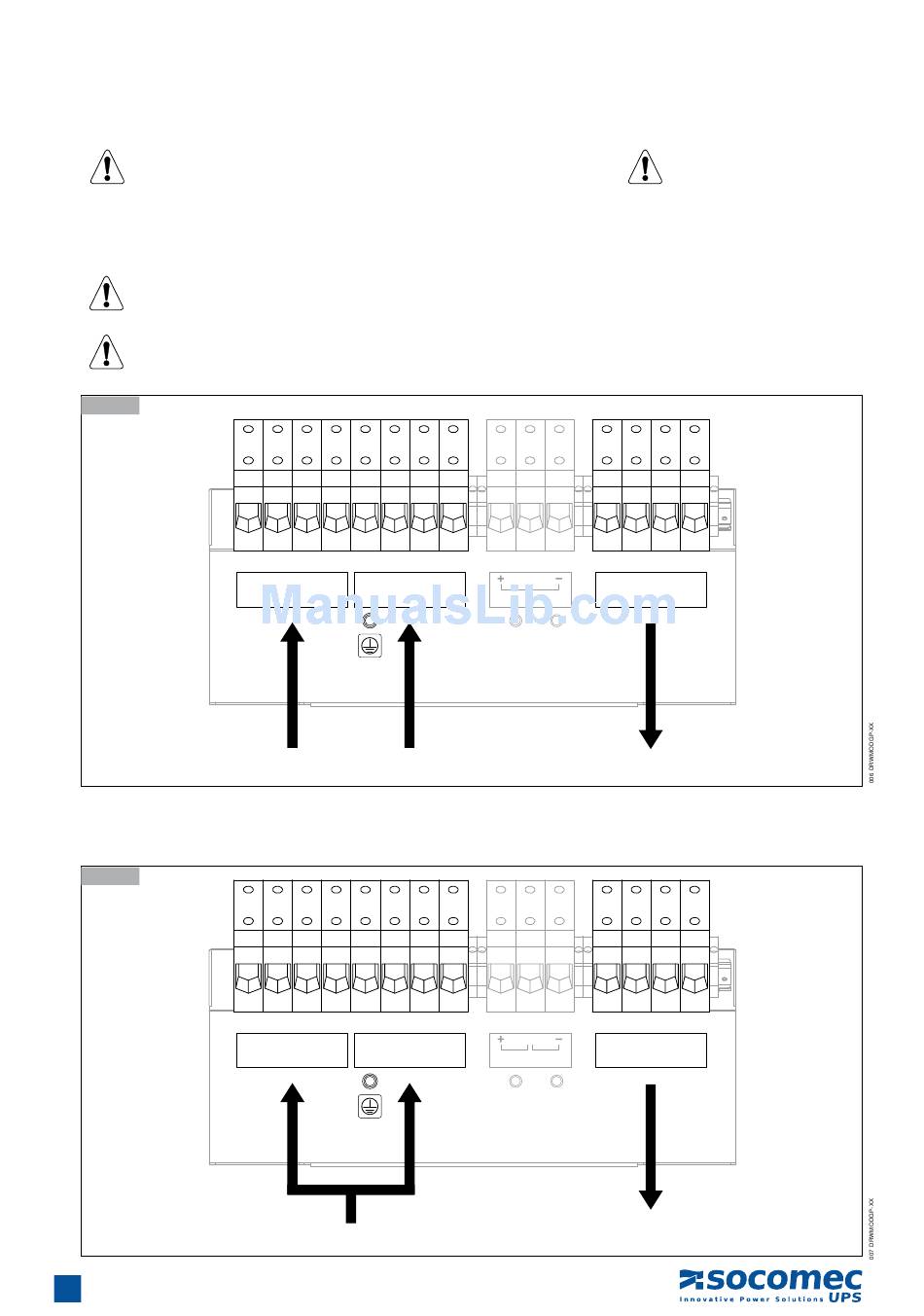

5.1.

Mains and Aux Mains connected separately

The UPS must not operate without the neutral connection to the input.
For equipment with separate Emergency Mains, it must be possible to make the neutral of the Emergency Mains
line electrically common with the neutral of the main input feed line.
5.1-1
5.2.

Mains and Aux Mains connected in common

5.2-1
MODULYS Green Power - Ref.: IOMMODGPXX01-GB 00
12
L1 L2 L3 N1 L11 L21
MAINS SUPPLY AUXILIARY MAINS
X10 X40
MAINS AUX MAINS
L1 L2 L3 N1 L11 L21
MAINS SUPPLY AUXILIARY MAINS
X10 X40
MAINS
N
L31 N11
240V DC 240V DC
EXT BATTERY
X20
N
L31 N11
240V DC 240V DC
EXT BATTERY
X20
Cable specifications:
• stripping lenth: 20 mm
• tightening torque: 10 Nm
L12 L22 L32 N2
OUTPUT
X50
LOAD
L12 L22 L32 N2
OUTPUT
X50
LOAD
