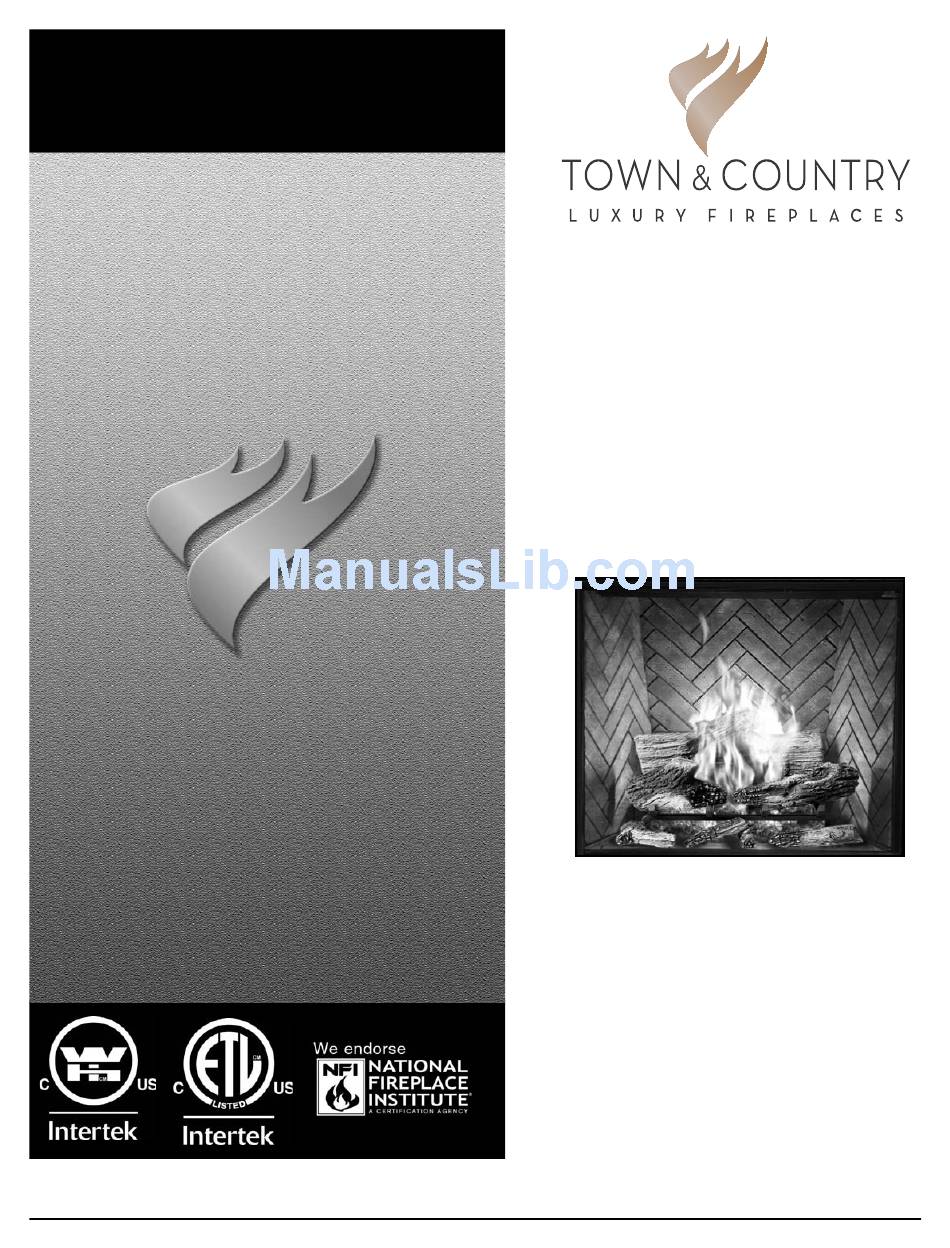

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fi replace and should be
kept together. Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and operating
instructions
050411-16
TC36
CHALET II
BURNER KIT
INSTALLATION
INSTRUCTIONS
PART#
For use with:
Model TC36
Series C
TC36.NG06C
TC36.NG06C
5056.427C1A
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TC36.NG06C
Summary of Contents for Town & Country Fireplaces TC36.NG06C
- Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36 CHALET II BURNER KIT INSTALLATION INSTRUCTIONS TC36.NG06C PART# For use with: Model TC36 Series C 050411-16 TC36.NG06C 5056.427C1A...
-
Page 2: Contents Of Package
See pages 9 – 11. slot and tighten screws. (Fig. #1b) 3. Remove access cover from side of fi rebox(Fig. #1c) Fig. # 1 Fig. # 1b SCREWS Fig. # 1c TC36.NG06C 050411-16... - Page 3 Red end to the connector marked by the red dot, white end to the connector marked 2 SCREWS by the white dot Fig.#2 & Fig.#3 BULKHEAD PLATE Fig. # 3 WHITE END TO RED END TO MODULE WHITE DOT RED DOT TC36.NG06C 050411-16...
- Page 4 PILOT SUPPLY TUBE MAIN GAS SUPPLY TUBE 6. Position the slots of the grate securing Fig. # 5 brackets over the holes in the fl oor shield and secure with the two screws (Fig. # 5). TC36.NG06C 050411-16...
-
Page 5: Glowing Embers
Install the right log into the grate and pull it forward into position as shown. Place the four remaining small logs on the fl oor of the fi rebox in the positions and order as shown. TC36.NG06C 050411-16... - Page 6 Fig. # 8 LOG #2 Fig. #9 LOG #3 TC36.NG06C 050411-16...
- Page 7 Fig. #10 LOG #4 Fig. #11 LOG #5 TC36.NG06C 050411-16...
- Page 8 Fig. #12 LOG #6 Fig. #13 LOG #7 Note: Improper placement of logs will cause sooting on internal parts and glass. GRATE INSTALLATION TC36.NG06C 050411-16...
-
Page 9: Propane Conversion
Fully open the primary air shutter. The installation is not Reinstall the manifold assembly proper and complete un- til the operation of the converted appliance is checked as specifi ed in the manufacturer's instructions supplied with the kit. TC36.NG06C 050411-16... - Page 10 (Fig. #19 shows NG position, Fig. # 20 shows LP position) Fig. #20 HOLE Fig. # 21 Remove the minimum rate screw located in the valve. (Fig. #21) Minimum rate screw TC36.NG06C 050411-16...
- Page 11 14. Attach the access panel to the side of Fig #25 the fi rebox with the previously removed screws. (Fig. #25) Note: Gasket must be installed with access panel. TC36.NG06C 050411-16...
-
Page 12: Gas Pressure Check
Correct gas pressure requirement: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0" WC 12.5" WC Maximum 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11.0w" WC Minimum 2.1" WC 5.5" WC TC36.NG06C 050411-16... -
Page 13: Burner Flame Adjustment
2. Remove the log set and set aside. 3. Loosen the screw in the Primary Air Shutter. 4. Rotate the shutter to increase or decrease the amount of primary air. 5. Reassemble in reverse order. PRIMARY AIR SHUTTER TC36.NG06C 050411-16... -
Page 14: Replacement Parts
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY ......TCRP.5005025 #1..BURNER ASSEMBLY......TC36.NG06C #5..MAIN SUPPLY TUBE (FLEX) ..... 5019.223 #2..7 PCS LOG SET(TC36) ...... 5094.361712 #6..PILOT TUBE (FLEX) ......5019.225 #3.. - Page 15 TC36.NG06C 050411-16...
- Page 16 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
