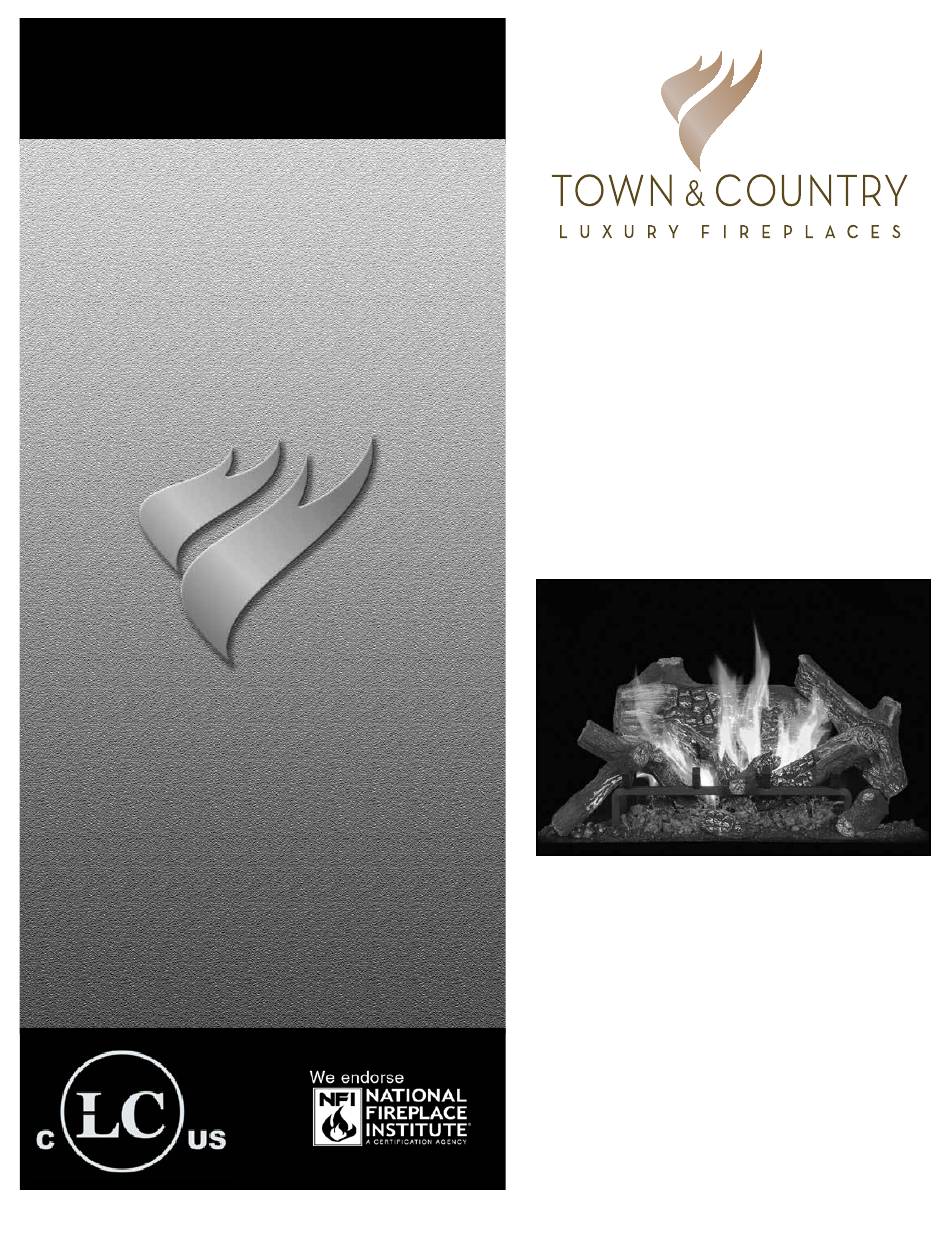

Town & Country Fireplaces TC30 Installation Instructions Manual

Heartwood burner
Hide thumbs Also See for TC30:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be kept
together. Refer to the Installation and Operating Instructions for proper
gas supply, safety requirements and operating instructions
Visit www. townandcountryfireplaces.net for the most recent version of this manual
130623-16
TC30
HEARTWOOD
BURNER INSTALLATION
INSTRUCTIONS
SKU# 22150009
FOR TC30 Series D
Fireplaces
22150009
100005906

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC30 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC30

Summary of Contents for Town & Country Fireplaces TC30

  • Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC30 HEARTWOOD BURNER INSTALLATION INSTRUCTIONS SKU# 22150009 FOR TC30 Series D Fireplaces Visit www. townandcountryfireplaces.net for the most recent version of this manual 130623-16 22150009 100005906...

  • Page 2: Contents Of Package

    Contents of Package • BURNER ASSEMBLY (including pilot and manifold) • LOG GRATE • TC30 HEARTWOOD LOGS • EMBER MATERIAL • HARDWARE PACKAGE • COAL CHUNKS • VERMICULITE Burner Installation Fig. # 1a Place the keyhole slots in the burner...
  • Page 3 Burner/ Grate Installation 4. Feed the ignition and sensor wires through Fig. # 2 the bulkhead plate (Fig. #2) to the interface module. (Fig.#3). Ignition and sensor wires Bulkhead plate Fig. # 3 Flame sensor wire (white) Ignition wire (red) Interface module SKU# 22150009 130623-16 100005906...
  • Page 4 Attach the pilot and gas supply tubes to Fig. # 3b the bulk head fitting and tighten. (Fig. # 3b) Ensure the connections are gas tight. Conceal the spark and sensor wires below the supply tubes. A panel set must now be installed. See Installation and Operating Instructions manual for details.
  • Page 5 Ember Material A large bag of ember material is shipped with the fireplace and needs to be installed on the burner to ensure optimum performance and flame appearance. A bag of coal chunks and vermiculite is also supplied this must only be used around the burner pan to cover up the gas lines and brackets.

  • Page 6: Log Placement

    Log Placement Gas plumbing and vent connections Fig. # 7 should be completed before proceeding. The logs are fragile, and should be handled with care. Unpack and inspect log set. There should be a total of seven logs. BASE LOG, #1 Position the logs as indicated by the following pictures.
  • Page 7 Fig. #9 LEFT FRONT LOG, #3 Fig. #10 LOG WITH HOLE, #4 SKU# 22150009 130623-16 100005906...
  • Page 8 Fig. #11 RIGHT CENTER LOG, #5 Fig. #12 FRONT RIGHT LOG, #6 SKU# 22150009 130623-16 100005906...
  • Page 9 Fig. #13 RIGHT BASE LOG, #7 Fig. #14 CENTER TWIG, #8 Fig. #15 CENTER BASE CHUNK, #9 SKU# 22150009 130623-16 100005906...

  • Page 10: Propane Conversion

    Propane Conversion If the unit is to be used on propane, convert as follows using the compo- nents supplied with this fireplace: Note: Factory supplied components must be used to ensure correct input. After conversion confirm proper manifold pressure. CAUTION The gas supply and electrical power must be shut off before proceeding with the conversion.
  • Page 11 Fig. # 19 With a 7/16” wrench loosen the pilot head on the pilot assembly by a half-turn (Fig. #19) Slide the pilot adjustment band over and ensure that the hole in the orifice band is showing. (Fig. #20 shows NG position, Fig.

  • Page 12: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. SUPPLY MANIFOLD Remove the plug from the manifold test...

  • Page 13: Flame Adjustment

    Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner and is preset at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature.

  • Page 14: Replacement Parts

    ITEM ..DESCRIPTION ........... PART NO. #4..PILOT ASSEMBLY......TCRP.5005025 #1..HEARTWOOD BURNER ASSEMBLY..22150009 #5..MAIN SUPPLY TUBE (FLEX) .....5019.223 #2..HEARTWOOD LOG SET ......5094.302318 *#6..PROPANE CONVERSION KIT....TC30.DLPKIT #3..ORIFICE, NATURAL GAS (#32)....5021.332A *NOT SHOWN KIT CONTENTS: #1..BURNER ASSEMBLY #3..ORIFICE, NATURAL GAS (#32) #2..
  • Page 15 SKU# 22150009 130623-16 100005906...
  • Page 16 © 2016 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
