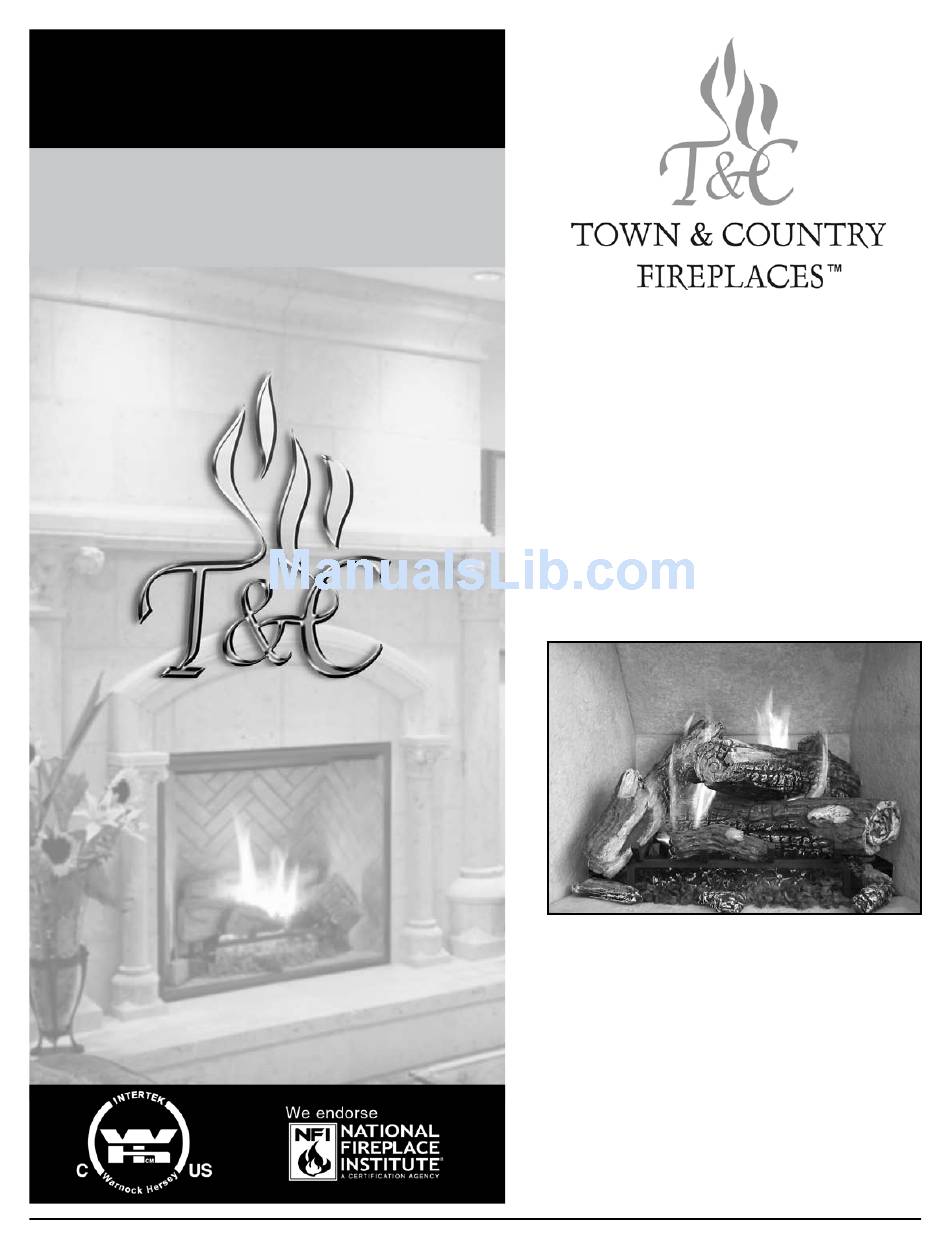

Town & Country Fireplaces TC36 Instructions Manual
Country home burner kit
Hide thumbs
Also See for TC36:
- Instruction manual (52 pages) ,
- Installation and operating instructions manual (48 pages) ,
- Installation instructions manual (20 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be
kept together. Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and operating
instructions
240309-12
TC36
COUNTRY HOME
BURNER KIT
INSTRUCTIONS
PART#
TC36.NG02.C
For TC36 & 36 Arch
Series C
TC36.NG02.C
5056.427.C2
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TC36
Summary of Contents for Town & Country Fireplaces TC36
- Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36 COUNTRY HOME BURNER KIT INSTRUCTIONS PART# TC36.NG02.C For TC36 & 36 Arch Series C 240309-12 TC36.NG02.C 5056.427.C2...
-
Page 2: Contents Of Package
(Fig. # 1) 2) Attach spark electrode (ORANGE) and Fig. # 2 sensor leads to the electrical bulk head ORANGE WIRE RED DOT (Fig. # 2). (The spark electrode connec- tion has a red dot above it). TC36.NG02.C 240309-12... - Page 3 5. Position the slots of the grate securing Fig. # 5 brackets over the holes in the floor shield and secure with the two screws (Fig. # 5). 6. Attach rear deflector to rear of grate using the two screws provided (Fig. # 6). TC36.NG02.C 240309-12...
-
Page 4: Ember Material Placement
Note: Ember material placement and amount will affect flame appearance. More ember ma- terial results in lower flame height. Add or remove as needed until desired flame affect. Fig. # 6 AIR DEFLECTOR SECURING SCREWS GLOWING EMBERS TC36.NG02.C 240309-12... -
Page 5: Log Placement
Fig #9 Fig #11 Fig #12 Fig #10 Fig #13 Fig #14 Note: Improper placement of logs will cause sooting on internal parts and glass. The logs may need to be repositioned slightly to avoid excessive flame impingement. TC36.NG02.C 240309-12... -
Page 6: Propane Conversion
With a ½” wrench remove the natural gas Fig. # 17 orifice (#30) and replace with propane orifice (#45)(our part # 5021.34) (Fig. #17) Fully open the primary air shutter. Reinstall the manifold grate and air deflector. TC36.NG02.C 240309-12... - Page 7 Insert a Minimum thin tool (knife blade or thin screwdriver rate screw blade) into the groove and gently pry the screw up. It helps to rotate the screw while lifting on it. TC36.NG02.C 240309-12...
- Page 8 Fig #25 16. Attach the access panel to the side of the firebox with the previously removed screws. (Fig. #27) Note: Gasket must be installed with access panel. TC36.NG02.C 240309-12...
- Page 9 Correct gas pressure requirement: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0" WC 12.5" WC Maximum 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TC36.NG02.C 240309-12...
-
Page 10: Flame Adjustment
4. Loosen the screw in the Primary Air Shutter. PRIMARY AIR SHUTTER (Shown in closed position for NG) 5. Rotate the shutter to increase or decrease (Fully open shutter for Propane) the amount of primary air. 6. Re assemble in reverse order. TC36.NG02.C 240309-12... - Page 11 (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY ......5005.025 #1..COUNTRY HOME BURNER ASMBY . TC36.NG02.C #5..MAIN SUPPLY TUBE ......5019.223 #2..7 PCS LOG SET ......... 5098.746108 #6..PILOT TUBE ........5019.225 #3..
- Page 12 TECHNICAL SUPPORT: 1-877-715-2664 townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
