INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be
kept together. Refer to the Installation and Operating Instructions for
proper gas supply, safety requirements and operating instructions
130616-12

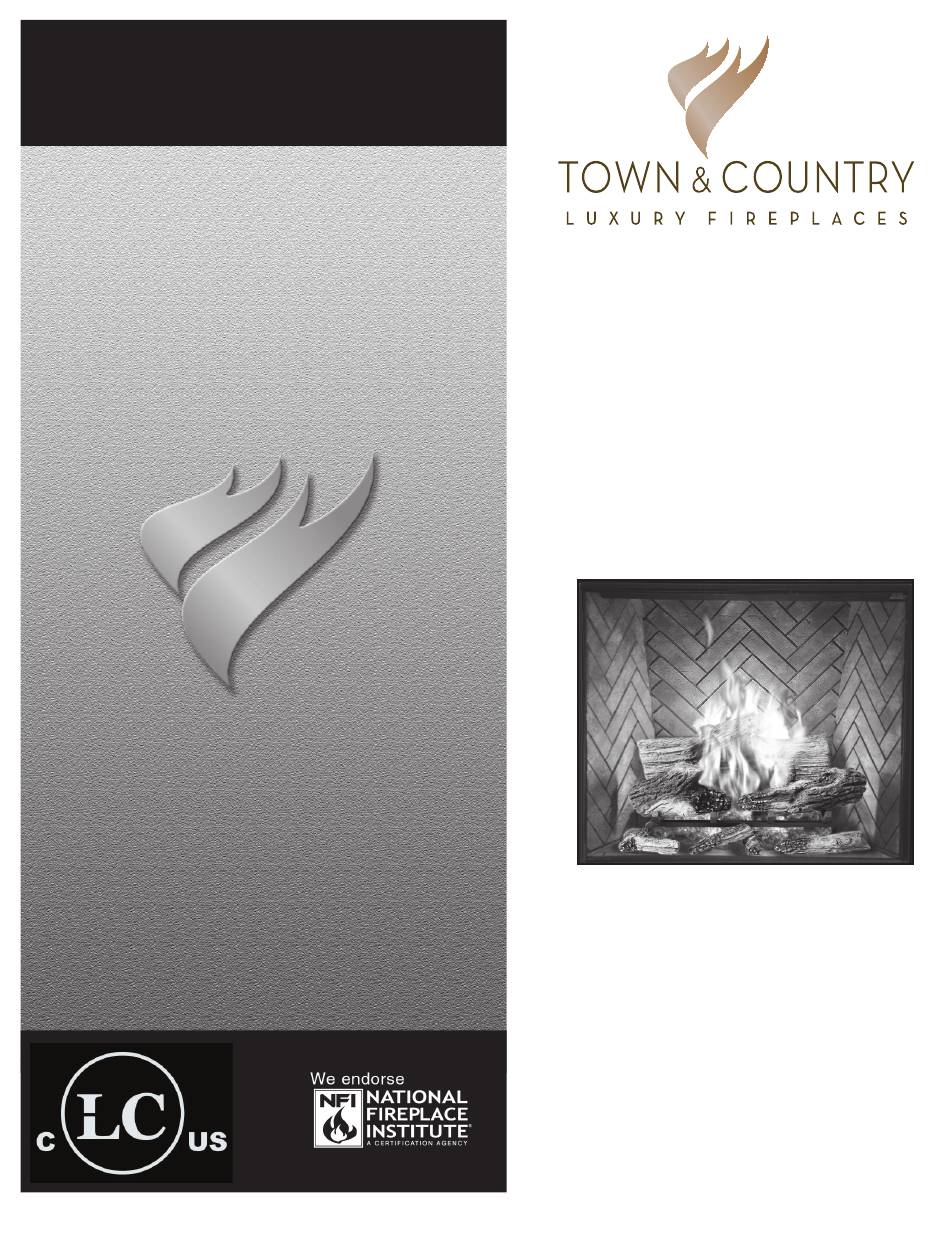

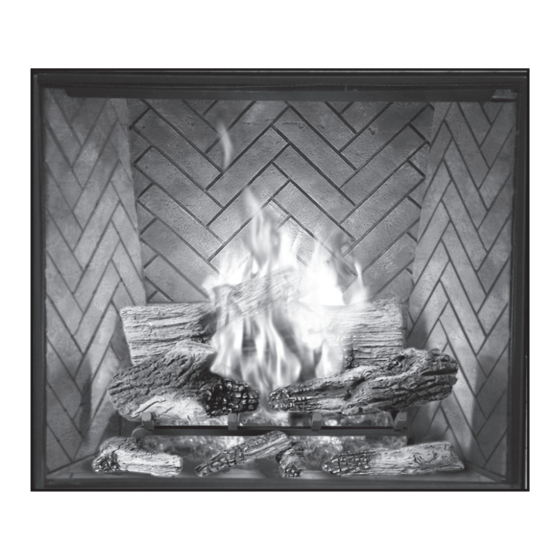

TC36
CHALET
BURNER KIT
INSTALLATION
INSTRUCTIONS
PART# TC36.NG06.D2
For TC36 & TC36 Arch
Series D Fireplaces
TC36_NG06D2
5056.427.D6
Advertisement
Related Manuals for Town & Country Fireplaces TC36.NG06.D2
Summary of Contents for Town & Country Fireplaces TC36.NG06.D2
- Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36 CHALET BURNER KIT INSTALLATION INSTRUCTIONS PART# TC36.NG06.D2 For TC36 & TC36 Arch Series D Fireplaces 130616-12 TC36_NG06D2 5056.427.D6...
- Page 2 Contents of Package • BURNER ASSEMBLY • LOG GRATE • TC36 LOGS • EMBER MATERIAL • HARDWARE PACKAGE TC36_ng06D2_130616-12...
- Page 3 Burner/ Grate Installation 1. Attach the burner assembly to the floor of Fig. # 1 the firebox with two screws. (Fig. # 1) BURNER TRAY INSTALLATION Fig. # 3 Fig. # 2 2. Attach the manifold supply tube to the bulk head fitting and tighten. (Fig. # 2) Ensure that there are no leaks.
-
Page 4: Fig. # 6
Ember Material A large bag of ember material is shipped with the fireplace and needs to be installed on the burner to ensure optimum performance and flame appearance. 1. P ull apart the material into ember size pieces (approximately 1” squares) and gently place them into the burner pan. Do not compress, leave them loose for best performance. 2. Fill the burner pan level with the top of the pan at rear, and gradually sloping forward down to the firebox floor at the front, covering both burner tubes. 3. Place remaining ember material outside of the burner pan as desired to cover-up gas lines and brackets. Note: Ember material placement and amount will affect flame appearance. More ember material results in lower flame height. Add or remove as needed until desired flame affect. - Page 5 Log Set Assembly Gas plumbing and vent connections should be completed before proceeding. The logs are are fragile and should be handled with care. Unpack and inspect log set. There should be a total of 7 logs. Position the logs as indicated by the following pictures. Place the rear log back against the tabs located at the back of the grate. Place left log as pictured, engaging the pins with corresponding holes on the underside of the log. Install the right log into the grate and pull it forward into position as shown. Place the four remaining small logs on the floor of the firebox in the positions and order as shown. Fig. # 7 Fig. # 8 LOG #2 LOG #1 Fig. #9 Fig. #10 LOG #4 LOG #3 Fig.
-
Page 6: Fig. # 14
Propane Conversion If the unit is to be used on propane, conver t as follows using the components supplied with this burner: Note: Factory supplied components must be used to ensure correct input. After conversion confirm proper manifold pressure. CAUTION The gas supply and electrical power MAIN BURNER (2.18 mm) ORIFICE (5022.92) must be shut off before proceeding... -
Page 7: Fig. # 17
7. W ith a 7/16” wrench loosen the pilot head Fig. # 17 on the pilot assembly by a half-turn (Fig. #17) Fig. # 18 8. S lide the pilot adjustment band over and ensure that the hole in the orifice band is showing. (Fig. #18 shows NG position, Fig. # 19 shows LP position) Fig. #19 HOLE For complete valve conversion installation instructions, refer to the instruction book included in the SIT conversion kit. - Page 8 Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner and is preset at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature. See Fig. #20 for proper flame pattern. Open primary air shutter if the logs, glass, and firebox have carbon accumulation and / or the flames are long, dark and stringy. The shutter may also be opened to enhance the Ember Material glow and lessen the flame height. Caution: Burner area may be hot! Turn off the fireplace and allow the unit to cool before proceeding.
- Page 9 Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. R emove the plug from the manifold test Fig #22 port.
- Page 10 Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #4..PILOT ASSEMBLY ......TCRP.5005025 #1..BURNER ASSEMBLY......TC36.NG06.C #5..MAIN SUPPLY TUBE (FLEX) ..... 5019.223 #2..7 PCS LOG SET(TC36) ...... 5094.362643 #6..PILOT TUBE (FLEX) ......5019.225 #3..
- Page 11 TC36_ng06D2_130616-12...
- Page 12 © 2016 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please call your retailer. www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
