INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions
031111-20
TC36.NGST03C

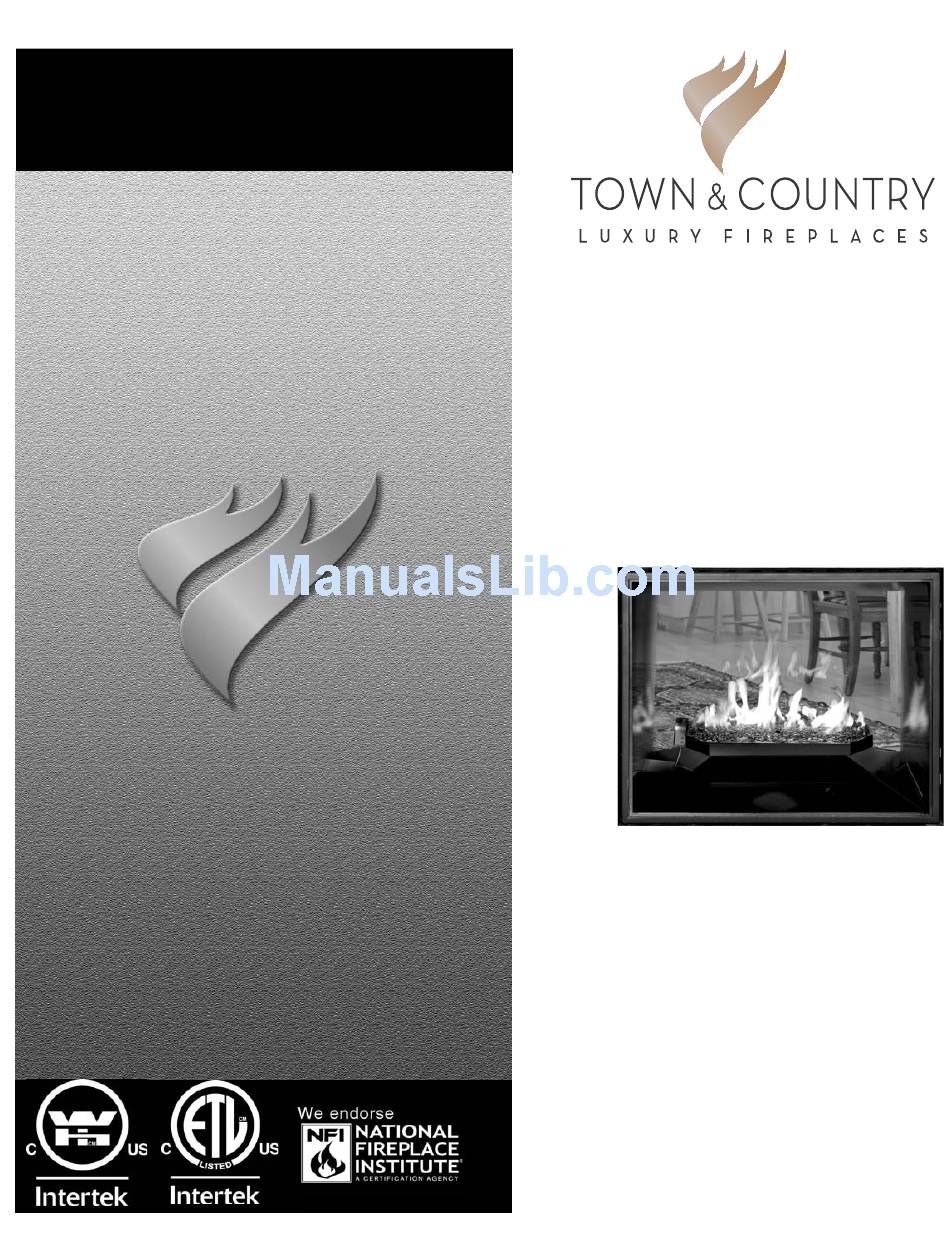

TC36 See-Thru
BLACK DIAMOND
BURNER KIT
TC36.NGST03C
PART#
FOR TC36
SEE-THRU
SERIES C
5056.42801C3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC36.NGST03C and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC36.NGST03C

Summary of Contents for Town & Country Fireplaces TC36.NGST03C

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36 See-Thru BLACK DIAMOND BURNER KIT TC36.NGST03C PART# FOR TC36 SEE-THRU SERIES C 031111-20 TC36.NGST03C...

  • Page 2: Package Contents

    2 MEDIA SPACER, FRONT/REAR ..................9695 1 MEDIA SPACER, CENTER ....................9694 1 TUMBLED GLASS MEDIA ..................5012.01 1 HARDWARE PACKAGE ................... TC36.STHK03 1 PILOT ASSEMBLY .....................5005.025 1 1/4” FLEX COMPRESSION ..................5019.225 1 1/2” FLEX FLARE CONNECTION ................5019.223 Fig. # 1 TC36.NGST03C 031111-20...
  • Page 3 Seal the remaining holes in the fl oor of the fi replace with screws. (Fig. #3). 3. Connect the manifold fl ex gas line and pilot fl ex gas line to the bulkhead ensuring a gas-tight connection. TC36.NGST03C 031111-20...
  • Page 4 #4 & 5) BULKHEAD PLATE NOTE: If converting to propane refer to the propane conversion section before continuing. Pg. 12 Fig. # 5 MODULE WHITE END TO RED END TO WHITE DOT RED DOT TC36.NGST03C 031111-20...
  • Page 5 Install the right porcelain panel (as in Fig. #2). Fig. # 7 6. Position the right burner shield over the inlet cover ensuring that the pilot assembly is protruding through the half-hole between the inlet cover and the right burner shield (Fig. #7). TC36.NGST03C 031111-20...
  • Page 6 (Fig. #8). Fig. # 9 8. Install the front burner shield positioning the support tab under the right burner shield (Fig. #9). TC36.NGST03C 031111-20...
  • Page 7 Fig. # 11 10. Position the burner tray assembly on top of the assembled shields and attach it using four screws (Fig. #11). NOTE: Ensure that the square access hole of the tray is positioned to the right (control side). TC36.NGST03C 031111-20...
  • Page 8 11. Attach the pilot assembly to burner Fig. # 12 tray using two screws (Fig. #12). Fig. # 13 12. Position a front/rear media spacer at the rear of the burner tray (Fig. #13). TC36.NGST03C 031111-20...
  • Page 9 14. Loosen the screw on the burner tube shutter enough to allow smooth movement from open to closed positions (visible in Fig. #16). 15. Install the burner tube by tipping the inlet into the slot in the bottom of the burner tray (Fig. #15). TC36.NGST03C 031111-20...
  • Page 10 Some adjustment may be required (see page 17). Fig. # 17 18. Position the center media spacer on the inside of the burner tube and attach using two long screws (Fig. #17). TC36.NGST03C 031111-20...
  • Page 11 (Fig. #18) and spread the glass evenly over top of the tube and media spacers (Fig. #19). NOTE: Too much tumbled glass over the burner will cause sooting. Fig. # 19 TC36.NGST03C 031111-20...

  • Page 12: Propane Conversion

    (Fig. #21) The gas supply and electrical power shall be shut off before proceeding with the conversion. If the unit is to be used on propane convert as follows using the Fig #22 components supplied with this fi replace: TC36.NGST03C 031111-20...
  • Page 13 Slide the pilot adjustment band over and Fig #23 ensure that the hole in the orifi ce band is showing. (Fig. #23 indicates NG position, Fig. #24 indicates LP position) Fig #24 Remove access panel, 10 screws, and set aside. (Fig. #22) HOLE TC36.NGST03C 031111-20...
  • Page 14 Insert a thin tool (knife blade or thin screwdriver blade) into the groove and gently pry the screw up. It helps to rotate the screw while lifting on it. Minimum rate screw TC36.NGST03C 031111-20...
  • Page 15 10) Remove the aluminum cap from the top Fig #27 of the pressure regulator. (Fig. #27) 11) Press down on the center post and rotate 90°. The center post should stay down. (Fig. #28). Replace the aluminum cap. Fig #28 TC36.NGST03C 031111-20...

  • Page 16: Gas Pressure Check

    (Fig. #30) 3) Attach a pressure gauge onto the fi tting. 4) When testing is complete shut of the gas, remove the fi tting and replace the plug. Thread sealant will be required to ensure a gas tight connection. TC36.NGST03C 031111-20...

  • Page 17: Burner Flame Adjustment

    Fig #32 create a more yellow fl ame. NOTE: Proper air shutter setting is required. The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. TC36.NGST03C 031111-20...

  • Page 18: Replacement Parts

    16 ..1/2” FLEX TUBE ......5019.223 8..BURNER SHIELD, RIGHT....9693.5 17 ..BURNER SHIELD, LEFT ....9693.2 9..BURNER SHIELD, FRONT/REAR ..9693 18 ..BURNER TRAY ........9690 HARDWARE PACKAGE ......TC36.STHK03 FITTING, ORIFICE IN 5019.21 10 ........Not sold separately TC36.NGST03C 031111-20...
  • Page 19 Notes TC36.NGST03C 031111-20...
  • Page 20 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
