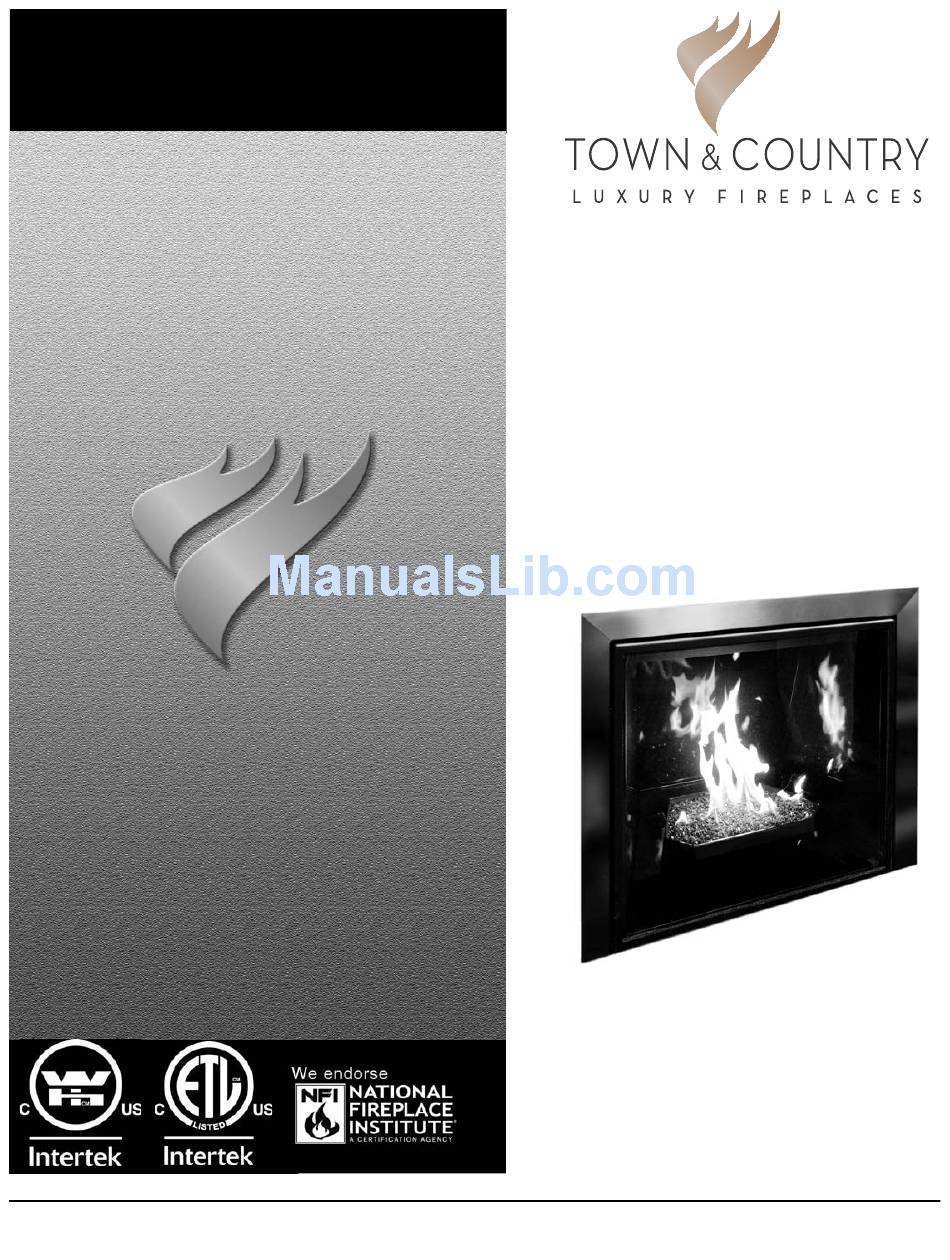

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fi replace and should be
kept together. Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and operating
instructions
290411-20

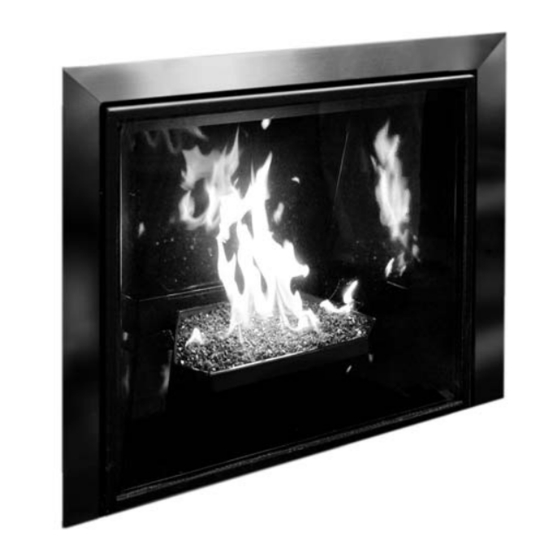

TC36
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
PART #TC36.NG03C
For use with:
Model: TC36
Series: C
TC36.NG03C
5056.427C3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC36.NG03C and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC36.NG03C

Summary of Contents for Town & Country Fireplaces TC36.NG03C

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36 BLACK DIAMOND BURNER KIT INSTRUCTIONS PART #TC36.NG03C For use with: Model: TC36 Series: C 290411-20 TC36.NG03C 5056.427C3...

  • Page 2: Hardware Package

    1) Remove 2 screws from the air channel and attach the lower rear panel to the fi rebox with these screws. (Fig. # 1) NOTE: The burner shield may need to be loosened and re-tightned after positioning if the panel does not slip in behind it. TC36.NG03C 290411-20...
  • Page 3 (Fig. # 2) Fig. # 3 3) Attach the manifold and pilot supply tubes to the bulk head fi tting and tighten. (Fig. # 3) Ensure that all connections are gas tight. TC36.NG03C 290411-20...
  • Page 4 #4 & 5) BULKHEAD PLATE NOTE: If converting to propane refer to the propane conversion section before continuing. Pg. 12 Fig. # 5 MODULE WHITE END TO RED END TO WHITE DOT RED DOT TC36.NG03C 290411-20...
  • Page 5 (Fig. # 6) Fig. # 7 6) Position upper rear panel on top of lower rear panel and slip in behind the right panel. (Fig. # 7) TC36.NG03C 290411-20...
  • Page 6 (Fig. # 8) Fig. # 9 8) Install burner shield by tipping the shield into the fi rebox, feed the pilot assembly through the opening in the shield. (Fig. # 9) TC36.NG03C 290411-20...
  • Page 7 (Fig. # 10) Fig. # 11 10) Attach the burner tray to the burner shield using two screws at the back of the tray. (Fig. # 11) Ensure that front mounting holes are aligned inder tray before tightening. TC36.NG03C 290411-20...
  • Page 8 11) Install front and rear media spacers. Fig. # 12 (Fig. # 12 & 13) Fig. # 13 TC36.NG03C 290411-20...

  • Page 9: Inlet Tube

    Ensure that the orifi ce has entered the tube. (Fig. # 14 & 15) Set the air shutter to fully open for Propane or fully closed for Natural gas. Fig. # 15 ORIFICE INLET TUBE TC36.NG03C 290411-20...
  • Page 10 # 16) Four holes must line up to set each screw. Some pressure may need to be applied to the front tray support on the shield to align the holes. (Fig. # 17) Fig. # 17 TC36.NG03C 290411-20...
  • Page 11 14) Apply just enough glass media to Fig. # 18 cover the burner assembly. (Fig # NOTE: Too much glass media over the burner will cause sooting with the use of propane gas TC36.NG03C 290411-20...

  • Page 12: Propane Conversion

    (Fig. #20) The gas supply and electrical power shall be shut off before proceeding with the conversion. If the unit is to be used on propane convert as follows using the components supplied with this fi replace: TC36.NG03C 290411-20...
  • Page 13 Slide the pilot adjustment band over and Fig #21 ensure that the hole in the orifi ce band is showing. (Fig. #21 indicates NG position, Fig. #22 indicates LP position) Fig #22 Remove access panel, 10 screws, and set aside. (Fig. #23) HOLE TC36.NG03C 290411-20...
  • Page 14 Insert a thin tool (knife blade or thin screwdriver blade) into the groove and gently pry the screw up. It helps to rotate the screw while lifting on it. Minimum rate screw TC36.NG03C 290411-20...
  • Page 15 10) Pull off the aluminum cap from the top Fig #25 of the pressure regulator. (Fig. #25) 11) Press down on the center post and rotate 90°. The center post should stay down. (Fig. #26). Replace the aluminum cap. Fig #26 TC36.NG03C 290411-20...
  • Page 16 Fig #27 13) Attach the access panel to the side of the fi rebox with the previously removed screws. (Fig. #27) Note: Gasket must be installed with access panel. TC36.NG03C 290411-20...

  • Page 17: Gas Pressure Test

    Fig. # 29 CORRECT GAS PRESSURE REQUIREMENT: Supply Pressure Natural Gas Propane (For purpose of input adjustment) Minimum 5.0” wc 12.5” wc Maximum 13.9” wc 13.9” wc Manifold Pressure Maximum 3.8” wc 11.0” wc Minimum 2.1” wc 5.5” wc TC36.NG03C 290411-20...

  • Page 18: Burner Flame Adjustment

    The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. Allow the fi replace to run for 30 minutes before evaluating fl ame appearance. Fig. # 30 TC36.NG03C 290411-20...

  • Page 19: Replacement Parts

    HARDWARE PACKAGE ........TC36.HK03 4.... MANIFOLD ........TC36.9788WLD 5.... DORMONT FITTING ......5019.221 6.... MEDIA SPACER, REAR........ 9634 Not sold separately 7.... PILOT SHIELD ........9626.002 8.... MEDIA SPACER, CENTER ....9635.001 9.... MEDIA SPACER, FRONT ......9634.5 TC36.NG03C 290411-20...
  • Page 20 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
