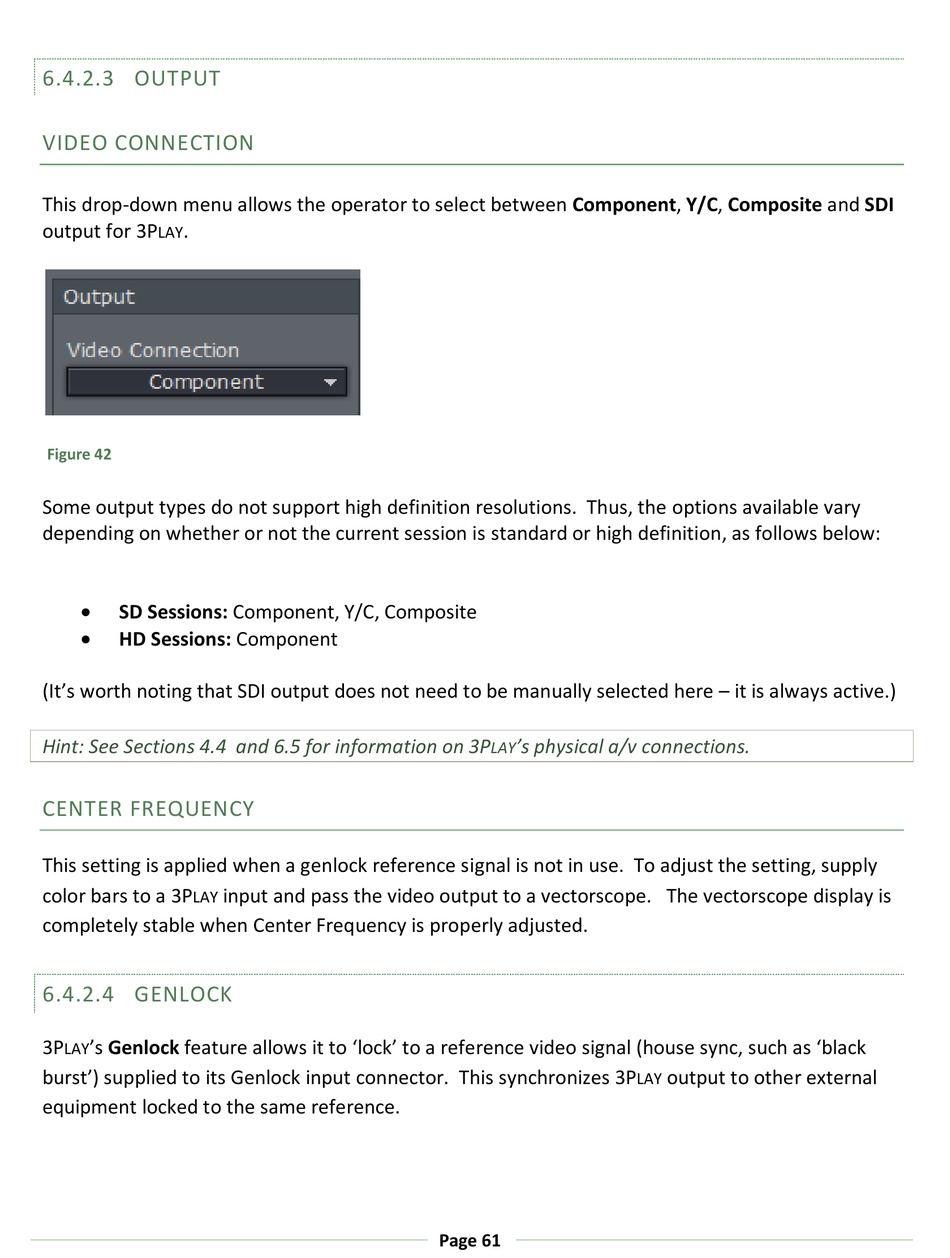

NewTek 3play User Manual page 67

6.4.2.3 OUTPUT
VIDEO CONNECTION
This drop-down menu allows the operator to select between Component, Y/C, Composite and SDI
output for 3P .
LAY
Figure 42
Some output types do not support high definition resolutions. Thus, the options available vary
depending on whether or not the current session is standard or high definition, as follows below:

SD Sessions: Component, Y/C, Composite

HD Sessions: Component
(It's worth noting that SDI output does not need to be manually selected here – it is always active.)
Hint: See Sections 4.4 and 6.5 for information on 3P
CENTER FREQUENCY
This setting is applied when a genlock reference signal is not in use. To adjust the setting, supply
color bars to a 3P
LAY
completely stable when Center Frequency is properly adjusted.
6.4.2.4 GENLOCK
3P 's Genlock feature allows it to 'lock' to a reference video signal (house sync, such as 'black
LAY
burst') supplied to its Genlock input connector. This synchronizes 3P
equipment locked to the same reference.
input and pass the video output to a vectorscope. The vectorscope display is
's physical a/v connections.
LAY
Page 61
