And of course, from 3P
switching and/or recording devices.
IMPORTANT NOTES:
 THE DISPLAY CAPABILITIES OF ALL OUTPUT VIDEO DEVICES CONNECTED TO
3PLAY FOR A GIVEN SESSION MUST MATCH THE SESSION INPUT SETTINGS.
 THE OUTPUT TYPE SETTING IN THE I/O CONFIGURATION PANEL MUST
CORRESPOND TO THE CONNECTED DEVICES (SEE SECTION 4.4.3).

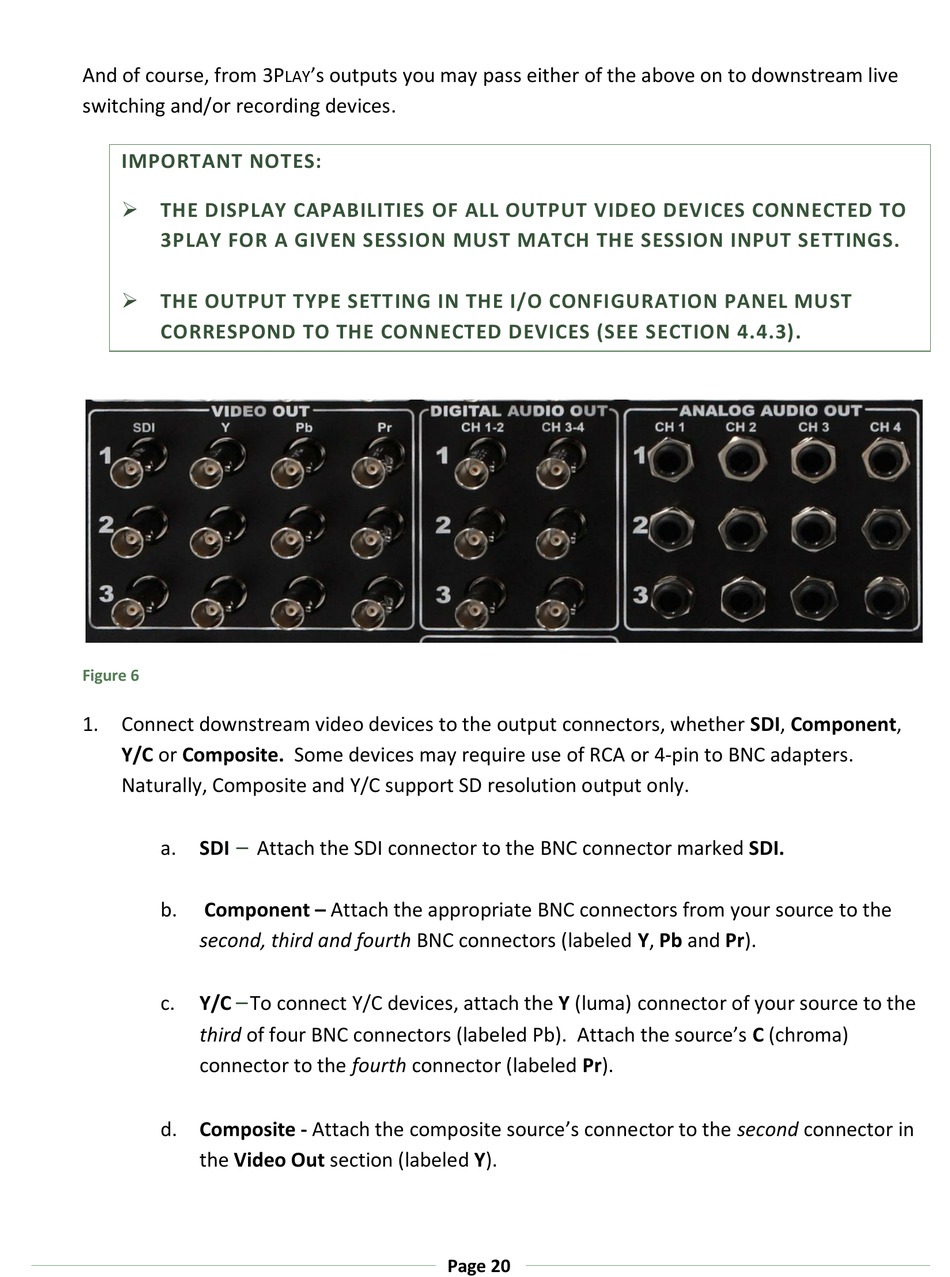

Figure 6
1. Connect downstream video devices to the output connectors, whether SDI, Component,
Y/C or Composite. Some devices may require use of RCA or 4-pin to BNC adapters.
Naturally, Composite and Y/C support SD resolution output only.
–
a. SDI Attach the SDI connector to the BNC connector marked SDI.
b. Component – Attach the appropriate BNC connectors from your source to the
second, third and fourth BNC connectors (labeled Y, Pb and Pr).
–
c. Y/C To connect Y/C devices, attach the Y (luma) connector of your source to the
third of four BNC connectors (labeled Pb). Attach the source's C (chroma)
connector to the fourth connector (labeled Pr).
d. Composite - Attach the composite source's connector to the second connector in
the Video Out section (labeled Y).
's outputs you may pass either of the above on to downstream live
LAY
Page 20
