CONFIGURING INPUTS

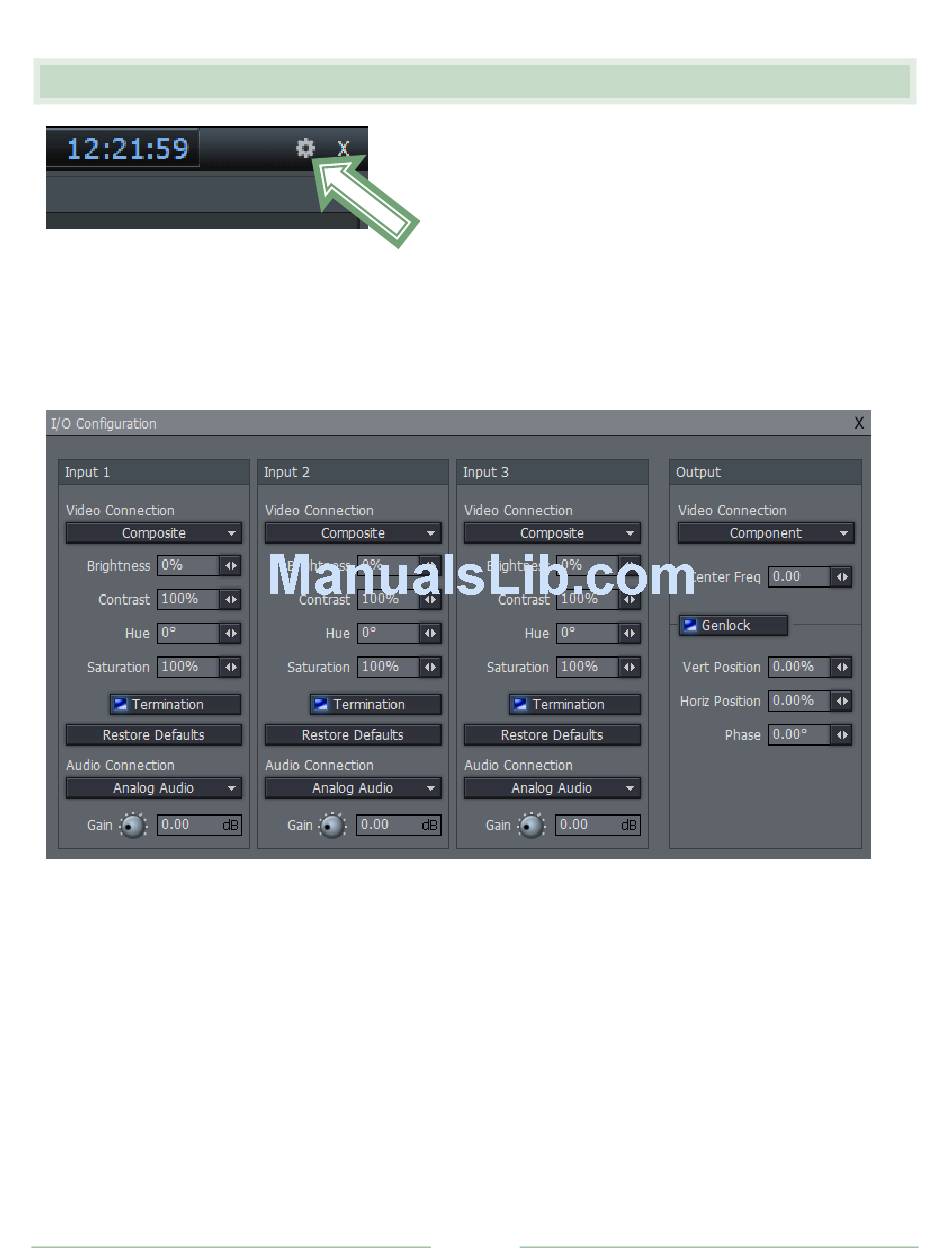

Figure 13
3P needs to know what sort of video sources are connected to it. Click the gear icon (Figure 13)
LAY
next to the Close button in the upper-right corner of the 3P Desktop. This opens the I/O
LAY
Configuration panel (Figure 14).
Figure 14
Use the Video
drop-down menu to identify your sources by connection type, choosing between Composite,
Y/C, Component or SDI (Composite and Y/C options are shown in the menu for Standard Definition sessions
only).
Click the LIVE button on the 3P-10 control surface (note that 3P will automatically begin a/v
LAY
recording). If you have connected one or more video sources to 3P and at least one monitor
LAY
connected on output, you should now see one of the source video streams on your external output
monitor.
