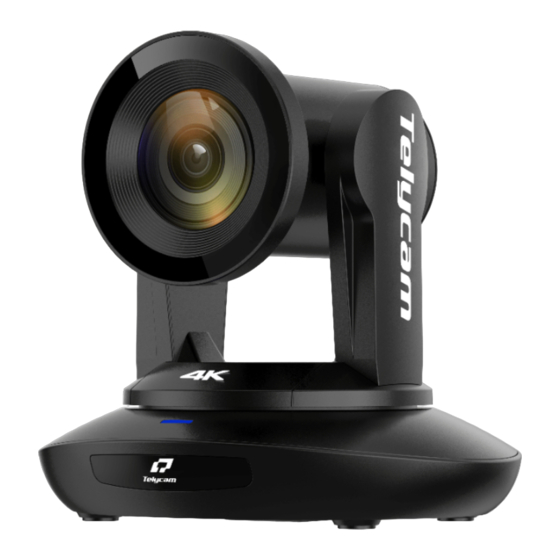

35X4K NDI UHD PTZ Video Camera
User Manual
Version V4.0
（English）
J.BC.0205.0101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 35X4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NewTek 35X4K

Summary of Contents for NewTek 35X4K

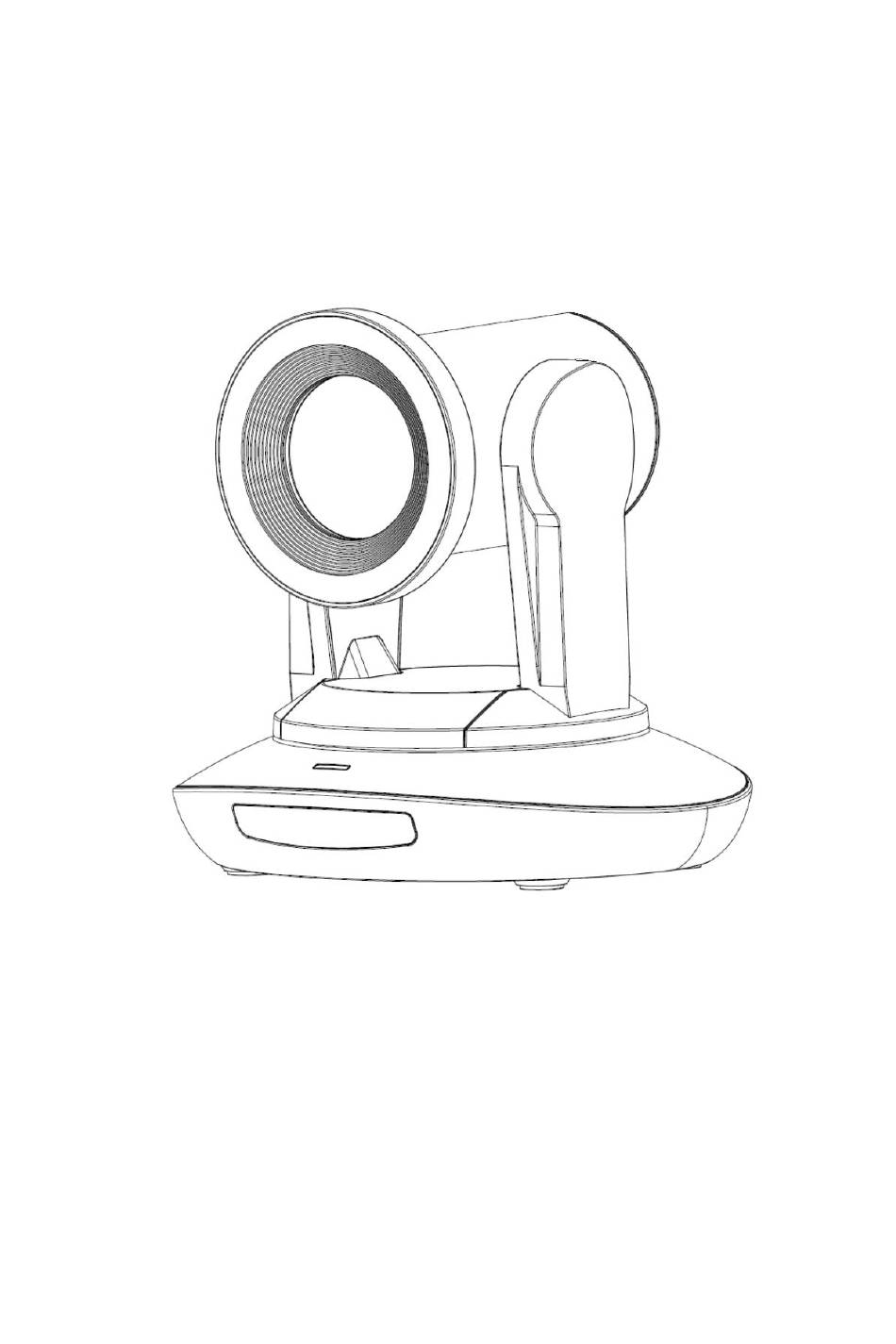

  • Page 1 35X4K NDI UHD PTZ Video Camera User Manual Version V4.0 （English） J.BC.0205.0101...

  • Page 3: Table Of Contents

    CAMERA INTERFACE..................................6 CAMERA DIMENSION..................................6 IR REMOTE CONTROLLER................................7 VISCA IN（RS232 PORT)...................................9 VISCA PROTOCOL..................................10 PELCO-D PROTOCOL..................................19 PELCO-P PROTOCOL..................................20 OSD MENU......................................21 UVC CONTROL....................................25 WEB SETTING....................................26 VIEW RTSP VIDEO VIA VLC................................31 NEWTEK TOOLS GUIDE................................32 VISCA OVER IP....................................34...

  • Page 4: Safety Guides

    SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240V AC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12V DC, rated currency is 2A.

  • Page 5: Packing List

    PACKING LIST Check all bellow items when open the package: Camera······················································································1 Power Adapter············································································· 1 Power Cable················································································1 RS232 Control Cable····································································· 1 USB3.0 Cable··············································································1 Remote Controller·········································································1 User Manual··············································································· 1 Double-sided Adhesive··································································· 1 QC certification············································································1 QUICK START 1.Check all cable connections before power on. 2.Dial Switch Setting (at the bottom of the camera): Dial Switch(ARM) SW-1...

  • Page 6: Product Highlights

    4K wide angle optical lens: 35x optical zoom, with 60 degree field of view.  4K video over IP, H.264, H.265 encoding.  Support NewTek NDI V4.5 video transmission and control.  NDI|HX, HDMI, 3G-SDI, USB outputs, fit for different application, 4K video streaming over IP and HDMI optional. ...
  • Page 7 Rotation Speed Pan: 0°~120°/s ; Tilt: 0°~80°/s Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1° Control Port RS232, RS485, NDI|HX(VISCA over IP), USB3.0(UVC1.5), USB2.0(UVC1.1) Network Speed 1000M Video encode H.264/H.265 Bit Rate Control Variable Bit Rate, Constant Bit Rate Video Bit Rate 1024Kbps~51200Kbps IP Protocol TCP/IP, HTTP, RTSP, DHCP, RTMP, Onvif...

  • Page 8: Camera Interface

    CAMERA INTERFACE 1. Camera Lens 6. Tripod Screw Hole 11. 3G-SDI port 2. Camera Base 7. Installation Hole 12. USB port 3. IR Receiver Panel 8. RS232 control port (in put) 13. NDI|HX port 4. Power Indicator Light 9. RS232 control port(out put) 14.

  • Page 9: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE Short press FREEZE key to freeze/ unfreeze the image.
  • Page 10 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD. OK /HOME KEY Under working mode, short press OK to make the camera go back to HOME position;...

  • Page 11: Visca In（Rs232 Port)

    VISCA IN （RS232 PORT） Function VISCA IN RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Mini DIN Camera VISCA IN Windows DB-9 A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:...

  • Page 12: Visca Protocol

    VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address+8 Error Messages Command Packet Note Returned when the command format is different or when a command with illegal Syntax Error z0 60 02 FF...
  • Page 13 Command type function command Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High) CAM_Focus Near (Variable) 8x 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF...
  • Page 14 Command type function command Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position (0~0x15) Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting(0~0xD) CAM_Iris Down 8x 01 04 0B 03 FF...
  • Page 15 Command type function command 8x 01 06 A0 02 FF CAM_Speed By Zoom 8x 01 06 A0 03 FF CAM_PT Speed PT Speed 8x 01 04 C1 00 00 0p 0q FF pq:PT speed 0x05~0x18 CAM_Zoom Speed Zoom Speed 8x 01 04 D1 00 00 0p 0q FF pq:Zoom speed 0x01~0x07 8x 01 06 C2 02 FF...
  • Page 16 Command type function command 720P2997 0x0f 1080P24 0x2a 1080P2398 0x2b 4K@30 0x1D 4K@25 0x1E CAM_ID Write 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) DHCP off 8x 01 04 AE 00 FF DHCP off DHCP control DHCP on 8x 01 04 AE 01 FF...
  • Page 17 Command type function command Flare mode green value Flare green 8x 01 04 B9 dat FF Default is 32 Flare mode blue value Flare green 8x 01 04 BA dat FF Default is 32 Menu On 8x 01 06 06 02 FF Turn on the menu Menu Off 8x 01 06 06 03 FF...
  • Page 18 y0 50 02 FF Auto Focus CAM_Focus Mode Inq 8x 09 04 38 FF y0 50 03 FF Manual Focus CAM_Focus Pos Inq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position (0~0x01) CAM_2D_Inq 8x 09 04 A5 FF y0 50 03 FF p: 0: off...
  • Page 19 CAM_Flare Green 8x 09 04 B9 FF y0 50 pp FF CAM_Flare Blue 8x 09 04 BA FF y0 50 pp FF y0 50 ab cd CAM_Version Inq 8x 09 00 02 FF mn pq rs tu vw FF Video System Inq(Factory) 8x 09 06 23 FF y0 50 pp FF pp: Video format...
  • Page 20 VISCA PAN TILT ABSOLUTE POSITION VALUE Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Pan(Degree/Second))

  • Page 21: Pelco-D Protocol

    PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 22: Pelco-P Protocol

    PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0...

  • Page 23: Osd Menu

    OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2. After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options.
  • Page 24 R GAIN Red gain level: 0~255, only valid under manual white balance mode Default：AUTO IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode Default：AUTO FLICK Anti-Flicker setting:50/60HZ, to reduce the video flicker Default：50HZ DZOOM ON/OFF Default：OFF FOCUS Select focus mode...
  • Page 25 FORMAT 720P59.94 720P50 After selecting the system, press OK to switch the system. If it is the currently selected system, it will not be activated. 720P29.97 720P25 1080P60 1080P30 720P60 720P30 1080I60 1080P24 DHCP ON/OFF 192.168.001.188 MASK 255.255.255.000 Using up/down/left/right navigation button to select GW (Gateway) 192.168.001.001 item to set, and using number button to set...
  • Page 26 Set IP Address in Menu In order to facilitate customer debugging, the camera has the support menu to set IP address. The specific methods are as follows: 1.Press "MENU" to open the menu interface, select "network parameters" in the menu to call up the IP setting interface: 2.Right click the remote control to enter the IP setting interface, and select the parameters to be set by using the navigation up and down keys, and then select the IP address, mask, gateway: 3.Short press the number key to set the corresponding parameters.

  • Page 27: Uvc Control

    UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3.

  • Page 28: Web Setting

    WEB SETTING It is not necessary to install additional video player plug-in to preview the local screen on the web interface. The web interface supports Google Chrome, Firefox, IE, Safari, Opera, 360, QQ and other browsers, adaptability is very good. 1.Login Run browser, input IP address( defaulted IP address is 192.168.1.188), to enter login interface, can select Language (Chinese or English), input admin and password to login as following: (Default Username: admin...
  • Page 29 “Video Encode”: can set image encode mode, main stream and sub stream resolution/bit rate/frame rate, bit rate control way, and I frame interval etc as above image "video Transmission":RTMP and NDI settings are available, as shown in the following figure: "Audio Settings"...
  • Page 30 “Image Parameter”can set focus, exposure, white balance, image, image quality, noise-reduction, as following picture. Focus including focus mode, default focal distance, digital zoom etc. Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain.
  • Page 31 Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Quality includes brightness, sharpness, contrast, saturation. Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet” includes DHCP mode, IP address,Netmask, Gateway, Http Port, RTSP Port, Visca Over IP. Default parameter as following: DHCP Gateway...
  • Page 32 Reset to default : reset the camera to default setting Reset simply: reset camera image parameter Reset Completelyall: reset camera Ethernet and image parameter, language and protocol will not be reset. Reboot: Reboot ISP part of camera Account Setting: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login.

  • Page 33: View Rtsp Video Via Vlc

    VIEW RTSP VIDEO VIA VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming address: rtmp://192.168.1.188:1935/app/rtmpstream1 1, Run VLC Media Player. 2, Media->network stream, to enter into “open media” interface. 3, Input RTSP address in URL as following: 4, Click play to view the real time image.

  • Page 34: Newtek Tools Guide

    NewTek Tools Guide 1. Image Preview https://ndi.tv/tools/ A. Download the NewTek NDI Tools via and install it. B. Find out the NDI 4.5 Tools/Studio Monitor via Windows toolbars, and then open it, as bellow: C. Right click on the Studio Monitor screen, select the preview device: 2.
  • Page 35 B. Right click on the NDI Virtual Input icon, to select the virtual device name: C. Take Zoom for example, select NewTek NDI Video as video camera, as bellow picture shows: This also work for other applications, such as GotoMeeting,Skype for Business, Hangouts.

  • Page 36: Visca Over Ip

    VISCA OVER IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: Control port: RJ45 Gigabit LAN  IP protocol: IPv4  Transmit protocol: UDP ...
  • Page 37 Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 0) Value (Byte 0) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA VISCA reply 0x01...
  • Page 38 Name Value Description RESET 0x01 Resets the sequence number to 0. The value that was set as the sequence number is ignored. ERROR 0x0Fyy yy=01:Abnormality in the sequence number. yy=02:Abnormality in the message(message type). Controlled reply  The following data is saved in return command payload of control command. Message Value Description...
  • Page 39 Sequence chart as following Sequence chart when command lost Sequence chart when returned message lost Note: Do not set IP address, sub net mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
