Summary of Contents for Cypress CHQV-2H
- Page 1 CHQV-2H HDMI to HDMI Scaler Box Operation Manual CHQV-2H...
- Page 2 Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice. Copyright Notice...
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Remote Control .......…..……………..…..…..…... Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This Scaler Box is designed for the Blu-ray DVD players, Digital TV, Cable and Satellite Set-Top Box (STB), Internet Digital Media Adapters, Audio-Video Receivers and Digital Recorders markets. This Scaler Box is unlike anything you have ever purchased. Giving you the freedom to enjoy the full benefits of high resolution video by recreating a cinema like experience in the comfort of your home, this device is a worthy addition to any home entertainment system. -
Page 6: Features
5. Features Full HQV quality de-interlacing Improved adaptive motion processing for difficult and poor quality video scenes Temporal Noise Reduction (TNR)-Reduces noise caused by on film grain, random noise, sensor noise and light fluctuations Block Artifact Reduction (BAR)-Reduces Compression block artifact ... -
Page 7: Specifications
6. Specifications Frequency bandwidth 2.25Gbps Input port 1 x HDMI Output port 1 x HDMI Output Resolution 480p@50/60Hz, 720p@50/60Hz, 1080p@50/60Hz Power Supply 5VDC/1.2A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 110(W) x 65(D) x 26(H) Weight(g) -

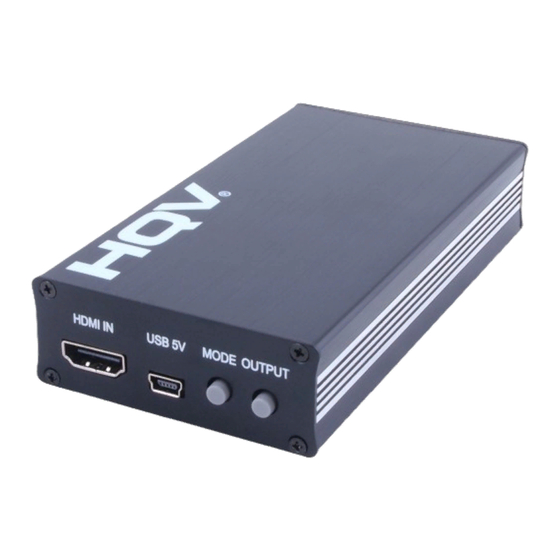

Page 8: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel HDMI IN HDMI IN USB 5V USB 5V MODE OUTPUT MODE OUTPUT ① ② ③ ④ ① HDMI IN: Connect this HDMI input connector to the HDMI output connector of your HDMI source equipment using certified HDMI cable or connect this HDMI input connector to the DVI output of your DVI source equipment using DVI cable together with DVI to HDMI adaptor. -
Page 9: Rear Panel
7.2 Rear Panel 1080P 1080P AUTO AUTO HDMI OUT HDMI OUT 720P 720P HIGH HIGH 480P 480P ① ② ① HDMI out: Scaled digital HDMI output. Connect this output to the HDMI display and the output resolution support -1080p, 720p and 480p. ②... -
Page 10: Remote Control
8. Remote control ① 480P: Force 480p output from the IDT HQV Matchbox. OUTPUT ② 720P: Force 720p output from the IDT HQV 480P 720P 1080P Matchbox. ① ③ ③ 1080P: Force 1080p output from the IDT ② HQV Matchbox. MODE ④... -
Page 11: Acronyms
Acronyms Acronym Complete Term HDMI High-Definition Multimedia Interface High Quality Video... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110211 MPM-CHQV2H...
