Summary of Contents for Cypress CP-259H
- Page 1 CV/SV/PC/HD/HDMI 1080p Scaler Box Operation Manual CP-255I...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Package Contents ................4. Operation Controls and Functions ............ 4.1 Front Panel..................4.2 Rear Panel..................4.3 OSD Operation................4.4 Remote Control................5. CP-255I RS-232 Remote Control Protocol ......... 6. Specifications ..................6.1 General Specification.............. -
Page 4: Introduction
HDMI combining with the video, or Coaxial S/PDIF separately. Cypress CP-255I has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. -
Page 5: Operation Controls And Functions

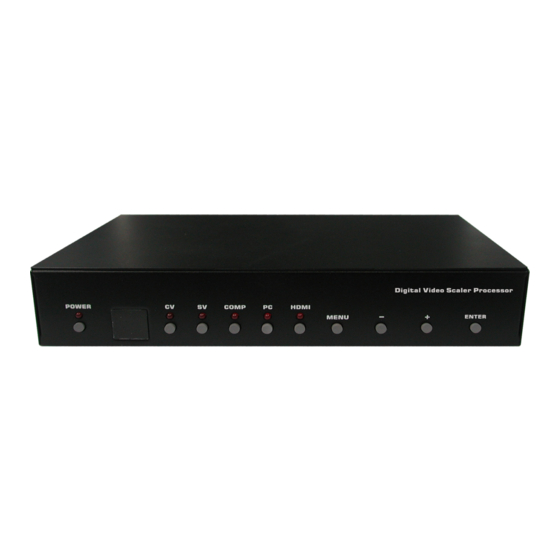

4. Operation Controls and Functions 4.1. Front Panel 1. POWER Button and LED Indicator: Press the button to turn ON/OFF the power of the unit. The LED will illuminate when the power is turned on. 2. IR remote control sensor. 3. - Page 6 1. HDMI OUT and CO-AX OUT: Connect the HDMI OUT port to the HDMI input port of your display such as HDTV. Connect the CO-AX OUT port to the Coaxial (S/PDIF) input port of your amplifier for separate digital audio output. 2.
-
Page 7: Osd Operation
4.3. OSD Operation Tier Option Tier Option Adjustment VIDEO - PICTURE MODE USER / STANDARD / VIVID / MOVIE - CONTRAST 0 ~ 100 of Contrast Level - BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS... -
Page 8: Remote Control
4.4. Remote Control 1. POWER: Press the button once to power on the CP-255I. Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD Input: Press the button to directly select component input. -
Page 9: Cp-255I Rs-232 Remote Control Protocol
5. CP-255I RS-232 Remote Control Protocol * The connection between CP-255I and remote controller with RS-232 modem cable. Pins definition of modem cable CP-255I Remote Controller Definition Definition * RS-232 transmission format: Baud Rate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit... - Page 10 (A) Set Commend: Command Code Response Description S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE CV CV INPUT S SOURCE 1 > SOURCE SV SV INPUT S SOURCE 2 >...
- Page 11 (B) Status Commend : Command Code Response Description R POWER > POWER ON SHOW POWER STATUS R SOURCE > SOURCE CV~HDMI SHOW SOURCE STATUS R OUTPUT > OUTPUT NATIVE~WUXGA SHOW OUTPUT STATUS R SIZE > SIZE FULL~PANSCAN SHOW SIZE STATUS R PICTUREMODE >...
-
Page 12: Specifications
6. Specifications 6.1. General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: Composite x 1 / L/R x 1 S-Video x 1 / L/R x 1 Component (3 RCA) x 1 / L/R x 1 PC D-Sub (15-pin) x 1 / 3.5mm Phone Jack x 1 HDMI x 1 / 3.5mm Phone Jack x 1 (for DVI) Coaxial (S/PDIF) x 1 * Output Ports:... -
Page 13: Connection And Installation
7. Connection and Installation HDMI Composite S-Video Component PC-in Cable... - Page 16 Cypress Scaler Box Series: Product INPUT OUTPUT Highest Resolution CP-259H HDMI HDMI 1080p Video/S-Video/PC/ CP-255I HDMI 1080p YPbPr/YCbCr/HDMI YPbPr/YCbCr/PC/ DVI-D CP-255H 1080p DVI-D/HDMI HDMI YPbPr/YCbCr/PC/ CP-255D 1080p DVI-D DVI-D Video/S-Video/ YPbPr/HDTV CM-394 1080i SCART RGB/PC Video/S-Video/ CM-393S HDMI 1080i SCART/HDMI...
