Summary of Contents for Cypress CV-401V

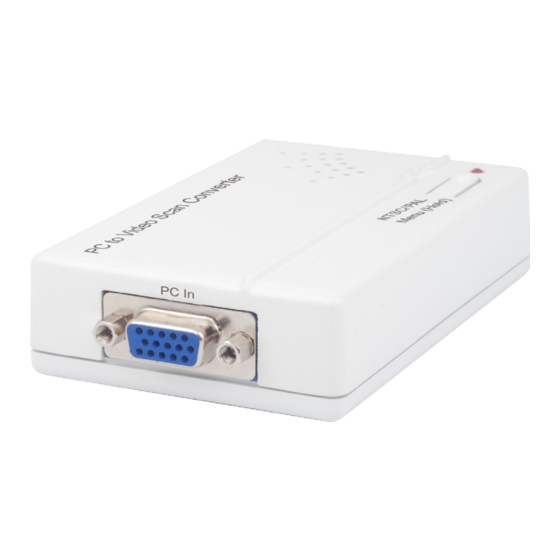

- Page 1 CV-401V PC/HD to CVBS Video Scan Converter Operation Manual Draft Manual CV-401V...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Top Panel ..............3 Left Panel ..............3 Right Panel .............. -
Page 5: Introduction
1. Introduction The PC/HD to Video Scan Converter is designed to down scale PC/Component source to analog CVBS (NTSC,PAL) signal. Ideal for businesses with multiple CCTV cameras, this device takes your high-resolution camera footage and scales it to lower resolutions. Supporting PC resolution up to WUXGA@60hz, this scaler also helps connects new video sources to older displays. -
Page 6: Specifications
6. Specifications Input Port 1 x VGA Output Ports 1 x CVBS Output Video NTSC/PAL ESD Protection Human body model: ± 8kV (air-gap discharge) ± 6kV(contact discharge) Dimensions (mm) 64 (W) x 104 (D) x 26 (H) Weight (g) Chassis Material Plastic Silkscreen Color White... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel . NTSC/PAL MENU (3SEC): Press this button to bring up the OSD which will display the input timing and output TV system information. While the OSD is still displaying press the button again to switch output TV system from NTSC to PAL or from PAL to NTSC. -
Page 8: Right Panel
7.3 Right Panel . CV OUT: This slot is to connect with display TV or monitor with RCA cable for output image display. . DV5V: Plug the 5V DC power supply included in the package into the unit and connect the adaptor to AC wall outlet. -
Page 9: Osd Menu
8. OSD Menu 640 x 480 (Input Timing) NTSC (Output TV System) NTSC Underscan 1 Underscan 2 Overscan Phase adj 0~31 Full Screen Letterbox Pan & Scan Aspect Adj Auto TV 4:3 Auto TV 16:9 Below is the example of the scan selection result. Phase Adjustment’s rang is from 0 ~ 31 and is for image blurry display and or jiggle character. - Page 10 and make the auto adjustment. Blow is the sample chart of the selection result: Aspect Adj Full Screen Letterbox Pan&Scan Auto TV 4:3 Auto TV 16:9 Source TV...
-
Page 11: Connection And Installation
9. Connection and Installation... - Page 12 Acronyms Acronym Complete Term Cathode Ray Tube Liquid Crystal Display NTSC National Television System Committee Phase Alternating Line Video Graphics Array...
- Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CV401V...
