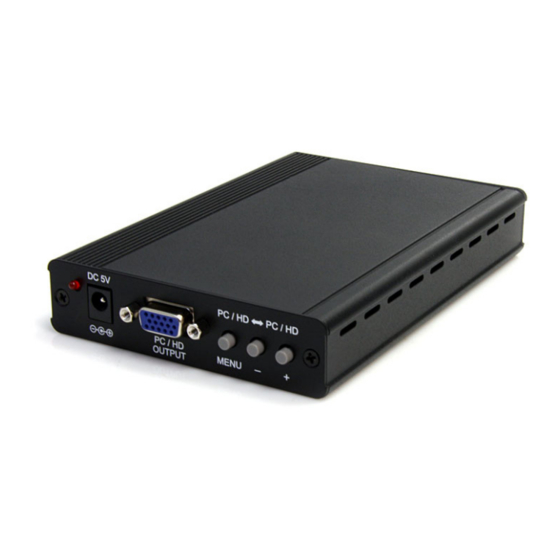

2-Way High Resolution HDTV/VGA Video Converter
with Scaler
VGA2TV2WAY2
*actual product may vary from photo
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/06/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGA2TV2WAY2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com VGA2TV2WAY2

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/06/2012...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Side 1 View ..............................2 Side 2 View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................3 How to Use ....................4 On-Screen Display ............................ 4 OSD Menu ..............................
  • Page 4: Introduction

    Introduction The StarTech.com 2-Way VGA to Component (HDTV) or Component (HDTV) to VGA video Converter / Scaler combines the features of a video scaler and a format converter, to provide a cost-effective way to display VGA (PC) or component YPbPr (HDTV) feeds.
  • Page 5: Side 1 View

    Side 1 View Side 2 View Instruction Manual...
  • Page 6: Installation

    Installation WARNING: The default output signal from the video converter/scaler is 1024 x 768 (XGA) at 60 Hz. Not all display devices have the capability to display this resolution, so it is advisable to consult the documentation for your display before attempting installation.
  • Page 7: How To Use

    How to Use On-Screen Display The video converter/scaler has a built in On-Screen Display (OSD) that can be accessed via the push buttons on the unit itself. The OSD allows for manual configuration of the video converter/scaler. Press the “Menu” button to activate the OSD and the + and - buttons to navigate the menu.
  • Page 8: Osd Menu

    OSD Menu 1st Level Menu 2nd Level Menu Adjustment Contrast 0 ~ 100 Brightness 0 ~ 100 0 ~ 100 Saturation 0 ~ 100 Fine Tune Sharpness 0 ~ 100 Exit Return to 1st Level Menu 0 ~ 100 Green 0 ~ 100 Color Blue...
  • Page 9: Supported Resolutions

    Supported Resolutions Input/Output PC/HD Input PC/HD Output Resolution 480i/576i NTSC/PAL NTSC/PAL 480p/576p NTSC/PAL NTSC/PAL 720p 50/60Hz 50/60Hz 1080i 25/30Hz 25/30Hz 1080p 50/60Hz 50/60Hz VGA (640x480) 60/72/75/85Hz 60Hz SVGA (800x600) 56/60/72/75/85Hz 60Hz XGA (1024x768) 60/70/75/85Hz 60Hz SXGA (1280x1024) 60/75/85Hz 60Hz UXGA (1600x1200) 60Hz 60Hz WXGA (1280x800)
  • Page 10: Specifications

    Specifications VGA (RGBHV), Compatible Video Formats Component (YPbPr) 3 x DE-15 VGA female External Connectors 1 x DC Power LEDs 1 x Power Maximum Video Resolution 1920x1200 / 1080p On Screen Display Enclosure Material Metal Power Adapter 5VDC, 2600mA, center positive Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature...
  • Page 11: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
