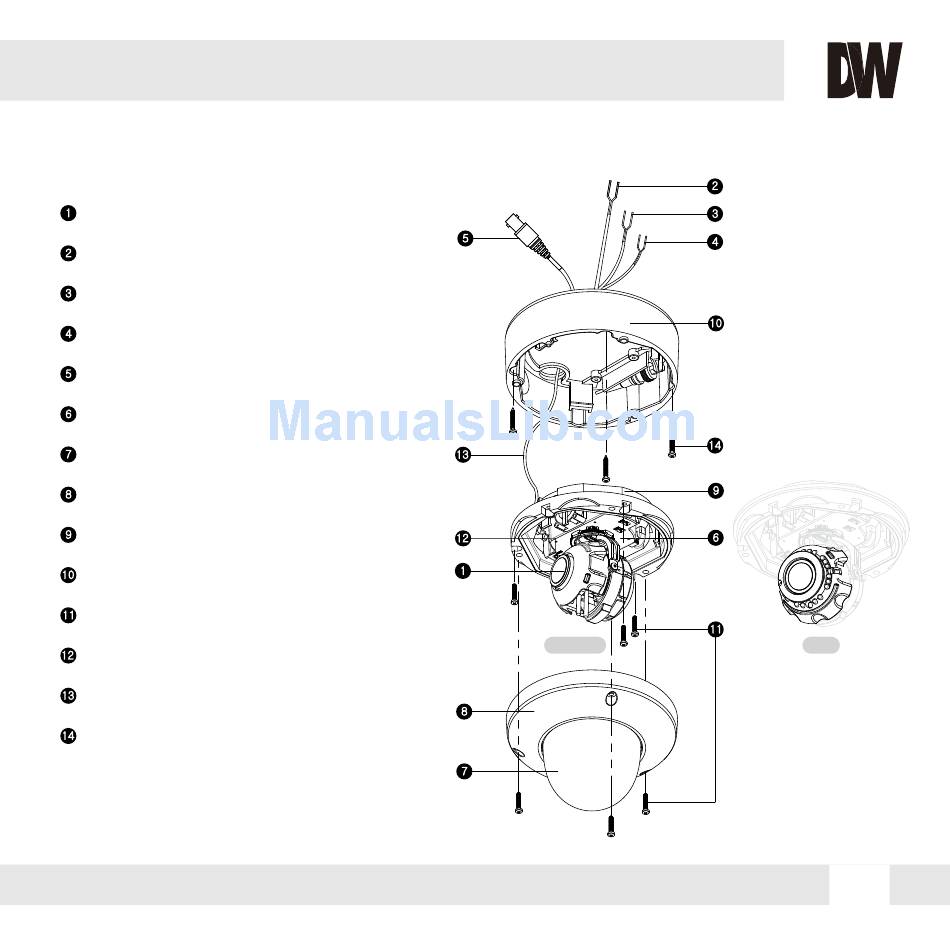

PART & DESCRIPTIONS*
Lens
1
Power Input Connector (Dual Voltage)
2
UTP
3
RS-485
4
Primary Video-BNC Output Connector
5
Camera Control Board
6
Bubble Dome Cover
7
Upper Case
8
Flush Mount Base
9
Surface Mount Base / Junction Box
10
Assembly Screws (#8 - 32 x 0.75)
11
Secondary Video-BNC Output Connector
12
Safety Wire
13
Mounting Screws
14
5
13
12
1
NO IR
8
7
2
3
4
10
14
9
6
11
IR
