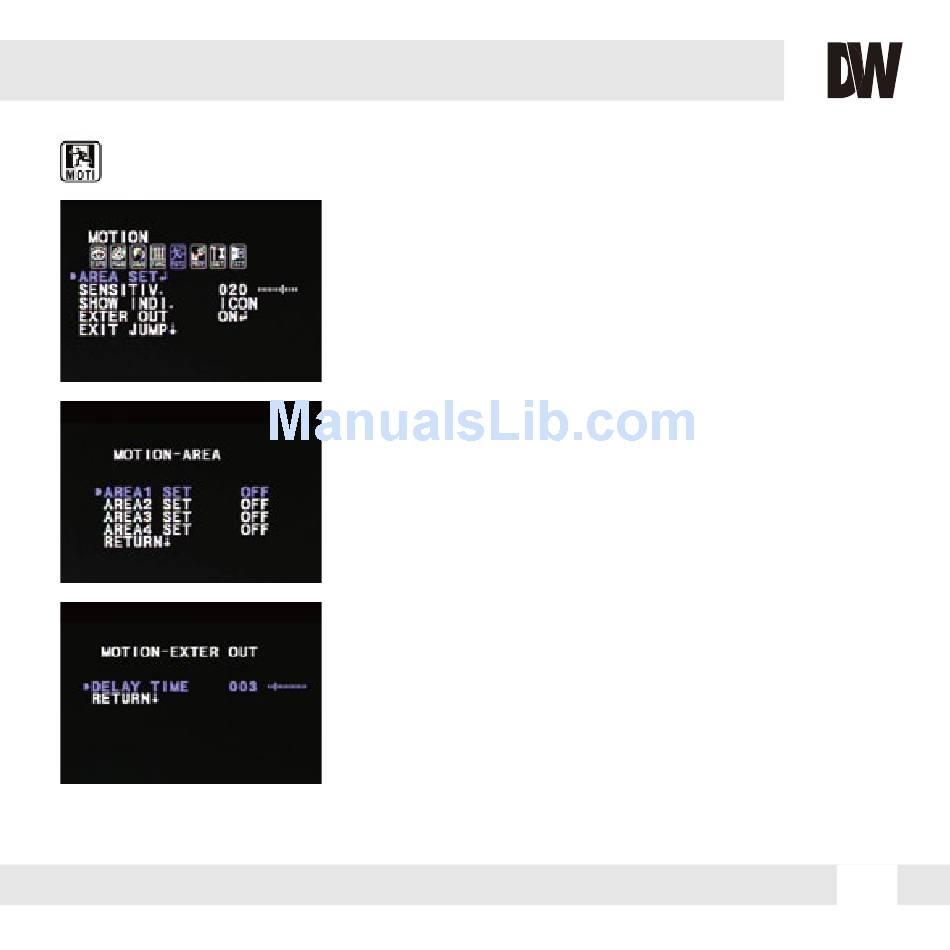

MOTION
The camera can detect the movement and display an alarm on the screen
when movement is detected.
AREA SET
OFF / ON
AREA 1 ~ 4
If ON, motion areas can be selected and moved accordingly.
Select Areas 1-4 and adjust using controls for TOP, BOTTOM,
LEFT, or RIGHT.
SENSITIV.
Sensitivity level of the motion detection is adjustable. Motion
1 ~ 30
Detection will be more sensitive at a higher number.
SHOW INDI.
Set the Show Indicator to OFF, ICON, or TRACE. If ICON is selected, a
OFF / ICON
a bell will appear in the upper right hand corner when motion is
TRACE
detected. If TRACE is selected, the area where motion was detected
will be highlighted.
EXTER OUT (ALARM SIGNAL, EXTERNAL OUTPUT)
If ON is selected, you can set how long the alarm is displayed on
OFF / ON
the screen when motion is detected (0 ~ 15 seconds).
EXIT JUMP
Save the current settings and exit the OSD menu.
SAVE & EXIT
Exit the OSD menu without saving the changes.
EXIT
