Combustible Wall Clearance for Top Vent Installation

If the stove is to be placed at side and back walls of combustible materials the following clearances
must be kept

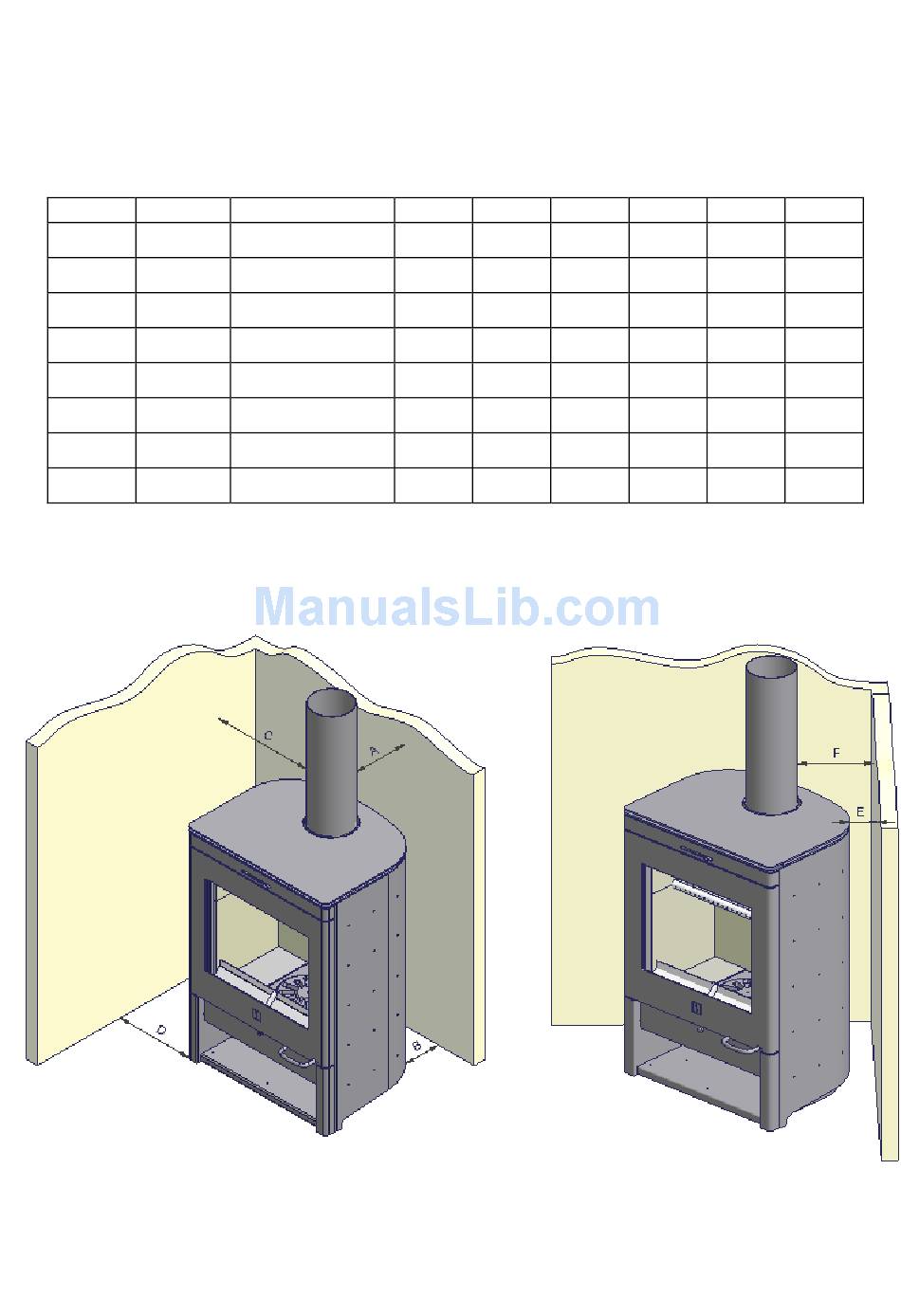

Parallel and corner installation
Model
Scan 60 USA
Scan 60 Canada
Scan 60 USA
Scan 60 Canada
Scan 61 USA
Scan 61 Canada
Scan 61 USA
Scan 61 Canada
Parallel installation
Connector pipe
Single wall
Single wall
Double wall
Double wall
Single wall
Single wall
Double wall
Double wall
A B
13 10.5 21
330 265 535
8 6 21
205 152 535
11 10.5 21
279 265 535
6 6 21
152 152 535
8
C D E
12 7.5
305 190
12 5.5
305 140
12 7.5
305 190
12 5.5
305 138
Corner installation
F
13.5
343
13.5
340
13.5
340
11.5
290
