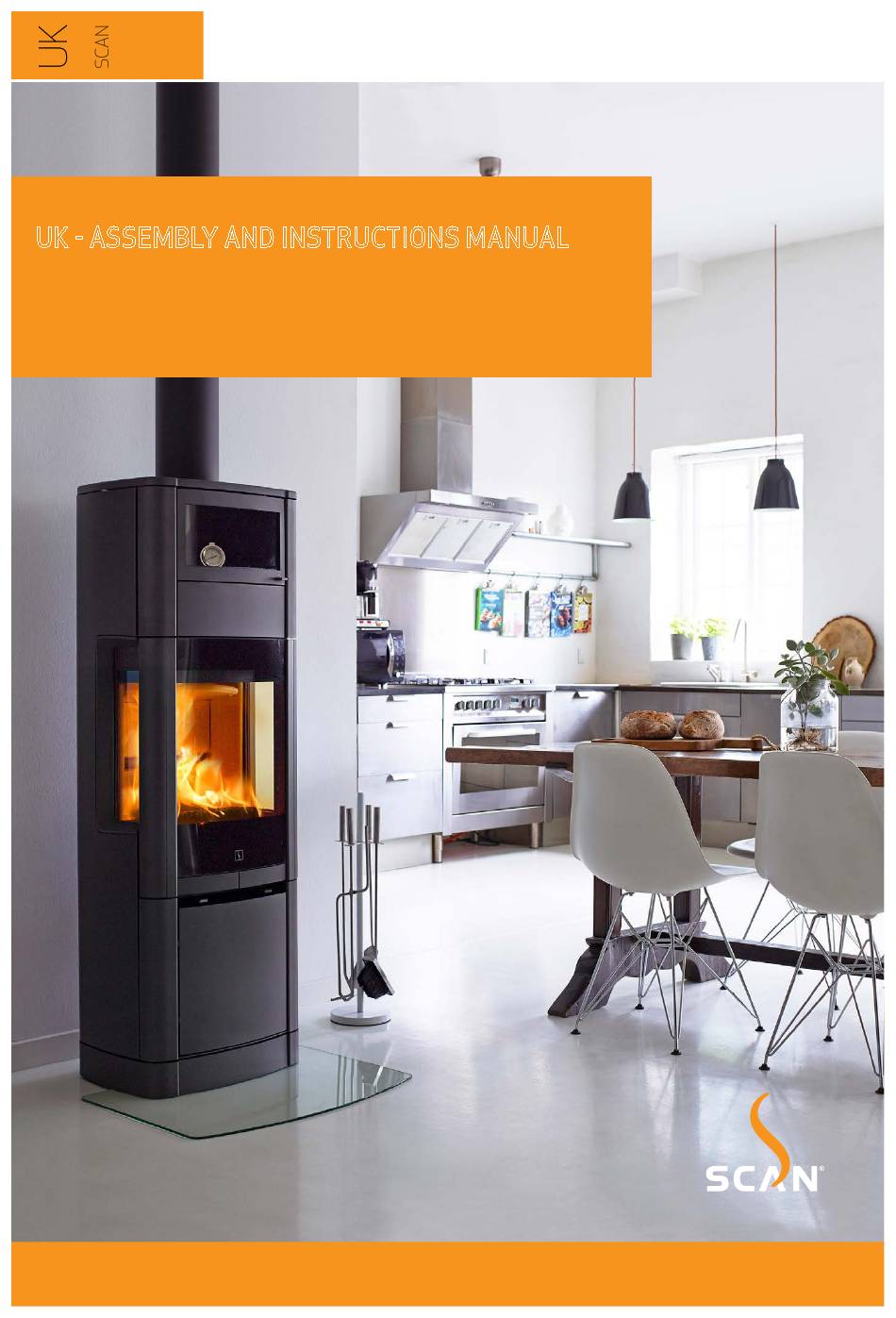

- Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 65 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 65...
- Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch Safety Type plate The clean air act 1993 and smoke control areas Product registration number Technical data and dimensions ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Removal of packaging Loose parts Handle and door Additional accessories... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
TECHNICAL DATA AND DIMENSIONS Steel plate 65-1, 65-3, 65-5, 65-7 & 65-9 Cast iron, -Test in compliance with EN 13240 Materials Galvanised sheet CO Emission at 13% O 0,08 % Vermicolite CO Emission at 13% O 975 mg/Nm Surface treatment... -
Page 6: Dimension Sketch
All measurements are in millimeters Målskitse, Scan 65-1/2 Standard Målskitse, Scan 65-1/2 Standard Scan 65 Scan 65 90065015 90065015 NAVN: EMNE: EMNE: TG.NR: TG.NR: DIMENSION SKETCH SCAN 65-3 AND 65-4 (NATURAL STONES) 17-01-2017 17-01-2017 MATERIALE: VÆGT: VÆGT: DATO: DATO: SIGN: SIGN: DIMENSION: AREAL: AREAL: Krog Iversen &... - Page 7 DIMENSION SKETCH SCAN 65-1 AND 65-2 (LOW BASE) A-A ( 1 : 10 ) Bund Centre rear outlet Height to the beginning of the connecting piece at top outlet Fresh air intake bottom Fresh air intake at the back of the stove...
- Page 8 DIMENSION SKETCH SCAN 65-5 AND 65-6 (HIGH TOP + BAKING OVEN) In order to get full use of the baking oven, this model must be connected with a top outlet. A-A ( 1 : 10 ) Bund A-A ( 1 : 10 )
- Page 9 DIMENSION SKETCH SCAN 65-9 AND 65-10 (HIGH TOP + STEEL SIDES) In order to get full use of the heat accumulating stones, this model must be connected with a top outlet. A-A ( 1 : 10 ) Bund Centre rear outlet...
-
Page 10: Type Plate
PRODUCT REGISTRATION NUMBER All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 11: Assembly
¬ Scan 65-7/8 and 65-9/10: Heat accumulating stones DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging product or sent for recycling. -
Page 12: Closed Combustion System
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 13: Safety Distance
These distances apply for an insulated flue pipe all the way down to the stove, having a minimum of 30 mm insulation. 65-1, 65-3, 65-5,65-7 and 65-9 (without side windows) 65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows) Brandmur og isoleret røgrør - Scan 64 uden side... - Page 14 These distances apply for an insulated flue pipe all the way down to the stove, having a minimum of 30 mm insulation. 65-1, 65-3, 65-5,65-7 and 65-9 (without side windows) 65-2, 65-4, 65-6, 65-8 and 65-10 (with side windows) Parallel installation...
-
Page 15: Removal Of Packaging
VÆGT: DATO: SIGN: and the handle may feel tight, as the stove has to be fired a couple of times, DK-5492 Vissenbjerg© ng Folder\Designs\Scan 64\90064020.idw before the gasket “settles”. This is quite normal. DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg©... -
Page 16: Height Adjustment Of Stove
VÆGT: DATO: 04-12-12 SIGN: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 64\90064044.idw STI: DIMENSION: AREAL: Krog Iversen & Co A/S The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for DK-5492 Vissenbjerg©... - Page 17 DIMENSION: Afmontage dæksel for bagafgang Montage røgstuds bagafgang Scan 64 Scan 64 90064025 90064026 NAVN: NAVN: EMNE: EMNE: TG.NR: TG.NR: C:\Working Folder\Designs\Scan 64\90 STI: Afmontage topplade + røgstuds Scan 64 90064013 EMNE: TG.NR: 31-08-12 MATERIALE: VÆGT: DATO: 11-07-11 SIGN: DATO: MATERIALE: VÆGT:...
-
Page 18: Fitting The Natural Stones
FITTING THE NATURAL STONES Scan 65-3, 65-4, 65-7 and 65-8 are delivered with loose natural stone plates for mounting on the sides of the stove. It is a natural material, wherefore there might be differences in structure and form. Each natural stone must be mounted with distance bushings and screws which are already mounted in the stones. -
Page 19: Fitting The Natural Stone Top
FITTING THE NATURAL STONES FITTING THE NATURAL STONE TOP (ACCESSORY) You can buy a natural stone top as an accessory. Place the stone top on the steel top plate. -
Page 20: Open Plinth
Cover plate Do not remove to be removed the radiation plate HEAT-STORAGE SYSTEM (ACCESSORY) Typeskilt og registreringsnummer Scan 64 90064010 Heat-storage stones are available for Scan 65-7, 65-8, 65-9 and 65-10. NAVN: EMNE: TG.NR: 21-08-12 MATERIALE: VÆGT: DATO: SIGN: Heat-storage stones are made from a special material with a high... -
Page 21: Load-Bearing Foundation
SIGN: 29-08-12 MATERIALE: VÆGT: DATO: SIGN: Scan 65 has been recommented as suitable for use in smoke control areas when burning wood logs and when fitted with a DIMENSION: AREAL: Krog Iversen & Co A/S DIMENSION: AREAL: Krog Iversen & Co A/S mechanical stop to prevent secondary air control closure beyond the 35mm open position. -
Page 22: Instructions For Use
INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates. - Page 23 VÆGT: DATO: SIGN: 100% DIMENSION: AREAL: Krog Iversen & Co A/S Brændkammerforing DK-5492 Vissenbjerg© Scan 64 NAVN: EMNE: TG.NR: 90064036 C:\Working Folder\Designs\Scan 64\90064037.idw STI: 13-07-11 MATERIALE: VÆGT: DATO: SIGN: Spjæld, askeskuffe og støbejernsbund Scan 64 9006403 NAVN: EMNE: TG.NR: DIMENSION: AREAL: Krog Iversen &...
-
Page 24: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. Scan the QR-code See our video about correct firing on www.scan.dk or scan the QR-code. -
Page 25: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 26: General Notes
GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. Due care should be exercised. ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove. ¬... -
Page 27: Handling Of The Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 28: Maintainance
Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter. -
Page 29: Baffle Plates And Combustion Chamber Lining
DATO: MATERIALE: VÆGT: DIMENSION: AREAL: Krog Ive DK-5492 C:\Working Folder\Designs\Scan 64\90064033.idw STI: 65-2, 65-4, 65-6, 65-8 and 65-10 65-1, 65-3, 65-5, 65-7 and 65-9 (with side windows) (without side windows) Snit igennem ovn Snit igennem ovn Scan 64 90064033 90064033... -
Page 30: Cleaning The Glass
The glass cleaner must not come into contact with the painted surfaces, as these can be damaged. CLEANING THE GLASS PLATE IN THE BAKING OVEN The glass plate is easy to take out for cleaning. Scan 65-5 and Scan 65-6 DISPOSAL OF STOVE PARTS Steel/cast iron... - Page 31 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
- Page 32 You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
- Page 33 NOTES...
- Page 36 Product registration number Quote this number at all enquiries Edition: UK 90065500 SCAN A/S Glasvænget 3-9 DK-5492 Vissenbjerg www.scan.dk 14.09.2018...
