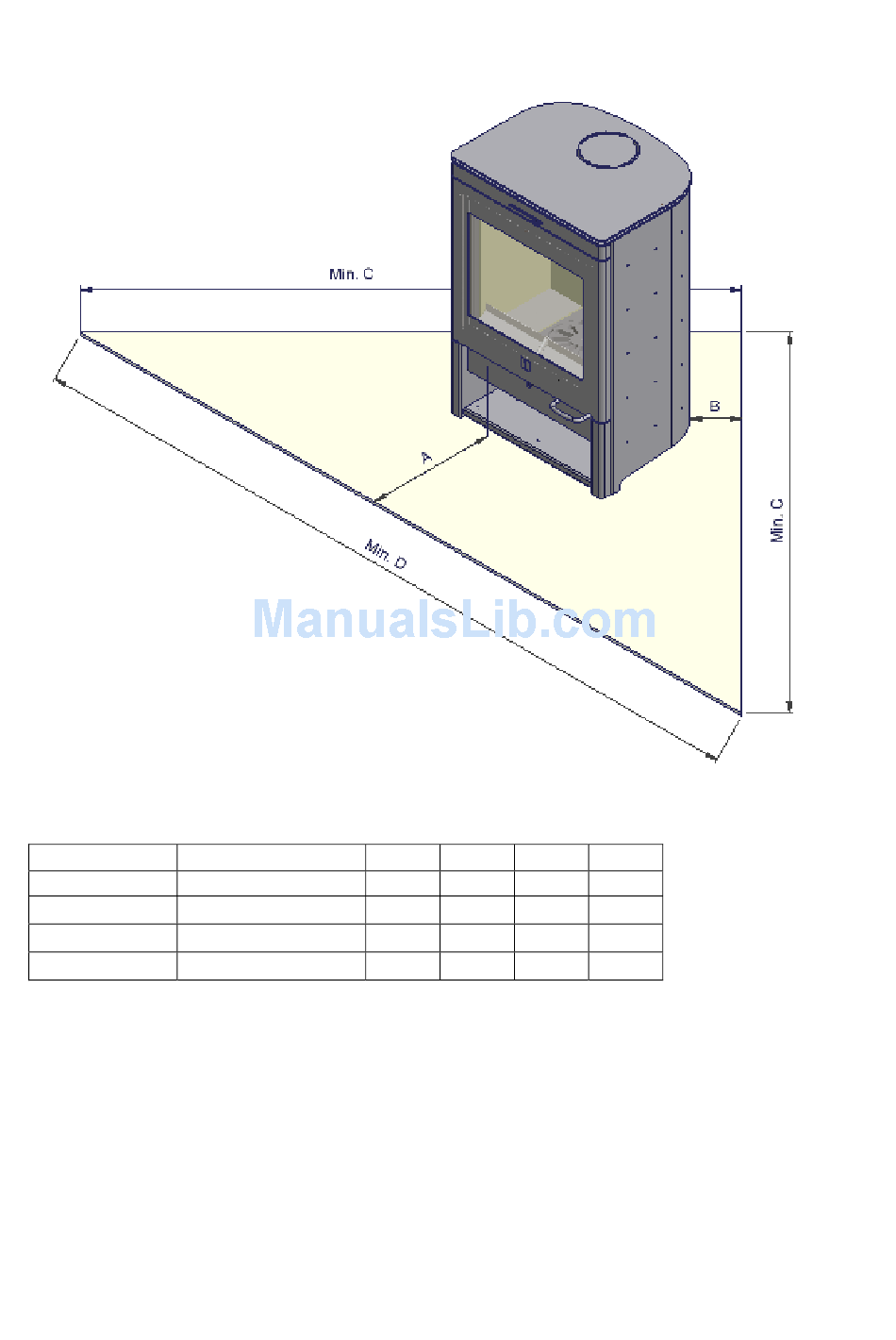

Corner installation

Floor pad at Corner Installation

Model Floor protection
Scan 60 USA
Scan 60 Canada
Scan 61 USA
Scan 61 Canada
In a rear vent installation the floor protection must also extend under the stovepipe a minimum of 2"
(50mm) beyond either side of the pipe.

Ceiling Height

Do not install in an alcove or confined space and do not install in a room with a ceiling high below 7'
(210 cm)
A B C
16" 7,5" 73,8"
457 203 1975
16" 7,5" 68"
457 203 1983
7
D
104,5"
2794
96"
2804
