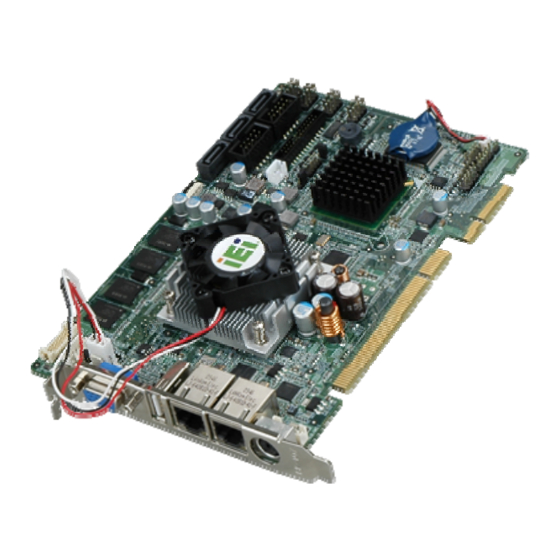

Half-size pcie cpu card with intel atom dual-core d510 cpu, 512 mb onboard memory, dual gigabit ethernet, seven usb, rs-232, three sata, compactflash type ii, vga, lvds, rohs compliant
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PICOe-PV-D510 User Manual
IEI Technology Corp.
MODEL:
PICOe-PV-D510
Half-size PCIe CPU Card with Intel® Atom™ dual-core D510
CPU, 512 MB Onboard Memory, Dual Gigabit Ethernet, Seven
USB, RS-232, Three SATA, CompactFlash® Type II, VGA, LVDS,
Rev. 1.00 – 10 February, 2010
RoHS Compliant
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PICOe-PV-D510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PICOe-PV-D510

Summary of Contents for IEI Technology PICOe-PV-D510

  • Page 1 PICOe-PV-D510 User Manual IEI Technology Corp. MODEL: PICOe-PV-D510 Half-size PCIe CPU Card with Intel® Atom™ dual-core D510 CPU, 512 MB Onboard Memory, Dual Gigabit Ethernet, Seven USB, RS-232, Three SATA, CompactFlash® Type II, VGA, LVDS, RoHS Compliant User Manual Page i...
  • Page 2 PICOe-PV-D510 User Manual Revision Date Version Changes 10 February, 2010 1.00 Initial release Page ii...
  • Page 3 PICOe-PV-D510 User Manual Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    2.3.1 Package Contents..................... 10 2.3.2 Optional Items....................11 3 CONNECTORS ......................12 3.1 P ..............13 ERIPHERAL NTERFACE ONNECTORS 3.1.1 PICOe-PV-D510 Layout .................. 13 3.1.2 Peripheral Interface Connectors ..............14 3.1.3 External Interface Panel Connectors............... 15 3.2 I ..............16 NTERNAL ERIPHERAL ONNECTORS 3.2.1 ATX Power Supply Enable Connector .............
  • Page 5 PICOe-PV-D510 User Manual 3.2.12 Parallel Port Connector ................28 3.2.13 Power Button ....................29 3.2.14 SATA Drive Connectors ................. 29 3.2.15 Serial Port Connectors (COM 1 and COM 2) ..........30 3.2.16 SPI Flash Connector..................31 3.2.17 USB Connectors (Internal) ................32 3.3 E...
  • Page 6 PICOe-PV-D510 User Manual 4.7.4 USB Cable (Dual Port) with Slot Bracket ............55 4.7.5 Parallel Port Cable without Bracket ............... 56 4.7.6 Dual RS-232 Cable with Slot Bracket.............. 58 4.8 E ........... 59 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.8.1 LAN Connection....................60 4.8.2 PS/2 Y-Cable Connection.................
  • Page 7 PICOe-PV-D510 User Manual 5.5.3 Hard Disk Drives ................... 100 5.5.4 Removable Drives ..................101 5.5.5 CD/DVD Drives ..................... 101 5.6 S ....................... 102 ECURITY 5.7 C ......................... 103 HIPSET 5.7.1 Northbridge Chipset Configuration............... 104 5.7.2 Southbridge Configuration ................106 5.8 E ........................
  • Page 8 Figure 3-17: COM Connector Pinout Locations ................31 Figure 3-18: SPI Flash Connector ....................32 Figure 3-19: USB Connector Pinout Locations .................33 Figure 3-20: PICOe-PV-D510 External Peripheral Interface Connector ........33 Figure 3-21: PS/2 Pinout and Configuration ................34 Figure 3-22: RJ-45 Ethernet Connector..................35 Figure 3-23: VGA Connector .......................36...
  • Page 9 PICOe-PV-D510 User Manual Figure 4-4: CF Card Setup Jumper Location ................47 Figure 4-5: Clear CMOS Jumper ....................48 Figure 4-6: LVDS Voltage Selection Jumper Pinout Locations ..........49 Figure 4-7: PCIe Status Select Jumper Pinout Locations ............50 Figure 4-8: 7.1 Channel Audio Kit ....................53 Figure 4-9: SATA Drive Cable Connection.................54...
  • Page 10 PICOe-PV-D510 User Manual List of Tables Table 1-1: Technical Specifications....................7 Table 3-1: Peripheral Interface Connectors ................15 Table 3-2: Rear Panel Connectors ....................15 Table 3-3: ATX Power Supply Enable Connector Pinouts ............17 Table 3-4: Audio Connector Pinouts (9-pin) ................17 Table 3-5: Panel Backlight Connector Pinouts................18 Table 3-6: CF Card Socket Pinouts.....................20...
  • Page 11 PICOe-PV-D510 User Manual Table 4-7: IEI Provided Cables ....................51 Table 5-1: BIOS Navigation Keys ....................67 Page xi...
  • Page 12 PICOe-PV-D510 User Manual BIOS Menus BIOS Menu 1: Main ........................68 BIOS Menu 2: Advanced ......................70 BIOS Menu 3: CPU Configuration ....................70 BIOS Menu 4: IDE Configuration....................71 BIOS Menu 5: IDE Master and IDE Slave Configuration ............73 BIOS Menu 6: Super IO Configuration..................77 BIOS Menu 7: Hardware Health Configuration ................81...

  • Page 13: Introduction

    PICOe-PV-D510 User Manual Chapter Introduction Page 1...

  • Page 14: Introduction

    The PICOe-PV-D510 half-size PCIe CPU card is an embedded 45 nm Intel® Atom™ processor platform. The Intel® Atom™ dual-core processor D510 embedded on the PICOe-PV-D510 has a 1.66 GHz clock speed, and a 1 MB L2 cache. The PICOe-PV-D510 has 512 MB 667 MHz DDR2 memory onboard and also supports one 200-pin 667/800 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM.

  • Page 15: Connectors

    PICOe-PV-D510 User Manual 1.2 Connectors The connectors on the PICOe-PV-D510 are shown in the figure below. Figure 1-2: Connectors Page 3...

  • Page 16: Dimensions

    PICOe-PV-D510 User Manual 1.3 Dimensions The dimensions of the board are listed below: Length: 122 mm Width: 185 mm Figure 1-3: PICOe-PV-D510 Dimensions (mm) Page 4...

  • Page 17: Data Flow

    PICOe-PV-D510 User Manual 1.4 Data Flow F igure 1-4 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 1-4: Data Flow Block Diagram...

  • Page 18: Technical Specifications

    PICOe-PV-D510 User Manual 1.5 Technical Specifications PICOe-PV-D510 technical specifications are listed in table below. Specification PICOe-PV-D510 Half-size PCIe CPU Card Form Factor Intel® Atom™ dual-core processor D510 (1 MB L2 Cache, 1.66 GHz) Intel® ICH8M Southbridge Chipset Memory Onboard 512 MB DDR2 667 MHz memory One 200-pin DIMM socket supports one 667 MHz DDR2 SDRAM DIMM (system max.

  • Page 19: Table 1-1: Technical Specifications

    PICOe-PV-D510 User Manual Specification PICOe-PV-D510 Storage CompactFlash® One CompactFlash® Type II Serial ATA Three independent Serial ATA (SATA) channels with 3.0 Gb/s data transfer rates Environmental and Power Specifications Power Supply 5 V / 12 V, AT/ATX power support Power 5V @ 4.55A, 12V @ 0.46A (Intel®...

  • Page 20: Unpacking

    PICOe-PV-D510 User Manual Chapter Unpacking Page 8...

  • Page 21: Anti-Static Precautions

    NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the PICOe-PV-D510 was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 22: Package Contents

    PICOe-PV-D510 User Manual 2.3.1 Package Contents The PICOe-PV-D510 is shipped with the following components: Quantity Item and Part Number Image PICOe-PV-D510 SATA cable (P/N: 32000-062800-RS) KB/MS PS/2 Y-cable (P/N: 32000-133200-RS) Dual RS-232 cable (P/N: 19800-000051-RS) Dual USB cable (w bracket)

  • Page 23: Optional Items

    PICOe-PV-D510 User Manual 2.3.2 Optional Items The PICOe-PV-D510 is shipped with the following components: Item and Part Number Image SATA power cable (P/N: 32102-000100-100-RS 32102-000100-200-RS) LPT cable (w/o bracket) (P/N: 32200-015100-RS) KB/MS cable (with bracket) (P/N: 19800-000075-RS) Audio kit_ 7.1 Channel...

  • Page 24: Connectors

    PICOe-PV-D510 User Manual Chapter Connectors Page 12...

  • Page 25: Peripheral Interface Connectors

    Section 3.1.1. 3.1.1 PICOe-PV-D510 Layout F igure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers. Figure 3-1: Connector and Jumper Locations [Front Side] Figure 3-2 shows the solder side of the PICOe-PV-D510. Page 13...

  • Page 26: Peripheral Interface Connectors

    PICOe-PV-D510 User Manual Figure 3-2: Connector and Jumper Locations [Solder Side] 3.1.2 Peripheral Interface Connectors T able 3-1 shows a list of the peripheral interface connectors on the PICOe-PV-D510. Detailed descriptions of these connectors can be found below. Connector Type...

  • Page 27: External Interface Panel Connectors

    USB0_1, USB2_3, USB4_5 Table 3-1: Peripheral Interface Connectors 3.1.3 External Interface Panel Connectors T able 3-2 lists the rear panel connectors on the PICOe-PV-D510. Detailed descriptions of these connectors can be found in Section 3 .3 on page 3 3.

  • Page 28: Internal Peripheral Connectors

    The ATX power supply enable connector enables the PICOe-PV-D510 to be connected to an ATX power supply. In default mode, the PICOe-PV-D510 can only use an AT power supply. To enable an ATX power supply the AT Power Select jumper must also be configured.

  • Page 29: Audio Connector (9-Pin)

    PICOe-PV-D510 User Manual PIN NO. DESCRIPTION PS-ON +5V Standby Table 3-3: ATX Power Supply Enable Connector Pinouts 3.2.2 Audio Connector (9-pin) CN Label: J_AUDIO1 CN Type: 9-pin header (2x5) CN Location: See Figure 3-4 CN Pinouts: See Table 3-4 The 9-pin audio connector is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.

  • Page 30: Backlight Inverter Connector

    See Figure 3-5 CN Pinouts: See Table 3-5 The backlight inverter connector provides the backlight on the LCD display connected to the PICOe-PV-D510 with +12V of power. Figure 3-5: Backlight Inverter Connector Pinout Locations PIN NO. DESCRIPTION LCD Backlight Control...

  • Page 31: Compactflash® Socket

    PICOe-PV-D510 User Manual 3.2.4 CompactFlash® Socket CN Label: CF1 (solder side) CN Type: 50-pin header (2x25) CN Location: See Figure 3-6 CN Pinouts: See Table 3-6 A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the PICOe-PV-D510.

  • Page 32: Cpu Fan Connector (+12V, 4-Pin)

    PICOe-PV-D510 User Manual PIN NO. DESCRIPTION PIN NO. DESCRIPTION CSEL HDD_RESET IORDY SDREQ SDACK# HDD_ACTIVE# DATA 0 66DET DATA 1 DATA 8 DATA 2 DATA 9 DATA 10 VCC-IN CHECK2 GROUND Table 3-6: CF Card Socket Pinouts 3.2.5 CPU Fan Connector (+12V, 4-pin)

  • Page 33: Digital Input/Output (Dio) Connector

    PICOe-PV-D510 User Manual Figure 3-7: +12V Fan Connector Location PIN NO. DESCRIPTION +12V FANIO1 FANPWM1 Table 3-7: +12V Fan Connector Pinouts 3.2.6 Digital Input/Output (DIO) Connector CN Label: DIO1 CN Type: 10-pin header (2x5) CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The digital input/output connector is managed through a Super I/O chip.

  • Page 34: Front Panel Connector (8-Pin)

    PICOe-PV-D510 User Manual Figure 3-8: DIO Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-8: DIO Connector Connector Pinouts 3.2.7 Front Panel Connector (8-pin)

  • Page 35: Infrared Interface Connector

    PICOe-PV-D510 User Manual Figure 3-9: Front Panel Connector Pinout Locations (8-pin) FUNCTION DESCRIPTION FUNCTION DESCRIPTION Power Button PWR_BTN+ Power LED PWR_LED+ PWR_BTN- PWR_LED- HDD LED HDD_LED+ Reset RESET+ HDD_LED- RESET- Table 3-9: Front Panel Connector Pinouts (8-pin) 3.2.8 Infrared Interface Connector...

  • Page 36: Keyboard/Mouse Connector

    PICOe-PV-D510 User Manual Figure 3-10: Infrared Connector Pinout Locations PIN NO. DESCRIPTION IR-RX IR-TX Table 3-10: Infrared Connector Pinouts 3.2.9 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: 6-pin header (1x6) CN Location: See Figure 3-11 CN Pinouts: See Table 3-11 The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.

  • Page 37: Lpc Connector

    PICOe-PV-D510 User Manual Figure 3-11: Keyboard/Mouse Connector Location PIN NO. DESCRIPTION VCC5_KBMS MS DATA MS CLK KB DATA KB CLK GROUND Table 3-11: Keyboard/Mouse Connector Pinouts 3.2.10 LPC Connector CN Label: CN Type: 20-pin connector (1x20) CN Location: See Figure 3-13...

  • Page 38: Lvds Lcd Connector

    PICOe-PV-D510 User Manual Figure 3-12: LPC Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION COMCLK LPC_FRAME# VCC3 PCIRST#4 LPC_AD3 LPC_AD2 VCC3S LPC_AD1 LPC_AD0 SMBCLK SMBDATA VCC3DUAL INT_SERIRQ COMCLK48 VCC3 Table 3-12: LPC Connector Pinouts 3.2.11 LVDS LCD Connector CN Label:...

  • Page 39: Figure 3-13: Lvds Lcd Connector Pinout Location

    PICOe-PV-D510 User Manual The 20-pin LVDS LCD connector can be connected to a single channel, 18-bit LVDS panel. Figure 3-13: LVDS LCD Connector Pinout Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION CLK+ CLK- L_DDC_DATA L_DDC_CLK LCD_Vcc LCD_Vcc LCD_Vcc LCD_Vcc Table 3-13: TFT LCD LVDS Port Connector Pinouts...

  • Page 40: Parallel Port Connector

    PICOe-PV-D510 User Manual 3.2.12 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin header CN Location: See Figure 3-14 CN Pinouts: See Table 3-14 The 26-pin parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 41: Power Button

    3.2.13 Power Button CN Label: CN Type: Power button CN Location: See Figure 3-15 A power button is located onboard the PICOe-PV-D510. Figure 3-15: Power Button Location 3.2.14 SATA Drive Connectors CN Label: SATA1, SATA2, SATA3 CN Type: 7-pin SATA drive connectors...

  • Page 42: Serial Port Connectors (Com 1 And Com 2)

    PICOe-PV-D510 User Manual Figure 3-16: SATA Drive Connector Locations PIN NO. DESCRIPTION Table 3-15: SATA Drive Connector Pinouts 3.2.15 Serial Port Connectors (COM 1 and COM 2) CN Label: COM1 and COM2 CN Type: 10-pin header (2x5) CN Location: F igure 3-17...

  • Page 43: Spi Flash Connector

    PICOe-PV-D510 User Manual Figure 3-17: COM Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD# DSR# RXD# RTS# TXD# CTS# DTR# Table 3-16: COM Connector Pinouts 3.2.16 SPI Flash Connector CN Label: SPI1 CN Type: 8-pin header (2x3) CN Location:...

  • Page 44: Usb Connectors (Internal)

    PICOe-PV-D510 User Manual Figure 3-18: SPI Flash Connector DESCRIPTION DESCRIPTION SPI_VCC SPI_CS SPI_CLK SPI_SO SPI_SI Table 3-17: SPI Flash Connector 3.2.17 USB Connectors (Internal) CN Label: USB0_1, USB2_3 and USB4_5 CN Type: 8-pin header (2x4) CN Location: F igure 3-19...

  • Page 45: External Peripheral Interface Connector Panel

    DATA- Table 3-18: USB Port Connector Pinouts 3.3 External Peripheral Interface Connector Panel F igure 3-20 shows the PICOe-PV-D510 external peripheral interface connector (EPIC) panel. The PICOe-PV-D510 EPIC panel consists of the following: 2 x RJ-45 LAN connectors 1 x PS/2 connector...

  • Page 46: Keyboard/Mouse Connector

    CN Type: PS/2 CN Location: See Figure 3-20 CN Pinouts: See Figure 3-21, Table 3-19 The PICOe-PV-D510 keyboard and mouse connector is a standard PS/2 connector. Figure 3-21: PS/2 Pinout and Configuration DESCRIPTION KB DATA MS DATA KB CLOCK MS CLOCK Table 3-19: Keyboard Connector Pinouts 3.3.2 LAN Connectors...

  • Page 47: Usb Connectors

    PICOe-PV-D510 User Manual LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table: DESCRIPTION DESCRIPTION MDIA3- MDIA1+ MDIA3+ MDIA2+ MDIA2- MDIA0- MDIA1- MDIA0+ Table 3-20: LAN Pinouts Figure 3-22: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one yellow (activity/link) and one green/orange (speed).

  • Page 48: Vga Connector

    PICOe-PV-D510 User Manual The PICOe-PV-D510 has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices. PIN NO. DESCRIPTION DATA- DATA+ Table 3-22: USB Port Pinouts 3.3.4 VGA Connector CN Label: VGA1 CN Type:...

  • Page 49: Table 3-23: Vga Connector Pinouts

    PICOe-PV-D510 User Manual DESCRIPTION DESCRIPTION DDCCLK Table 3-23: VGA Connector Pinouts Page 37...

  • Page 50: Installation

    PICOe-PV-D510 User Manual Chapter Installation Page 38...

  • Page 51: Anti-Static Precautions

    PICOe-PV-D510 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PICOe-PV-D510. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PICOe-PV-D510 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 52: Installation Considerations

    PICOe-PV-D510 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the PICOe-PV-D510 and injury to the person installing the CPU card. 4.2.1 Installation Notices...

  • Page 53: Installation Checklist

    Allow screws to come in contact with the PCB circuit, connector pins, or its components. 4.2.2 Installation Checklist The following checklist is provided to ensure the PICOe-PV-D510 is properly installed. All the items in the packing list are present A compatible memory module is properly inserted into the slot...

  • Page 54: Unpacking

    PICOe-PV-D510 User Manual 4.3 Unpacking When the PICOe-PV-D510 is unpacked, please check all the unpacking list items listed in Chapter 3 are indeed present. If any of the unpacking list items are not available please contact the PICOe-PV-D510 vendor reseller/vendor where the PICOe-PV-D510 was purchased or contact an IEI sales representative.

  • Page 55: Cf Card Installation

    The PICOe-PV-D510 can support both CF Type I cards and CF Type II cards. For the complete specifications of the supported CF cards please refer to Chapter 2. To install a CF card (Type I or Type II) onto the PICOe-PV-D510, please follow the steps below: Step 1: Locate the CF card socket.

  • Page 56: Jumper Settings

    OPEN a jumper means removing the plastic clip from a jumper. Before the PICOe-PV-D510 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the PICOe-PV-D510 are listed T able 4-1.

  • Page 57: At Power Select Jumper Settings

    PICOe-PV-D510 User Manual Description Label Type AT Power Mode Setting ATXCTL1 2-pin header CF Card Setting JCF1 2-pin header Clear CMOS J_CMOS1 3-pin header LVDS Voltage Select J_VLVDS1 3-pin header PCIe Status Select 2-pin header Table 4-1: Jumpers 4.5.1 AT Power Select Jumper Settings...

  • Page 58: Cf Card Setup

    PICOe-PV-D510 User Manual The location of the AT Power Select jumper is shown in Figure 4-3 below. Figure 4-3: AT Power Select Jumper Location 4.5.2 CF Card Setup Jumper Label: JCF1 Jumper Type: 2-pin header Jumper Settings: See Table 4-3...

  • Page 59: Clear Cmos Jumper

    Jumper Location: F igure 4-5 If the PICOe-PV-D510 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 60: Lvds Voltage Selection

    Figure 4-5: Clear CMOS Jumper 4.5.4 LVDS Voltage Selection WARNING: Permanent damage to the screen and PICOe-PV-D510 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.

  • Page 61: Pcie Status Select

    PICOe-PV-D510 User Manual The LVDS Voltage Selection jumpers allow the LVDS screen voltages to be set. J_VLVDS1 sets the voltage connected to LVDS1. The LVDS Voltage Selection jumper settings are shown in Table 4-5. LCD Voltage Select Description Short 1-2 +3.3V...

  • Page 62: Chassis Installation

    The PICOe-PV-D510 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 63: Backplane Installation

    PICOe-PV-D510 User Manual 4.6.2 Backplane Installation Before the PICOe-PV-D510 can be installed into the chassis, a backplane must first be installed. Please refer to the installation instructions that came with the backplane and the chassis to see how to install the backplane into the chassis.

  • Page 64: Channel Audio Kit Installation

    The optional 7.1 channel audio kit connects to the 10-pin audio connector on the PICOe-PV-D510. The audio kit consists of five audio jacks. One audio jack, Mic In, connects to a microphone. The remaining four audio jacks, Line-In, Front-Out, Rear-Out, and Center Subwoofer, connect to speakers.

  • Page 65: Sata Drive Connection

    Refer to Section 4.9 for driver installation instructions.Step 9: 4.7.3 SATA Drive Connection The PICOe-PV-D510 is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 10: Locate the connectors.

  • Page 66: Figure 4-9: Sata Drive Cable Connection

    PICOe-PV-D510 User Manual connector. See F igure 4-9. Figure 4-9: SATA Drive Cable Connection Step 12: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See F igure 4-10.

  • Page 67: Usb Cable (Dual Port) With Slot Bracket

    PICOe-PV-D510 User Manual Figure 4-10: SATA Power Drive Connection 4.7.4 USB Cable (Dual Port) with Slot Bracket The PICOe-PV-D510 is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below. Step 14: Locate the connectors.

  • Page 68: Parallel Port Cable Without Bracket

    PICOe-PV-D510 User Manual Figure 4-11: Dual USB Cable Connection Step 17: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a bracket. To secure the bracket to the chassis please refer to the installation instructions that came with the chassis.Step 0:...

  • Page 69: Figure 4-12: Lpt Cable Connection

    Step 3: Insert the cable connectors. Once the cable connector is properly aligned with the 26-pin box-header connector on the PICOe-PV-D510, connect the cable connector to the on-board connector. See Figure 4-12. Figure 4-12: LPT Cable Connection Step 4: Attach the LPT connector to the chassis. To secure the LPT interface connector to the chassis please refer to the installation instructions that came with the chassis.

  • Page 70: Dual Rs-232 Cable With Slot Bracket

    PICOe-PV-D510 User Manual Figure 4-13: Connect the LPT Device 4.7.6 Dual RS-232 Cable with Slot Bracket The dual RS-232 cable slot connector consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a slot.

  • Page 71: External Peripheral Interface Connection

    RJ-45 Ethernet cable connectors PS/2 devices USB devices VGA monitors To install these devices, connect the corresponding cable connector from the actual device to the corresponding PICOe-PV-D510 external peripheral interface connector making sure the pins are properly aligned. Page 59...

  • Page 72: Lan Connection

    The PICOe-PV-D510 has a PS/2 connector on the external peripheral interface panel. The dual PS/2 connector is connected to the PS/2 Y-cable that came with the PICOe-PV-D510. One of the PS/2 cables is connected to a keyboard and the other to a mouse to the system.

  • Page 73: Usb Connection

    PICOe-PV-D510 User Manual Step 1: Locate the dual PS/2 connector. The location of the PS/2 connector is shown in Chapter 3. Step 2: Insert the keyboard/mouse connector. Insert the PS/2 connector on the end of the PS/2 y-cable into the external PS/2 connector. See Figure 4-16.

  • Page 74: Vga Monitor Connection

    Figure 4-17: USB Connector 4.8.4 VGA Monitor Connection The PICOe-PV-D510 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PICOe-PV-D510, please follow the instructions below.

  • Page 75: Software Installation

    Step 0: 4.9 Software Installation All the drivers for the PICOe-PV-D510 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 76: Figure 4-19: Introduction Screen

    PICOe-PV-D510 User Manual Figure 4-19: Introduction Screen Step 3: Click PICOe-PV-D510. Step 4: A new screen with a list of available drivers appears (Figure 4-20). Figure 4-20: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 77: Bios Screens

    PICOe-PV-D510 User Manual Chapter BIOS Screens Page 65...

  • Page 78: Introduction

    PICOe-PV-D510 User Manual 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 79: Getting Help

    PICOe-PV-D510 User Manual Function F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 80: Main

    PICOe-PV-D510 User Manual 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset...

  • Page 81: Advanced

    PICOe-PV-D510 User Manual The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 82: Cpu Configuration

    PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Settings Configure CPU ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below sections may cause system to malfunction > CPU Configuration > IDE Configuration > SuperIO Configuration Select Screen >...

  • Page 83: Ide Configuration

    PICOe-PV-D510 User Manual Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.

  • Page 84: Ide Master, Ide Slave

    PICOe-PV-D510 User Manual Enhanced Configures the on-board ATA/IDE controller to be in EFAULT Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.
  • Page 85 PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Primary IDE Master Select the type of device ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ connected to the system Device :Not Detected Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode...
  • Page 86 PICOe-PV-D510 User Manual 32Bit Data Transfer: Enables 32-bit data transfer. Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.
  • Page 87 PICOe-PV-D510 User Manual Block (Multi Sector Transfer) [Auto] Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers. Disabled BIOS is prevented from using Multi-Sector Transfer on the specified channel. The data to and from the device occurs one sector at a time.
  • Page 88 PICOe-PV-D510 User Manual Auto BIOS auto detects the DMA mode. Use this value if the IDE EFAULT disk drive support cannot be determined. Single Word DMA mode 0 selected with a maximum data SWDMA0 transfer rate of 2.1 MB/s SWDMA1 Single Word DMA mode 1 selected with a maximum data transfer rate of 4.2 MB/s...

  • Page 89: Super Io Configuration

    PICOe-PV-D510 User Manual S.M.A.R.T [Auto] Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.
  • Page 90 PICOe-PV-D510 User Manual Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address. No base address is assigned to Serial Port 1 Disabled 3F8/IRQ4 Serial Port 1 I/O port address is 3F8 and the interrupt...
  • Page 91 PICOe-PV-D510 User Manual Serial Port2 Mode [Normal] Use the Serial Port2 Mode option to select the Serial Port2 operational mode. Serial Port 2 mode is normal Normal EFAULT IrDA Serial Port 2 mode is IrDA ASK IR Serial Port 2 mode is ASK IR Parallel Port Address [Disabled] Use the Parallel Port Address option to select the parallel port base address.
  • Page 92 PICOe-PV-D510 User Manual The parallel port operates in the extended capabilities port (ECP) mode. The ECP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode...

  • Page 93: Hardware Health Configuration

    PICOe-PV-D510 User Manual 5.3.4 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hardware Health Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Fan 1 Mode Setting...
  • Page 94 PICOe-PV-D510 User Manual PWM Manual mode The fan spins at the speed set in: Fan PWM control NOTE: PWM functions are supported only when using a 4-pin fan. When using a 3-pin fan, the PWM functions are not supported. Temp. Limit of OFF [000]...
  • Page 95 PICOe-PV-D510 User Manual PWM Minimum Mode: 0 PWM Maximum Mode: 127 Slope PWM [1 PWM] A bigger value will increase the fan speed in big amounts. A smaller value will increase the speed more gradually. 0 PWM 1 PWM 2 PWM...

  • Page 96: Remote Access Configuration

    PICOe-PV-D510 User Manual VBAT 5.3.5 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 8) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
  • Page 97 PICOe-PV-D510 User Manual Enabled Remote access configuration options shown below appear: Serial Port Number Serial Port Mode Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option to select the serial port used for remote access.
  • Page 98 PICOe-PV-D510 User Manual NOTE: Identical baud rate setting musts be set on the host (a management computer running a terminal software) and the slave Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.

  • Page 99: Power Configuration

    PICOe-PV-D510 User Manual Disabled Disables the VT-UTF8 terminal keys EFAULT Enables the VT-UTF8 combination key. Support for Enabled ANSI/VT100 terminals 5.3.6 Power Configuration The Power Configuration menu (BIOS Menu 9) configures the Advanced Configuration and AT/ATX Power and Power Interface (ACPI) options.

  • Page 100: Ahci Configuration

    PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit ACPI Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Suspend mode [S1 (POS)] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.67 ©Copyright 1985-2009, American Megatrends, Inc.

  • Page 101: Ahci Port N

    PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit AHCI Settings Some SATA CD/DVD in AHCI ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ mode need to wait ready longer > AHCI Port0 [Not Detected] > AHCI Port1 [Not Detected] > AHCI Port2 [Not Detected] Select Screen ↑...

  • Page 102: Usb Configuration

    PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit AHCI Port0 Select the type of device ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ connected to the system Device :Not Detected ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ SATA Port0 [Auto] S.M.A.R.T. [Enabled] Select Screen ↑ ↓ Select Item...
  • Page 103 PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit USB Configuration Enables USB host ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ controllers Module Version – 2.24.5-13.4 USB Devices Enabled: None Legacy USB Support [Enabled] Select Screen ↑ ↓ USB 2.0 Controller Mode...

  • Page 104: Usb Mass Storage Device Configuration

    PICOe-PV-D510 User Manual Auto Legacy USB support disabled if no USB devices are connected USB2.0 Controller Mode [HiSpeed] Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller. The controller is capable of operating at 12 Mb/s...
  • Page 105 PICOe-PV-D510 User Manual 20 Sec POST waits 20 seconds for the USB mass storage EFAULT device after the start unit command. POST waits 30 seconds for the USB mass storage 30 Sec device after the start unit command. 40 Sec POST waits 40 seconds for the USB mass storage device after the start unit command.

  • Page 106: Pci/Pnp

    PICOe-PV-D510 User Manual 5.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 15) to configure advanced PCI and PnP settings. WARNING! Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction. BIOS SETUP UTILITY...
  • Page 107 PICOe-PV-D510 User Manual Available The specified IRQ is available to be used by EFAULT PCI/PnP devices The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are: IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ 11...

  • Page 108: Boot

    PICOe-PV-D510 User Manual Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices. Disabled No memory block reserved for legacy ISA devices EFAULT 16 KB reserved for legacy ISA devices...

  • Page 109: Boot Settings Configuration

    PICOe-PV-D510 User Manual 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 17) to configure advanced system boot options. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Boot Settings Configuration Allows BIOS to skip ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...
  • Page 110 PICOe-PV-D510 User Manual Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled EFAULT Enabled OEM Logo displayed instead of POST messages AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.

  • Page 111: Boot Device Priority

    PICOe-PV-D510 User Manual Disabled The spread spectrum mode is disabled EFAULT The spread spectrum mode is enabled Enabled 5.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 18) to specify the boot sequence from the available devices. The drive sequence also depends on the boot sequence in the individual device section.

  • Page 112: Hard Disk Drives

    PICOe-PV-D510 User Manual 5.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. Only installed hard drives are shown. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hard Disk Drives Specifies the boot ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 113: Removable Drives

    PICOe-PV-D510 User Manual 5.5.4 Removable Drives Use the Removable Drives menu (BIOS Menu 20) to specify the boot sequence of the removable drives. Only connected drives are shown. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hard Disk Drives Specifies the boot ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 114: Security

    PICOe-PV-D510 User Manual The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available CD/DVD drives is shown. Select the first CD/DVD drive the system boots from. If the “1st Drive” is not used for booting this option may be disabled.

  • Page 115: Chipset

    PICOe-PV-D510 User Manual Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.

  • Page 116: Northbridge Chipset Configuration

    PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Chipset Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below section may cause system to malfunction. > Northbridge Configuration > Southbridge Configuration Select Screen ↑ ↓ Select Item...
  • Page 117 PICOe-PV-D510 User Manual Initiate Graphic Adapter Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration...

  • Page 118: Southbridge Configuration

    PICOe-PV-D510 User Manual 1024 x 768 1280 x 1024 1366 x 768 1280 x 800 1280 x 600 5.7.2 Southbridge Configuration Use the Southbridge Configuration menu (BIOS Menu 25) to configure the Southbridge chipset. BIOS SETUP UTILITY Main Advanced PCIPNP...

  • Page 119: Exit

    PICOe-PV-D510 User Manual Enabled The GbE controller is enabled EFAULT The GbE controller is disabled Disabled HDA Controller [Disabled] Use the HDA Controller option to enable or disable the High Definition Audio (HDA) controller. Enabled The HDA controller is enabled...
  • Page 120 PICOe-PV-D510 User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit Exit Options Exit system setup after ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ saving the changes. Save Changes and Exit F10 key can be used for Discard Changes and Exit this operation...

  • Page 121: Abios Options

    PICOe-PV-D510 User Manual Appendix BIOS Options Page 109...
  • Page 122 PICOe-PV-D510 User Manual Below is a list of BIOS configuration options in the BIOS chapter. 　 System Overview .........................68 　 System Time [xx:xx:xx] .......................69 　 System Date [xx/xx/xx] ......................69 　 ATA/IDE Configurations [Compatible]................71 　 Configure SATA as [IDE].....................72 　 IDE Master and IDE Slave....................72 　...
  • Page 123 PICOe-PV-D510 User Manual 　 VT-UTF8 Combo Key Support [Disabled]................86 　 Select AT/ATX Power [ATX Power] ..................87 　 Suspend Mode [S1 (POS)]....................88 　 AHCI Port n [Not Detected] ....................89 　 SATA Port n [Auto] ......................90 　 S.M.A.R.T [Enabled]......................90 　 USB Configuration.......................91 　...
  • Page 124 PICOe-PV-D510 User Manual 　 Discard Changes and Exit....................108 　 Discard Changes....................... 108 　 Load Optimal Defaults...................... 108 　 Load Failsafe Defaults...................... 108 Page 112...

  • Page 125: B Terminology

    PICOe-PV-D510 User Manual Appendix Terminology Page 113...
  • Page 126 PICOe-PV-D510 User Manual AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 127 PICOe-PV-D510 User Manual Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 128 PICOe-PV-D510 User Manual Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 129: C Digital I/O Interface

    PICOe-PV-D510 User Manual Appendix Digital I/O Interface Page 117...

  • Page 130: Introduction

    PICOe-PV-D510 User Manual C.1 Introduction The DIO connector on the PICOe-PV-D510 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 131: Assembly Language Samples

    PICOe-PV-D510 User Manual C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 132: D Watchdog Timer

    PICOe-PV-D510 User Manual Appendix Watchdog Timer Page 120...
  • Page 133 PICOe-PV-D510 User Manual NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 134 PICOe-PV-D510 User Manual NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 135: E Compatibility

    PICOe-PV-D510 User Manual Appendix Compatibility Page 123...

  • Page 136: Compatible Operating Systems

    PICOe-PV-D510 User Manual NOTE: The compatible items described here have been tested by the IEI R&D team and found to be compatible with the PICOe-PV-D510 E.1 Compatible Operating Systems The following operating systems have been successfully run on the PICOe-PV-D510.

  • Page 137: Compatible Memory Modules

    The memory modules listed below have been tested on the PICOe-PV-D510 other memory modules that comply with the specifications may also work on the PICOe-PV-D510 but have not been tested. The following memory modules have been successfully tested on the PICOe-PV-D510. Manufacturer Description Capacity...

  • Page 138: F Hazardous Materials Disclosure

    PICOe-PV-D510 User Manual Appendix Hazardous Materials Disclosure Page 126...

  • Page 139: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PICOe-PV-D510 User Manual F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 140 PICOe-PV-D510 User Manual Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
