IEI Technology HDC-502E User Manual

Video/audio capture card with sdi input channel, 1920x1080@60p, and hardware h.264 codec
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDC-502E Video Capture Card
IEI Technology Corp.
MODEL:
HDC-502E
SDI Input Channel,1920x1080@60p,
Rev. 2.00 – 27 November, 2012
Video/Audio Capture Card with
and Hardware H.264 Codec
User Manual
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-502E and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology HDC-502E

Summary of Contents for IEI Technology HDC-502E

  • Page 1 HDC-502E Video Capture Card IEI Technology Corp. MODEL: HDC-502E Video/Audio Capture Card with SDI Input Channel,1920x1080@60p, and Hardware H.264 Codec User Manual Page I Rev. 2.00 – 27 November, 2012...
  • Page 2 HDC-502E Video Capture Card Revision Date Version Changes 27 November, 2012 2.00 Updated for V2.00 software version and latest specifications 15 November, 2011 1.00 Initial release Page II...
  • Page 3 HDC-502E Video Capture Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    HDC-502E Video Capture Card Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 A ......................3 PPLICATIONS 1.4 C ..................... 3 ONNECTOR VERVIEW 1.5 S ......................4 PECIFICATIONS 1.6 D ....................... 6 IMENSIONS 2 HARDWARE INSTALLATION...................
  • Page 5 HDC-502E Video Capture Card 4.5 FAQ ......................... 29 A HAZARDOUS MATERIALS DISCLOSURE ............30 A.1 H IPB P AZARDOUS ATERIAL ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........31 OMPLIANT NDER ITHOUT ERCURY Page V...
  • Page 6 HDC-502E Video Capture Card List of Figures Figure 1-1: HDC-502E Video Capture Card ..................2 Figure 1-2: HDC-502E Connector Overview.................3 Figure 1-3: HDC-502E Dimensions (mm) ..................6 Figure 2-1: HDC-502E Installation....................10 Figure 2-2: Connecting SDI Devices to the Video Capture Card ..........11 Figure 3-1: Windows Security .....................14...

  • Page 7: List Of Tables

    HDC-502E Video Capture Card List of Tables Table 1-1: Specifications .......................5 Table 2-1: Package List Contents ....................9 Page VII...

  • Page 8: Introduction

    HDC-502E Video Capture Card Chapter Introduction Page 1...

  • Page 9: Overview

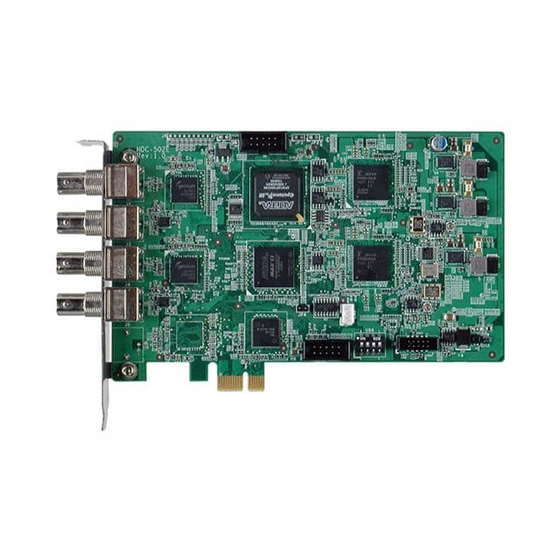

    1.1 Overview Figure 1-1: HDC-502E Video Capture Card The low power HDC-502E video capture card supports 1080p full HD video via SDI connection. The HDC-502E video capture card is equipped with a high-performing codec component featuring two SDI video input channels and two SDI audio input channels.

  • Page 10: Applications

    1.4 Connector Overview The following section introduces the connectors on the HDC-502E. The HDC-502E comes with two SDI input and two loop through connectors. A PCIe edge connector on the bottom of the capture card enables the HDC-502E to interface with a motherboard.

  • Page 11: Specifications

    HDC-502E Video Capture Card 1.5 Specifications The HDC-502E specifications are listed in the table below: HDC-502E Video Input Channels Video Input Type Audio Input Channels Audio Input Type Loop Through Channels Loop Through Type PCIe x1 Interface VIDEO PROCESSING H.264/AVC High Profile Level 4.2...
  • Page 12 HDC-502E Video Capture Card HDC-502E Linux: Fedora 16 (Kernel 3.1.0) SOFTWARE SUPPORT Driver for Windows XP, Windows 7 and Linux Fedora 16 Device Driver SDK provided with demo program and sample source code Windows: Provide SDK and demo program with sample source...

  • Page 13: Dimensions

    HDC-502E Video Capture Card 1.6 Dimensions The dimensions for the HDC-502E are listed in the following sections. Figure 1-3: HDC-502E Dimensions (mm) Page 6...

  • Page 14: Hardware Installation

    HDC-502E Video Capture Card Chapter Hardware Installation Page 7...

  • Page 15: Unpacking

    HDC-502E Video Capture Card 2.1 Unpacking 2.1.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the video capture card may result in permanent damage to the capture card and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the video capture card.

  • Page 16: Unpacking Checklist

    HDC-502E Video Capture Card 2.1.3 Unpacking Checklist NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the video capture card from or contact an IEI sales representative directly.

  • Page 17: Video Capture Card Installation

    Once the steps above have been completed, the hardware installation procedures are complete. 2.3 Video Capture Card Installation The HDC-502E video capture card has a PCIe x1 interface. To install the HDC-502E, please follow the steps below: Step 1: Align the PCIe edge connector on the bottom of the video capture card with the PCIe slot on the system motherboard (Figure 2-1).

  • Page 18: Sdi Device Installation

    HDC-502E Video Capture Card 2.4 SDI Device Installation Various devices can be connected to the HDC-502E. Video input and video output are all supported. Follow the steps below to connect devices to the HDC-502E. Step 1: Insert the SDI cable connector into the SDI port on the HDC-502E. Make sure the connection is secure.

  • Page 19: Driver And Application Installation (Windows)

    HDC-502E Video Capture Card Chapter Driver and Application Installation (Windows) Page 12...

  • Page 20: Overview

    HDCapture demo program. 3.2 Driver Installation To install the HDC-502E driver, please follow the steps below. If the HDC-502E driver is already installed, please refer to Section 3.2.2 to uninstall the driver first. NOTE: If the User Access Control dialog box appears during installation, click Yes to continue.

  • Page 21: Figure 3-1: Windows Security

    HDC-502E Video Capture Card Figure 3-1: Windows Security Step 5: If the following window appears, click Install this driver software anyway. Figure 3-2: Windows Warning Window Page 14...

  • Page 22: Figure 3-3: Device Driver Installation Wizard

    HDC-502E Video Capture Card Step 6: The Device Driver Installation Wizard appears. Click Next to start. Figure 3-3: Device Driver Installation Wizard Step 7: The video capture card driver starts to install and the screen in Figure 3-4 appears. Figure 3-4: Driver Installing Step 8: When the driver installation is complete, the screen in Figure 3-5 appears.

  • Page 23: Figure 3-5: Driver Installation Complete

    HDC-502E Video Capture Card Figure 3-5: Driver Installation Complete Step 9: Check the device manager in the Windows control panel to ensure the driver (MB86H55-REB PCI, HDC controller and WinDriver) has been properly installed. See Figure 3-6 for the details.

  • Page 24: Driver Installation In 64-Bit Windows 7 Os

    HDC-502E Video Capture Card 3.2.1 Driver Installation in 64-bit Windows 7 OS To install the driver in a 64-bit Windows 7 operating system, please do the followings. Step 1: Make sure to log in the system as the administrator. Step 2: Insert the driver CD.

  • Page 25: Uninstall Driver

    HDC-502E Video Capture Card Figure 3-8: Device Manager – 64-bit OS 3.2.2 Uninstall Driver To uninstall the driver, please follow the steps below. Step 1: Make sure to login the system as the administrator. Step 2: Locate the “Driveruninstaller.bat” file in the driver CD. Double click it to uninstall the driver.

  • Page 26: Software Installation

    HDC-502E Video Capture Card 3.3 Software Installation The HDC-502E comes with a video capture application – HDCapture. This section describes how to install the application in Windows environment. 3.3.1 System Requirements The supported OS versions are listed below: Microsoft Windows XP SP2 32-bit...

  • Page 27: Hdcapture Program Installation

    HDC-502E Video Capture Card 3.3.2 HDCapture Program Installation To install the HDCapture demo program, please follow the steps below. NOTE: If the User Access Control dialog box appears during installation, click Yes to continue. Step 1: Insert the driver CD.

  • Page 28: Figure 3-10: Select Installation Folder

    HDC-502E Video Capture Card Step 4: Select a folder for HDCapture installation in Figure 3-10. Click Next to continue. Figure 3-10: Select Installation Folder Step 5: The following screen appears. Click Next to confirm the installation. Figure 3-11: Confirm Installation Step 6: The system starts installing the HDCapture.

  • Page 29: Figure 3-12: Installation Complete

    HDC-502E Video Capture Card Step 7: When the HDCapture is successfully installed, the following window appears. Click Close to exit. Step 0: Figure 3-12: Installation Complete Page 22...

  • Page 30: Hdcapture Application (Windows)

    HDC-502E Video Capture Card Chapter HDCapture Application (Windows) Page 23...

  • Page 31: Hdcapture Overview

    HDC-502E Video Capture Card 4.1 HDCapture Overview The HDCapture application is a video capture tool that allows user to capture video through the SDI input ports in Windows environment. NOTE: If you cannot open the application in the 64-bit Windows 7 operating system, right-click the HDCapture application from the root installed directory, and click Run as administrator.

  • Page 32: Figure 4-2: Hdc-502E Device Ports

    Enable and configure the device settings by clicking the Device # (0, 1) buttons. The device number is decided by which port the device is installed. Figure 4-2: HDC-502E Device Ports Step 3: Click the Device # button. The Encoding window appears (Figure 4-3). Choose the video input format which depends on the video device.

  • Page 33: Figure 4-3: Encoding Settings

    HDC-502E Video Capture Card bitrate (must be in the range of video format). When “CBR” is selected, the “Bitrate” text box is displayed. When “VBR” is selected, the “Average bitrate” and “Peak bitrate” text boxes are displayed. Close the window to save the settings.

  • Page 34: Video Capture

    HDC-502E Video Capture Card 4.3 Video Capture To use the HDCapture to capture video, follow the steps below. Step 1: Click Start to start capturing video (Figure 4-4). Figure 4-4: Capturing Video Step 2: Click Stop to stop capture.Step 0:...

  • Page 35: Uninstall Hdcapture

    HDC-502E Video Capture Card 4.4 Uninstall HDCapture To uninstall the HDCapture, follow the steps below. Step 1: Select Control Panel Programs Programs and Features. Step 2: Select HDCapture and click the Uninstall button to uninstall the HDCapture. Figure 4-5: Uninstall HDCapture...
  • Page 36 HDC-502E Video Capture Card 4.5 FAQ Q: The input source video format is 60Hz and the HDCapture software video format setting is also 60Hz. But the video and sound are not synchronized. A: Please change the video format of HDCapture software to 59.94P to capture the video.
