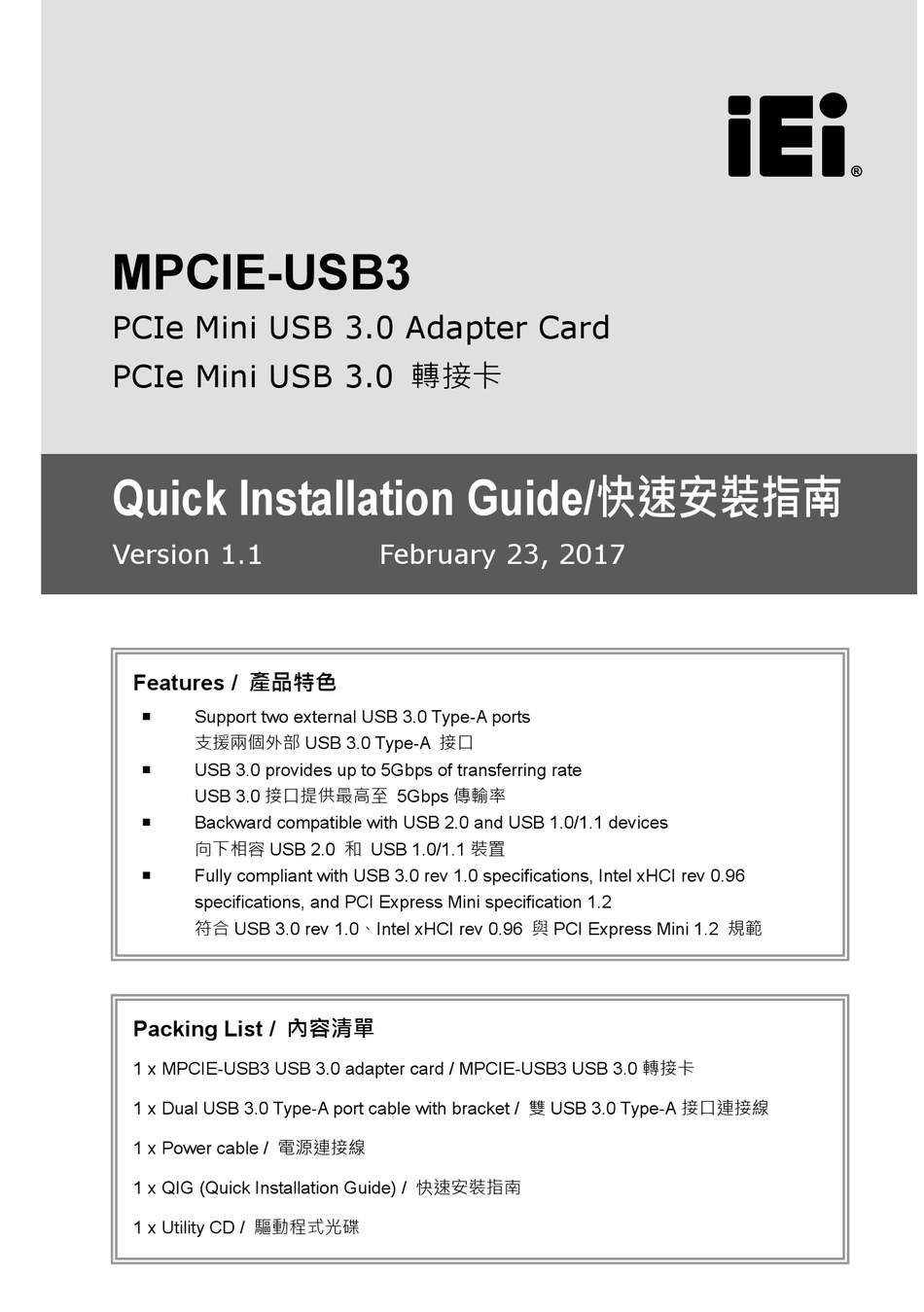

MPCIE-USB3
PCIe Mini USB 3.0 Adapter Card
PCIe Mini USB 3.0 轉接卡
Quick Installation Guide/快速安裝指南
Version 1.1
Features / 產品特色
Support two external USB 3.0 Type-A ports
支援兩個外部 USB 3.0 Type-A 接口
USB 3.0 provides up to 5Gbps of transferring rate
USB 3.0 接口提供最高至 5Gbps 傳輸率
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
向下相容 USB 2.0 和 USB 1.0/1.1 裝置
Fully compliant with USB 3.0 rev 1.0 specifications, Intel xHCI rev 0.96
specifications, and PCI Express Mini specification 1.2
符合 USB 3.0 rev 1.0、Intel xHCI rev 0.96 與 PCI Express Mini 1.2 規範
Packing List / 內容清單
1 x MPCIE-USB3 USB 3.0 adapter card / MPCIE-USB3 USB 3.0 轉接卡
1 x Dual USB 3.0 Type-A port cable with bracket / 雙 USB 3.0 Type-A 接口連接線
1 x Power cable / 電源連接線
1 x QIG (Quick Installation Guide) / 快速安裝指南
1 x Utility CD / 驅動程式光碟
February 23, 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology MPCIE-USB3
Summary of Contents for IEI Technology MPCIE-USB3
- Page 1 符合 USB 3.0 rev 1.0、Intel xHCI rev 0.96 與 PCI Express Mini 1.2 規範 Packing List / 內容清單 1 x MPCIE-USB3 USB 3.0 adapter card / MPCIE-USB3 USB 3.0 轉接卡 1 x Dual USB 3.0 Type-A port cable with bracket / 雙 USB 3.0 Type-A 接口連接線...
- Page 2 10% ~ 95%, non-condensing Dimensions (LxW) 50 mm x 30 mm Weight 70 g Ordering Information / 訂購資料 MPCIE-USB3-R11: PCI Express Mini USB 3.0 adapter card, RoHS 19800-010500-100-RS: Dual USB 3.0 Type-A port cable with bracket Connector Pinouts / 連接器腳位定義...
- Page 3 Windows 7 Windows Server 2003 Windows Vista Windows 8/8.1 Windows Server 2008 Install the driver corresponding to your operating system before using the MPCIE-USB3. MPCIE-USB3 驅動程式光碟內含下列操作系統的專用驅動程式： Windows XP Windows 7 Windows Server 2003 ...
- Page 4 Headquarters America China 威強電工業電腦 IEI Integration Corp. 威强电工业电脑 IEI Integration (Shanghai) Corp. IEI Technology USA Corp. 上海市闵行莘庄工业区申富路 515 号 No. 29, ZhongXing Rd., Xizhi Dist., 138 University Parkway, Pomona, New Taipei City 221, Taiwan CA 91768, USA No.
