IEI Technology PICOe-9452 User Manual

Socket m intel core 2 duo half-size cpu card ddr2, 3.0 gb/s sata support dual pcie gbe pci
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

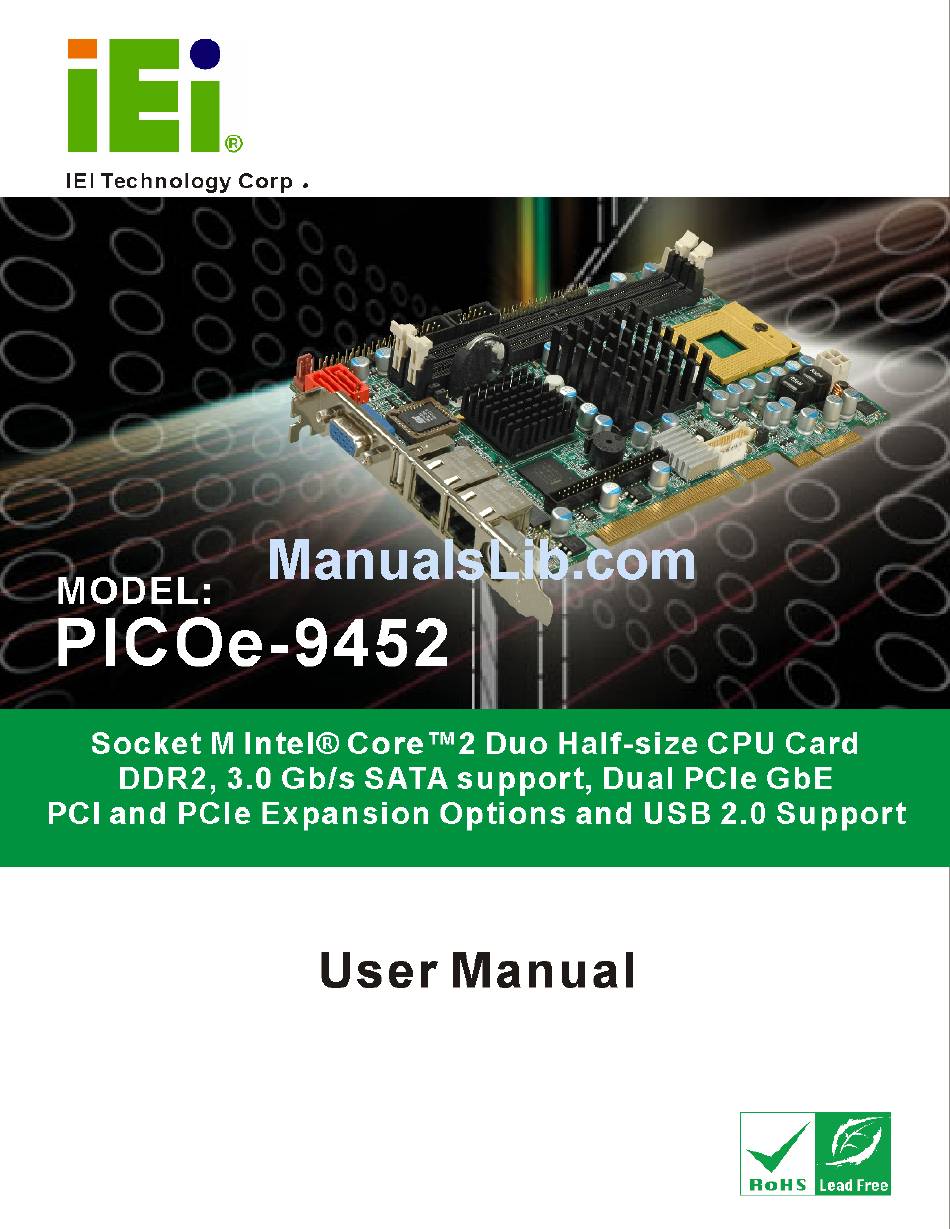

PICOe-9452 Half-size CPU Card
Page i
Rev. 2.10 – 4 March 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PICOe-9452 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PICOe-9452

Summary of Contents for IEI Technology PICOe-9452

  • Page 1 PICOe-9452 Half-size CPU Card Page i Rev. 2.10 – 4 March 2010...
  • Page 2 PICOe-9452 Half-size CPU Card Revision Date Version Changes 2010-03-04 2.10 Bug fixes 2008-08-12 2.00 Northbridge changed from Intel® 945GM to Intel® 945GME 18-bit and 24-bit LVDS supported with 24-bit LVDS a customized option PS/2 wake-up function added to the BIOS...
  • Page 3 PICOe-9452 Half-size CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the PICOe-9452. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
  • Page 5 PICOe-9452 Half-size CPU Card CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the PICOe-9452. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.

  • Page 6: Packing List

    PICOe-9452 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the PICOe-9452 package.  1 x PICOe-9452 single board computer ...

  • Page 7: Table Of Contents

    1.1.2 PICOe-9452 Features ..................4 1.2 PICO -9452 O .................... 4 VERVIEW 1.2.1 PICOe-9452 Overview Photo ................4 1.2.2 PICOe-9452 Peripheral Connectors and Jumpers..........6 1.2.3 Technical Specifications..................7 DETAILED SPECIFICATIONS ................10 2.1 O ........................ 12 VERVIEW 2.2 D ......................
  • Page 8 PICOe-9452 Half-size CPU Card ® 2.6.4 Intel ICH7-M IDE Interface................24 ® 2.6.5 Intel ICH7-M Low Pin Count (LPC) Interface ..........25 ® 2.6.6 Intel ICH7-M PCI Interface................25 ® 2.6.7 Intel ICH7-M PCIe x4 Bus................26 ® 2.6.8 Intel ICH7-M Real Time Clock ..............
  • Page 9 3.3.1 Package Contents..................... 42 3.3.2 Optional Items....................44 CONNECTOR PINOUTS..................46 4.1 P ..............48 ERIPHERAL NTERFACE ONNECTORS 4.1.1 PICOe-9452 Layout ..................48 4.1.2 Peripheral Interface Connectors ..............49 4.1.3 External Interface Panel Connectors............... 50 4.2 I ..............51 NTERNAL ERIPHERAL ONNECTORS 4.2.1 +12V ATX Power Supply Connector ...............
  • Page 10 PICOe-9452 Half-size CPU Card 5.1 A ..................78 STATIC RECAUTIONS 5.2 I ................79 NSTALLATION ONSIDERATIONS 5.2.1 Installation Notices ..................79 5.2.2 Installation Checklist ..................80 5.3 CPU, CPU C DIMM I ..........81 OOLING IT AND NSTALLATION 5.3.1 Socket M CPU Installation ................81 5.3.2 Cooling Kit CF-479B-RS Installation..............
  • Page 11 PICOe-9452 Half-size CPU Card 6.1.2 Using Setup .....................114 6.1.3 Getting Help....................115 6.1.4 Unable to Reboot After Configuration Changes..........115 6.1.5 BIOS Menu Bar....................115 6.2 M ........................116 6.3 A ......................117 DVANCED 6.3.1 CPU Configuration..................118 6.3.2 IDE Configuration ..................119 6.3.2.1 IDE Master, IDE Slave ................121 6.3.3 Super IO Configuration .................
  • Page 12 PICOe-9452 Half-size CPU Card 7.6 R HD A (ALC883) I ........185 EALTEK UDIO RIVER NSTALLATION 7.6.1 BIOS Setup ..................... 185 7.6.2 Driver Installation ..................185 7.7 R AC`97 A (ALC665) I ........189 EALTEK UDIO RIVER NSTALLATION 7.7.1 BIOS Setup ..................... 189 7.7.2 Driver Installation ..................
  • Page 13 PICOe-9452 Half-size CPU Card List of Figures Figure 1-1: PICOe-9452 CPU Card ....................3 Figure 1-2: PICOe-9452 Overview [Front View] ................5 Figure 1-3: PICOe-9452 Overview [Rear View]................6 Figure 2-1: PICOe-9452 Dimensions (mm) .................13 Figure 2-2: External Interface Panel Dimensions (mm) ............14 Figure 2-3: Data Flow Block Diagram ..................15...
  • Page 14 PICOe-9452 Half-size CPU Card Figure 4-19: USB Connector Pinout Locations .................70 Figure 4-20: PICOe-9452 External Peripheral Interface Connector .........71 Figure 4-21: RJ-45 Ethernet Connector..................72 Figure 4-22: PS/2 Pinout and Configuration ................73 Figure 4-23: VGA Connector......................74 Figure 5-1: Make sure the CPU socket retention screw is unlocked ........82 Figure 5-2: Lock the CPU Socket Retention Screw..............83...
  • Page 15 PICOe-9452 Half-size CPU Card Figure 7-3: Chipset Driver Installation Program..............169 Figure 7-4: Chipset Driver Installation Welcome Screen............170 Figure 7-5: Chipset Driver Installation License Agreement ..........171 Figure 7-6: Chipset Driver Readme File Information ............. 172 Figure 7-7: Chipset Driver Installation Complete ..............173 Figure 7-8: Select the Operating System ................
  • Page 16 PICOe-9452 Half-size CPU Card List of Tables Table 1-1: Technical Specifications ....................9 Table 2-1: Processor Features ....................16 Table 2-2: Supported Processors ....................17 Table 2-3: Supported HDD Specifications..................25 Table 2-4: Power Consumption ....................36 Table 2-5: Compatible IEI PICOe Backplanes ................37 Table 2-6: Compatible IEI Chassis ....................38 Table 3-1: Package List Contents....................43...
  • Page 17 PICOe-9452 Half-size CPU Card Table 4-22: Keyboard Connector Pinouts ..................73 Table 4-23: USB Port Pinouts ......................74 Table 4-24: VGA Connector Pinouts ...................75 Table 5-1: Jumpers ........................89 Table 5-2: CF Card Setup Jumper Settings................89 Table 5-3: Clear CMOS Jumper Settings ..................91 Table 5-4: LVDS Voltage Selection Jumper Settings..............92...
  • Page 18 PICOe-9452 Half-size CPU Card BIOS Menus Menu 1: Main ..........................116 Menu 2: Advanced ........................118 Menu 3: CPU Configuration.......................119 Menu 4: IDE Configuration......................120 Menu 5: IDE Master and IDE Slave Configuration..............122 Menu 6: Super IO Configuration ....................127 Menu 7: Hardware Health Configuration ................. 131 Menu 8: Remote Access Configuration [Advanced] ..............

  • Page 19: Introduction

    PICOe-9452 Half-size CPU Card Chapter Introduction Page 1...
  • Page 20 PICOe-9452 Half-size CPU Card Page 2...

  • Page 21: Introduction

    1.1 Introduction Figure 1-1: PICOe-9452 CPU Card The half-size PICOe-9452 CPU card is a Socket M Intel® Core™2 Duo, Intel® Core™ Duo, Intel® Core™ Solo or Intel® Celeron M (Yohan core) CPU platform. The PICOe-9452 has a maximum front side bus (FSB) frequency of 667MHz and supports 667MHz 2GB dual channel memory modules.

  • Page 22: Picoe-9452 Features

    Supports AT and ATX power supplies 1.2 PICOe-9452 Overview 1.2.1 PICOe-9452 Overview Photo The PICOe-9452 has a wide variety of internal and external peripheral connectors. A labeled photo of the peripheral connectors on the front of the PICOe-9452 is shown in Figure 1-2. Page 4...

  • Page 23: Figure 1-2: Picoe-9452 Overview [Front View]

    PICOe-9452 Half-size CPU Card Figure 1-2: PICOe-9452 Overview [Front View] A labeled photo of the peripheral connectors on the back of the PICOe-9452 is shown in Figure 1-2. Page 5...

  • Page 24: Picoe-9452 Peripheral Connectors And Jumpers

    PICOe-9452 Half-size CPU Card Figure 1-3: PICOe-9452 Overview [Rear View] 1.2.2 PICOe-9452 Peripheral Connectors and Jumpers The PICOe-9452 has the following connectors on-board:  1 x Audio connector  1 x Backplane power connector  1 x Compact flash connector ...

  • Page 25: Technical Specifications

    CF Card setup  LVDS voltage selection  PCIe interface setup 1.2.3 Technical Specifications PICOe-9452 technical specifications are listed in Table 1-1. See Chapter 2 for details. Specification PICOe-9452 Form Factor Half-size Socket M Intel® Core™2 Duo Socket M Intel® Core™ Duo System CPU Socket M Intel®...
  • Page 26  CRT: Integrated in the Intel 945GME to support CRT LVDS: Dual channel 18-bit LVDS LCD panel (a customized Display PICOe-9452 also supports 24-bit LVDS panels) HDTV: Supported by component interface BIOS AMI Flash BIOS Audio 7.1 channel or 5.1 channel audio with an optional AC-KIT Intel®...

  • Page 27: Table 1-1: Technical Specifications

    PICOe-9452 Half-size CPU Card 0ºC – 60ºC (32ºF - 140ºF) Temperature Humidity (operating) 5%~95% non-condensing Dimensions (LxW) 185mm x 122mm 1000g/ 171g Weight (GW/NW) Table 1-1: Technical Specifications Page 9...

  • Page 28: Detailed Specifications

    PICOe-9452 Half-size CPU Card Chapter Detailed Specifications Page 10...
  • Page 29 PICOe-9452 Half-size CPU Card Page 11...

  • Page 30: Overview

    PICOe-9452 Half-size CPU Card 2.1 Overview This chapter describes the specifications and on-board features of the PICOe-9452 in detail. 2.2 Dimensions 2.2.1 Board Dimensions The dimensions of the board are listed below:  Length: 185mm  Width: 122mm Page 12...

  • Page 31: External Interface Panel Dimensions

    PICOe-9452 Half-size CPU Card Figure 2-1: PICOe-9452 Dimensions (mm) 2.2.2 External Interface Panel Dimensions External peripheral interface connector panel dimensions are shown in Figure 2-2. Page 13...

  • Page 32: Data Flow

    PICOe-9452 Half-size CPU Card Figure 2-2: External Interface Panel Dimensions (mm) 2.3 Data Flow Figure 2-3 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter.

  • Page 33: Figure 2-3: Data Flow Block Diagram

    PICOe-9452 Half-size CPU Card Figure 2-3: Data Flow Block Diagram Page 15...

  • Page 34: Compatible Processors

    PICOe-9452 Half-size CPU Card 2.4 Compatible Processors 2.4.1 Compatible Processor Overview The PICOe-9452 supports the following Socket M processors:  Intel® Core™2 Duo Mobile processors  Intel® Core™ Duo processors  Intel® Core™ Solo processors Intel® Celeron® M processors ...

  • Page 35: Intel ® 945Gme Northbridge Chipset

    PICOe-9452 Half-size CPU Card Family CPU Speed Processor # Bus Speed Mfg Tech Stepping Cache Size 2 GHz T7200 667 MHz 65 nm 4 MB 1.83 GHz T5600 667 MHz 65 nm 2 MB 1.66 GHz T5500 667 MHz 65 nm 2 MB Core™...

  • Page 36: Intel ® 945Gme Memory Support

    ® 2.5.2 Intel 945GME Memory Support WARNING: Only DDR2 memory module can be installed on the PICOe-9452. Do not install DDR memory modules. If a DDR memory module is installed on the PICOe-9452, the PICOe-9452 may be irreparably damaged. ®...

  • Page 37: Intel ® 945Gme Pcie X1 Bus: Pcie Gbe Ethernet Controller

    PICOe-9452 Half-size CPU Card Figure 2-4: 240-pin DDR2 DIMM Sockets ® 2.5.3 Intel 945GME PCIe x1 Bus: PCIe GbE Ethernet Controller One lane of the PCIe (PCIe x1) bus on the Intel® 945GME northbridge chipset is interfaced to an external RJ-45 LAN connector (LAN1) through an Intel® PC82573V PCIe GbE controller.

  • Page 38: Intel ® 945Gme Integrated Graphics

    PICOe-9452 Half-size CPU Card Figure 2-5: PCIe GbE LAN Chipset and Connector ® 2.5.4 Intel 945GME Integrated Graphics ® The Intel® 945GME northbridge chipset has an Intel Gen. 3.5 integrated graphics engine that supports the following display devices:  Analog CRT ...

  • Page 39: Intel 945Gme Lvds Support

    18-bit 25MHz to 112MHz single-channel or dual-channel LVDS screens  CPIS 1.5 compliant LVDS screens A customized design of PICOe-9452 enables the system to support 24-bit dual-channel LVDS screens. NOTE: If support for 24-bit dual-channel LVDS screens is needed, please...

  • Page 40: Intel ® 945Gme Direct Media Interface (Dmi)

    PICOe-9452  Integrated IDE controller supports Ultra ATA 100/66/33  Supports the four USB 2.0 devices on the PICOe-9452 with four UHCI controllers and one EHCI controller  Complies with System Management Bus (SMBus) Specification, Version 2.0 ...

  • Page 41: Intel ® Ich7-M Audio Codec '97 Controller

    PICOe-9452 Half-size CPU Card  Supports Firmware Hub (FWH) interface Serial peripheral interface support  ® 2.6.2 Intel ICH7-M Audio Codec ’97 Controller The Audio Codec ’97 (AC’97) controller integrated into the ICH7-M complies with AC’97 Component Specification, Version 2.3. The AC’97 controller is connected to the onboard audio connector.

  • Page 42: Intel ® Ich7-M Ide Interface

    PICOe-9452 Half-size CPU Card Figure 2-6: 10Mbps or 100Mbps LAN Controller Chipset and Connector ® 2.6.4 Intel ICH7-M IDE Interface The integrated IDE interface on the ICH7-M southbridge supports two IDE hard disks and ATAPI devices. The integrated IDE interface is able to support the following IDE HDDs: ...

  • Page 43: Intel ® Ich7-M Low Pin Count (Lpc) Interface

    PICOe-9452 Half-size CPU Card Specification Ultra ATA/33 IDE devices PIO Mode 0 – 4 PIO Max Transfer Rate 16.6 MB/s DMA/UDMA designation UDMA 2 DMA/UDMA Max Transfer 33MB/s Controller Interface Table 2-3: Supported HDD Specifications ® 2.6.5 Intel ICH7-M Low Pin Count (LPC) Interface The ICH7-M LPC interface complies with the LPC 1.1 specifications.

  • Page 44: Intel ® Ich7-M Pcie X4 Bus

    PICOe-9452 Half-size CPU Card Figure 2-7: PCI Golden finger ® 2.6.7 Intel ICH7-M PCIe x4 Bus The Intel® ICH7-M southbridge chipset has four PCIe lanes. The four PCIe lanes are interfaced through a golden finger on the bottom of the CPU card through a compatible half-size backplane to either four PCIe x1 expansion cards or one PCIe x4 expansion card on.

  • Page 45: Intel ® Ich7-M Real Time Clock

    ® 2.6.9 Intel ICH7-M SATA Controller The integrated SATA controller on the ICH7-M southbridge supports two SATA drives on the PICOe-9452 with independent DMA operations. SATA controller specifications are listed below.  Supports two SATA drives  Supports 1.5 Gb/s data transfer speeds ...

  • Page 46: Intel ® Ich7-M Usb Controller

    Up to five high-speed, full-speed or low-speed USB devices are supported by the ICH7-M on the PICOe-9452. High-speed USB 2.0, with data transfers of up to 480MB/s, is enabled with the ICH7-M integrated Enhanced Host Controller Interface (EHCI) compliant host controller.

  • Page 47: Lpc Bus Components

    PICOe-9452 Half-size CPU Card 2.7 LPC Bus Components 2.7.1 LPC Bus Overview The LPC bus is connected to components listed below:  BIOS chipset  Super I/O chipset The BIOS chipset and Super I/O chipset are shown in Figure 2-10 below.

  • Page 48: Bios Chipset

    PICOe-9452 Half-size CPU Card Figure 2-10: LPC Bus Components 2.7.2 BIOS Chipset The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset. Some of the BIOS features are listed below:  AMI Flash BIOS  SMIBIOS (DMI) compliant ...

  • Page 49: Super I/O Lpc Interface

    PICOe-9452 Half-size CPU Card  LPC Interface PC98/99/2001, ACPI and LANDesk Compliant   Enhanced Hardware Monitor  Fan Speed Controller  SmartGuardian Controller  Single +5V Power Supply  Two 16C550 UARTs for serial port control  One IEEE 1284 Parallel Port ...

  • Page 50: Super I/O Fan Speed Controller

    PICOe-9452 Half-size CPU Card 2.7.3.4 Super I/O Fan Speed Controller The Super I/O fan speed controller enables the system to monitor the speed of the fan. One of the pins on the fan connector is reserved for fan speed detection and interfaced to the fan speed controller on the Super I/O.

  • Page 51: Intel® Pc82573V Pcie Gbe Ethernet Controller

    PICOe-9452 Half-size CPU Card 2.8.2 Intel® PC82573V PCIe GbE Ethernet Controller 2.8.2.1 Intel® PC82573V Overview The Intel® PC82573V is a PCIe GbE Ethernet controller that interfaces the Intel® 945GME northbridge chipset to the LAN1 RJ-45 connector. The Intel 82573 Gigabit ®...

  • Page 52: Intel® Ep82562Et Pcie Gbe Ethernet Controller

    48-pin Shrink Small Outline Package  Platform LAN connect interface support 2.9 Environmental and Power Specifications 2.9.1 System Monitoring Three thermal inputs on the PICOe-9452 Super I/O Enhanced Hardware Monitor monitor the following temperatures:  System temperature  Power temperature...
  • Page 53 PICOe-9452 Half-size CPU Card  CPU temperature Eight voltage inputs on the PICOe-9452 Super I/O Enhanced Hardware Monitor monitor the following voltages:  Vcore  +2.5V  +3.3V  +5.0V  +12.0V  DDR Vtt  +1.5V  5VSB The PICOe-9452 Super I/O Enhanced Hardware Monitor also monitors the following voltages internally: ...

  • Page 54: Operating Temperature And Temperature Control

    These backplanes and chassis are listed below. 2.10.2 IEI Expansion PICOe Backplanes The backplanes listed in Table 2-5 are compatible with the PICOe-9452 and can be used to develop highly integrated industrial applications. All of the backplanes listed below have...

  • Page 55: Iei Chassis

    Table 2-5: Compatible IEI PICOe Backplanes 2.10.3 IEI Chassis IEI chassis available for PICOe-9452 system development are listed in Table 2-6. For more information about these chassis please consult the IEI catalog or contact your vendor, reseller or the IEI sales team at sales@iei.com.tw.

  • Page 56: Table 2-6: Compatible Iei Chassis

    PICOe-9452 Half-size CPU Card Model Slot SBC Mounting Max Slots Backplanes PACO-504H Half-size Wall HPE-S1 HPE-4S2 PR-1500G Half-size Wall HPE-5S1 HPE-5S2 HPE-5S3 PAC-400G Half-size Wall HPE-5S1 HPE-5S2 HPE-5S3 PACK-500G HPE-5S1 HPE-5S2 HPE-5S3 PACO-506H Half-size Wall HPE-6S1 HPE-6S2 PACO-700G Half-size Wall...

  • Page 57: Unpacking

    PICOe-9452 Half-size CPU Card Chapter Unpacking Page 39...
  • Page 58 PICOe-9452 Half-size CPU Card Page 40...

  • Page 59: Anti-Static Precautions

     Follow the anti-static precautions outlined in Section 3.1.  Make sure the packing box is facing upwards so the PICOe-9452 does not fall out of the box.  Make sure all the components shown in Section 3.3 are present.

  • Page 60: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the PICOe-9452 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.

  • Page 61: Table 3-1: Package List Contents

    PICOe-9452 Half-size CPU Card Dual RS-232 cable (P/N: 19800-000051-RS) Dual USB cable (w bracket) (P/N:CB-USB02-RS) Mini jumper pack Quick installation guide Utility CD Table 3-1: Package List Contents Page 43...

  • Page 62: Optional Items

    Please contact your PICOe-9452 vendor, distributor or reseller for more information or, contact iEi directly by sending an email to sales@iei.com.tw. The following optional items are available for the PICOe-9452. Item and Part Number Image Audio kit_ 5.1 Channel (P/N: AC-KIT08R-R10) Audio kit_ 7.1 Channel...

  • Page 63: Table 3-2: Optional Items

    PICOe-9452 Half-size CPU Card Item and Part Number Image HDTV_TV out extended cable (P/N: 32000-083100-RS) Table 3-2: Optional Items Page 45...

  • Page 64: Connector Pinouts

    PICOe-9452 Half-size CPU Card Chapter Connector Pinouts Page 46...
  • Page 65 PICOe-9452 Half-size CPU Card Page 47...

  • Page 66: Peripheral Interface Connectors

    PICOe-9452 Half-size CPU Card 4.1 Peripheral Interface Connectors Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the peripheral interface connectors seen in Section 4.1.2. 4.1.1 PICOe-9452 Layout Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers.

  • Page 67: Peripheral Interface Connectors

    PICOe-9452 Half-size CPU Card Figure 4-2: Connector and Jumper Locations (Solder Side) 4.1.2 Peripheral Interface Connectors Table 4-1 shows a list of the peripheral interface connectors on the PICOe-9452. Detailed descriptions of these connectors can be found below. Connector Type...

  • Page 68: External Interface Panel Connectors

    8-pin header USB3_4 Table 4-1: Peripheral Interface Connectors 4.1.3 External Interface Panel Connectors Table 4-2 lists the rear panel connectors on the PICOe-9452. Detailed descriptions of these connectors can be found in Section 4.3 on page 71 Connector Type Label...

  • Page 69: Internal Peripheral Connectors

    Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the PICOe-9452. 4.2.1 +12V ATX Power Supply Connector...

  • Page 70: Audio Connector (9-Pin)

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION +12V +12V Table 4-3: +12V ATX Power Connector Pinouts 4.2.2 Audio Connector (9-pin) CN Label: J_AUDIO1 CN Type: 9-pin header CN Location: See Figure 4-4 See Table 4-4 CN Pinouts: An optional module can be connected to the 10-pin audio connector to provide the system with a high quality AC’97 or Azalia compatible codec that provides a complete integrated...

  • Page 71: Backlight Inverter Connector

    5-pin wafer (1x5) CN Location: See Figure 4-5 CN Pinouts: See Table 4-5 The backlight inverter connector provides the backlight on the LCD display connected to the PICOe-9452 with +12V of power. Figure 4-5: Panel Backlight Connector Pinout Locations Page 53...

  • Page 72: Backplane To Mainboard Connector

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION BRIGHTNESS GROUND +12V GROUND BACKLIGHT ENABLE Table 4-5: Panel Backlight Connector Pinouts 4.2.4 Backplane to Mainboard Connector CN Label: ATXCTL1 CN Type: 3-pin wafer (1x3) CN Location: See Figure 4-6 CN Pinouts: See Table 4-6 The backplane to mainboard connector closes the circuit between the mainboard and the backplane in which it is installed.

  • Page 73: Compact Flash Socket

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION PS_ON# 5VSB Table 4-6: Backplane to Mainboard Connector Pinouts 4.2.5 Compact Flash Socket CN Label: CF1 (solder side) CN Type: 50-pin header (2x25) CN Location: See Figure 4-7 See Table 4-7 CN Pinouts: A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the PICOe-9452.

  • Page 74: Figure 4-7: Cf Card Socket Location

    PICOe-9452 Half-size CPU Card Figure 4-7: CF Card Socket Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND VCC-IN CHECK1 DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 DATA 7 DATA 15 HDC_CS0#...

  • Page 75: Digital Input/Output (Dio) Connector

    PICOe-9452 Half-size CPU Card CSEL HDD_RESET IORDY SDREQ SDACK# HDD_ACTIVE# DATA 0 66DET DATA 1 DATA 8 DATA 2 DATA 9 DATA 10 VCC-IN CHECK2 GROUND Table 4-7: CF Card Socket Pinouts 4.2.6 Digital Input/Output (DIO) Connector CN Label: DIO1...

  • Page 76: Fan Connector (+12V)

    PICOe-9452 Half-size CPU Card Figure 4-8: DIO Connector Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 4-8: DIO Connector Connector Pinouts 4.2.7 Fan Connector (+12V)

  • Page 77: Front Panel Connector (8-Pin)

    PICOe-9452 Half-size CPU Card Figure 4-9: +12V Fan Connector Location PIN NO. DESCRIPTION Fan Speed Detect +12V Table 4-9: +12V Fan Connector Pinouts 4.2.8 Front Panel Connector (8-pin) CN Label: F_PANEL1 CN Type: 8-pin header (2x8) CN Location: See Figure 4-10...

  • Page 78: Ide Connector (44-Pin)

    Table 4-10: Front Panel Connector Pinouts 4.2.9 IDE Connector (44-pin) CN Label: IDE1 CN Type: 44-pin header (2x22) See Figure 4-11 CN Location: CN Pinouts: See Table 4-11 One 44-pin IDE device connector on the PICOe-9452 supports connectivity to two hard disk drives. Page 60...

  • Page 79: Figure 4-11: Ide Device Connector Locations

    PICOe-9452 Half-size CPU Card Figure 4-11: IDE Device Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET# GROUND DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2...

  • Page 80: Infrared Interface Connector (5-Pin)

    PICOe-9452 Half-size CPU Card HDD ACTIVE# GROUND GROUND Table 4-11: IDE Connector Pinouts 4.2.10 Infrared Interface Connector (5-pin) CN Label: CN Type: 5-pin header (1x5) CN Location: See Figure 4-12 CN Pinouts: See Table 4-12 The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift Key Infrared (ASKIR) interfaces.

  • Page 81: Keyboard/Mouse Connector

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION IR-RX IR-TX Table 4-12: Infrared Connector Pinouts 4.2.11 Keyboard/Mouse Connector CN Label: KB_MS2 CN Type: 6-pin header (1x6) CN Location: See Figure 4-13 CN Pinouts: See Table 4-13 The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.

  • Page 82: Lvds Lcd Connector

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION +5V KB DATA MS DATA MS CLK KB DATA KB CLK GROUND Table 4-13: Keyboard/Mouse Connector Pinouts 4.2.12 LVDS LCD Connector LVDS1 CN Label: CN Type: 30-pin crimp (2x10) CN Location: See Figure 4-14...

  • Page 83: Parallel Port Connector

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND GROUND LVDSA_Y0+ LVDSA_Y0- LVDSA_Y1+ LVDSA_Y1- LVDSA_Y2+ LVDSA_Y2- LVDSA_CLK+ LVDSA_CLK- GROUND GROUND LVDSB_Y0+ LVDSB_Y0- LVDSB_Y1+ LVDSB_Y1- LVDSB_Y2+ LVDSB_Y2- LVDSB_CLK+ LVDSB_CLK- GROUND GROUND VCC_LVDS VCC_LVDS VCC_LVDS VCC_LVDS Table 4-14: LVDS LCD Port Connector Pinouts 4.2.13 Parallel Port Connector...

  • Page 84: Sata Drive Connectors

    PICOe-9452 Half-size CPU Card Figure 4-15: Parallel Port Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION STROBE# DATA 0 DATA 1 DATA 2 DATA 3 DATA 4 DATA 5 DATA 6 DATA 7 ACKNOWLEDGE BUSY PAPER EMPTY PRINTER SELECT AUTO FORM FEED #...

  • Page 85: Figure 4-16: Sata Drive Connector Locations

    PICOe-9452 Half-size CPU Card 7-pin SATA drive connectors CN Type: CN Location: See Figure 4-16 CN Pinouts: See Table 4-16 The two SATA drive connectors are each connected to a first generation SATA drive. First generation SATA drives transfer data at speeds as high as 150Mb/s.

  • Page 86: Serial Port Connector (Com1 And Com2)

    PICOe-9452 Half-size CPU Card 4.2.15 Serial Port Connector (COM1 and COM2) CN Label: COM1 and COM2 10-pin header (2x5) CN Type: CN Location: See Figure 4-17 CN Pinouts: See Table 4-17 The 10-pin serial port connector provides a second RS-232 serial communications channel.

  • Page 87: Tv Out Connector

    PICOe-9452 Half-size CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION Data Carrier Detect (DCD) Data Set to Ready (DSR) Receive Data (RXD) Request to Send (RTS) Transmit Data (TXD) Clear to Sent (CTS) Data Terminal Ready (DTR) Ring Indicator (RI)

  • Page 88: Usb Connectors (Internal)

    PICOe-9452 Half-size CPU Card S-Video Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AGREEN_Y ARED_C RCA Connector (only video signal) ABLUE_CVBS Table 4-18: TV Port Connector Pinouts 4.2.17 USB Connectors (Internal) USB1_2 and USB3_4 CN Label: CN Type: 8-pin header (2x4)

  • Page 89: External Peripheral Interface Connector Panel

    Table 4-19: USB Port Connector Pinouts 4.3 External Peripheral Interface Connector Panel Figure 4-20 shows the PICOe-9452 rear panel. The PICOe-9452 rear panel consists of two RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA connector. These connectors are accessible when the PICOe-9452 is installed in a chassis.

  • Page 90: Keyboard/Mouse Connector

    PICOe-9452 Half-size CPU Card DESCRIPTION DESCRIPTION TXA+ TXC- TXA- TXB- TXB+ TXD+ TXC+ TXD- Table 4-20: LAN Pinouts Figure 4-21: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked. See Table 4-21.

  • Page 91: Usb Connector

    USB port See Figure 4-20 CN Location: CN Pinouts: See Table 4-23 The PICOe-9452 has a one external USB 2.0 port. The port connects to both USB 2.0 and USB 1.1 devices. PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBV3L 5V USBP4N...

  • Page 92: Vga Connector

    VGA1 CN Type: 15-pin Female CN Location: See Figure 4-20 See Figure 4-23 and Table 4-24 CN Pinouts: The PICOe-9452 has a single 15-pin female connector for connectivity to standard display devices. Figure 4-23: VGA Connector DESCRIPTION DESCRIPTION GREEN BLUE...

  • Page 93: Table 4-24: Vga Connector Pinouts

    PICOe-9452 Half-size CPU Card VCC / NC DDC DAT HSYNC VSYNC DDCCLK Table 4-24: VGA Connector Pinouts Page 75...

  • Page 94: Installation

    PICOe-9452 Half-size CPU Card Chapter Installation Page 76...
  • Page 95 PICOe-9452 Half-size CPU Card Page 77...

  • Page 96: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PICOe-9452. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PICOe-9452, or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 97: Installation Considerations

    PICOe-9452 is installed. All installation notices pertaining to the installation of the PICOe-9452 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the PICOe-9452 and injury to the person installing the motherboard. 5.2.1 Installation Notices...

  • Page 98: Installation Checklist

    Allow screws to come in contact with the PCB circuit, connector pins, or its components. 5.2.2 Installation Checklist The following checklist is provided to ensure the PICOe-9452 is properly installed.  All the items in the packing list are present ...

  • Page 99: Cpu, Cpu Cooling Kit And Dimm Installation

    Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the PICOe-9452. If one of these component is not installed the PICOe-9452 cannot run.

  • Page 100: Figure 5-1: Make Sure The Cpu Socket Retention Screw Is Unlocked

    PICOe-9452 Half-size CPU Card WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU. Step 1: Unlock the CPU retention screw. When shipped, the retention screw of the CPU socket should be in the unlocked position.

  • Page 101: Figure 5-2: Lock The Cpu Socket Retention Screw

    PICOe-9452 Half-size CPU Card Step 5: Align the CPU pins. Carefully align the CPU pins with the holes in the CPU socket. Step 6: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are properly aligned, the CPU should slide into the CPU socket smoothly.

  • Page 102: Cooling Kit Cf-479B-Rs Installation

    PICOe-9452 Half-size CPU Card 5.3.2 Cooling Kit CF-479B-RS Installation Figure 5-3: IEI CF-479B-RS Cooling Kit An IEI Socket M CPU cooling kit can be purchased separately. The cooling kit comprises a CPU heat sink and a cooling fan. WARNING: Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the [Fan model#] heat sink.

  • Page 103: Figure 5-4: Cooling Kit Support Bracket

    PICOe-9452 Half-size CPU Card Figure 5-4: Cooling Kit Support Bracket Step 4: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each nut a few turns at a time and do not over-tighten the screws. Step 5: Connect the fan cable.

  • Page 104: Dimm Installation

    5.3.3 DIMM Installation WARNING: Using incorrectly specified DIMM may cause permanently damage the PICOe-9452. Please make sure the purchased DIMM complies with the memory specifications of the PICOe-9452. DIMM specifications compliant with the PICOe-9452 are listed in Chapter 2. To install a DIMM into a DIMM socket, please follow the steps below and refer to Figure 5-6.

  • Page 105: Cf Card Installation

    The PICOe-9452 can support both CF Type I cards and CF Type II cards. For the complete specifications of the supported CF cards please refer to Chapter 2. To install the a CF card (Type 1 or Type 2) onto the PICOe-9452, please follow the steps below: Step 1: Locate the CF card socket.

  • Page 106: Jumper Settings

    Figure 5-8: Jumper Locations plastic clip from a jumper. Before the PICOe-9452 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the PICOe-9452 are listed in Table 5-1. Page 88...

  • Page 107: Cf Card Setup

    PICOe-9452 Half-size CPU Card Description Label Type CF card setup J_CF1 3-pin header Clear CMOS J_CMOS1 3-pin header LVDS voltage selection J_VLVDS1 3-pin header PCIe interface setup 2-pin header Table 5-1: Jumpers 5.4.1 CF Card Setup Jumper Label: J_CF1 3-pin header...

  • Page 108: Clear Cmos Jumper

    Jumper Location: See Figure 5-10 If the PICOe-9452 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 109: Lvds Voltage Selection

    Figure 5-10: Clear CMOS Jumper 5.4.3 LVDS Voltage Selection WARNING: Permanent damage to the screen and PICOe-9452 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.

  • Page 110: Pcie Interface Setup

    PICOe-9452 Half-size CPU Card The LVDS Voltage Selection jumper allows the LVDS screen voltage to be set. The LVDS Voltage Selection jumper settings are shown in Table 5-4. AT Power Select Description Short 1-2 +3V LVDS Default Short 2-3 +5V LVDS Table 5-4: LVDS Voltage Selection Jumper Settings The LVDS Voltage Selection jumper location.

  • Page 111: Chassis Installation

    The PICOe-9452 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 112: Internal Peripheral Device Connections

    PICOe-9452 Half-size CPU Card NOTE: IEI has a wide range of chassis available. Please refer to Chapter 2 in this manual or contact your PICOe-9452 vendor, reseller or an IEI sales representative sales@iei.com.tw visit website (http://www.ieiworld.com.tw) to find out more about the available chassis.

  • Page 113: Ide Cable Connection

    PICOe-9452 Half-size CPU Card 5.6.2 IDE Cable Connection The IDE flat cable connects to the PICOe-9452 to one or two IDE devices. To connect an IDE HDD to the PICOe-9452 please follow the instructions below. Step 1: Locate the IDE connector. The location/s of the IDE device connector/s is/are shown in Chapter 3..

  • Page 114: Channel Audio Kit Installation

    The optional 5.1 channel audio kit connects to the 10-pin audio connector on the PICOe-9452. The audio kit consists of three audio jacks. One audio jack, Mic In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out, connect to two speakers.

  • Page 115: Channel Audio Kit Installation

    Step 4: Mount the audio kit onto the chassis. Once the audio kit is connected to the PICOe-9452, secure the audio kit bracket to the system chassis. Step 5: Connect the audio devices. Connect one speaker to the line-in audio jack, one speaker to the line-out audio jack and a microphone to the mic-in audio jack.

  • Page 116: Figure 5-15: 5.1 Channel Audio Kit

    The optional 7.1 channel audio kit connects to the 10-pin audio connector on the PICOe-9452. The audio kit consists of five audio jacks. One audio jack, Mic In, connects to a microphone. The remaining four audio jacks, Line-In, Front-Out, Rear-Out, and Center Subwoofer, connect to speakers.

  • Page 117: Keyboard And Mouse Ps/2 Cable With Bracket

    0: Step 0: 5.6.5 Keyboard and Mouse PS/2 Cable with Bracket The PICOe-9452 can be shipped with an optional keyboard and mouse PS/2 cable with bracket. The keyboard and mouse PS/2 cable with bracket comprises of two PS/2 connectors installed on a bracket. Each PS/2 connector is connected via a cable to two separate female 5-pin wafer connectors.

  • Page 118: Figure 5-16: Keyboard And Mouse Ps/2 Cable With Bracket

    PICOe-9452 Half-size CPU Card Figure 5-16: Keyboard and Mouse PS/2 Cable with Bracket Step 4: Connect the bracket to the chassis. The bracket has a retention screw hole at the top. Properly insert the bracket into the chassis and secure the bracket to the chassis with a retention screw passing through the retention screw hole.

  • Page 119: Parallel Port Cable Without Bracket

    PICOe-9452 LPT box-header connector. See Figure 5-18. Step 3: Insert the cable connectors. Once the cable connector is properly aligned with the 26-pin box-header connector on the PICOe-9452, connect the cable connector to the onboard connector. See Figure 5-18. Page 101...

  • Page 120: Figure 5-18: Lpt Cable Connection

    PICOe-9452 Half-size CPU Card Figure 5-18: LPT Cable Connection Step 4: Attach the LPT connector to the chassis. To secure the LPT interface connector to the chassis please refer to the installation instructions that came with the chassis. Step 5: Connect LPT device.

  • Page 121: Dual Rs-232 Cable With Slot Bracket

    PICOe-9452 Half-size CPU Card 5.6.7 Dual RS-232 Cable with Slot Bracket The dual RS-232 cable slot connector consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

  • Page 122: Sata Drive Connection

    PICOe-9452 Half-size CPU Card 5.6.8 SATA Drive Connection The PICOe-9452 is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3.

  • Page 123: Usb Cable (Dual Port) With Slot Bracket

    PICOe-9452 Half-size CPU Card Figure 5-22: SATA Power Drive Connection 5.6.9 USB Cable (Dual Port) with Slot Bracket The PICOe-9452 is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below. Step 1: Locate the connectors.

  • Page 124: Figure 5-23: Dual Usb Cable Connection

    Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the PICOe-9452, connect the cable connectors to the onboard connectors. See Figure 5-23. Figure 5-23: Dual USB Cable Connection Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a bracket.

  • Page 125: External Peripheral Interface Connection

     VGA monitor To install these devices, connect the corresponding cable connector from the actual device to the corresponding PICOe-9452 external peripheral interface connector making sure the pins are properly aligned. 5.7.1 LAN Connection (Single Connector) There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network.

  • Page 126: S-Video Cable Connection

    PICOe-9452 Half-size CPU Card Figure 5-24: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 5.7.2 S-video Cable Connection There is a single mini DIN TV out connector mounted on the CPU card as an external connector.

  • Page 127: Usb Device Connection (Single Connector)

    Step 0: 5.7.3 USB Device Connection (Single Connector) There are two external USB 2.0 connectors. Both connectors are perpendicular to the PICOe-9452. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Step 1: Located the USB connectors. The locations of the USB connectors are shown in Chapter 4.

  • Page 128: Vga Monitor Connection

    Step 0: 5.7.4 VGA Monitor Connection The PICOe-9452 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PICOe-9452, please follow the instructions below.

  • Page 129: Figure 5-27: Vga Connector

    PICOe-9452 Half-size CPU Card Figure 5-27: VGA Connector Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0:...

  • Page 130: Ami Bios

    PICOe-9452 Half-size CPU Card Chapter AMI BIOS Page 112...
  • Page 131 PICOe-9452 Half-size CPU Card Page 113...

  • Page 132: Introduction

    PICOe-9452 Half-size CPU Card 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 133: Getting Help

    PICOe-9452 Half-size CPU Card Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help...

  • Page 134: Main

    PICOe-9452 Half-size CPU Card 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main  System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 135: Advanced

    PICOe-9452 Half-size CPU Card Count: The number of CPUs on the motherboard  System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields:  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 136: Cpu Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 2: Advanced 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Page 118...

  • Page 137: Ide Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details:  Manufacturer: Lists the name of the CPU manufacturer  Brand String: Lists the brand name of the CPU being used ...

  • Page 138: Menu 4: Ide Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 4: IDE Configuration  ATA/IDE Configurations [Compatible]  Disabled Disables the on-board ATA/IDE controller.  Compatible Configures the on-board ATA/IDE controller to be in EFAULT compatible mode. In this mode, a SATA channel will replace one of the IDE channels.

  • Page 139: Ide Master, Ide Slave

    PICOe-9452 Half-size CPU Card  Legacy IDE Channels [PATA Pri, SATA Sec]  SATA Only Only the SATA drives are enabled.  PATA Pri, SATA Sec The IDE drives are enabled on the Primary EFAULT IDE channel. The SATA drives are enabled on the Secondary IDE channel.

  • Page 140: Menu 5: Ide Master And Ide Slave Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 5: IDE Master and IDE Slave Configuration  Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: ...
  • Page 141 PICOe-9452 Half-size CPU Card  Async DMA: Indicates the highest Asynchronous DMA Mode that is supported.  Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported.  S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and Reporting Technology protocol is supported.
  • Page 142 PICOe-9452 Half-size CPU Card  LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
  • Page 143 PICOe-9452 Half-size CPU Card  PIO mode 0 selected with a maximum transfer rate of 3.3MBps  PIO mode 1 selected with a maximum transfer rate of 5.2MBps  PIO mode 2 selected with a maximum transfer rate of 8.3MBps ...
  • Page 144 PICOe-9452 Half-size CPU Card  UDMA1 Ultra DMA mode 0 selected with a maximum data transfer rate of 16.6MBps  Ultra DMA mode 1 selected with a maximum data transfer UDMA1 rate of 25MBps  UDMA2 Ultra DMA mode 2 selected with a maximum data transfer rate of 33.3MBps...

  • Page 145: Super Io Configuration

    PICOe-9452 Half-size CPU Card  Disabled Prevents the BIOS from using 32-bit data transfers.  Enabled Allows BIOS to use 32-bit data transfers on supported EFAULT hard disk drives. 6.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports.
  • Page 146 PICOe-9452 Half-size CPU Card  Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.  Disabled No base address is assigned to Serial Port 1  3F8/IRQ4 Serial Port 1 I/O port address is 3F8 and the interrupt...
  • Page 147 PICOe-9452 Half-size CPU Card address is IRQ3  Serial Port2 Mode [Normal] Use the Serial Port2 Mode option to select the Serial Port2 operational mode.  Normal Serial Port 2 mode is normal EFAULT  IrDA Serial Port 2 mode is IrDA ...

  • Page 148: Hardware Health Configuration

    PICOe-9452 Half-size CPU Card and the parallel port device and the transmission rates between the two are much faster than the Normal mode.  The parallel port operates in the extended capabilities port (ECP) mode. The ECP mode supports bi-directional communication between the...

  • Page 149: Menu 7: Hardware Health Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 7: Hardware Health Configuration  Hardware Health Monitoring Use the Hardware Health Configuration menu (BIOS Menu 7) monitor system environmental parameters. The following health parameters are monitored.  Temperature monitoring: The following system temperatures are monitored:...

  • Page 150: Remote Access Configuration

    PICOe-9452 Half-size CPU Card +5.00V +12.0V 0.9V 1.5V 5VSB VBAT 6.3.5 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 8) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.

  • Page 151: Menu 8: Remote Access Configuration [Advanced]

    PICOe-9452 Half-size CPU Card BIOS Menu 8: Remote Access Configuration [Advanced]  Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system.  Disabled Remote access is disabled. EFAULT ...
  • Page 152 PICOe-9452 Half-size CPU Card  Base Address, IRQ [3F8h,4] The Base Address, IRQ option cannot be configured and only shows the interrupt address of the serial port listed above.  Serial Port Mode [115200 8,n,1] Use the Serial Port Mode option to select baud rate through which the console redirection is made.

  • Page 153: Usb Configuration

    PICOe-9452 Half-size CPU Card  Disabled The console is not redirected after POST  Boot Loader Redirection is active during POST and during Boot Loader  Always Redirection is always active (Some OSes may not EFAULT work if set to Always) ...

  • Page 154: Menu 9: Usb Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 9: USB Configuration  USB Function [Enabled] The USB Function BIOS option enables or disables the USB function  USB function disabled Disabled  Enabled USB function enabled EFAULT  USB 2.0 Controller [Enabled] Use the USB 2.0 Controller BIOS option to enable or disable the USB 2.0 controller...

  • Page 155: Power Configuration

    PICOe-9452 Half-size CPU Card  Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 156: Menu 10: Power Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 10: Power Configuration  Power Supply Mode [BY HARDWARE] Use the Power Supply Mode BIOS option to select the power supply that is connected to the system.  An AT power supply is connected to the system ...

  • Page 157: Acpi Configuration

    PICOe-9452 Half-size CPU Card 6.3.7.1 ACPI Configuration Use the ACPI Configuration menu (BIOS Menu 11) to select the ACPI state when the system is suspended. BIOS Menu 11: ACPI Configuration  Suspend Mode [S1(POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used.

  • Page 158: Apm Configuration

    PICOe-9452 Half-size CPU Card reduced power mode. 6.3.7.2 APM Configuration The APM Configuration menu (BIOS Menu 12) allows the advanced power management options to be configured. BIOS Menu 12:Advanced Power Management Configuration  Restore on AC Power Loss [Power Off] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.
  • Page 159 PICOe-9452 Half-size CPU Card turns itself on. If it was off, it remains off.  Power Button Mode [On/Off] Use the Power Button Mode BIOS to specify how the power button functions.  On/Off (Default) When the power button is pressed the system is either turned on or off ...

  • Page 160: Pci/Pnp

    PICOe-9452 Half-size CPU Card After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.  Resume on Keyboard/Mouse [Disabled] Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the keyboard or mouse to rouse the system from a suspend or standby state.

  • Page 161: Menu 13: Pci/Pnp Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 13: PCI/PnP Configuration  IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.  Available The specified IRQ is available to be used by EFAULT PCI/PnP devices ...
  • Page 162 PICOe-9452 Half-size CPU Card  IRQ9 IRQ10   IRQ 11  IRQ 14  IRQ 15  DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.  Available The specified DMA is available to be used by...

  • Page 163: Boot

    PICOe-9452 Half-size CPU Card  54KB reserved for legacy ISA devices 6.5 Boot Use the Boot menu (BIOS Menu 14) to configure system boot options. BIOS Menu 14: Boot 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced system boot options.

  • Page 164: Menu 15: Boot Settings Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 15: Boot Settings Configuration  Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process.  No POST procedures are skipped Disabled  Enabled Some POST procedures are skipped to decrease...
  • Page 165 PICOe-9452 Half-size CPU Card  AddOn ROM Display Mode [Keep Current] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.  Force BIOS The system forces third party BIOS to display during system boot.

  • Page 166: Boot Device Priority

    PICOe-9452 Half-size CPU Card  Disabled (Default) Cannot be booted from a remote system through the  (Default) Can be booted from a remote system through the Enabled  ICH7M LAN Boot ROM [Disabled] Use the ICH7M LAN Boot ROM option to enable the system to be booted from a remote system through the ICH7M Ethernet controller.

  • Page 167: Menu 16: Boot Device Priority Settings

    PICOe-9452 Half-size CPU Card BIOS Menu 16: Boot Device Priority Settings Page 149...

  • Page 168: Hard Disk Drives

    PICOe-9452 Half-size CPU Card 6.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. When the menu is opened, the HDDs connected to the system are listed as shown below: ...

  • Page 169: Cd/Dvd Drives

    PICOe-9452 Half-size CPU Card BIOS Menu 17: Hard Disk Drives 6.5.4 CD/DVD Drives Use the CD/DVD Drives menu to specify the boot sequence of the available CD and DVD drives. When the menu is opened, the HDDs connected to the system are listed as shown below: ...

  • Page 170: Menu 18: Hard Disk Drives

    PICOe-9452 Half-size CPU Card NOTE: Only the drives connected to the system are shown. For example, if only two CD or DVD drives are connected only “1st Drive” and “2nd Drive” are listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available CD and DVD drives is shown.

  • Page 171: Security

    PICOe-9452 Half-size CPU Card 6.6 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. BIOS Menu 19: Security  Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.

  • Page 172: Chipset

    PICOe-9452 Half-size CPU Card  Change User Password Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password.

  • Page 173: Northbridge Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 20: Chipset 6.7.1 NorthBridge Configuration Use the NorthBridge Configuration menu (BIOS Menu 20) to configure the northbridge chipset. Page 155...

  • Page 174: Menu 21:Northbridge Chipset Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 21:NorthBridge Chipset Configuration  Memory Hole [Disabled] Use the Memory Hole option to reserve memory space between 15MB and 16MB for ISA expansion cards that require a specified area of memory to work properly. If an older ISA expansion card is used, please refer to the documentation that came with the card to see if it is necessary to reserve the space.

  • Page 175: Video Function Configuration

    PICOe-9452 Half-size CPU Card  Boots Graphics Adapter [PEG/PCI] Use the Boots Graphics Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration options are listed below: ...

  • Page 176: Figure 6-1: Video Function Configuration

    PICOe-9452 Half-size CPU Card Figure 6-1: Video Function Configuration  DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode.  Fixed Mode A fixed portion of graphics memory is reserved as graphics memory.
  • Page 177 PICOe-9452 Half-size CPU Card  DVMT/FIXED Memory Use the DVMT/FIXED Memory option to specify the maximum amount of memory that can be allocated as graphics memory. This option can only be configured for if DVMT Mode or Fixed Mode is selected in the DVMT Mode Select option. If Combo Mode is selected, the maximum amount of graphics memory is 128MB.

  • Page 178: Southbridge Chipset Configuration

    PICOe-9452 Half-size CPU Card  1280x1024 48bits 1600x1200 48bits   1280x768 18bits  1280x800 18bits  1366x768 24bits  1440x900 36bits  1440x900 48bits  1680x1050 48bits  TV Standard The TV Standard option specifies the TV type connected to the system.

  • Page 179: Menu 22:Southbridge Chipset Configuration

    PICOe-9452 Half-size CPU Card BIOS Menu 22:SouthBridge Chipset Configuration  Audio Controller [AC`97 Audio] The Audio Controller option allows selection of the audio controller to use.  ® The Intel High Definition Audio controller is enabled HD Audio  AC`97 Audio The on-board AC’97 controller is enabled...

  • Page 180: Exit

    PICOe-9452 Half-size CPU Card 6.8 Exit Use the Exit menu (BIOS Menu 23) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 23:Exit  Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
  • Page 181 PICOe-9452 Half-size CPU Card  Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.  Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus.

  • Page 182: Driver Installation

    PICOe-9452 Half-size CPU Card Chapter Driver Installation Page 164...
  • Page 183 PICOe-9452 Half-size CPU Card Page 165...

  • Page 184: Available Software Drivers

    LAN driver Installation instructions are given below. 7.2 Driver CD Auto-run All the drivers for the PICOe-9452 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 185: Figure 7-1: Introduction Screen

    PICOe-9452 Half-size CPU Card Figure 7-1: Introduction Screen Step 4: A new screen with a list of available drivers appears (Figure 7-2). Page 167...

  • Page 186: Chipset Driver Installation

    PICOe-9452 Half-size CPU Card Figure 7-2: Available Drivers Step 5: Select the driver to install from the list in Figure 7-2. Step 0: 7.3 Chipset Driver Installation To install the chipset driver, please follow the steps below: Step 1: Select the INF driver from the list in Figure 7-2.

  • Page 187: Figure 7-3: Chipset Driver Installation Program

    PICOe-9452 Half-size CPU Card Figure 7-3: Chipset Driver Installation Program Step 3: Double click the infinst_Autol icon in Figure 7-3. Step 4: The welcome screen in Figure 7-4 appears. Page 169...

  • Page 188: Figure 7-4: Chipset Driver Installation Welcome Screen

    PICOe-9452 Half-size CPU Card Figure 7-4: Chipset Driver Installation Welcome Screen Step 5: Click N in Figure 7-4 to continue the installation process. Step 6: The license agreement in Figure 7-5 appears. Page 170...

  • Page 189: Figure 7-5: Chipset Driver Installation License Agreement

    PICOe-9452 Half-size CPU Card Figure 7-5: Chipset Driver Installation License Agreement Step 7: Click Y to continue the setup. Step 8: The Readme file in Figure 7-6 appears. Page 171...

  • Page 190: Figure 7-6: Chipset Driver Readme File Information

    PICOe-9452 Half-size CPU Card Figure 7-6: Chipset Driver Readme File Information Step 9: Click N in Figure 7-6 to start the driver installation. Step 10: After the driver installation process is complete, a confirmation screen (Figure 7-7) appears. Step 0:...

  • Page 191: Intel Graphics Media Accelerator Driver

    PICOe-9452 Half-size CPU Card Figure 7-7: Chipset Driver Installation Complete 7.4 Intel Graphics Media Accelerator Driver To install the chipset driver, please follow the steps below: Step 1: Select the VGA driver from the list in Figure 7-2. Step 2: A new window opens (Figure 7-8).

  • Page 192: Figure 7-8: Select The Operating System

    PICOe-9452 Half-size CPU Card Figure 7-8: Select the Operating System Step 3: Select the operating system from those shown in Figure 7-8. Step 4: A new window appears (Figure 7-9). Page 174...

  • Page 193: Figure 7-9: Vga Driver

    PICOe-9452 Half-size CPU Card Figure 7-9: VGA Driver Step 5: Click the installation program icon in Figure 7-9. Step 6: The Readme information file shown in Figure 7-10 appears. Page 175...

  • Page 194: Figure 7-10: Gma Driver Readme File

    PICOe-9452 Half-size CPU Card Figure 7-10: GMA Driver Readme File Step 7: Click N to extract the GMA driver files. See Figure 7-11. Figure 7-11: GMA Driver File Extraction Step 8: The welcome screen shown in Figure 7-12 appears. Page 176...

  • Page 195: Figure 7-12: Gma Driver Installation Welcome Screen

    PICOe-9452 Half-size CPU Card Figure 7-12: GMA Driver Installation Welcome Screen Step 9: To continue the installation process, click N Step 10: The license agreement in Figure 7-13 appears. Page 177...

  • Page 196: Figure 7-13: Gma Driver License Agreement

    PICOe-9452 Half-size CPU Card Figure 7-13: GMA Driver License Agreement Step 11: Click the Y in Figure 7-13 to continue. Step 12: The installation notice shown in Figure 7-14 appears. Figure 7-14: GMA Driver Installing Notice Step 13: A confirmation screen shown in Figure 7-15 appears.

  • Page 197: Broadcom Lan Driver (For Gbe Lan) Installation

    PICOe-9452 Half-size CPU Card Figure 7-15: GMA Driver Installation Complete Step 14: After selecting when to restart the computer in Figure 7-15, click F Step 0: INISH 7.5 Broadcom LAN Driver (for GbE LAN) Installation To install the Broadcom LAN driver, please follow the steps below.

  • Page 198: Figure 7-16: Access Windows Control Panel

    PICOe-9452 Half-size CPU Card Figure 7-16: Access Windows Control Panel Step 2: Double click the System icon (Figure 7-17). Page 180...

  • Page 199: Figure 7-17: Double Click The System Icon

    PICOe-9452 Half-size CPU Card Figure 7-17: Double Click the System Icon Step 3: Double click the Device Manager tab (Figure 7-18). Figure 7-18: Double Click the Device Manager Tab Step 4: A list of system hardware devices appears (Figure 7-19).

  • Page 200: Figure 7-19: Device Manager List

    PICOe-9452 Half-size CPU Card Figure 7-19: Device Manager List Step 5: Double click the listed device that has question marks next to it. (This means Windows does not recognize the device). Step 6: The Device Driver Wizard appears (Figure 7-20). Click N to continue.

  • Page 201: Figure 7-20: Search For Suitable Driver

    PICOe-9452 Half-size CPU Card Figure 7-20: Search for Suitable Driver Step 7: Select “Specify a Location” in the Locate Driver Files window (Figure 7-21). Click N to continue. Page 183...

  • Page 202: Figure 7-21: Locate Driver Files

    PICOe-9452 Half-size CPU Card Figure 7-21: Locate Driver Files Step 8: Select the proper OS folder under the “X:\3-LAN\BROADCOM BCM57xx Drivers” directory (Figure 7-22) in the location browsing window, where “X:\” is the system CD drive. Figure 7-22: Location Browsing Window Step 9: Click OK to continue.

  • Page 203: Realtek Hd Audio Driver (Alc883) Installation

    PICOe-9452 Half-size CPU Card 7.6 Realtek HD Audio Driver (ALC883) Installation To install the Realtek High Definition (HD) Audio driver, please follow the steps below. 7.6.1 BIOS Setup Step 1: Enter the BIOS setup. To do this, reboot the system and press D during POST.

  • Page 204: Figure 7-24: Hd Audio Driver Setup Extracting Files

    PICOe-9452 Half-size CPU Card Step 4: Once the WDM_R140 icon is double clicked, the contents of the installation package are extracted. See Figure 7-24. Figure 7-24: HD Audio Driver Setup Extracting Files Page 186...

  • Page 205: Figure 7-25: Hd Audio Driver Setup Welcome Screen

    PICOe-9452 Half-size CPU Card Step 5: The Welcome screen appears. Click N . See Figure 7-25. Figure 7-25: HD Audio Driver Setup Welcome Screen Page 187...

  • Page 206: Figure 7-26: Hd Audio Driver Installation Complete

    PICOe-9452 Half-size CPU Card Step 6: The driver is automatically installed. Step 7: After the driver installation process is complete, a confirmation screen shown in Figure 7-26 appears. Figure 7-26: HD Audio Driver Installation Complete Step 8: The confirmation screen shown in Figure 7-26 allows you to restart the computer immediately after the installation is complete or to restart the computer later.

  • Page 207: Realtek Ac`97 Audio Driver (Alc665) Installation

    PICOe-9452 Half-size CPU Card 7.7 Realtek AC`97 Audio Driver (ALC665) Installation To install the Realtek AC `97 audio driver, please follow the steps below. 7.7.1 BIOS Setup Step 1: Enter the BIOS setup. To do this, reboot the system and press D during POST.

  • Page 208: Figure 7-27: Cd 4-Audio\Ac-Kit08R\Windows Folder

    PICOe-9452 Half-size CPU Card Figure 7-27: CD 4-AUDIO\AC-KIT08R\Windows Folder Step 3: Double-click the Setup.exe file to begin the driver installation process. Step 4: Once you double click the Setup icon, the install shield wizard for the audio driver starts. See Figure 7-28.

  • Page 209: Figure 7-29: Ac`97 Audio Driver Setup Preparation

    PICOe-9452 Half-size CPU Card Figure 7-29: AC`97 Audio Driver Setup Preparation Page 191...

  • Page 210: Figure 7-30: Ac`97 Audio Driver Welcome Screen

    PICOe-9452 Half-size CPU Card Step 6: After the install shield is prepared, the welcome screen shown in Figure 7-30 appears. To continue the installation process, click the “N ” button. The install shield starts to configure the new software as shown in Figure 7-31.

  • Page 211: Figure 7-31: Ac`97 Audio Driver Software Configuration

    PICOe-9452 Half-size CPU Card Figure 7-31: AC`97 Audio Driver Software Configuration Page 193...

  • Page 212: Figure 7-32: Ac`97 Audio Driver Digital Signal

    PICOe-9452 Half-size CPU Card Step 7: At this stage the “Digital Signal Not Found” screen appears (Figure 7-32). To continue the installation process, click the “Y ” button. Figure 7-32: AC`97 Audio Driver Digital Signal Page 194...

  • Page 213: Figure 7-33: Ac`97 Audio Driver Installation Begins

    PICOe-9452 Half-size CPU Card Step 8: After clicking the “Y ” button in Figure 7-32, the installation of the driver begins (Figure 7-33). Figure 7-33: AC`97 Audio Driver Installation Begins Page 195...

  • Page 214: Figure 7-34: Ac`97 Audio Driver Installation Complete

    PICOe-9452 Half-size CPU Card Step 9: After the driver installation process is complete, a confirmation screen shown in Figure 7-34 appears. Figure 7-34: AC`97 Audio Driver Installation Complete Step 10: The confirmation screen shown in Figure 7-34 allows you to restart the computer immediately after the installation is complete or to restart the computer later.

  • Page 215: Aterminology

    PICOe-9452 Half-size CPU Card Appendix Terminology Page 197...
  • Page 216 PICOe-9452 Half-size CPU Card Page 198...
  • Page 217 PICOe-9452 Half-size CPU Card AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 218 PICOe-9452 Half-size CPU Card CMOS Complimentary metal-oxide-conductor is an integrated circuit used in chips like static RAM and microprocessors. COM refers to serial ports. Serial ports offer serial communication to expansion devices. The serial port on a personal computer is usually a male DB-9 connector.
  • Page 219 PICOe-9452 Half-size CPU Card Gigabit Ethernet (GbE) is an Ethernet version that transfers data at 1.0 Gbps and complies with the IEEE 802.3-2005 standard. GPIO General purpose input Hard disk drive (HDD) is a type of magnetic, non-volatile computer storage device that stores digitally encoded data.
  • Page 220 PICOe-9452 Half-size CPU Card QVGA Quarter Video Graphics Array (QVGA) refers to a display with a resolution of 320 x 240 pixels. Random Access Memory (RAM) is volatile memory that loses data when power is lost. RAM has very fast data transfer rates compared to other storage like hard drives.

  • Page 221: Bbios Options

    PICOe-9452 Half-size CPU Card Appendix BIOS Options Page 203...
  • Page 222 PICOe-9452 Half-size CPU Card Page 204...
  • Page 223 PICOe-9452 Half-size CPU Card  System Overview .......................116  System Time [xx:xx:xx] .....................117  System Date [xx/xx/xx] ......................117  ATA/IDE Configurations [Compatible] ................120  Legacy IDE Channels [PATA Pri, SATA Sec]..............121  IDE Master and IDE Slave....................121 ...
  • Page 224 PICOe-9452 Half-size CPU Card  Flow Control [None]......................134  Redirection After BIOS POST [Always] ................134  Terminal Type [ANSI] ......................135  USB Function [Enabled]....................136  USB 2.0 Controller [Enabled]................... 136  Legacy USB Support [Enabled]..................137 ...
  • Page 225 PICOe-9452 Half-size CPU Card  Flat Panel Type [640x480 18bit LVDS]................159  TV Standard ........................160  Audio Controller [AC`97 Audio]..................161  Onboard ICH7M LAN [Enabled] ..................161  Save Changes and Exit ....................162  Discard Changes and Exit....................162 ...

  • Page 226: Cdio Interface

    PICOe-9452 Half-size CPU Card Appendix DIO Interface Page 208...
  • Page 227 PICOe-9452 Half-size CPU Card Page 209...

  • Page 228: Dio Interface Introduction

    PICOe-9452 Half-size CPU Card C.1 DIO Interface Introduction The DIO connector on the PICOe-9452 is interfaced to GIO ports on the iTE Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 229: Assembly Language Samples

    PICOe-9452 Half-size CPU Card C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 230: Dwatchdog Timer

    PICOe-9452 Half-size CPU Card Appendix Watchdog Timer Page 212...
  • Page 231 PICOe-9452 Half-size CPU Card Page 213...
  • Page 232 PICOe-9452 Half-size CPU Card NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 233 PICOe-9452 Half-size CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 234: Eaddress Mapping

    PICOe-9452 Half-size CPU Card Appendix Address Mapping Page 216...
  • Page 235 PICOe-9452 Half-size CPU Card Page 217...

  • Page 236: Introduction

    PICOe-9452 Half-size CPU Card E.1 Introduction The mappings shown below are captured from a PICOe-9452 system running Windows XP before the drivers were installed. These addresses may change after the drivers are installed. E.2 Address Map Page 218...
  • Page 237 PICOe-9452 Half-size CPU Card Table E-1: IO Address Map Page 219...

  • Page 238: Memory Address Map

    PICOe-9452 Half-size CPU Card E.3 Memory Address Map Page 220...

  • Page 239: Irq Mapping Table

    PICOe-9452 Half-size CPU Card Table E-2: Memory Address Map E.4 IRQ Mapping Table Table E-3: IRQ Mapping Table Page 221...

  • Page 240: Hazardous Materials Disclosure

    PICOe-9452 Half-size CPU Card Appendix Hazardous Materials Disclosure Page 222...
  • Page 241 PICOe-9452 Half-size CPU Card Page 223...

  • Page 242: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PICOe-9452 Half-size CPU Card F.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 243 PICOe-9452 Half-size CPU Card Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 244 PICOe-9452 Half-size CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

  • Page 245: Gindex

    PICOe-9452 Half-size CPU Card Index Page 227...
  • Page 246 PICOe-9452 Half-size CPU Card +12V ATX power supply connector..51 cables ..........94 location and pinouts ......51 dual port USB ....... 105 dual RS-232 cable ......103 keyboard/mouse Y-cable ....99 LPT ..........101 ACPI..........139 parallel port ........101 airflow ..........
  • Page 247 PICOe-9452 Half-size CPU Card +12V ATX power supply ....51 external peripheral interface connector audio..........52 panel..........13 backlight inverter ......53 DIMM ..........86 backplane to mainboard inverter..54 installation........86 COM 2 serial port ......68 specifcations........86 CompactFlash .........
  • Page 248 PICOe-9452 Half-size CPU Card PCIe interface setup ......92 hard disk drives SATA..........67 keyboard..........63 HDD LED ........... 60 keyboard connector....... 7 heat sink ..........84 keyboard controller ......32 keyboard/mouse ......99, 100 cable connection......99 IDE connector, 40-pin......6 Y-cable ..........
  • Page 249 PICOe-9452 Half-size CPU Card single channel........64 location..........93 LVDS voltage selection jumper ..7, 91 settings ..........92 location..........92 PCIe interface setup jumper.... 7, 92 settings ..........92 peripheral connectors ......51 peripheral device cables...... 94 power button ........59 Power Button Mode ......
  • Page 250 PICOe-9452 Half-size CPU Card power cable ........104 cable ..........105 SATA drive connector ..... 6, 67 cable ..........105 location and pinouts ......67 cable connection......106 SATA drives ........67 connectors ........105 serial port connector......6, 68 controller .........

Table of Contents
