BASE INSTALLATIONS*

Remove the dome cover by loosening the 3 screw located at the Lid(Upper).
Vandal dome uses the torx screws. Use the supplied Torx Wrench.

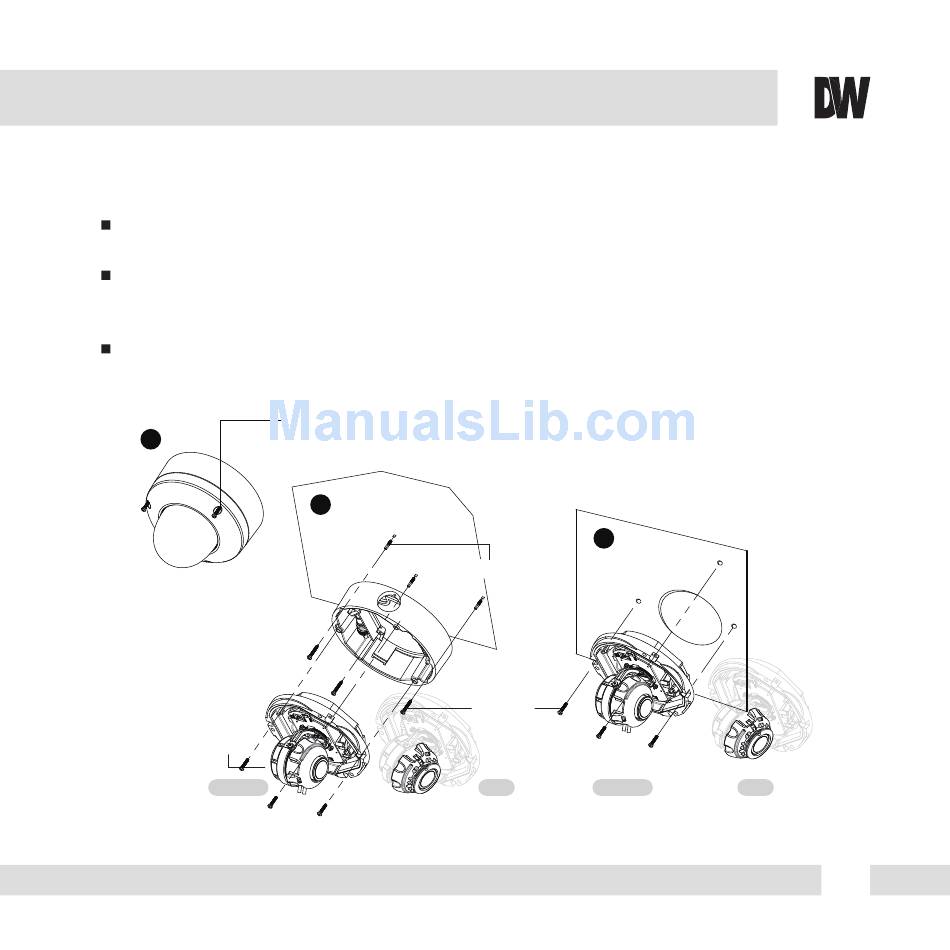

Surface Mount
Using four ST4X35 screws provided, mount the surface mount plate to a sturdy
surface. Using three screws, fix flush mount base to the surface mount plate.
Flush Mount
Using four ST4X35 screws supplied, mount the surface mount plate to a sturdy
surface.
T20 M4 X 16
1
2
3
Plastic Anchors
ST4X35
ST #8 - 32 x 0.75
NO IR IR NO IR IR
Surface Mount Flush Mount
