ADJUSTING THE VARI-FOCAL DC AUTO IRIS LENS*
Follow the instructions provided below to make any lens adjustments.
DWC-V4363TIR
DWC-V4367WTIR
DWC-V4382TIR
DWC-V4382TIRH

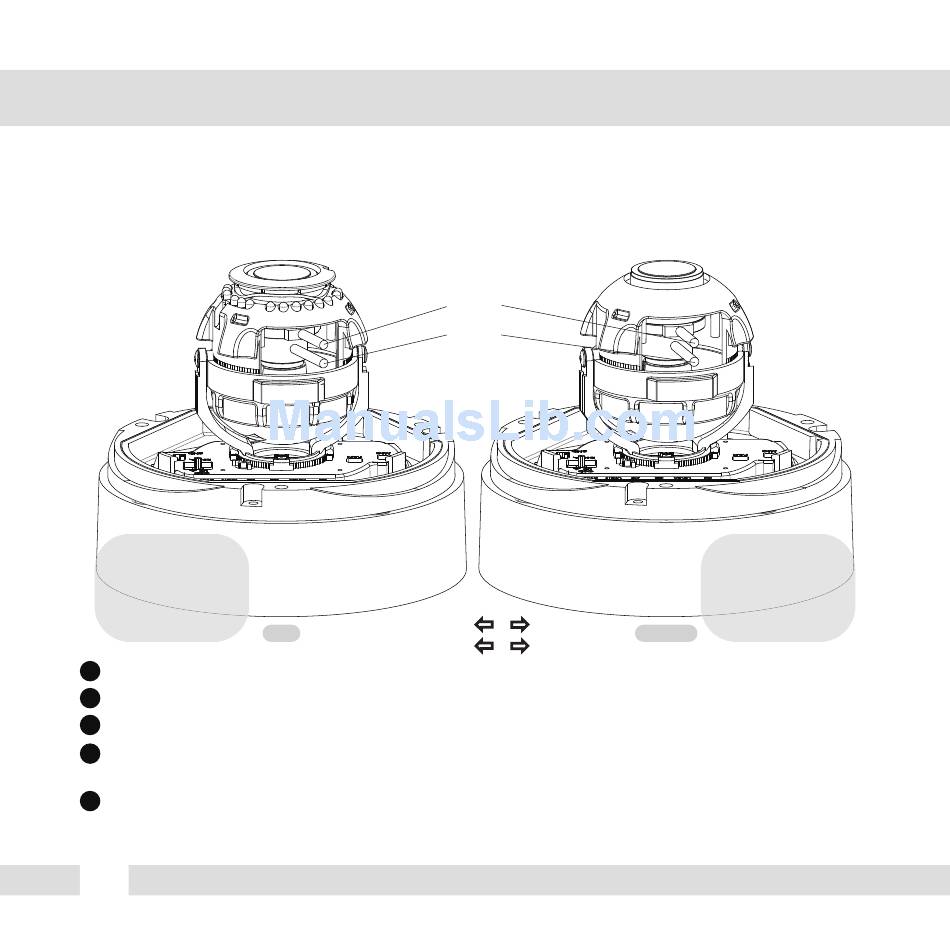

Loosen the Zoom & Focus screws.
1
Using the screw, move it RIGHT or LEFT to the desired position.
2
Once the desired adjustments have been made, tighten the screw to lock in place.
3
Adjust the Field of View by moving the screw towards the RIGHT(Tele) to zoom in, or
4
towards the LEFT(Wide) to zoom out.
Adjust the Focus the same way as described above after the desired zoom position is
5
estabilished.
10
Focus
Zoom
Zoom: Tele
IR
Focus:
Far
- Wide
NO IR
- Near
DWC-V4363D
DWC-V4367WD
DWC-V4365T
DWC-V4363DH
