Tow cable
Shackle

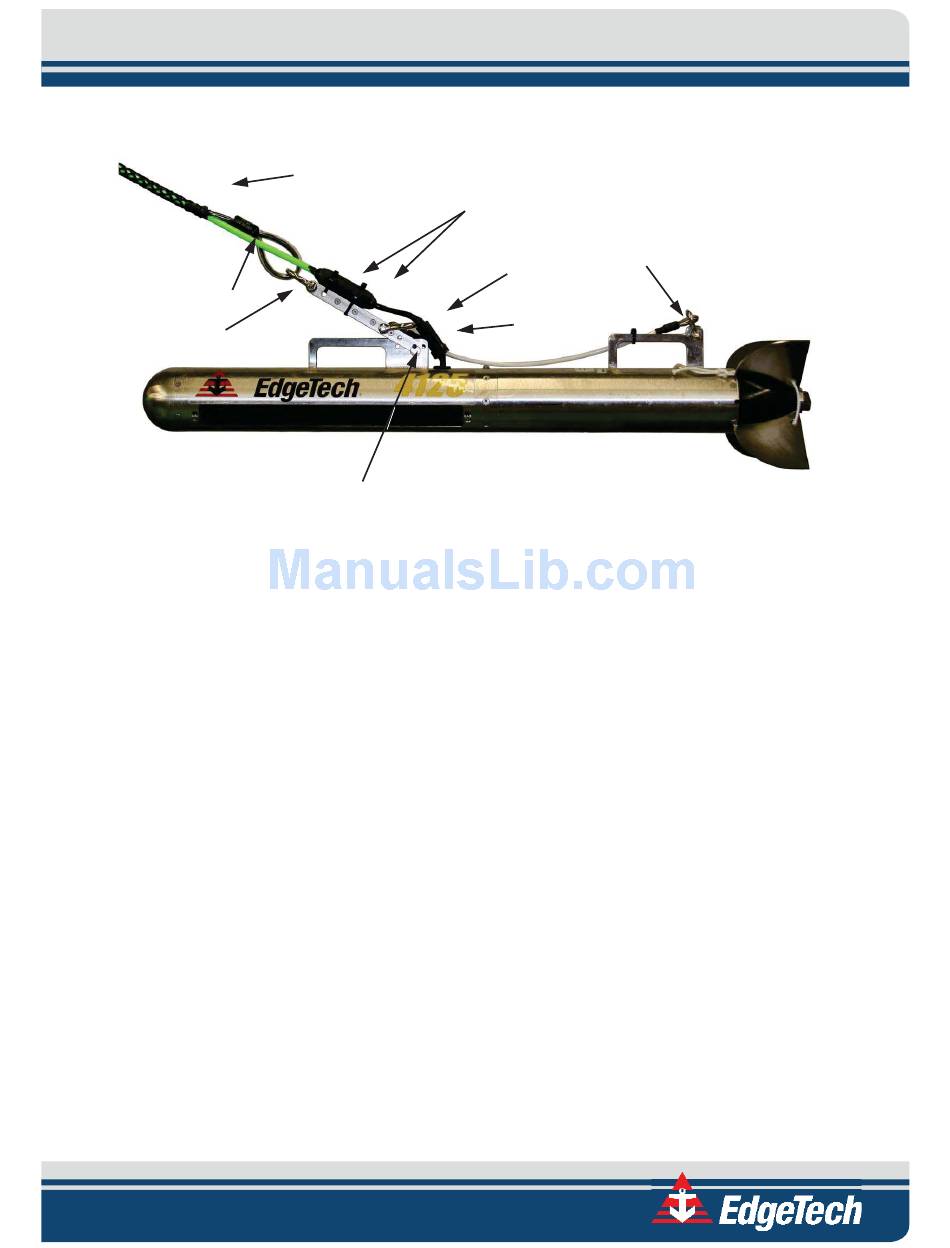

Figure 3-4: Tow Vehicle with Tow Cable Connected and Attached

To connect and attach the tow cable to the tow vehicle:
1. Verify that the tow cable is not connected to the 4125 Portable Topside Processor.
2. Verify that the tow cable connector on the tow vehicle and the mating female connector on the
tow cable are free of corrosion or dirt. If dirty, clean them with contact cleaner.
3. Apply a thin film of silicone grease to the pins of the tow cable connector on the tow vehicle.
4. Mate the connectors by pressing them firmly together. Do not wiggle the connectors.
5. Secure the locking sleeve.
6. Attach the loop of the Kellems grip to the shackle on the towing arm and secure the shackle bolt
with seizing wire or a tie wrap.
3 3 .9.2

Connecting the 4125-P Portable Topside Processor

To connect the 4125-P Portable Topside Processor:
1. Verify that the 4125-P Portable Topside Processor is not connected to AC power.
2. Verify that the tow cable is properly connected and attached to the tow vehicle, and then connect
the tow cable to the TOW CABLE connector.
3. If using the wired ETHERNET connection, connect the ETHERNET cable to the ETHERNET connector
of the laptop computer. The ETHERNET cable may be extended up to 100 feet using a Category 5
ETHERNET crossover or straight patch cable.
Kellems grip
Tie wraps
Shear pin
Safety cable
Waterproof
splice
Tow cable
connector
3-9
