Edgetech 4125 SIDE SCAN User Manual page 35

Size:
Weight in air:
Weight in salt water:
Construction:
Depth rating:
Maximum tow cable length:
Tow cable conductors:
Kevlar tow cable breaking load:
Input power:
Towing speed
Shear force:
Frequencies:
Pulse type:
Data interface:
Operating range:
Across track resolution:

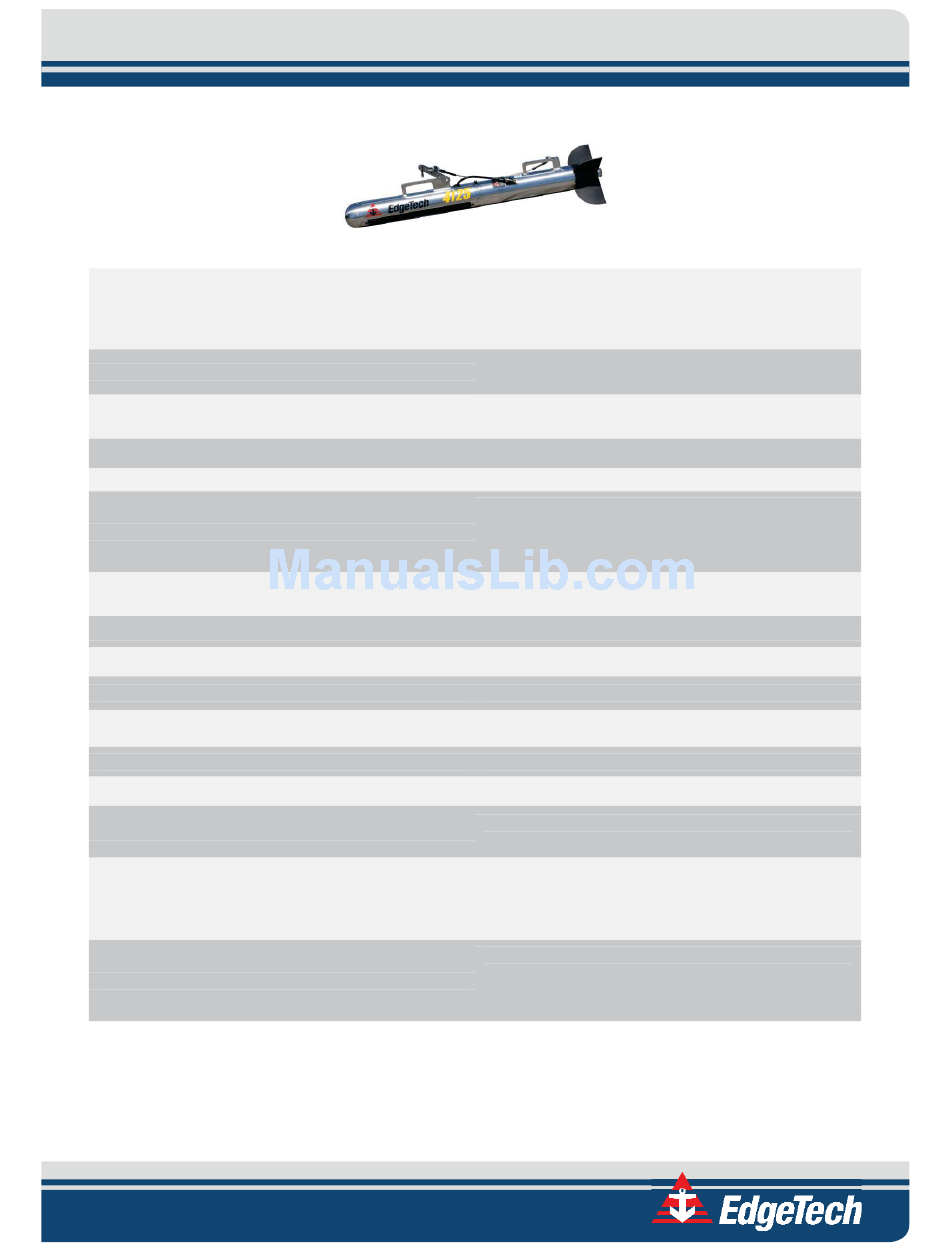

4125 Tow Vehicle
98.0 cm (39.0 in.) long; 9.6 cm (3.75 in.) diameter, w/o
telemetry
112.0 cm (44.0 in.) long; 9.6 cm (3.75 in.) diameter, w
telemetry
16.7 kg (36.7 lbs.) w/o telemetry
20.4 kg (45.0 lbs.) w/ telemetry
11.3 kg (24.9 lbs.) w/o telemetry
14.4 kg (31.6 lbs.) w/ telemetry
Stainless steel
200 m (656 ft.)
150 m w/o telemetry
600 m w/ telemetry (loop resistance cannot exceed 14
ohms). Contact EdgeTech Customer Service for the
specific cable types.
(2) #18 and (2) twisted shielded pairs w/o telemetry
RG-58 coax w/ telemetry
545 kg (1200 lbs.)
75 VDC, 50 watts maximum
1–8 knots
420 kg (930 lbs.)
400/900 kHz or 600/1600 kHz
Chirp or CW
10/100BaseT TCP/IP ETHERNET w/o telemetry
VDSL w/ telemetry
150 m (400 kHz)
75 m (900 kHz)
120 m (600 kHz)
35 m (1600 kHz)
2.3 cm (400 kHz)
1.5 cm (900 kHz)
1.5 cm (600 kHz)
0.6 cm (1600 kHz)
2-7
