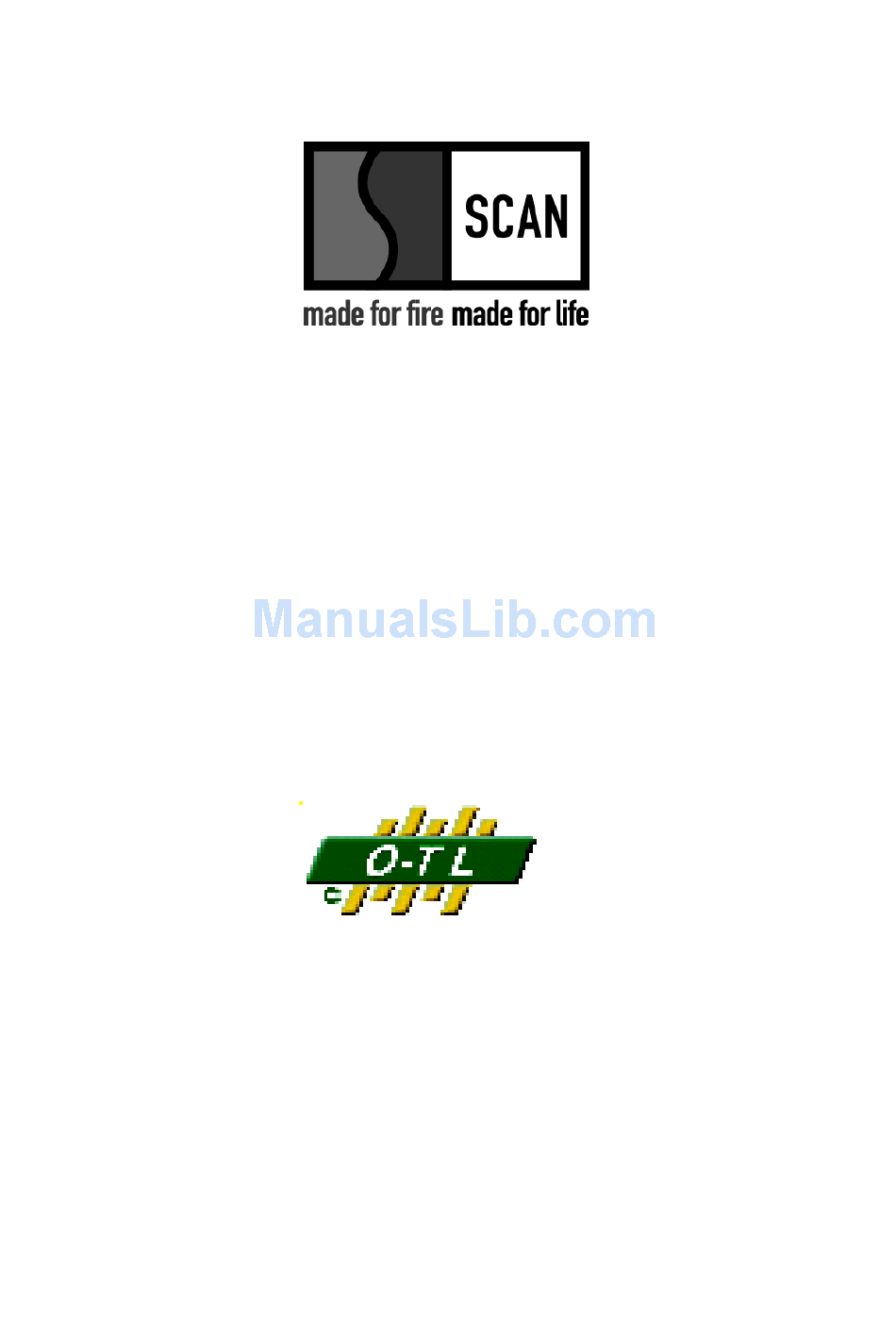

INSTRUCTIONS FOR
INSTALLATION AND USE
SCAN DSA 4
T es te d &
B ea v e r to n
L ist ed b y
O r e g o n U SA
O M N I-T e s t L a bo r a t o r ie s , In c.
Save these instructions
January 2004
Krog Iversen & CO. A/S, DK- 5492 Vissenbjerg
Denmark
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSA 4 and is the answer not in the manual?

Questions and answers

Related Manuals for SCAN DSA 4

Summary of Contents for SCAN DSA 4

  • Page 1 INSTRUCTIONS FOR INSTALLATION AND USE SCAN DSA 4 T es te d & B ea v e r to n L ist ed b y O r e g o n U SA O M N I-T e s t L a bo r a t o r ie s , In c.

  • Page 2: Table Of Contents

    1. IMPORTANT SAFETY NOTICE ..........................3 1.1 Prevent Creosote Fires:............................3 1.2 Prevent Over Firing: ............................3 2. CAUTIONS................................4 3. INTRODUCTION / INSTRUCTIONS FOR USE....................5 3.1 About the SCAN DSA 4 fireplace........................5 3.2 Baffle Cassette:..............................5 3.3 Glass: .................................5 3.4 Smoke Detectors ...............................5 3.5 Room Ventilation: .............................6 3.6 Firebricks and Skamol liners: ..........................6...

  • Page 3: Important Safety Notice

    SCAN DSA fireplace, especially if you follow the instructions and advice given below. SCAN DSA fireplaces have a number plate. In case of complaints we request that you have the registration number. In the SCAN DSA fireplace you will find a service box containing the following items:...

  • Page 4: Cautions

    DO NOT OPERATE THE FIREPLACE WITHOUT THE FIREBOX BAFFLE CASSETTE PROPERLY INSTALLED. BUILD FIRES DIRECTLY UPON THE HEARTH INSIDE THE FIREPLACE. DO NOT USE GRATES, IRONS OR ANY OTHER METHOD TO ELEVATE THE FIRE. THE SCAN DSA 4 FIREPLACE IS ONLY FOR FIREPLACE INSTALLATION. Page 4...

  • Page 5: Introduction / Instructions For Use

    Damage caused by over firing is not covered by the manufacturers limited warranty 3.2 Baffle Cassette: The SCAN DSA 4 has a baffle cassette assembly that must be installed in the upper firebox. When in the proper position, the lower plate should lay on top of the air manifold and against the rear wall of the firebox.

  • Page 6: Room Ventilation

    The metal label permanently attached to the left side of every SCAN DSA fireplace shows that it has been tested to current UL and ULC standards, and gives the name of the testing laboratory.

  • Page 7: Installation (Qualified Technicians Only)

    4. INSTALLATION (Qualified technicians only) WARNING: Check all local building and safety codes before the installation. The installation instructions and appropriate code requirements must be followed exactly and without compromise. Alterations to the fireplace are not allowed. Do not connect the fireplace to a chimney system serving another fireplace or stove, appliance or any air distribution duct.

  • Page 8: Hearth And Floor Protection Requirements

    *Does not include the distance the insert sticks out on the hearth 3" / 75mm. See heart requirements above. WARNING: Minimum clearance to combustibles must be observed when installing this fireplace. The listed clearances for your SCAN DSA fireplace are determined in laboratory tests. Page 8...

  • Page 9: Masonry Fireplace Requirements

    4.4 Masonry Fireplace Requirements Chimney must have a clay tile liner or a stainless steel liner (positive connection). • Entire fireplace, including chimney, must be clean and not cracked or damaged. Any • damage must be repaired prior to installation of the fireplace. Chimney height: 15' minimum;...
  • Page 10 Note: Most factory built chimney manufactures make stainless steel chimney liners, either flexible or rigid. This provides a wide variety of installation options. Make sure to follow the manufacturer's instructions for installation and support. NOTE: This installation may be used with a factory built or masonry fireplace. The requirements in the section "Masonry Fireplace Requirements"...

  • Page 11: Surround Panel Installation (See Part Numbers Below)

    4.7 Surround Panel Installation (see part numbers below) Surround panel size is determined by the type of installation and the size of the fireplace opening. Direct and positive connections do not require insulation or panels that overlap the fireplace opening (panels that overlap the fireplace opening are usually more attractive. Any questions on selection of the surround panels should be directed towards your dealer.

  • Page 12: Draft Requirements

    If the chimney draught is strong, the combustion air supply must be reduced additionally. 4.10 Chemney Installation: The SCAN DSA fireplace should not be connected to a chimney of which the inside diameter is smaller than that of the flue collar.

  • Page 13: Operation

    Your SCAN DSA wood-burning fireplace is designed for burning dry natural well-seasoned wood only (If your wood supply is not seasoned, ask your authorized SCAN dealer where to obtain seasoned fuel in your area). Wood should be stored in a dry place for at least one year before being used for fuel.

  • Page 14: Refueling

    5.3 Refueling: To refuel the fireplace, first move the air intake control to full open, let the fire “liven-up” for about one minute. Open the fuel door about ½” (1.5 cm) and hold in this position until the fireplace is drafting well. Open the fuel door and add wood. If the fire or coal bed is almost depleted and a full load of wood is added, it may be necessary to adjust the air intake control wide open to reestablish a lively fire.

  • Page 15: Maintenance

    Be sure that the fire is out and the fireplace is cold before removing the baffle cassette. The placement of firebricks, skamol liners and baffle cassette of your SCAN DSA fireplace is illustrated on the following pages. Removal of all firebricks, skamol liners and the baffle cassette should follow in the reverse numeric order (e.g.

  • Page 16: Creosote Formation And The Need For Removal

    The door must be dismounted from the insert before installing a new glass. 1. SCAN DSA 4: the screw in the middle of the hinge bushing is loosened and the through- going hinge pin is pushed up or down and removed.

  • Page 17: Replacement Part List

    6.6 Replacement part list: Caution: Use only original SCAN DSA 4 replacement parts. Do not use substitute materials. Replacement part Part # Glass exclusive gasket 57704011 Packet of ceramic gasket for door/glass 55100001, 55100002, 55100003 Baffle Cassette 53999009 70491 Skamol plate for firebox left / right side...

  • Page 18: Warranty Provisions For Scan Wood Burning Products

    7. WARRANTY PROVISIONS FOR SCAN WOOD BURNING PRODUCTS All scan wood stoves; inserts and fireplaces are subject to a strict quality control, before they are shipped to the customer and end user. However, an error may occur, wherefore we back all SCAN wood burning stoves, inserts and fireplaces with an extensive five years limited warranty.

  • Page 19: Troubleshooting

    8. TROUBLESHOOTING Smoke: - Insufficient chimney draught! - Check chimney height. Recommended height is minimum 15 feet. - Check if the chimney has the right dimension. - Check if the smoke pipe or chimney is blocked. - Check if the chimney has the right height compared to the surroundings. - Wood with too high moisture content.
