66

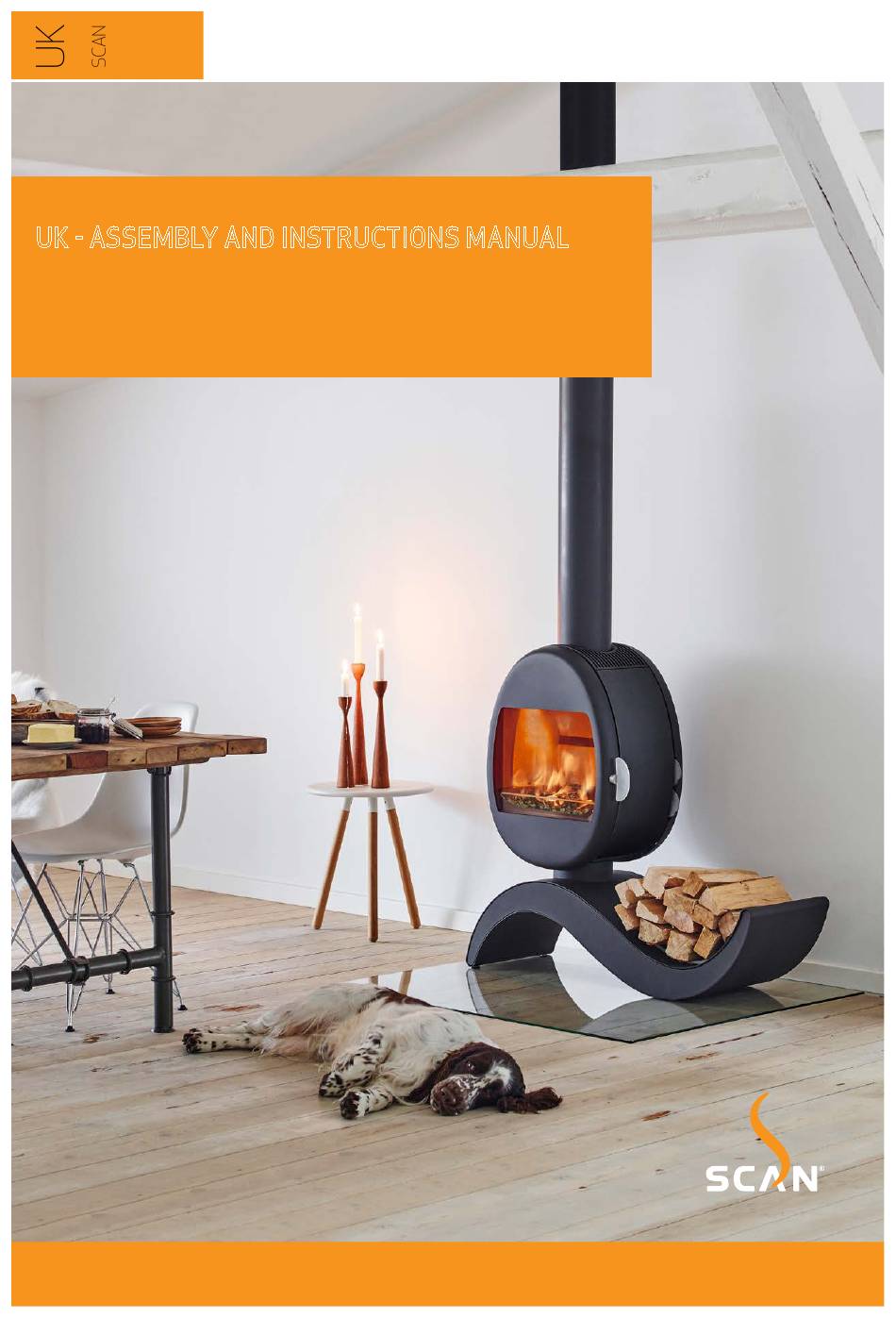

UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 66
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 66

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan 66 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCAN Scan 66

Summary of Contents for SCAN Scan 66

  • Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 66 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 66...
  • Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate The Clean Air Act 1993 and Smoke Control Areas Product registration number Technical data and dimensions ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Opening of the door Contents of packaging Fitting the flue connection piece...

  • Page 4: Technical Data

    Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 5: Technical Data And Dimensions

    Surface treatment Senotherm Dust @ 13% O 23 mg/Nm Max. wood length 33 cm No x @ 13% O 85 mg/Nm Weight Scan 66-1 ca. 90 kg Efficiency 78 % Weight Scan 66-2 ca. 100 kg Energy efficiency index 104,1 Weight Scan 66-4 ca.

  • Page 6: Dimension Sketch And Minimum Distances

    DIMENSION SKETCH AND MINIMUM DISTANCES...
  • Page 7 MINIMUM DISTANCES...

  • Page 8: Type Plate

    PRODUCT REGISTRATION NUMBER All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.

  • Page 9: Assembly

    Small shaped floor plate in glass or steel ¬ Large shaped floor plate in glass or steel 11-07-2014 DATO: SIGN: VÆGT: (steel only for Scan 66-2 & 66-5) (steel only for Scan 66-2 & 66-5) DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© Working Folder\Designs\Scan 66\90066094.iam...

  • Page 10: Disposal Of Packaging

    EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chimney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 11: Closed Combustion System

    11-08-2014 SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066062.idw STI: If the external combustion air is connected External at the rear, the dismounted plate must be combustion air mounted on the hole for external air in the...

  • Page 12: Distance To Furniture

    You should however assess whether furniture or other items might become excessively dry due to being too close to the stove. AUFBEWAHRUNG VON HOLZ Scan 66-5 S-Curve is approved for wood storage on condition that the following is respected: The wood must be placed min. 100 mm from the stove and is not to be stapled higher than to the lower edge of the handle.

  • Page 13: Opening Of The Door

    90066085 NAVN: EMNE: TG.NR: DATO: 26-09-2014 SIGN: MATERIALE: VÆGT: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066085.idw STI: Luk låge 90066085 EMNE: TG.NR: 26-09-2014 VÆGT: DATO: SIGN: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© signs\Scan 66\90066085.idw Åbne låge...

  • Page 14: Fitting The Flue Connection Piece

    EMNE: TG.NR: 90066055 08-10-2014 ERIALE: VÆGT: DATO: SIGN: NSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066055.idw Scaqn 66 afmont. i topafgang 90066036 Refit the plates NAVN: EMNE: TG.NR: Scan 66 afmont. sidesvøb NAVN: EMNE: TG.NR:...
  • Page 15 NAVN: EMNE: TG.NR: 09-05-2014 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg© Scan 66 afmont. sidesvøb C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam NAVN: EMNE: STI: TG.NR: 90066055 08-10-2014 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S Remove the plates DK-5492 Vissenbjerg©...

  • Page 16: Height Adjustment Of Stove

    DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066036.idw STI: The stove has four adjustment screws under the stove. Use the adjustment screws and the adjustment key (Accessories) to get the stove to stand straight and level.

  • Page 17: Mounting Of Wall-Hung Model

    Please consult a specialist. Scan A/S disclaims all liability for the installation of wall-hung wood-burning stoves. In order to mount the wall fitting to a chimney made of Leca-blocks you need 6 pcs.
  • Page 18 90066068 NAVN: EMNE: TG.NR: DIMENSION: AREAL: Krog Iversen & Co A/S DATO: 04-03-2019 MATERIALE: VÆGT: SIGN: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066040.idw STI: M3 NR.: AREAL: DIMENSION: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066068.idw STI: mont. vægbeslag Scan 66 90066041 NAVN: EMNE: TG.NR:...
  • Page 19 AREAL: Krog Iversen & Co A/S Mount the four screws loosely in the rear plate again, DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066050.idw STI: now with the wall fitting in between. Screw the rails and the bottom plate together in the sides.
  • Page 20 AREAL: Scan A/S B ( 0,40 : 1 ) DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam STI: Now hook the stove onto the wall fitting on the wall Mount the screws in order to lock the stove to the wall fitting vægbeslag...

  • Page 21: Mounting Of The Burn Chamber On The Pedestal Base

    AREAL: Scan A/S 10-09-2014 MATERIALE: VÆGT: DATO: SIGN: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066078.idw STI: M3 NR.: AREAL: DIMENSION: Scan A/S Use the delivered division plate. First cut out the hole, Mount the delivered cover plate, then the pedestal. DK-5492 Vissenbjerg©...

  • Page 22: Mounting Of The Burn Chamber On The Plinth Base

    MOUNTING OF EXTERNAL AIR SUPPLY ON THE PLINTH BASE 13-08-2014 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066066.idw STI: External combustion air from the bottom Montage af prismesokkel Scan 66 90066066 NAVN: EMNE: TG.NR: 12-09-2014 MATERIALE: VÆGT:...

  • Page 23: Mounting Of The Burn Chamber On The S-Base

    S curve NAVN: EMNE: Scan 66 mont. S curve 90066127 NAVN: EMNE: TG.NR: MATERIALE: VÆGT: 05-04-2016 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.: AREAL: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066127.idw STI: C:\Working Folder\Designs\Scan 66\90066127.idw STI:...

  • Page 24: Mounting Of Combustion Chamber

    MOUNTING OF COMBUSTION CHAMBER Note that the baffle plates are made of porous, ceramic material, and can break. Exercise care when working. Please remove protection Mount the rear plate Slide the plate behind the grate Rear plate mounted Fit the left side plate in at the top Slide the plate in place Left side plate mounted Mount the right side plate in the...
  • Page 25 MOUNTING OF COMBUSTION CHAMBER Let the plate glide back on Upper baffle Mount the upper baffle the upper edge (the carvings must turn backwards) Push the plate upwards so that it Push the plate a bit backwards so Lower baffle rests on the front plate that it rests on the rail in the back Let the plate rest on the rail with...

  • Page 26: Load-Bearing Foundation

    Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials.

  • Page 27: Instructions For Use

    ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove Pull out the ash drawer and empty it Scan 66 Askeskuffe NAVN: EMNE: TG.NR: 90066024 MATERIALE: VÆGT:...
  • Page 28 SETTINGS FOR NORMAL LOAD: Primary air: 0 - 30% Secondary air: 50 - 70% Scan 66 CB teknik 90066021 NAVN: EMNE: TG.NR: DATO: 06-08-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066021.idw STI:...

  • Page 29: Instructions For Heating

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note that...

  • Page 30: Operation With Door Left Open

    OPERATION WITH DOOR LEFT OPEN Operation with the door open can cause excess smoke. The appliance must not be operated with the appliance door left open except as directed in the instructions. DAMPERS LEFT OPEN Operation with the air controls or appliance dampers open can cause excess smoke. The appliance must not be operated with air controls, appliance dampers or door left open except as directed in the instructions.

  • Page 31: Chimney Fire

    CHIMNEY FIRE In the event of a chimney fire, keep the stove door, the ash container, and all dampers on the stove closed. In an emergency, call the fire service. ¬ We recommend that you get a chimney sweep to check the chimney before using the stove again GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use.

  • Page 32: Selecting Wood/Fuel

    HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 33: Sweeping The Chimney And Cleaning The Stove

    Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter.

  • Page 34: Removal Of Baffle Plates And Combustion Chamber Lining

    MATERIALE: VÆGT: DATO: SIGN: SION: AREAL: Krog Iversen & Co A/S DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© :\Working Folder\Designs\Scan 66\90066123.idw DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066028.idw STI: Combustion chamber lining Scan 66 Skamol afmont1 NAVN: EMNE: TG.N 08-08-2014...

  • Page 35: Cleaning The Log Guard

    DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\90066023.idw STI: CLEANING THE GLASS Our wood-burning stoves are designed to prevent serious soot build-up on the glass. The best way to achieve this is to make sure you have a good supply of combustion air. It is also very important that the wood is dry and the chimney correctly dimensioned.
  • Page 36 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
  • Page 37 Scan 66 10066900- m TG.NR: NAVN: EMNE: DATO: 09-05-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 66\10066900 - Manual.iam STI: vægbeslag Scan 66 10066900- m NAVN: EMNE: TG.NR: DATO: 09-05-2014 MATERIALE: VÆGT: SIGN: DIMENSION: AREAL: Scan A/S DK-5492 Vissenbjerg©...
  • Page 38 All wood-fired Scan products are made of high-quality materials and subject to strict quality controls before leaving the factory. We give a warranty of 5 years on manufacturing errors or defects. You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim.
  • Page 39 NOTES...
  • Page 40 Product registration number Quote this number at all enquiries Edition: UK 90066500 10056056-P02 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 19.02.2021...

This manual is also suitable for:

Scan 66-1Scan 66-2Scan 66-4Scan 66-5
