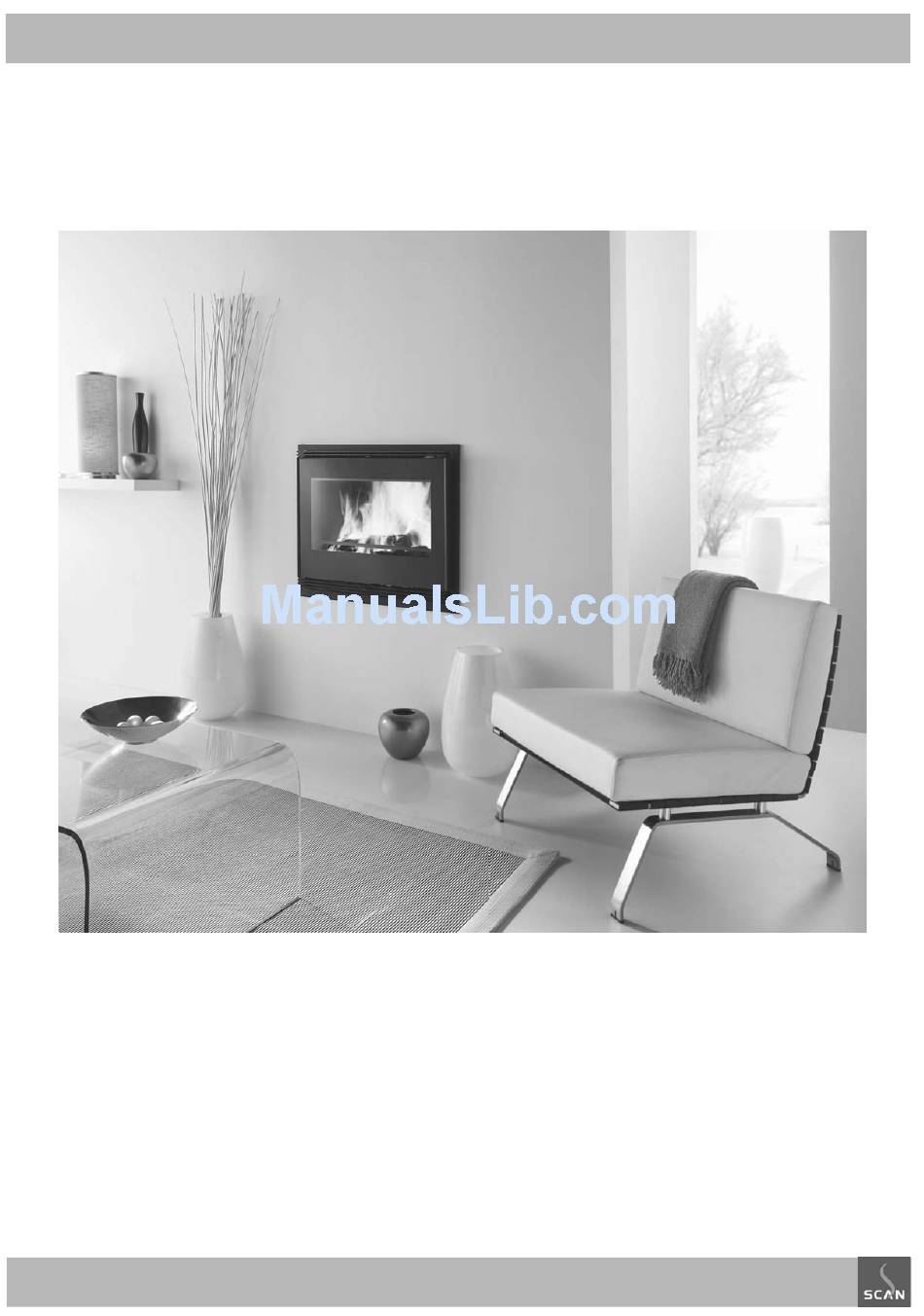

A S S E M B LY- A N D I N S T R U C T I O N S M A N U A L
Scan DSA 11
Congratulations on your new Scan insert
You have purchased a product by one of Europe's leading manufacturer's of wood-burning stoves, and we are sure that you will have years of plea-
sure with your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your stove.
S C A N A / S - D K- 5 4 9 2 V I S S E N B J E R G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCAN DSA 11
Summary of Contents for SCAN DSA 11
- Page 1 A S S E M B LY- A N D I N S T R U C T I O N S M A N U A L Scan DSA 11 Congratulations on your new Scan insert You have purchased a product by one of Europe’s leading manufacturer’s of wood-burning stoves, and we are sure that you will have years of plea- sure with your purchase.
-
Page 2: Table Of Contents
C O N T E N T S Table of contents Technical data……………………………………………....……………………….. 3 Installation Certifi cate of testing Technical dimensions and data Dimensioned drawing for Scan DSA 11 Product registration number Additional accessories Type plate Loose parts Service kit Fitting………………………………………………………....…………………….. -
Page 3: Technical Data
Chimney temperature: 371 °C To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Our Scan Dealer will be Flue outlet flow: 10,1 g/sek able to recommend a qualified fitter in your area. For information on... -
Page 4: Dimensioned Drawing For Scan Dsa 11
T E C H N I C A L DATA Dimensioned drawing for Scan DSA 11... -
Page 5: Product Registration Number
• Torx key Service kit The service kit contains the following: • Fitting for flue connection piece (not used on Scan DSA 11) • Gasket (not used on Scan DSA 11) Additional accessories • Safety fitting (not used on Scan DSA 11) •... -
Page 6: Removing The Packaging
A S S E M B LY Removing the packaging Scan DSA 11 is delivered secured to a pallet. To remove the packaging, Pull the insert out of the cassette. please see below: To remove the door: Loosen the Pointed screw, remove the rivet and lift the door off. -
Page 7: Positioning Near Non-Fl Ammable Materials
A S S E M B LY Installation in connection with flammable material Flammable materials Area for convection air out: 500 cm 2 Area for If the floor contains flammable convection air in: materials the height above the 350 cm 2 floor must be at least 340 mm. -
Page 8: Floor Plate
If you intend to connect your stove to an existing chimney, it makes front of the insert. sense to contact an authorised Scan dealer, or a local chimney sweep Your local Scan dealer can give guidance on the rules concerning the for advice. -
Page 9: Fitting The Cassette And Insert
A S S E M B LY Fitting the cassette and insert NB: If you have chosen to fit the insert with convection connection To secure the cassette, pre-drill the 4 holes with a 10 mm drill bit. pieces, go to page 14, and then continue the installation as described below. - Page 10 A S S E M B LY Set the adjustment screws with an open-end spanner so the cassette Fit the rawl plugs, screws and washers. Ensure that the cassette is level is level. before tightening. For tightening you can also use the supplied Torx key from the loose parts bag in the insert’s combustion chamber.
- Page 11 A S S E M B LY NB: If you have chosen to install your Scan DSA 11 with a fan, go to page 14 for installation of the fan. Then continue with the installation below. Fit the insert into the cassette.
-
Page 12: Fitting The Fl Ue Connection Piece
A S S E M B LY Fitting the flue connection piece Fit the gasket provided to the flue connection piece. The flue connection piece and the gasket for this is provided loose in the insert’s combustion chamber. Before fitting the flue connection piece, the smoke deflector plate must be removed. - Page 13 A S S E M B LY Fit the smoke deflector plate and the door of the insert.
-
Page 14: Fitting Of Accessories
F I T T I N G O F A C C E S S O R I E S Fitting the convection connection pieces See page 9 for how to fit and tighten the cassette. When the cassette has been tightened, fit the convection connection Cut through the fastening points in the cover plates for the convec- pieces. -
Page 15: Fitting The Fan
The Installation must be planned and executed in accordance with national and local regulations. In order to ensure correct installation, an authorised electrician must carry out the installation of the fan. Scan A/S disclaims all liability for the installation of the fan. Cable relief and screws... - Page 16 F I T T I N G O F A C C E S S O R I E S Cable with male connector for fan. Fit the cable with female connector for ES 904 into the bracket and attach the cable to the cable relief and place it inside the hole in the cassette.
- Page 17 F I T T I N G O F A C C E S S O R I E S Connection table for fan Motor Cable colour Conductor Line (phase) Brown Neutral Blue Yellow/Green Protection earth Colour codes for cables Cable colour Brown White...
-
Page 18: Primary Air
I N S T R U C T I O N F O R U S E CB Technology (Clean Burning) Primary air The stove is equipped with the clean burning technique. In order to The primary air regulation mechanism is used for lighting the fire, or ensure an optimal combustion of released gases under the incinera- to boost the burning process when you put wood on. -
Page 19: Lighting
We recommend the use of fire starters, or similar products, which are spring/autumn when your heating requirements are not as great. available from your Scan dealer. Using fire starters helps to light the wood quicker, and keeps the burning process clean. -
Page 20: Handling Fuel
I N S T R U C T I O N S F O R H E AT I N G General Notes Handling fuels Your wood stove is not designed for continual heating for periods of over 24 hours. Selecting Wood/Fuel Please note! Parts of the wood-burning stove, especially the outer You can use any type of wood as firewood, however, harder types,... -
Page 21: Maintenance
Even if you follow all of our instructions, a slight film of soot can build up on the glass. You can easily remove this build up by cleaning with a dry cloth and glass cleaner. Your authorised Scan dealer stocks a special glass cleaner for this purpose. -
Page 22: Troubleshooting
Scan dealer with a warranty claim. • Check if the smoke gas pipe/chimney are blocked The warranty covers all parts which in the opinion of Scan A/S require • Is the chimney the right height for its surroundings? repair or replacement due to manufacturing or construction error •... - Page 24 Version Scan A/S - DK-5492 Vissenbjerg GB 90084500-5 08.02.2010...
