PROGRAMMING THE SYSTEM

PROGRAMMING THE SYSTEM PROGRAMMING THE SYSTEM PROGRAMMING THE SYSTEM PROGRAMMING THE SYSTEM
Most of the working features of this alarm unit are programmable.
There are no dip switches or trimmer to be set and adjusted. Based on that it is
possible to obtain a very high security degree because the alarm unit can be mounted
in a hidden position, difficult to reach.
The basic functions can be programmed using the remote control. To enter this procedure
insert your personal identification number or, as an alternative the special code 1111.
After twenty arm/disarm operations this code will be automatically erased by the
system and it will be necessary to use the PIN for further data modifications.
If PIN Code contains both numbers and letters (alphanumeric) A=10, B=11, C=12.
If the system is already equipped with electronic emergency keys they will have to be
used to enter in the programming procedure.
You can choose different preset configuration contained in two different tables to select
the bridge range working features:
the working mode table (MODE A - H) and the functions table (F1 - F12).
The mode table allows to choose the CDL operating time and to activate/deactivate
the voltage drop sensor.
The functions table allows to define the system way of working activating or deactivating
some particular functions.
Using the remote control it is possible to adjust the buzzer volume and to disconnect it.
The unit is already programmed as follow: MODE E and FUNCTION 11 activated,
buzzer volume level 0. This production set-up is highlighted on the programming
tables.
As an example if you want to program the system to be installed on a VW Golf III with
a 24 seconds closing CDL pulse, 24 seconds window closing time and voltage drop
sensor not actived you should select mode G, while to select a continous additional
siren outlet and to deactivate both the automatic arming as the active arming you
should select F10 function.

PROGRAMMING PROCEDURE

PROGRAMMING PROCEDURE PROGRAMMING PROCEDURE PROGRAMMING PROCEDURE PROGRAMMING PROCEDURE
To enter to the programming procedure do as follow:
1. 1. 1. 1. 1. Turn the starter key ON and then OFF for three times within 7 seconds.
2. 2. 2. 2. 2. The LED will blink once signalling that you can insert the PIN code or the special
code 1111.
3. 3. 3. 3. 3. After the LED will go off switch the ignition ON and count the LED blinks up to the
number which is the first digit of your PIN ( referring to the example: 1 blink=1 is the
first digit) then switch the ignition OFF.
Repeat the same procedure for all the digits
In case of any mistake just wait for ten seconds with the starter key OFF without
making any operation and then come back to step 1.
4. 4. 4. 4. 4. If the system has not already working electronic keys turn the ignition ON. The LED
will come on a fixed way signalling that the PIN is correct. Go to step 6.
5. 5. 5. 5. 5. If the system has already working electronic keys turn the ignition ON and then put
the key in connection with the emergency panel. The LED will come on a fixed way
48 GB

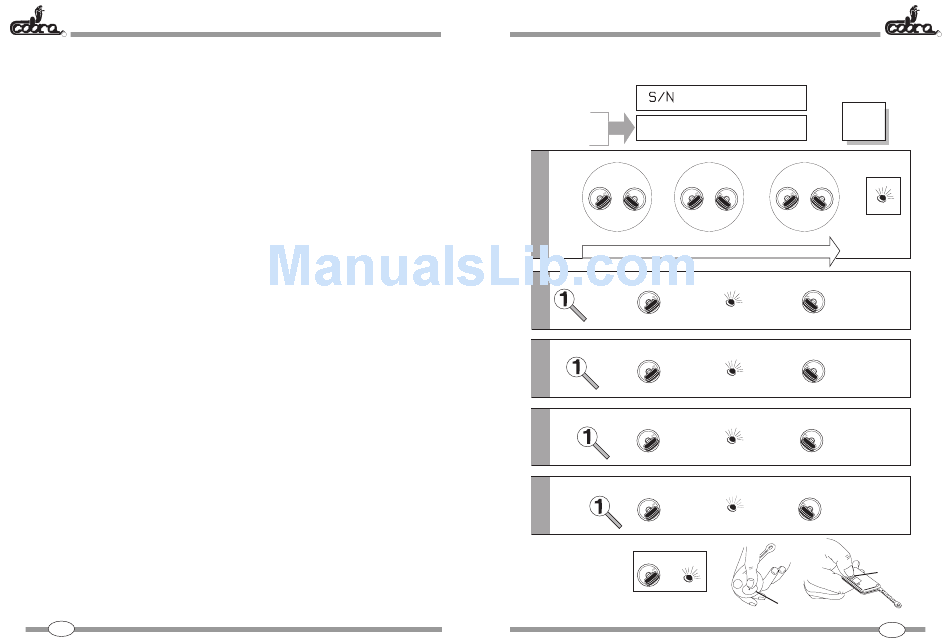

INSTALLATOR CODE = 1111 (limited use)
PIN CODE
PIN CODE = 2341
EXAMPLE
OFF
ON ON
+
a
IGN IGN
MAX 7 SEC.
ON
b
1 1 1
ON
c
1 1 1
ON
d
1 1 1
ON
e
1 1 1
ON
OK
A = 10
B = 11
C = 12
ON 3 SEC.
OFF OFF
ON
+ =
OK
IGN
LED ON X 1 OFF
LED ON X 1
OFF
LED ON X 1 OFF
OFF
LED ON X 1
A
A
PUSH FOR 5 SECONDS
