ACTIVE ARMING (If activated)
ACTIVE ARMING (If activated)
ACTIVE ARMING (If activated)
ACTIVE ARMING (If activated)
ACTIVE ARMING (If activated)
When activated this function will cause the automatic arming of the system. The arming
will become active after two minutes the system has been disarmed via the remote
control and any door has not been opened. The system will not operate the CDL.
RADIOCONTROLLED AUXILIARY OUTPUT (if activated)
RADIOCONTROLLED AUXILIARY OUTPUT (if activated)
RADIOCONTROLLED AUXILIARY OUTPUT (if activated)
RADIOCONTROLLED AUXILIARY OUTPUT (if activated)
RADIOCONTROLLED AUXILIARY OUTPUT (if activated)
If the function as been activated a two seconds negative output will be available on the
white/red wire by pressing B button with the system unsetted.
The maximum driven current is 500 mA. Refer to G diagram for additional relay
connection.
This output can be used for:
• boot opening
• activation/desactivation of other devices.
If not used this wire must be isolated.
N.B. If you use this wire as indicated it will not be possible anymore to connect an
additional siren
ILLUMINATED ENTRY
ILLUMINATED ENTRY
ILLUMINATED ENTRY
ILLUMINATED ENTRY
ILLUMINATED ENTRY
It is necessary to connect the PINK/BLUE alarm wire to the driver side door push
button as showed in the fitting diagrams to obtain the illuminated entry when the
alarm is disarmed.
For those alarm unit which are not providing this feature the PINK/BLUE wire can be
used as a standard door push button trigger wire
SERIAL COMMUNICATION PORT
SERIAL COMMUNICATION PORT
SERIAL COMMUNICATION PORT
SERIAL COMMUNICATION PORT
SERIAL COMMUNICATION PORT
The yellow/blue wire can be use for additional module and diagnostic tester connection.
Refer to their installation and user manuals.
54
GB
FUNCTIONAL TEST OF THE
INSTALLATION AND SENSOR
REGULATION
Carry out the test operations in the
indicated sequence after having
shut the doors, bonnet and boot.
The test operations must be carried
out within the 40 second
inhibition phase. An alarm status
will be generated (siren and blinker)
once this time has elapsed.
B
A
A
B

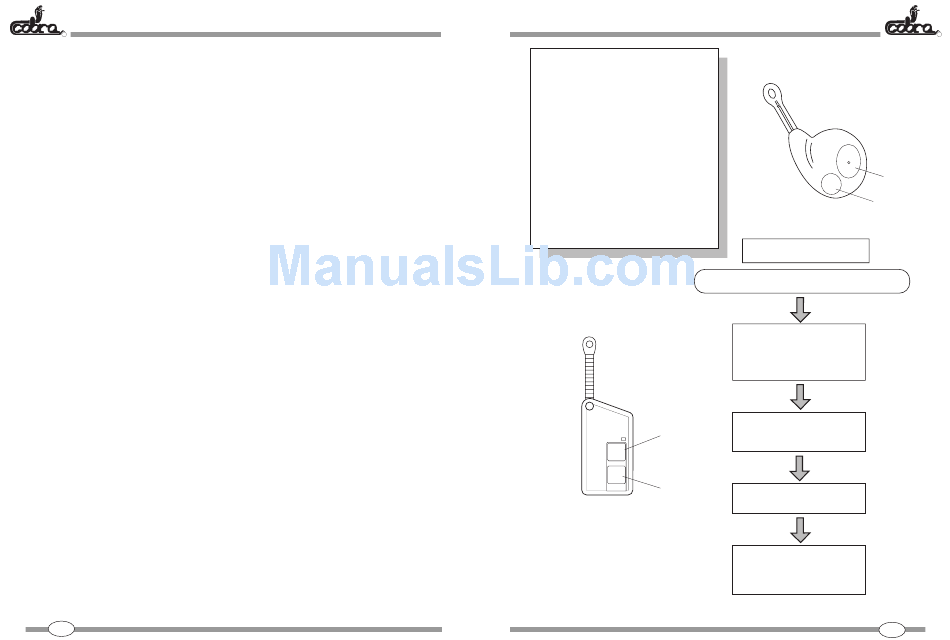

FOR ALL VERSIONS
PERIMETRAL PROTECTION TEST
Arm the alarm by pressing button A on the
remote control. The turn indicators will blink
twice. The buzzer will beep twice (if activated).
The doors will lock.
The led will flash.
Open a door with the key. The buzzer will
issue a continuous sound. The signal will
cease when the door is closed.
Repeat the test for the other connected
doors, the bonnet and boot.
Disarm the alarm by pressing button A on
the radio control.
The turn indicators will blink once.
The doors will unlock and the led will go out.
GB
R
55
