This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit is used.
WARNING: If the information in these instructions is not followed exactly, a fire
or explosion may result causing property damage, personal injury or loss of life.
Warning: Improper installation, adjustment, alteration, service or maintenance can cause property damage,
personal injury or loss of life. Refer to this manual. Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes. This
appliance is only for use with the type(s) of gas indicated
on the rating plate. A conversion kit is supplied with the
appliance.
A Division of R-Co. Inc.

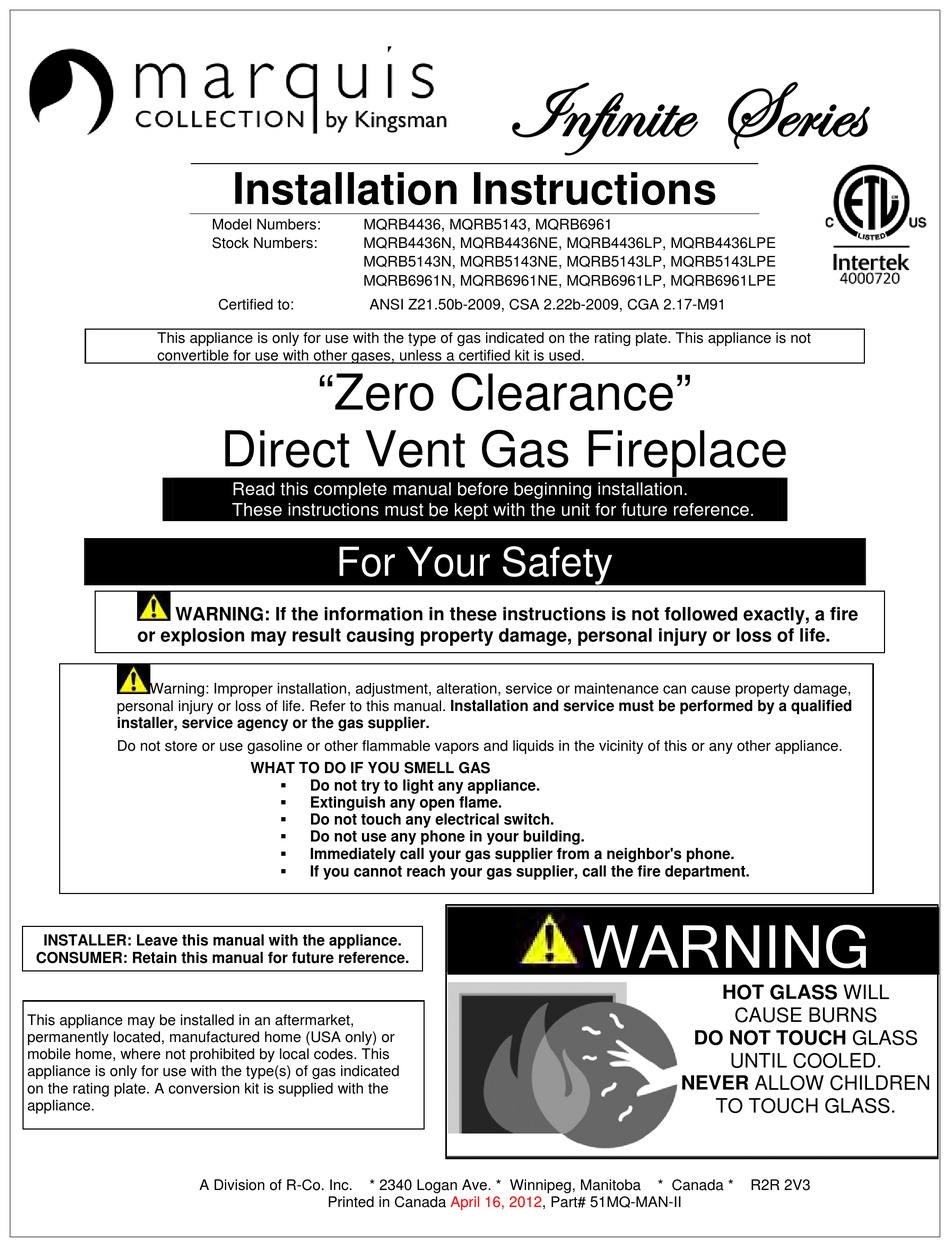

Installation Instructions
Model Numbers:
MQRB4436, MQRB5143, MQRB6961
Stock Numbers:
MQRB4436N, MQRB4436NE, MQRB4436LP, MQRB4436LPE
MQRB5143N, MQRB5143NE, MQRB5143LP, MQRB5143LPE
MQRB6961N, MQRB6961NE, MQRB6961LP, MQRB6961LPE
Certified to:
ANSI Z21.50b-2009, CSA 2.22b-2009, CGA 2.17-M91
"Zero Clearance"
Direct Vent Gas Fireplace
Read this complete manual before beginning installation.
These instructions must be kept with the unit for future reference.
For Your Safety
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
If you cannot reach your gas supplier, call the fire department.
* 2340 Logan Ave. * Winnipeg, Manitoba
Printed in Canada
\Çy|Ç|àx fxÜ|xá
WARNING
April 16,
2012, Part# 51MQ-MAN-II
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
* Canada *
R2R 2V3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kingsman Marquis Infinite MQRB4436
Summary of Contents for Kingsman Marquis Infinite MQRB4436
-
Page 1: Installation Instructions
\Çy|Ç|àx fxÜ|xá Installation Instructions Model Numbers: MQRB4436, MQRB5143, MQRB6961 Stock Numbers: MQRB4436N, MQRB4436NE, MQRB4436LP, MQRB4436LPE MQRB5143N, MQRB5143NE, MQRB5143LP, MQRB5143LPE MQRB6961N, MQRB6961NE, MQRB6961LP, MQRB6961LPE Certified to: ANSI Z21.50b-2009, CSA 2.22b-2009, CGA 2.17-M91 This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used. -
Page 2: Table Of Contents
MQRB4436BK / MQRB5143BK / MQRB6961BK Back Shield Kit –Single View..........40-41 MQRB4436 / MQRB5143SK / MQRB6961SK (See Thru Kit) Installation............MQRB4436 / MQRB5143 / MQRB6961 Liner & False Bottom Installation............43-44 MQRB4436, MQRB5143 & MQRB6961 Finishing Options.................. MQRB4436 / MQRB5143 / MQRB6961 Surround Installation................ - Page 3 820 Nova mV Modulating Conversion Kit......................MQRB4436 Burner Section: Gas Conversion...................... MQRB5143 Burner Section: Gas Conversion....................... MQRB4436 / MQRB5143 Burner Tube Removal / Burner System Removal/Installation Guide......MQRB4436 / MQRB5143 Moving Valve to Other Side of Fireplace..............MQRB6961 Burner Section: Gas Conversion.......................
-
Page 4: Recommendations For Finishing Of Clean View Linear Products
Recommendations for Finishing of Clean View Linear Products Only non-combustible materials may be used over the face of the appliance. We recommend that DUROCK (non-combustible material) be tied in to the entire perimeter of the fireplace for durability. Finishing Recommendations (Obtained from professional construction contractors and finishers): ... -
Page 5: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 6: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 7: Warnings, Installations And Operations
Warnings, Installations and Operations Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code;... -
Page 8: Installation Requirements For The Commonwealth Of Massachusetts
Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they • provide a primary heat source. This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. •... -
Page 9: Nailing Tab Guide For All Units
[Qty] 2 Nailing Tabs are located on each corner of the fireplace. The Nailing Tabs on the MQRB4436, MQRB5143 or MQRB6961 can be used in two ways: 1/2” Drywall Flush with Face of Fireplace –Fireplace and -Fireplace to be covered... -
Page 10: Mqrb4436: Framing Your Gas Fireplace
4. When installing horizontal with a 90 degree bend, maintain a minimum of five inches [5"] above the bend with the Wall Thimble Shield [Z57WTS] in enclosures below seventy-two inches [72”]. See MQRB4436 Combustible Enclosure Heights page. -
Page 11: Mqrb4436 Locating Your Appliance / Fireplace Dimensions
MQRB4436 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System All Units Can Be Vented Vertically Horizontal Run With Min. -
Page 12: Mqrb4436 -See Thru Framing
MQRB4436 -See Thru Framing An MQRB4436SK Kit is required for a See Thru Installation. Before you begin Framing- Determine for both sides whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 13 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...
-
Page 14: Mqrb4436 Single Sided Framing
MQRB4436 Single Sided Framing An MQRB4436BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 15 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...
-
Page 16: Mqrb4436 Combustible Enclosure Heights
MQRB4436 Combustible Enclosure Heights Cold Climate Recommendation When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. -
Page 17: Mqrb4436 Surround Dimensions / Surround Clearances
Surround Dimensions MQRB4436 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials. -
Page 18: Mqrb4436 Facing Material Requirements
MQRB4436 Facing Material Requirements These specifications are the same for all Models (4436N, 4436NE, 4436LP, 4436LPE). Note: If using Optional Surround, See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. -
Page 19: Mqrb4436 Mantel Clearances / Clearance To Combustibles
2” All Vent Systems Side & Bottom of Horizontal Pipe 1” All Vent Systems Vertical Vent Pipe 1” All Vent Systems Kingsman Flex venting MUST be used on the MQRB4436. Use of Simpson Duravent or other hard pipe Venting systems is not permitted. -
Page 20: Mqrb5143: Framing Your Gas Fireplace
MQRB5143: Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. -
Page 21: Mqrb5143 Locating Your Appliance / Fireplace Dimensions
MQRB5143 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System All units can be vented vertically Horizontal Run with Min. -
Page 22: Mqrb5143 -See Thru Framing
MQRB5143 -See Thru Framing An MQRB5143SK Kit is required for a See Thru Installation. Before you begin Framing- Determine for both sides whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 23 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...
-
Page 24: Mqrb5143 Single Sided Framing
MQRB5143 Single Sided Framing An MQRB5143BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 25 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...
-
Page 26: Mqrb5143 Combustible Enclosure Heights
MQRB5143 Combustible Enclosure Heights Cold Climate Recommendation When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. -
Page 27: Mqrb5143 Surround Dimensions / Surround Clearances
Surround Dimensions MQRB5143 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials. Surround Clearances MQRB5143... -
Page 28: Mqrb5143 Facing Material Requirements
MQRB5143 Facing Material Requirements These specifications are the same for all Models (5143N, 5143NE, 5143LP, 5143LPE). Note: If using Optional Surround, See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown. -
Page 29: Mqrb5143 Mantel Clearances / Clearance To Combustibles
MQRB5143 Mantel Clearances -Combustible Objects on Non- Combustible Mantel Warning- Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible. -
Page 30: Mqrb6961: Framing Your Gas Fireplace
MQRB6961: Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. -
Page 31: Mqrb6961 Locating Your Appliance / Fireplace Dimensions
MQRB6961 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. MQRB6961 Fireplace Dimensions... -
Page 32: Mqrb6961 See Thru Framing
MQRB6961 See Thru Framing MQRB6961SK Kit is required for a See Thru Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 33 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs 19-3/8” 20-3/8” Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be rotated to allow Min.1”...
-
Page 34: Mqrb6961 Single Sided Framing
MQRB6961 Single Sided Framing An MQRB6961BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance). - Page 35 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...
-
Page 36: Mqrb6961 Combustible Enclosure Heights
MQRB6961 Combustible Enclosure Heights Cold Climate Recommendation When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance. -
Page 37: Mqrb6961 Surround Dimensions / Surround Clearances
Surround Dimensions MQRB6961 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials. Surround Clearances MQRB6961... - Page 38 MQRB6961 Facing Material Requirements These specifications are the same for all Models (6961N, 6961NE, 6961LP, 6961LPE). Note: If using Optional Surround, MQRB6961 See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.
-
Page 39: Mqrb6961 Mantel Clearances / Clearance To Combustibles
MQRB6961 Mantel Clearances -Combustible Objects on Non- Combustible Mantel Warning- Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible. -
Page 40: Mqrb4436Bk / Mqrb5143Bk / Mqrb6961Bk Back Shield Kit -Single View
MQRB44BK / MQRB51BK / MQRB69BK Back Shield Kit –Single View *This Kit must be opened before unit is installed into Framing (See “Single Sided Framing” pages of this Manual). Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 41: Panel Installation
False Bottom and goes Behind tilt into place at either end Burner Tube of the Firebox. Replace the Liner Clips (Fig.1). MQRB4436 / MQRB5143 Dimensions MQRB6961 Dimensions Place the bottom of the door into the door Fig.2 retainer slot, and then... -
Page 42: Mqrb4436 / Mqrb5143Sk / Mqrb6961Sk (See Thru Kit) Installation
MQRB44SK / MQRB51SK / MQRB69SK (See Thru Kit) Installation This basic Kit is required for See Thru installations. Note: To cover the Side Fillers with non-combustible materials, they must be installed before Facing materials are applied. Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 43: Mqrb4436 / Mqrb5143 / Mqrb6961 Liner & False Bottom Installation
MQRB4436 / MQRB5143 / MQRB6961 Liner & False Bottom Installation MQRB44PB1, MQRB51PB1, or MQRB69PB1-[1ea.] Porcelain False Bottom Single Sided: MQRB4436PLB, MQRB5143PLB, or MQRB6961PLB-[1ea.] Porcelain Back Liner Panel MQRB4436 (uses 5143PLE), MQRB5143PLE, or MQRB6961PLE-[2ea.] Porcelain End Panels Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. - Page 44 MQRB4436 / MQRB5143 / MQRB6961 Liner & False Bottom Installation See Thru: MQRB44PB2, MQRB51PB2, or MQRB69PB2-[1ea.] Porcelain False Bottom MQRB4436 (Uses 5143PLE), MQRB5143PLE or MQRB6961PLE-[2ea.] Porcelain End Panels False Bottom & End Panel Installation: 1. False Bottom Insert False Bottom into Fireplace.
-
Page 45: Mqrb4436, Mqrb5143 & Mqrb6961 Finishing Options
MQRB4436, MQRB5143 & MQRB6961 Finishing Options Using Side Fillers The Side Fillers are located at each side of the door. They are provided to give a continuous surface up to the opening of the fireplace door. Using Other Non-Combustible Materials as Side Fillers (Brick, Tile, Marble, etc.) -
Page 46: Mqrb4436 / Mqrb5143 / Mqrb6961 Surround Installation
MQRB4436 / MQRB5143 / MQRB6961 Surround Installation Surround Kits are available in 3 different finishes: MQRB4436 MQRB5143 MQRB6961 Small [1-1/2”] Large [4”] Small [1-1/2”] Large [4”] Small [1-1/2”] Large [4”] MQRB4419SBL MQRB4424SBL MQRB5019SBL MQRB5624SBL MQRB6919SBL MQRB6924SBL -Black MQRB4419SSS MQRB4424SSS MQRB5019SSS... -
Page 47: Fan Installation Mqrb4436
Fan Installation MQRB4436 For Single Sided Installations on the MQRB4436 Only. Fan Kit should be installed before the fireplace is placed into wall cavity. To remove fan for service, the burner pan must be removed and work done through the opening (See Burner System Removal section). -
Page 48: Fan Speed Control Outside Of Fireplace
Fan Speed Control Outside of Fireplace If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below. -
Page 49: Optional Glass Ember Installation
MQG5C Decorative Ember Glass - Copper - 5 lbs MQRB4436 / MQRB5143: (MQG5W) 5 lbs of ½” White Ember Glass is supplied with every unit. MQRB6961: (MQG10W) 10 lbs of ½” White Ember Glass is supplied with every unit. WARNING ... -
Page 50: Optional Driftwood & Rock Installation
Optional Driftwood & Rock Installation The following Driftwood and Decorative Rock kits are available for the Infinite Series. Model Part Number Description MQRB4436, MQRB5143, MQRB6961 MQRBD1 Drift Wood (x4) and Rocks (x4) MQRB5143, MQRB6961 MQRBD2 Large 3pc Driftwood Set MQRB4436, MQRB5143, MQRB6961... -
Page 51: Door And Glass Information
Do not strike or abuse the glass. Glass Replacement Only Robax ceramic or coated Neoceram glass may be used for replacement for Models MQRB4436, MQRB5143 and MQRB6169. Glass must be minimum 5mm thick. To replace glass, clean all materials from the door frame. Scrape off old silicone all the way down to the metal. Using high-temp silicone [rated up to 500°F (260°C)] apply a continuous bead of approximately 1/8”-3/16”... -
Page 52: Door Latch Tool
Infinite Series Door Latch Tool MQRB4436 / MQRB5143 / MQRB6961 A Door Latch Tool is provided to assist with removing and installing the glass doors on the Infinite Series. While it is not necessary to use this tool, it may prove helpful. -
Page 53: Valve Access Cover Removal / Removable Lower Face Panel
Remove Valve Access Cover in order to access igniter and valve controls. To remove Valve Access Cover, simply insert fingers into holes in Access Panel and lift out. When replacing Access Panel, engage Tabs into Slots in Bracket. MQRB4436 / MQRB5143 / MQRB6961 Removable Lower Face Panel Installers Note: The Lower Face Panel on the valve side of the unit is shipped attached with only 3 screws for easy removal. -
Page 54: Gas Line Installation / Gas Specifications
Gas Line Installation This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN/CSA - B149.1 or .2 installation codes for Gas Burning appliances and equipment in Canada and the National Fuel Gas Code ANSI Z223 in the U.S.A. -
Page 55: Millivolt System, Lighting, And Burner Control
Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instructions exactly, a fire or explosion may result causing property WARNING: damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When Immediately call your gas supplier from a neighbour’s phone. -
Page 56: Troubleshooting The Millivolt Gas Control System
Troubleshooting the Gas Control System WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not light. Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is electrode at pilot. -
Page 57: Burner System Maintenance
Burner System Maintenance- MQRB4436 / MQRB5143 / MQRB6961 It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 58: Gas Conversion For Top Convertible Pilot
Gas Conversion for Top Convertible Pilot (Series 019065X) – PART B Instructions for converting SIT 190 series pilot burner injection from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer’s Instructions. WARNING: The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 59: 820 Nova Mv Modulating Conversion Kit
Gas Conversion for Modulator – PART C WARNING!- WARNING!-... -
Page 60: Mqrb4436 Burner Section: Gas Conversion
MQRB4436 Burner Section: Gas Conversion Models: MQRB4436N, MQRB4436LP, MQRB4436NE, MQRB4436LPE. Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Kit Number Brass (1000-255) 4436MQ-CKLP LP Conversion 1001-P167SI 1000-253closed Full 1001-P202SI -Millivolt- #30 (977.167) Open (0.907.202) 4436MQ-CKNG NG Conversion... -
Page 61: Mqrb5143 Burner Section: Gas Conversion
MQRB5143 Burner Section: Gas Conversion Models: MQRB5143N, MQRB5143LP, MQRB5143NE, MQRB5143LPE. Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Kit Number Brass (1000-255) 5143MQ-CKLP LP Conversion 1001-P167SI 1000-253closed 3/8” 1001-P202SI -Millivolt- #30 (977.167) (0.907.202) 5143MQ-CKNG NG Conversion 1001-P165SI 1000-253closed 1/32”... -
Page 62: Mqrb4436 / Mqrb5143 Burner Tube Removal / Burner System Removal/Installation Guide
Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifice. Reverse these steps to reinstall. MQRB4436 / MQRB5143 Burner System Removal/Installation Guide Warning- Turn off Unit and allow to cool before cleaning. Only a Qualified service technician should service and repair this appliance. -
Page 63: Mqrb4436 / Mqrb5143 Moving Valve To Other Side Of Fireplace
MQRB4436 / MQRB5143 Moving Valve to Other Side of Fireplace Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 64: Mqrb6961 Burner Section: Gas Conversion
MQRB6961 Burner Section: Gas Conversion Models: MQRB6961N, MQRB6961LP, MQRB6961NE, MQRB6961LPE. Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Kit Number Brass (1000-255) 6961MQ-CKLP LP Conversion 1001-P167SI #49 x 2 1000-253closed Full Open 1001-P202SI -Millivolt- #30 (977.167) (0.907.202) 6961MQ-CKNG NG Conversion 1001-P165SI... -
Page 65: Mqrb6961 Burner Tube Removal / Burner System Removal/Installation Guide
MQRB6961 Burner Tube Removal Air Shutter Remove the six [8] DT screws from the lower portion of the Burner Tube Mount Brackets. Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifices. Reverse these steps to reinstall. MQRB6961- Installer’s Note: If flames appear higher or lower at one end of the unit, the primary air can be adjusted on one of the two mixing sleeves to even the flame. -
Page 66: Mqrb6961 Moving Valve To Other Side Of Fireplace
MQRB6961 Moving Valve to Other Side of Fireplace : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically Warning approved with this appliance may result in property damage or personal injury. The Valve Assembly may be changed to the other side of the fireplace. This must be done Before the unit is inside the enclosure. -
Page 67: Remote Receiver Location
Remote Receiver Location For GT Series Remotes Only The Remote Receiver may be located inside of the unit- several inches to the left of the valve and near the front of the appliance. The Remote Receiver MUST be covered by the DCHS (Remote Control Heat Shield- see Parts List in manual). - Page 68 IPI Electronic Ignition System Overview The IPI system is an advanced burner controller that provides you with the option of having either a Standing-Pilot, or an intermittent igniting system. This alternating mode is controlled by the CPI/IPI Switch (Continuous Pilot Ignition/Intermittent Pilot Ignition) located on the IPI System Box.
- Page 69 the slide switch to the middle [REMOTE] position and then push the small pushbutton to begin programming. Bring the transmitter close to the receiver and then press the power button [R] on the transmitter. An audible beep will sound to indicate the system is programmed and ready to be used. NOTE: The Remote Receiver module can also be located outside of the appliance to a maximum of 6ft away installed in a certified deep wall switch electrical box (2-3/4”...
-
Page 70: Electronic Ignition Lighting Instructions
Electronic Ignition Lighting Instructions If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. -
Page 71: Ipi Electronic Ignition Parts List - Standard System Schematic
Orifice Pilot -NG#62 1001-P168si Orifice Pilot -LP#35 1002-P013si Stepper Motor -NG 1002-P012si Stepper Motor -LP 1002-P016si Hi/Lo Regulator -NG 1002-P014si Hi/Lo Regulator -LP *Models MQRB4436 / MQRB5143E / MQRB6961E Proflame System Configuration: Manual Hi/Low Simplified Wire Diagram 0.886.002 -OR- 0.886.003... -
Page 72: Ipi Schematic Drawing
Caution : Electrical installation to be done by a qualified installer. All wires must be connected and grounded in accordance with CSA Standard C22.1- Canadian Electrical Code part 1 or with the National Electrical Code, ANSI /NFPA 70 (latest edition) and /or in accordance with local codes. Note: A 120 Volt electrical supply must be wired to a junction box on the side of the fireplace. -
Page 73: Ipi Photos
IPI Photos (MQRB5143 Shown) Bottom of Unit with IPI Module Light Module &IPI Valve... - Page 74 Close up View of IPI Module Inside of IPI Module...
- Page 75 IPI Valve IPI Valve...
- Page 76 Millivolt Valve & Light Module Millivolt Valve...
-
Page 77: Lk2 Halogen Lamp Kit
LK2 Halogen Lamp Kit MQRB4436 / MQRB5143 Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. SYSTEM NOTES Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the other will remain operational. -
Page 78: Lk3 Halogen Lamp Kit
LK3 Halogen Lamp Kit (MQRB6961) Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. SYSTEM NOTES Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the rest will remain operational. -
Page 79: Venting
Venting [1,2] Clearance above grade, veranda, porch, deck, or balcony 12in [30cm] min. Clearance to window or door that may be opened. 12in [30cm] min. for appliances 100,000BTUh [30kW] and lower, in Canada. [23cm] for appliances 50,000 BTUh and lower, in USA. C. -
Page 80: General Vent Installation Information
This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex (Z- Flex) venting kits and components specifically approved and LABELED for this stove may be used. Kingsman Flex venting MUST be used on the MQRB4436 and MQRB6961. Use of Simpson Duravent or other hard pipe Venting systems is not permitted. -
Page 81: Venting Routes And Components
Figure 1 - Flex pipe spring spacing guide. Horizontal runs require support metal straps every 2ft. In an offset installation support straps should be used to stabilize pipe. Expand inner and outer flex pipe to the point that the outer flex pipe protrudes approximately 2 to 3 inches past outer wall and the inner flex protrudes approximately 2 to 3 inches past the outer flex pipe. -
Page 82: Horizontal Vent Table
The Maximum Vertical vent run is 43ft. Please refer to Clearance to Combustibles information in this manual. A Safety Cage is required if the Horizontal Termination is accessible. MQRB5143 / MQRB4436: See Flue Restrictor Adjustment Page for vertically vented Installations. -
Page 83: Venting Examples
The Roof Support is used to secure the vertical venting as it penetrates the roof. This installation is illustrated on page 93. Please note that you may only install the roof support to a rigid pipe. Wall Thimble and Roof Support kits 11” [26.7cm] for MQRB4436 / MQRB5143 13-3/4” [34.3cm] for MQRB6961... -
Page 84: Installation Of Side Wall Venting
Vertical rise over 3ft horizontal run (MQRB5143 shown). Note that the minimum height from the bottom of fireplace to the centre of vent is 37-1/2" [95 cm] for the MQRB4436, 51-1/2" [131 cm] for the MQRB5143 and 56-1/2” [144cm] for the MQRB6961. This dimension is for installations where venting exits immediately after its rise from the unit (i.e. -
Page 85: Z57St24 / Z57St36 Horizontal Snorkel Terminations Mqrb4436 / Mqrb5143
Horizontal Snorkel Terminations MQRB4436 / MQRB5143 -FOR INFINITE SERIES II MODELS ONLY- Two snorkel terminations are available for MQRB4436 / MQRB5143 If a vertical rise is necessary on the exterior side of a building: Z57ST24 (24” Tall, 14-1/2” Center to Center) Z57ST36 (36”... -
Page 86: Venting Straight Up Through Roof
Venting Straight Up Through Roof An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney (see Figure 5a). When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"... -
Page 87: Flue Restrictor Adjustment Mqrb4436 & Mqrb5143
Flue Restrictor Adjustment MQRB4436 / MQRB5143 Only –All Models The Flue Restrictor is located in the top of the Firebox in front of the Flue Opening. For vertically vented installations it is necessary to use the Flue Restrictor. Restrictor is set fully open from factory for short horizontal and vertical runs. -
Page 88: Venting Diagrams
2” Top of Horizontal Vent Figure 4 - Clearances in horizontal venting. 43ft Figure 5 - a) Straight-through roof support configuration; b) Flex bend configuration; c) Termination mounting. -
Page 89: Mqrb4436 -Parts List
MQRB4436 -Parts List Marquis Infinite Zero Clearance Direct Vent Gas Fireplace -44” Wide Listed for USA/Canada as a Decorative Appliance: Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo Flame and BTU Adjustment, Ceramic Glass, 5/7" Flue, Wall Switches, Junction Box, Accent Lighting... -
Page 90: Conversion Kit
Horizontal Snorkel Termination (24” Tall, 14-1/2” Center to Center) Z57ST36 Horizontal Snorkel Termination (36” Tall, 26-1/2” Center to Center) Z57STSC Safety Cage for Horizontal Snorkel Termination Kingsman Flex venting MUST be used on the MQRB4436. Use of Simpson Duravent or other hard pipe Venting systems is not permitted. -
Page 91: Mqrb5143 -Parts List
MQRB5143 -Parts List Marquis Infinite Zero Clearance Direct Vent Gas Fireplace -51” Wide Listed for USA/Canada as a Decorative Appliance: Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo Flame and BTU Adjustment, Ceramic Glass, 5/7" Flue, Wall Switches, Junction Box, Accent Lighting... - Page 92 5143MQ-BNGSI Burner Assembly-Natural Gas c/w Valve System (MQRB5143N) 5143MQ-BLPSIE Burner Assembly- Liquid Propane c/w Valve System (MQRB5143LPE) 5143MQ-BNGSIE Burner Assembly-Natural Gas c/w Valve System (MQRB5143NE) Conversion Kit 5143MQ-CKLP LP Conversion Kit for MQRB5143 Millivolt 5143MQ-CKNG NG Conversion Kit for MQRB5143 Millivolt 5143MQ-CKLPI LP Conversion Kit for IPI MQRB5143LPE...
-
Page 93: Mqrb6961-Parts List
MQRB6961-Parts List Marquis Infinite Zero Clearance Direct Vent Gas Fireplace -69” Wide Listed for USA/Canada as a Decorative Appliance: Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo Flame and BTU Adjustment, Ceramic Glass, 7/10" Flue, Wall Switches, Junction Box, Accent Lighting... - Page 94 6961MQ-BLPSI Burner Assembly- Liquid Propane c/w Valve System (MQRB6961LP) 6961MQ-BNGSI Burner Assembly-Natural Gas c/w Valve System (MQRB6961N) 6961MQ-BLPSIE Burner Assembly- Liquid Propane c/w Valve System (MQRB6961LPE) 6961MQ-BNGSIE Burner Assembly-Natural Gas c/w Valve System (MQRB6961NE) Conversion Kit 6961MQ-CKLP LP Conversion Kit for MQRB6961 Millivolt 6961MQ-CKNG NG Conversion Kit for MQRB6961...
-
Page 95: Common Parts For Mqrb4436, Mqrb5143 And Mqrb6961
Bulb 10W 12V 64418 or [Sylvania 58691] (Lightbulbs NOT covered under Warranty.) 5143-P77912 Lamp Assembly 58mm (Lightbulbs NOT covered under Warranty.) 5143-LKT1 Power Bus for Light Assembly MQRB4436 , MQRB5143 6961-LKT3 Power Bus for Light Assembly MQRB6961 1001-P1636C 6 Conductor... - Page 96 Miscellaneous Parts 1000-150GE Silicone GE Red IS806 #736 1000-150MP Hi Temp Millpac Sealant 840099 1000-214 Piezo Igniter 1244-17 MARK 21 1000-215 Pal Nut (18MMXI.5MM) BLK (1364.03) 1000-218 Switch Ivory (1451/001) 1000-227 Cover Ivory (86001/001) 1000-255 Orifice Brass -(State Size) 1000-306 Thermalcord -Adhesive Back for Door Frame 36HB-123 Upper Door Spring...
-
Page 97: Limited Lifetime Warranty
This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
Need help?
Do you have a question about the Marquis Infinite MQRB4436 and is the answer not in the manual?
Questions and answers
