Stock #'s: MQZDV3318N, MQZDV3318NE, MQZDV3318LP, MQZDV3318LPE,
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
Read this complete manual before beginning installation.
These instructions must be kept with the unit for future reference.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
Warning: Improper installation, adjustment, alteration, service or maintenance can cause property
damage, personal injury or loss of life. Refer to this manual. Installation and service must be performed by
a qualified installer, service agency or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
For Propane Horizontal installations the venting must be a minimum of one foot vertical off the flue before
going horizontal.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Solara
Installation Instructions
Listed Certified for USA and Canada
Model Numbers MQZDV3318, MQZDV3622

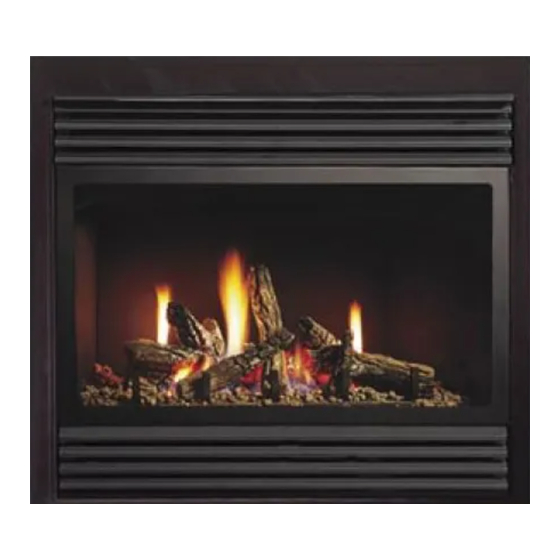

"Zero Clearance" Direct Vent Gas Fireplace
MQZDV3622N, MQZDV3622NE, MQZDV3622LP, MQZDV3622LPE
Certified to: ANSI Z21.88-2009, CSA 2.33-2009, CGA 2.17-M91
FOR YOUR SAFETY
What To Do If You Smell Gas
Do not try to light any appliance.
Extinguish any open flame.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbour's phone.
If you can not reach your gas supplier, call the fire department.
Printed in Canada
January 18, 2012
Part # 3318MQ-MAN
Advertisement
Table of Contents
Related Manuals for Kingsman MQZDV3318
Summary of Contents for Kingsman MQZDV3318
-
Page 1: Installation Instructions
Solara Installation Instructions Listed Certified for USA and Canada Model Numbers MQZDV3318, MQZDV3622 “Zero Clearance” Direct Vent Gas Fireplace Stock #’s: MQZDV3318N, MQZDV3318NE, MQZDV3318LP, MQZDV3318LPE, MQZDV3622N, MQZDV3622NE, MQZDV3622LP, MQZDV3622LPE Certified to: ANSI Z21.88-2009, CSA 2.33-2009, CGA 2.17-M91 This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. -
Page 2: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 3: Table Of Contents
MQLOGC22 Log Assembly................35-36 MQRSP5......................37-38 Vent Termination....................General Vent Installation Information..............Installation Of Side Wall Venting............... Venting Table....................Vertical Venting....................Vertical Venting over 15 Feet................ZDV3318 Parts List................... ZDV3622 Parts List................... Kingsman Parts ZDV3318/3622................ 46 Limited Lifetime Warranty.................. 47... -
Page 4: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 5: Warnings, Installations And Operations
Warnings, Installations and Operations Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CGA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the national Electrical Code;... -
Page 6: Installation Requirements For The Commonwealth Of Massachusetts
• Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they provide a primary heat source. • This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home. -
Page 7: Mqzdv3318 Locating Your Appliance
MQZDV3318 - Locating your Appliance Installing with Top Vent A - Flat on a wall D - As a room divider B - Across the corner E - Flat on wall corner C - As an island F - Exterior wall Island installation with a top vent is possible as long as the horizon- tal portion of the vent system does not exceed 20 feet (6.1 m). -
Page 8: Framing For Your Gas Fireplace
MQZDV3318 - Framing for your Gas Fireplace Framing Specifications 4. When installing horizontal with a 90 degree bend maintain a minimum of two and a half (2.5”) inches above the bend in 1. Cold climate installation recommendation: When installing this fire- enclosures. -
Page 9: Framing And Facing Requirements
Z33CVCK - Framing and Facing Requirements MQZDV3318 WITH Z33CVCK (CLEAN VIEW CIRCULATING KIT) Z33CVCK - with Wall Surround... -
Page 10: Mqzdv3622 Locating Your Appliance
MQZDV3622 - Locating your Appliance Installing with Top Vent A - Flat on a wall D - As a room divider B - Across the corner E - Flat on wall corner C - As an island F - Exterior wall Island installation with a top vent is possible as long as the horizon- tal portion of the vent system does not exceed 20 feet (6.1 m). -
Page 11: Framing For Your Gas Fireplace
MQZDV3622 - Framing for your Gas Fireplace Framing Specifications 4. When installing horizontal with a 90 degree bend maintain a minimum of two and a half (2.5”) inches above the bend in enclosures. 1. Cold climate installation recommendation: When installing this fire- 5. -
Page 12: Framing And Facing Requirements
Z36CVCK - Framing and Facing Requirements MQZDV3622 WITH Z36CVCK (CLEAN VIEW CIRCULATING KIT) Z36CVCK - with Wall Surround... -
Page 13: How To Install Clean View Kit (Cvck)
How To Install Clean View Kit (Cvck) For ZDV3318/ZDV3622/ZDV6000/ZDV3320/MQRB3328/MQZDV3318/MQZDV3622 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: When using the Clean View Kit (CVCK) and installing optional electrical components (i.e. Remote Controls, variable speed control, and or fan modules) locate them in the Clean View access area, unless other shielding devices like our IPI Component box is used. -
Page 14: Clearances - Zdv3318/3622 - Mantels & Surrounds
CLEARANCES - MQZDV3318/3622 - Mantels & Surrounds Warning: Combustible objects must not be placed on a non-combustible mantel unless the non-combustible mantel meets the minimum height and width require ments for a combustible mantel. -
Page 15: Mantel Leg Clearances
Mantel Leg Clearances Mantels Depending on the depth of the fireplace mantel, it may be installed higher or lower from the top of the fireplace opening. See drawings for proper installation height of your combustible mantel. Non-combustible mantels may be installed at any height above the fireplace opening except when using MQHBSW. -
Page 16: Clearance To Combustibles
MQZDV3318 - Clearance to Combustibles Clearance to Combustibles Back (from Standoffs) 0 inches/0 mm Side (from standoffs) 0 inches/0 mm (NOTE -Floor) if installing the appliance directly on carpeting or Floor 0 inches/0 mm other combustible materials other Ceiling (from bottom of fireplace) -
Page 17: Wall Mount Surrounds
MQSW Wall Mount Surround Dimensions MQ33SWF MQ36SWF 35-5/16” 37-5/32” 45-13/16” 50-5/16” 28-3/8” 32-15/16” 17-13/16” 19-5/8” 8-3/4” 8-3/4” 8-3/4” 8-3/4” 8-3/4” 8-3/4” 1” 1” 1-3/16” 1-3/16” Installation of MQ Wall Mount Surrounds 1. Set Surround Lip on CVCK Ledge and ensure that it is securely in place. 2. -
Page 18: Fan Kit Installation
Fan Kit Installation Fan installation Instructions for ZDV6000/3320/3318/3318MQ Wire Junction Box and wall mounted variable speed control to with or without CVCK (Clean View Circulating Kit). 120v. Install a duplex outlet to junction box and plug fan into outlet. Note: Install Fan Kit Before Installing optional CVCK (Clean Turn the wall switch on (clockwise). -
Page 19: Brick Installation
Brick Installation - For Models MQZDV3318/MQZDV3622 Remove 3 mounting screws from air adjustment plate and remove plate. If this is a ZDV3318 or ZDV3622 the false bottom will also have to be removed. (Note: Air adjustment plate must be reinstalled in the same position in which it was removed. -
Page 20: Porcelain Panel Installation
Z3318PRL/Z3622PRL Porcelain Panel Installation Guide For Models ZDV3318/ZDV3622 MQZDV3318/MQZDV3622 Make note of the position of the air adjustment plate before removing it. This position will have to be recalled when the air adjustment plate is reinstalled. Remove three (3) mounting screws from air adjustment plate and extract it from the firebox. (NOTE: The false bottom will have to be removed on models ZDV3318 and ZDV3622.) -
Page 21: General Glass Information
General Glass Information Glass Cleaning Glass Replacement The glass should be replaced by a qualified person. It will be necessary to clean the glass periodically. During start-up, condensation, which is normal, forms on the inside of the glass REPLACEMENT GLASS FOR BOTH DIRECT VENT UNITS and causes dust, lint etc. -
Page 22: Burner System Removal
*Caution high temperature sealant has been applied to access cover and burner system pan. New sealant will have to be applied when re-installing access cover and burner system to maintain the integrity of the sealed combustion chamber. Mil Pac part #840099 or Kingsman part # 100-15MP sealant can be purchased from your Kingsman retailer or distributor. MQZDV3318 /3622 Fireplace... -
Page 23: Millivolt System, Lighting, & Burner Control
Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When •... -
Page 24: Burner System Maintenance
Burner System Maintenance It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. - Page 25 Conversion Kit Instructions – PART A Caution : The gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.
-
Page 26: Gas Conversion Kit For Top Convertible Pilot Part B
Gas Conversion for Top Convertible Pilot (Series 019065X) – PART B Instructions for converting SIT 190 series pilot burner injection from NG to LPG and from NG to LPG only. This information should be considered as supplemental to the Appliance Manufacturer’s Instructions. WARNING: The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 27: Gas Conversion For Modulator - Part C
Gas Conversion for Modulator – PART C WARNING!- WARNING!-... -
Page 28: Ipi Electronic Ignition System
IPI Electronic Ignition System Overview The IPI system is an advanced burner controller that provides you with the option of having either a Standing-Pilot, or an intermittent igniting system. This alternating mode is controlled by the CPI/IPI Switch (Continuous Pilot Ignition/Intermittent Pilot Ignition) located on the IPI System Box. - Page 29 the slide switch to the middle [REMOTE] position and then push the small pushbutton to begin programming. Bring the transmitter close to the receiver and then press the power button [R] on the transmitter. An audible beep will sound to indicate the system is programmed and ready to be used. NOTE: The Remote Receiver module can also be located outside of the appliance to a maximum of 6ft away installed in a certified deep wall switch electrical box (2-3/4”...
- Page 30 Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities.
- Page 31 Receiver Module .584.523/521/221 1001-P221SI Receiver Module .584.523/521/221 1001-P221SI...
- Page 32 Receiver Module .584.523/521/221 1001-P221SI Receiver Module .584.523/521/221 1001-P221SI...
-
Page 33: Ipi Lighting Instructions
IPI Lighting Instructions WARNING 1. If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. 2. Always light the pilot whether for the first time or if the gas supply has ran out with the glass door opened or removed. -
Page 34: Trouble Shooting The Gas Control System
Trouble Shooting The Gas Control System WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the “On” position. Problem Possible Causes Corrective Action Spark igniter will not light. -
Page 35: Mqlogc22 Log Assembly
MQLOGC22 for MQZDV3318/3622 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. NOTE: Log 1 is a two piece assembly. - Page 36 MQLOGC22 for MQZDV3318/3622 STEP 3: Align the hole on the bottom of log #3 with the log STEP 4: Place Log #4 into place as shown. Do Not place #3 placement tab and the rest log #3 on log #2 as shown.
-
Page 37: Mqrsp5
MQRSP5 for MQZDV3318/3622 MQRSP5 Parts List Step 1: Remove the grate bar by removing the 2 Screws located on the left and right side of the grate bar as illustrated. Remove the 2 ember plates once the grate bar is removed. The... - Page 38 MQRSP5 for MQZDV3318/3622 Step 6: Place rocks #6 into place as shown. Do not place Step 7: Place rocks #4 into position as shown. Place the directly over the multiple porting areas. highlighted rocks into position being sure that they are crossing over the single line porting.
-
Page 39: Vent Termination
F - Clearance under veranda, porch, deck or balcony 12 inches 1 (30cm) minimum. 4 US 5 This appliance is approved with Kingsman flex vent system and also approved for use with Simpson Duravent Direct Vent System G - Clearance from a perpendicular inside wall or outer corner to (model DV-GS series), AmeriVent Direct Vent Pipe System and the edge of the vent terminal plate is 3”... -
Page 40: General Vent Installation Information
General Vent Installation Information This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex(Z-Flex)Venting Kits and components specifically approved and LABELED for this stove may be used. This appliance is also approved for use with Simpson-Duravent Direct Vent system (Model DV-GS Series), Ameri-Vent Direct Vent Pipe System, ICC Excel Direct, Metal Fab Sure-Seal DV and Selkirk Direct Temp. -
Page 41: Venting Table
Venting Routes And Components How To Use The Horizontal Vent Table Since it is very important that the vent system maintain its bal- 1. Determine the height of the system and the number of bends ance between the combustion air intake and the flue gas required. -
Page 42: Vertical Venting
Venting Straight Up Through Roof Roof Flashing Ensure that you have the proper roof flashing by checking your 1. An Attic Insulation Shield must be installed where the vent passes roof pitch using a level and two rulers, or by using a roof pitch card. from a lower living space into an attic space where the chimney is See figure below. -
Page 43: Vertical Venting Over 15 Feet
Vertical Venting over 15 Feet The Air Intake plate must be adjusted down to the lowest position when venting over 15 ft. vertical. 15ʼ OR OVER VERTICAL VENTING AIR INTAKE ADJUSTMENT PLATE NOTE: Unit comes preset for short horizontal or vertical venting under a 15 feet run. Follow these instructions when venting exceeds 15 foot run. -
Page 44: Zdv3318 Parts List
MQZDV3318 Parts List Fireplace Part Numbers Z33DDTS1A Trim - Antique for Designer Straight – MQZDV3318N (Millivolt) Fireplace Heater Rated NG, Series 1 Tempered Glass, Z33DDTS1C Trim - Chrome for Designer Straight – Series 1 MQZDV3318NE (IPI) 19,000 BTU AT 75% efficient. Approved for bedroom and mobile home. -
Page 45: Zdv3622 Parts List
MQZDV3622 Parts List Fireplace Part Numbers MQZDV3622N (Millivolt) Fireplace Heater Rated NG, Child Safety Screens Tempered Glass, Z36CSS Child Safety Screen - 33” DV Fireplaces MQZDV3622 NE (IPI) 21,000 BTU AT 75% efficient. Overlays Approved for bedroom and mobile home. Z36ADDX Arch Door Frame - Deluxe Black (352) MQZDV3622LP... -
Page 46: Kingsman Parts Zdv3318/3622
Kingsman Parts MQZDV3318/3622 Kingsman Fireplace Venting Catalog Number Description Number Description Valve System Parts - New Top convertible SIT (Millivolt) ZDVHSK Horizontal Vent Starter Kit - 3 FT Length 1000-P136WR Generator/Thrermopile Horizontal Vent Termination, Wall Thimble, 1001-P069SI Electrode Sparker 915.069 TC SIT 36”... -
Page 47: Limited Lifetime Warranty
During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
