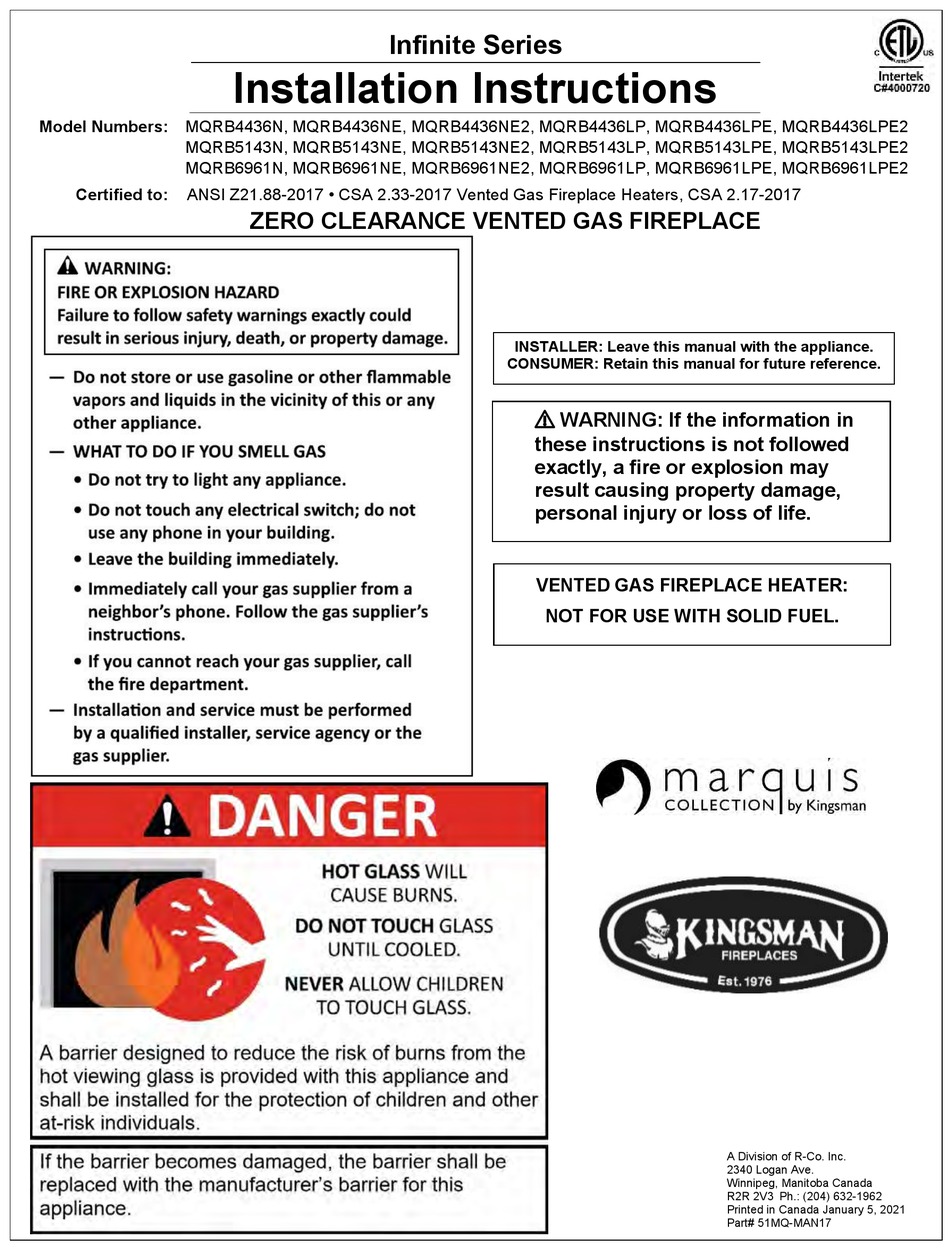

Kingsman Marquis Infinite Series Installation Instructions Manual

Zero clearance vented gas fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model Numbers: MQRB4436N, MQRB4436NE, MQRB4436NE2, MQRB4436LP, MQRB4436LPE, MQRB4436LPE2
MQRB5143N, MQRB5143NE, MQRB5143NE2, MQRB5143LP, MQRB5143LPE, MQRB5143LPE2
MQRB6961N, MQRB6961NE, MQRB6961NE2, MQRB6961LP, MQRB6961LPE, MQRB6961LPE2
Certified to:
ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
Infinite Series
Installation Instructions
ZERO CLEARANCE VENTED GAS FIREPLACE
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
⚠
WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or loss of life.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: (204) 632-1962
Printed in Canada January 5, 2021
Part# 51MQ-MAN17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marquis Infinite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingsman Marquis Infinite Series

Summary of Contents for Kingsman Marquis Infinite Series

  • Page 1 Infinite Series Installation Instructions Model Numbers: MQRB4436N, MQRB4436NE, MQRB4436NE2, MQRB4436LP, MQRB4436LPE, MQRB4436LPE2 MQRB5143N, MQRB5143NE, MQRB5143NE2, MQRB5143LP, MQRB5143LPE, MQRB5143LPE2 MQRB6961N, MQRB6961NE, MQRB6961NE2, MQRB6961LP, MQRB6961LPE, MQRB6961LPE2 Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017 ZERO CLEARANCE VENTED GAS FIREPLACE INSTALLER: Leave this manual with the appliance.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents..................................Child Safety Screen –Installation......……………………………………………………………………………………..Child Safety Screen – Removal..……………………………………………………………………………………………………..Recommendations for Finishing of Clean View Linear Products....................Pre-installation Questions and Answers / Operating Instructions....................Warnings, Installations and Operations............................Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector........Fireplace Installations in Covered Outdoor Locations.........................
  • Page 3 Door Latch Tool…..................................Valve Access Cover Removal / Removable Lower Face Panel…....................Gas Line Installation / Gas Specifications…..........................Millivolt System, Lighting, and Burner Control….......................... Troubleshooting the Millivolt Gas Control System…........................Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace.............. Burner System Maintenance…..............................

  • Page 4: Child Safety Screen -Installation

    Infinite Series Child Safety Screen 4436 / 5143 / 6961 MQRB44CSS / MQRB51CSS MQRB44CSS / MQRB51CSS Contents of Kit: [1] Child Safety Screen [2] Screen Mount Brackets [6] 3/8” x 1/2” Screws Assembly Instructions: Fasten Screen Mount Brackets to Child Safety Screen with supplied screws.

  • Page 5: Child Safety Screen - Removal

    Infinite Series CSS -Removal of Safety Screen- 4436 / 5143 / 6961 To remove Safety Screen, WAIT UNTIL FIREPLACE IS COMPLETELY COOL. Locate approximate top center of screen. Push upward and inward in a rapid motion. Bottom of screen will push out. ⚠...

  • Page 6: Recommendations For Finishing Of Clean View Linear Products

    Recommendations for Finishing of Clean View Linear Products When finishing the wall around the fireplace, it is critical that the wall covering be fastened properly. It is acceptable to pre-drill holes and use self-tapping screws which may be used to fasten a backer for tile, marble, etc. Screws being installed through non-combustible board should be self-tapping type with a maximum length of 2 inches.

  • Page 7: Pre-Installation Questions And Answers / Operating Instructions

    Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used.

  • Page 8: Warnings, Installations And Operations

    Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.
  • Page 9 Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below.

  • Page 10: Fireplace Installations In Covered Outdoor Locations

    Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed. Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing, Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc.

  • Page 11: Nailing Tab Guide For All Units

    MQRB4436 / MQRB5143 / MQRB6961 Nailing Tab Guide [Qty] 2 Nailing Tabs are located on each corner of the fireplace. The Nailing Tabs on the MQRB4436, MQRB5143 or MQRB6961 can be used in two ways: 1/2” Drywall Flush with Face of Fireplace –Fireplace and Framing Flush with Face of Fireplace -Fireplace to be covered with Non-Combustibles (e.g.

  • Page 12: Mqrb4436: Framing Your Gas Fireplace

    (see Venting section) for this appliance. Failure to comply with those requirements can seriously compromise the safety and operation of the fireplace. Kingsman Flex venting MUST be used on the MQRB4436. Use of DuraVent- DirectVent Pro or other hard pipe Venting systems is not permitted.

  • Page 13: Mqrb4436 Locating Your Appliance / Fireplace Dimensions

    MQRB4436 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System All Units Can Be Vented Vertically Horizontal Run With Min.

  • Page 14: Mqrb4436 - Pre-Existing Enclosures Vs Framing Enclosure Around Fireplace

    MQRB4436 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace Inserting Unit Into Pre-existing Enclosure: Enclosure must be 53-1/2” inside width. Opening should be greater than 46-1/2” minimum. Insert airbox on side of unit first and swing into place. Airbox Framing Enclosure Around Fireplace: If unit is in place before enclosure is built, minimum clearances for opening can be followed.

  • Page 15: Mqrb4436 -See Thru Framing

    MQRB4436 -See Through Framing An MQRB4436SK Kit is required for a See Thru Installation. Before you begin Framing- Determine for both sides whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 16 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...

  • Page 17: Mqrb4436 Single Sided Framing

    MQRB4436 Single Sided Framing An MQRB4436BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 18 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...

  • Page 19: Mqrb4436 Combustible Enclosure Heights

    24” Min for Propane 37-1/2” Min for Natural Gas 53-3/4” Min for Propane Side Airbox Clearance is 3-1/2” Kingsman Flex venting MUST be used on the MQRB4436. Single Side Installation Only Use of DuraVent- [Steel Stud Framing Shown.] DirectVent Pro or...

  • Page 20: Mqrb4436 Surround Dimensions / Surround Clearances

    Surround Dimensions MQRB4436 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials. Surround Clearances MQRB4436...

  • Page 21: Mqrb4436 Facing Material Requirements

    MQRB4436 Facing Material Requirements These specifications are the same for all Models (4436N, 4436NE, 4436LP, 4436LPE). Note: If using Optional Surround, See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.

  • Page 22: Mqrb4436 Mantel Clearances / Clearance To Combustibles

    1” All Vent Systems Side & Bottom of Horizontal Pipe 1” All Vent Systems Vertical Vent Pipe Kingsman Flex venting MUST be used on the MQRB4436. Use of DuraVent- DirectVent Pro or other hard pipe Venting systems is not permitted.

  • Page 23: Mqrb5143: Framing Your Gas Fireplace

    MQRB5143: Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance.

  • Page 24: Mqrb5143 Locating Your Appliance / Fireplace Dimensions

    MQRB5143 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. Left Burner System Right Burner System All units can be vented vertically Horizontal Run with Min.

  • Page 25: Mqrb5143 - Pre-Existing Enclosures Vs Framing Enclosure Around Fireplace

    MQRB5143 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace Inserting Unit Into Pre-existing Enclosure: Enclosure must be 60-1/2” inside width. Opening should be greater than 53-1/2” minimum. Insert airbox on side of unit first and swing into place. Airbox Framing Enclosure Around Fireplace: If unit is in place before enclosure is built, minimum clearances for opening can be followed.

  • Page 26: Mqrb5143 -See Thru Framing

    MQRB5143 -See Through Framing An MQRB5143SK Kit is required for a See Thru Installation. Before you begin Framing- Determine for both sides whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 27 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...

  • Page 28: Mqrb5143 Single Sided Framing

    MQRB5143 Single Sided Framing An MQRB5143BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 29 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...

  • Page 30: Mqrb5143 Combustible Enclosure Heights

    MQRB5143 Combustible Enclosure Heights Cold Climate Recommendation When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance.

  • Page 31: Mqrb5143 Surround Dimensions / Surround Clearances

    Surround Dimensions MQRB5143 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the opening with non-combustible materials. Surround Clearances 5143...

  • Page 32: Mqrb5143 Facing Material Requirements

    MQRB5143 Facing Material Requirements These specifications are the same for all Models (5143N, 5143NE, 5143LP, 5143LPE). Note: If using Optional Surround, See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.

  • Page 33: Mqrb5143 Mantel Clearances / Clearance To Combustibles

    MQRB5143 Mantel Clearances -Combustible Objects on Non- Combustible Mantel Warning- Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible.

  • Page 34: Mqrb6961: Framing Your Gas Fireplace

    MQRB6961: Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance.

  • Page 35: Mqrb6961 Locating Your Appliance / Fireplace Dimensions

    MQRB6961 Locating Your Appliance All units are Factory Set for a Left Hand Burner System. Right Hand Burner System Requires Valve to be relocated to right side of unit. MQRB6961 Fireplace Dimensions...

  • Page 36: Mqrb6961 - Pre-Existing Enclosures Vs Framing Enclosure Around Fireplace

    MQRB6961 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace Inserting Unit Into Pre-existing Enclosure: Enclosure must be 78-1/2” inside width. Opening should be greater than 71-1/2” minimum. Insert airbox on side of unit first and swing into place. Airbox Framing Enclosure Around Fireplace: If unit is in place before enclosure is built, minimum clearances for opening can be followed.

  • Page 37: Mqrb6961 See Thru Framing

    MQRB6961 See Thru Framing MQRB6961SK Kit is required for a See Thru Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 38 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Studs Steel Framing Studs 19-3/8” 20-3/8” Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be rotated to allow Min.1”...

  • Page 39: Mqrb6961 Single Sided Framing

    MQRB6961 Single Sided Framing An MQRB6961BK Kit is required for a Single Sided Installation. Before you begin Framing- Determine whether the Wall Surface will be flush with the face of the fireplace (Fireplace and wall to be covered with Non-Combustibles, such as tile), or the Framing will be flush with the face of the fireplace (Flat Wall appearance).
  • Page 40 Wall Surface Flush With Face of Fireplace Framing Flush With Face of Fireplace [Steel Stud Framing Shown.] Steel Framing Stud Steel Framing Stud Steel Framing Stud Steel Framing Stud Note: If using Optional Surround, Maximum Thickness for Non-Combustible Material is 3/4”. Note: If Combustible (Wood) Framing Studs are used, they must be Rotated to allow Min.1”...

  • Page 41: Mqrb6961 Combustible Enclosure Heights

    MQRB6961 Combustible Enclosure Heights Cold Climate Recommendation When installing this fireplace against an exterior wall or chase, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall must be installed over vapor barrier and insulation material to prevent direct contact with the appliance.

  • Page 42: Mqrb6961 Surround Dimensions / Surround Clearances

    Surround Dimensions MQRB6961 • The Surround Frames are 1” thick, with a 3/4” space behind the frame. • When using Surrounds, Maximum Thickness for Non-Combustible Facing Materials is 3/4”. • The Fireplace may be covered up to within 1/2” of the Fireplace Opening with non-combustible materials. Surround Clearances MQRB6961...

  • Page 43: Mqrb6961 Facing Material Requirements

    MQRB6961 Facing Material Requirements These specifications are the same for all Models (6961N, 6961NE, 6961LP, 6961LPE). Note: If using Optional Surround, MQRB6961 See Surround Clearances Section. [Steel Stud Framing Shown.] Note: Do not drive excessively long screws into the face of the unit as internal parts may be damaged. Steel Stud Framing Shown.

  • Page 44: Mqrb6961 Mantel Clearances / Clearance To Combustibles

    MQRB6961 Mantel Clearances -Combustible Objects on Non- Combustible Mantel Warning- Before installing any mantels it is important to determine the combustibility of its Combustible objects must not be placed material(s). There are two types of mantels to consider: Combustible and Non- on a Non-combustible Mantel unless the Combustible.

  • Page 45: Bk Kit Installation Mqrb4436Bk / Mqrb5143Bk / Mqrb6961Bk-Single View

    MQRB44BK / MQRB51BK / MQRB69BK Back Shield Kit –Single View *This Kit must be opened before unit is installed into Framing (See “Single Sided Framing” pages of this Manual). ⚠ Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 46 Back Liner, False Fig.1 Bottom, and End Panel Installation: Remove Liner Clips from the inside of the Firebox (Fig.1). Place the Back Liner onto the firebox bottom with bends facing the rear firebox cover. Lift into place and set down on firebox ledge (See Fig.2).

  • Page 47: Bk Liner Installation

    MQRB4436 / MQRB5143 / MQRB6961 Liner & False Bottom Installation Single Sided: MQRB4436PLB, MQRB5143PLB, or MQRB6961PLB-[1ea.] Porcelain Back Liner Panel BK LINER INSTALLATION MQRB4436 (uses 5143PLE), MQRB5143PLE, or MQRB6961PLE-[2ea.] Porcelain End Panels ⚠ Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.

  • Page 48: Kit Installation Mqrb4436 / Mqrb5143Sk / Mqrb6961Sk -See Thru

    MQRB44SK / MQRB51SK / MQRB69SK (See Thru Kit) Installation This basic Kit is required for See Thru installations. Note: To cover the Side Fillers with non-combustible materials, they must be installed before Facing materials are applied. ⚠ Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.

  • Page 49: Liner Installation

    MQRB4436 / MQRB5143 / MQRB6961 Liner & False Bottom Installation See Thru: SK LINER MQRB4436 (Uses 5143PLE), MQRB5143PLE or MQRB6961PLE-[2ea.] Porcelain End Panels INSTALLATION False Bottom & End Panel Installation: 1. False Bottom Insert False Bottom into Fireplace. Fasten the False Bottom to the Burner Assembly with [6] DT Screws...

  • Page 50: Mqrb44Rlf / Mqrb51Rlf / Mqrb69Rlf Fluted Liners

    MQRB44RLF / MQRB51RLF / MQRB69RLF Fluted Liners Parts List: [Qty 2] End Liners [Qty 2] Back Liners* Back Liners 13/16” End Liners [2] Pcs. *(Qty 1 for 4436) [1] Pc. for 4436 [Qty 2] Retainer Clips [2] Pcs. for 5143 & 6961 [Qty 4] Bottom Supports Side View Instruction Sheet...

  • Page 51: Mqrb4436, Mqrb5143 & Mqrb6961 Finishing Options

    MQRB4436, MQRB5143 & MQRB6961 Finishing Options Using Side Fillers The Side Fillers are located at each side of the door. They are provided to give a continuous surface up to the opening of the fireplace door. Using Other Non-Combustible Materials as Side Fillers (Brick, Tile, Marble, etc.) Non-Combustible facing materials, such as brick or tile may be...

  • Page 52: Mqrb4436 / Mqrb5143 / Mqrb6961 Surround Installation

    MQRB4436 / MQRB5143 / MQRB6961 Surround Installation Surround Kits are available in 3 different finishes: MQRB4436 MQRB5143 MQRB6961 Small [1-1/2”] Large [4”] Small [1-1/2”] Large [4”] Small [1-1/2”] Large [4”] -Black MQRB4419SBL MQRB4424SBL MQRB5019SBL MQRB5624SBL MQRB6919SBL MQRB6924SBL -Stainless Steel MQRB4419SSS MQRB4424SSS MQRB5019SSS MQRB5624SSS...

  • Page 53: Fan Installation Mqrb4436 / Mqrb5143 / Mqrb6961

    Fan Installation MQRB4436 / MQRB5143 / MQRB6961 FAN KIT IS FOR USE IN BK (SINGLE SIDED) INSTALLATIONS ONLY Fan Kit should be installed before the fireplace is placed into wall cavity. To remove fan for service, the burner pan must be removed and work done through the opening (See Burner System Removal section).

  • Page 54: Fan Speed Control Outside Of Fireplace

    Fan Speed Control Outside of Fireplace If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures below.

  • Page 55: Optional Glass Ember Installation

    MQRB4436 / MQRB5143 / MQRB6961 -Glass Ember Installation For best flame pattern it is essential to spread Crushed Glass or MQEMBER directly onto burner tube. Ensure the glass embers do not excessively overlap as this will affect the flame pattern. Part Number Description MQG5W...

  • Page 56: Optional Driftwood & Rock Installation

    Optional Driftwood & Rock Installation NOTE: Only Crushed Glass or MQ Embers can be placed directly on Burner Tube. Model Part Number Description MQRB4436, MQRB5143, MQRB6961 MQRBD1 Drift Wood (x4) and Rocks (x4) MQRB5143, MQRB6961 MQRBD2 Large 3pc Driftwood Set MQRB4436, MQRB5143, MQRB6961 MQRock2 30pc Rock Set- Contemporary Collection- Natural...

  • Page 57: Mq46D Driftwood / Rbcb1 Cannonballs

     MQ46D Driftwood Log Set- 3pcs. (Single Sided Units Only)  Place Log 1 on left side of fireplace against the back wall of the firebox.  Place Log 2 on the right side of fireplace against the back wall of the firebox and onto Log 1 as shown. ...

  • Page 58: Mqrbd3 Driftwood Log Set (5Pcs)

    MQRBD3 -5 Piece Driftwood Log Set- Can be used with MQ Glass, MQ Rock, MQ Stone or MQ Ember. Follow instructions for these accessories. ⚠ NOTE LOG 1  For best flame pattern it LOG 3 is essential to spread supplied Crushed Glass or MQEMBER directly LOG 4...

  • Page 59: Mqrbrw Birch Log Set (5Pcs)

    MQRBRW - Birch Log Set (5 Pieces) - OPTION Can be used with MQ Glass, MQ Rock, MQ Stone or MQ Ember. Follow instructions for these accessories. LOG 5 LOG 2 LOG 4 LOG 1 LOG 3 Do Not place Logs over Pilot area. ⚠...

  • Page 60: Door And Glass Information

    Door and Glass Information Glass Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. It is therefore recommended that initially the glass be cleaned two or three times with a commercial fireplace glass cleaner.

  • Page 61: Door Latch Tool

    Infinite Series Door Latch Tool MQRB4436 / MQRB5143 / MQRB6961 A Door Latch Tool is provided to assist with removing and installing the glass doors on the Infinite Series. While it is not necessary to use this tool, it may prove helpful. ⚠...

  • Page 62: Valve Access Cover Removal / Removable Lower Face Panel

    Valve Access Cover Removal Remove Valve Access Cover in order to access igniter and valve controls. To remove Valve Access Cover, simply insert fingers into holes in Access Panel and lift out. When replacing Access Panel, engage Tabs into Slots in Bracket. MQRB4436 / MQRB5143 / MQRB6961 Removable Lower Face Panel Installers Note: The Lower Face Panel on the valve side of the unit is shipped attached with only 3 screws for easy removal.

  • Page 63: Gas Line Installation / Gas Specifications

    1/2psig [3.5 kPa]. NOTE: The gas line connection may be made of 1/2” rigid pipe or an Approved Kingsman Flex Connector, such as FP15GC. Since some municipalities have additional local codes, it is always best to consult your local authorities and the current CAN/CGA - B149.1 or .2 installation code in Canada or the National Fuel Gas code ANSI Z223.1 in the U.S.A...

  • Page 64: Millivolt System, Lighting, And Burner Control

    Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When ...

  • Page 65: Troubleshooting The Millivolt Gas Control System

    Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is...

  • Page 66: Annual Inspection List For Determining Safe Operation Of A Direct Vent Gas Fireplace

    Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate.

  • Page 67: Burner System Maintenance

    Burner System Maintenance- MQRB4436 / MQRB5143 / MQRB6961 It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. ⚠ -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance.

  • Page 68: Gas Conversion For Top Convertible Pilot

    Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to PROPANE and from PROPANE to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions.

  • Page 69: Nova Mv Modulating Conversion Kit

    Gas Conversion for Modulator – PART C...

  • Page 70: Mqrb4436 Burner Section: Gas Conversion

    MQRB4436 Burner Section: Gas Conversion Models: MQRB4436N, MQRB4436NE, MQRB4436NE2, MQRB4436LP, MQRB4436LPE, MQRB4436LPE2 Kit Number Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Brass (1000-255) 4436MQ-CKLP Propane 1001-P167SI 1000-253 Full 1001-P202SI Conversion- Mv closed nipple Open #30 (977.167) (0.907.202) 4436MQ-CKNG NG Conversion...

  • Page 71: Mqrb5143 Burner Section: Gas Conversion

    MQRB5143 Burner Section: Gas Conversion Models: MQRB5143N, MQRB5143LP, MQRB5143NE, MQRB5143LPE, MQRB5143NE2, MQRB5143LPE2 Kit Number Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Brass (1000-255) 5143MQ-CKLP Propane 1001-P167SI 1000-253 1001-P202SI Full Open Conversion- Mv closed nipple #30 (977.167) (0.907.202) 5143MQ-CKNG NG Conversion...

  • Page 72: Mqrb4436 / Mqrb5143 Burner Tube Removal / Burner System Removal/Installation Guide

    MQRB4436 / MQRB5143 Burner Tube Removal Remove False Bottom from fireplace. Remove the six [6] DT screws from the lower portion of the Burner Tube Mount Brackets. Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifice. Reverse these steps to reinstall.

  • Page 73: Mqrb4436 / 5143 / 6961 Moving Valve To Other Side Of Fireplace

    MQRB4436 / 5143 / 6961 Moving Valve to Other Side of Fireplace ⚠ Warning : Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. The Valve Assembly may be changed to the other side of the fireplace.

  • Page 74: Mqrb6961 Burner Section: Gas Conversion

    MQRB6961 Burner Section: Gas Conversion Models: MQRB6961N, MQRB6961LP, MQRB6961NE, MQRB6961LPE, MQRB6961NE2, MQRB6961LPE2 Kit Number Description Pilot Orifice Burner Orifice Brass Nipple Air Shutter Hi/Lo Regulator Brass (1000-255) 6961MQ-CKLP Propane 1001-P167SI 1001-P202SI 1000-253 #49 x 2 Full Open Conversion- Mv closed nipple #30 (977.167) (0.907.202) 6961MQ-CKNG...

  • Page 75: Mqrb6961 Burner Tube Removal / Burner System Removal/Installation Guide

    MQRB6961 Burner Tube Removal Air Shutter Remove False Bottom from fireplace. Remove the six [8] DT screws from the lower portion of the Burner Tube Mount Brackets. Slide the Burner Tube away from the Plumbing Connection until it disengages from the orifices. Reverse these steps to reinstall.

  • Page 76: Lk2 Halogen Lamp Kit

    LK2 Halogen Lamp Kit MQRB4436 / MQRB5143 Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. SYSTEM NOTES Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the other will remain operational.

  • Page 77: Lk3 Halogen Lamp Kit

    LK3 Halogen Lamp Kit (MQRB6961) Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. SYSTEM NOTES Each lamp is running on a dedicated circuit (Parallel circuit). This means that if one bulb fails the rest will remain operational.

  • Page 78: Remote Receiver Location

    Remote Receiver Location For GT Series Remotes Only The Remote Receiver may be located inside of the unit- several inches to the left of the valve and near the front of the appliance. The Remote Receiver MUST be covered by the DCHS (Remote Control Heat Shield- see Parts List in manual).

  • Page 79: Uhs Box / Component Locations

    NOTE: The gas line connection (See Each Section For Connections & Wiring) may be made of 1/2” rigid pipe or LAMP an Approved Z36 FAN TRANSFORMER Kingsman Flex ASSEMBLY Connector, such as FP15GC. Since some municipalities POWER have additional VENT...

  • Page 80: Ipi Electronic Ignition System

    IPI Electronic Ignition System Overview Cover The IPI system is an advanced burner controller that provides you with the option of having either a Standing- Pilot, or an intermittent igniting system. This alternating Backup mode is controlled by the CPI/IPI Switch (Continuous Pilot Battery Ignition/Intermittent Pilot Ignition) located on the IPI System Pack...

  • Page 81: Remote Control Operation

    Proflame 1 -Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart *thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room *thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room *thermostat.

  • Page 82: Ipi Electronic Ignition Parts List - Standard System

    Proflame 1 -IPI System Parts List- PART NO. DESCRIPTION 1006-P002SI Valve IPI Hi/Lo NG 11. 1002-P012SI IPI Stepper Kit - LP 907.012 1006-P003SI Valve IPI Hi/Lo LP 12. 1002-P013SI IPI Stepper Kit - NG 907.013 1002-P302SI IPI Ignition Board 13. 1002-P014SI IPI Reg Kit - LP Hi-Lo 907.014 1002-P047SI Pilot Assembly-LP -24”...

  • Page 83: Ipi Schematic Drawing #1: Basic Manual Hi / Lo - Manual On / Off

    Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities.

  • Page 84: Configuration #2: Remote On/Off And Manual Hi/Lo Capabilities

    Proflame 1- Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown. SCHEMATIC PICTURE NOTE: Fan Option...

  • Page 85: Operating The Receiver Without Batteries For Gt / Egt / Gtm / Egtm Remote Controls

    Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries.

  • Page 86: Configuration #3: Remote On/Off, Variable Hi/Lo, And Fan Capabilities

    Proflame 1- Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities Refer to the fan installation/removal section for fan installation. NOTE: This Configuration is not available on all models of SCHEMATIC fireplace. Check with your dealer. NOTE: Fan Option PICTURE is not available on some models of fireplace.

  • Page 87: Electronic Ignition Lighting Instructions

    - Lighting Instructions - Intermittent Pilot Ignition System (IPI) FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has run out with the glass door opened or removed.

  • Page 88: Proflame 2 Ipi System Parts List

    Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 12. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 13.

  • Page 89: Proflame 2 Ifc Module And Remote Control

    Proflame 2 IFC Module and Remote Control LCD Display ON / OFF Key Thermostat Key Batteries UP / DOWN Arrow Key Mode Key IFC Module Button Within 10 seconds press the button again until  Pairing Remote Control: you hear it beep. Install the 3 AAA type batteries in the battery bay, ...

  • Page 90: Cold Climates - Cpi Setting - Proflame 2 Remote Control

    Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. When the firebox and exhaust vent are warm, exhaust gasses will readily flow out of the firebox.

  • Page 91: Proflame 2 Remote Control

    Proflame 2 Remote Control...
  • Page 92 Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode.

  • Page 94: Vent Terminal Clearances

    Vent Terminal Clearances NOTE: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Clearances are to the edge of the terminal plate. Add 6-3/4” to clearances to arrive at centerline. Local codes or regulations may require different clearances.

  • Page 95: General Vent Installation Information

    General Vent Installation Information This gas appliance is approved to be vented either through the side wall or vertically through the roof. Only Kingsman Flex (Z-Flex) venting kits and components specifically approved and LABELED for this stove may be used.
  • Page 96 Seal with High Temperature Mill Pac Sealant 13-3/4” 11” 11” 7-5/8” 10-5/8” 13-3/4” Figure 1 - Flex pipe spring spacing guide. Horizontal runs require support metal straps every 2ft. In an offset installation support straps should be used to stabilize pipe. Expand inner and outer flex pipe to the point that the outer flex pipe protrudes approximately 2 to 3 inches past outer wall and the inner flex protrudes approximately 2 to 3 inches past the outer flex pipe.

  • Page 97: Horizontal Vent Table

    Minimum clearance to combustibles on venting is 1” with the following exceptions: MQRB4436 MQRB5143 MQRB6961 Top of horizontal 2” 2” 2” Top of 90 degree elbow in an enclosure under 72” 5” with Z57WTS 5” with Z57WTS Top of 90 degree elbow in an enclosure over 72” 4”...

  • Page 98: Venting Examples / Wall Thimble And Roof Support

    MQRB5143 Venting Examples All horizontal runs have a minimum ¼” rise per foot. 52-1/4" Wall Thimble and Roof Support The Wall Thimble is used in horizontal installations to shield the combustible material from the vent pipe. The appropriate size of thimble is required for each model. Please contact your local dealer for more information. Refer to Side Wall Venting for wall cutout information.

  • Page 99: Installation Of Side Wall Venting

    Installation of Side Wall Venting Note: Wall Thimble Shield [Z57WTS] must be used in Enclosures under 72” for MQRB4436 / MQRB5143, and under 78” for MQRB6961. 5” Min. for MQRB4436 / MQRB5143 6-1/2” Min. for MQRB6961 52-1/4”Min Vertical rise over 3ft horizontal run (MQRB5143 shown). Note that the minimum height from the bottom of fireplace to the centre of vent is 37-1/2"...

  • Page 100: Z57St24 / Z57St36 Horizontal Snorkel Terminations Mqrb4436 / Mqrb5143

    Z57ST24 / Z57ST36 Horizontal Snorkel Terminations MQRB4436 / MQRB5143 -FOR INFINITE SERIES II MODELS ONLY- Two snorkel terminations are available for MQRB4436 / MQRB5143 If a vertical rise is necessary on the exterior side of a building: Z57ST24 (24” Tall, 14-1/2” Center to Center) Z57ST36 (36”...

  • Page 101: Venting Straight Up Through Roof

    Venting Straight Up Through Roof An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney. When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"...
  • Page 102 2” Top of Horizontal Vent Z710VT ONLY -Restrictor- Remove for Runs Under 15 Feet Z57VT for MQRB436 Clearances in horizontal venting. Z57VT for MQRB5143 Z710VT for MQRB6961 24” 18” 43ft Straight-through roof support configuration; b) Flex bend configuration; c) Termination mounting...

  • Page 103: Flue Restrictor Adjustment Mqrb4436 & Mqrb5143

    Flue Restrictor Adjustment for MQRB4436 / MQRB5143 The Flue Restrictor is located in the top of the Firebox in front of the Flue Opening. For vertically vented installations it is necessary to use the Flue Restrictor. Restrictor is set fully open from factory for short horizontal and vertical runs.

  • Page 104: Approved For Pvh58 / Pvh58Fm Power Vent

    Approved for Power Vent PVH58 / PVH58FM - This appliance is approved for use with a Kingsman PVH58 Horizontal Power Vent - A Horizontal Power Vent Termination is intended for use where standard venting configurations are not possible. NOTE: MODELS EQUIPPPED WITH MILLIVOLT/ STANDING PILOT IGNITION: Downward vertical vent runs are NOT permitted.

  • Page 105: Power Vent Control Module Installation

    Infinite Series 4436 / 5143 / 6961 Power Vent Control Module Installation FIREPLACE IS SUPPLIED WITH ONE JUNCTION BOX. ADDITIONAL OUTLETS MAY BE REQUIRED. CONSULT A QUALIFIED ELECTRICIAN. IPI SYSTEM MAIN WIRING HARNESS DOUBLE POLE SWITCH MV SYSTEMS ONLY MAIN WIRING HARNESS POWER VENT CONTROL MODULE...

  • Page 106: Pvh58 / Pvh58Fm Parts List

    PVH58 / PVH58FM Parts List MODELS: PVH58 Horizontal Power Vent Termination - Listed for Canada and USA PVH58FM Horizontal Power Vent Termination - Listed for Canada and USA NUMBER DESCRIPTION MQRB4436 AND MQRB5143 VENTING AND VENTING ADAPTERS For fireplaces to be converted to hard pipe (DuraVent-DirectVent Pro, etc.) at the fireplace: Z57DFA Hard Pipe Adapter (Adapts MQRB4436 &...
  • Page 107 58PVH-P3211 3/4” K.O. Bushing 58PVH-WTA Wall Thimble Assembly PVH20H Main Wiring Harness Assembly – Extension Harness (20ft) PVC58MV Power Vent Control Module – Millivolt Box 58PVH-P124 Double Pole Switch 58PVH-P421 Timer Switch PVC58IPI Power Vent Control Module – IPI Box 58PVH-P421 Timer Switch 58PVH-P156...

  • Page 108: Mqrb4436 -Parts List

    MQRB4436 Parts List Marquis Infinite Zero Clearance Direct Vent Gas MQRBD3 Drift Wood Log Set (5pcs) Fireplace -44” Wide Listed for USA/Canada as a Vented Gas Fireplace Heater: MQRBRW Birch Log Set (5pcs) Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo MQROCK2 Rock Set - Contemporary Collection - Flame and BTU Adjustment, Ceramic Glass, 5/7"...
  • Page 109 Spring - Standoff Spacer for Inner Pipe Z57WTS Wall Thimble Shield Z57ST24 Horizontal Snorkel Termination (24” Tall, 14- 1/2” Center to Center) Kingsman Flex venting MUST be used on the MQRB4436. Use of DuraVent-DirectVent Pro or other hard pipe Venting systems is not permitted.

  • Page 110: Mqrb5143 -Parts List

    MQRB5143 Parts List Marquis Infinite Zero Clearance Direct Vent Gas MQ Stone Decorative Stones Fireplace -51” Wide MQRBD1 Drift Wood (x4) and Rocks (x4) Listed for USA/Canada as a Vented Gas Fireplace Heater: MQRBD3 Drift Wood Log Set (5pcs) Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo MQRBRW Birch Log Set (5pcs) Flame and BTU Adjustment, Ceramic Glass, 5/7"...
  • Page 111 Horizontal Vent Termination, Wall Thimble, Z57STSC Safety Cage for Horizontal Snorkel 60" Flex Pipe, Screws, Mill Pac. Termination Z57HT Horizontal Vent Termination Z57VT Vertical Vent Termination FDVHSS Horizontal Stucco Shield FDVHSCU Safety Cage Universal for Horizontal Termination ZDVAIS Attic Insulation Shield Z7AIS24 Attic Insulation Shield 24”...

  • Page 112: Mqrb6961 -Parts List

    MQRB6961 Parts List Marquis Infinite Zero Clearance Direct Vent Gas MQ Stone Decorative Stones Fireplace -69” Wide MQRBD2 Drift Wood and Rocks Listed for USA/Canada as a Vented Gas Fireplace Heater: MQRBD3 Drift Wood Log Set (5pcs) Linear LH Burner, Two Sides Open, SIT Valve with Hi/Lo MQRBRW Birch Log Set (5pcs) Flame and BTU Adjustment, Ceramic Glass, 7/10"...
  • Page 113 Venting Accessories [7/10” x 5ft Length, Wall Thimble Shield, Horizontal Vent Termination, Wall Thimble, 60” Flex Pipe, Millpac] Z710HSK5 Horizontal Round Term. Vent Starter Kit Z57WTS Wall Thimble Shield [7/10” x 5ft Length, Z57WTS Wall Thimble Shield, Horizontal Vent Termination, Wall Thimble, 60” Flex Pipe, Millpac] Z710HT 7/10”...

  • Page 114: Common Parts For Mqrb4436, Mqrb5143 And Mqrb6961

    Common Parts for MQRB4436, MQRB5143 and MQRB6961 Accessories 1001-P634SI Valve Nova NG Hi/Lo 0820652 1001-P713SI Pilot Burner LP 199.713TC SIT Z1MT Thermostat - Millivolt Wall Mount 1001-P714SI Pilot Burner NG 199.714TC SIT 3927ZDV- Bulb 10W 12V 64418 or [Sylvania 58691] (Lightbulbs NOT covered under P779-1 IPI Remotes...
  • Page 115 1000-150MP Hi Temp Millpac Sealant 840099 1000-214 Piezo Igniter 1244-17 MARK 21 1000-215 Pal Nut (18MMXI.5MM) BLK (1364.03) 1000-218 Switch Ivory (1451/001) 1000-227 Cover Ivory (86001/001) 1000-255 Orifice Brass -(State Size) 1000-306 Thermalcord -Adhesive Back for Door Frame 36HB-123 Upper Door Spring 5143ZDV-400 Door Latch Tool 51MQ-123A...

  • Page 116: Glass Safety / Termination Cap Safety -All Units

    -Glass Safety- All Units IT IS THE RESPONSIBILITY OF THE HOME OWNER TO ENSURE THAT NO ONE TOUCHES A HOT APPLIANCE. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.

  • Page 117: Limited Lifetime Warranty

    During the first year after installation of the appliance, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
