Model Numbers: Single Side Units:
MQVL60N, MQVL60NE, MQVL60NE2, MQVL60LP, MQVL60LPE, MQVL60LPE2
Bay Peninsula Units:
MQVLBG60N, MQVLBG60NE, MQVLBG60NE2, MQVLBG60LP, MQVLBG60LPE,
MQVLBG60LPE2
Certified to: ANSI Z21.88-2017/CSA 2.33-2017 and CSA2.17-2017
VENTED GAS FIREPLACE HEATER
⚠
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department
-Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
Installation Instructions
- Certified for use with Adjustable Vented Platform (AVP)
DO NOT OPERATE THIS APPLIANCE WITHOUT DECORATIVE
GLASS EMBERS ON BURNER AND MEDIA TRAY
A Division of R-Co. Inc. 2340 Logan Ave. Winnipeg, Manitoba Canada R2R 2V3 Ph.: (204) 632-1962
Printed in Canada September 3, 2019 Part# 60MQVL-MAN17
CONSUMER: Retain this manual for future reference.
⚠
WARNING:
ENCLAVE
Advertisement
Table of Contents
Related Manuals for Kingsman MQVL60NE
Summary of Contents for Kingsman MQVL60NE
-
Page 1: Cover

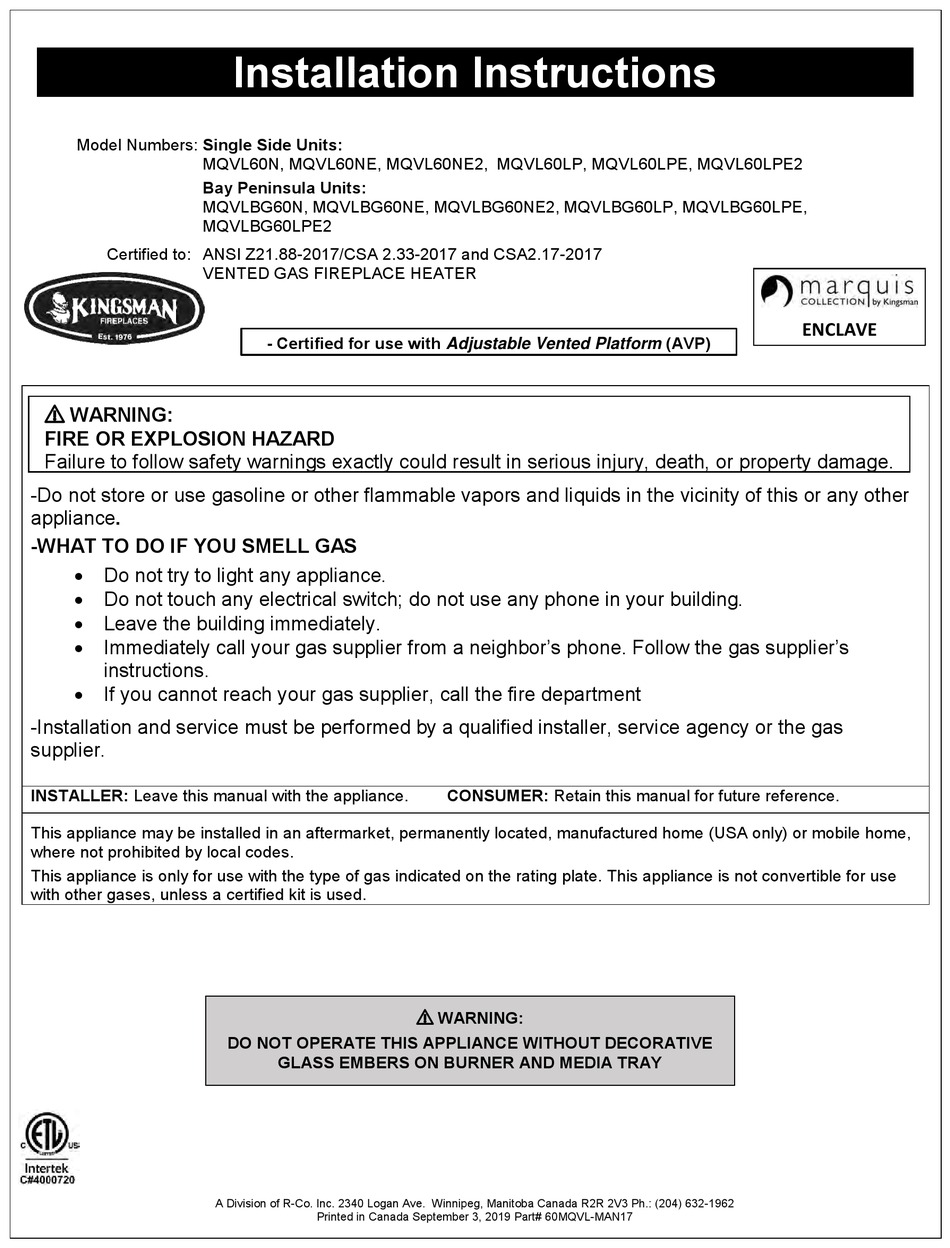

Installation Instructions Model Numbers: Single Side Units: MQVL60N, MQVL60NE, MQVL60NE2, MQVL60LP, MQVL60LPE, MQVL60LPE2 Bay Peninsula Units: MQVLBG60N, MQVLBG60NE, MQVLBG60NE2, MQVLBG60LP, MQVLBG60LPE, MQVLBG60LPE2 Certified to: ANSI Z21.88-2017/CSA 2.33-2017 and CSA2.17-2017 VENTED GAS FIREPLACE HEATER ENCLAVE - Certified for use with Adjustable Vented Platform (AVP) ⚠... -
Page 2: Warnings
IT IS THE RESPONSIBILITY OF THE HOME OWNER TO ENSURE THAT NO ONE TOUCHES A HOT APPLIANCE. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced prior to operating the appliance. -
Page 3: Warnings
Warnings, Installations and Operations - Installation Regulations This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States. This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code;... -
Page 4: Table Of Contents
MQVL60 / MQVLBG60 Table of Contents Cover..................................Warnings................................. Table of Contents..............................Installation Requirements for the Commonwealth of Massachusetts..............Carbon Monoxide (CO) Detector..........................Pre-installation Questions and Answers......................... Operations and Maintenance Instructions......................Mobile Home/Manufactured Housing Installation....................INSTALLATION & FRAMING Framing Your Gas Fireplace........................... Stand-off and Nailing Tab Locations........................ - Page 5 MQROCK2, MQROCK3, MQRBD1........................MQ STONE Decorative Stone Set.......................... MQEMBER................................MQRBD3 - 5 Piece Driftwood Log Set........................MQLOGF48D - 6 Piece Driftwood Log Set......................Burner System Gas Line Installation / Gas Specifications Chart....................Millivolt System, Lighting, and Burner Control......................Troubleshooting the Gas Control System....................... Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace........
-
Page 6: Installation Requirements For The Commonwealth Of Massachusetts
Installation Requirements for the Commonwealth of Massachusetts In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth. When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the requirements listed below. -
Page 7: Pre-Installation Questions And Answers
Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used. -
Page 8: Mobile Home/Manufactured Housing Installation
Mobile Home/Manufactured Housing Installation This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada. -
Page 9: Framing Your Gas Fireplace
MQVL60 / MQVLBG60 Framing Your Gas Fireplace This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and clearance requirements (see Venting section) for this appliance. -
Page 10: Fireplace Installations In Covered Outdoor Locations
Intertek safety certification will not apply to this installation method. This installation method must be deemed acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed. Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected from direct water impingement. -
Page 11: Vented Chase Requirements
MAX from top Flush or 3/4” of Chase MAX from top Grill with of Chase Min 220 Sq. In. Uses Kingsman VL60EG Front Grill, Must be in the Uses Kingsman VL60EGS Side Grills, same Pressure VL60EG Front Grill, Or Grill with... -
Page 12: Vl60Avp Adjustable Vented Platform
VL60AVP Adjustable Vented Platform -OPTION The Adjustable Vented Platform is an optional installation base. Height is variable from approximately 15-1/8” to 27-1/8”. Venting slots are provided at the bottom and between the fireplace and the platform. INNER SIDE 9-3/4” PANEL 15-1/8”... - Page 13 STEP TWO: ASSEMBLE TOP REAR BRACE INNER SIDE INNER PANEL INNER SIDE SIDE PANEL PANEL OUTER OUTER SIDE FRONT OUTER PANEL PANEL FRONT PANEL TILE LIP TILE LIP 2. Assemble Top using supplied screws. INNER SIDE PANEL INNER INNER SIDE SIDE PANEL PANEL...
-
Page 14: Mqvl60 / Mqvlbg60 Framing - Platform Base
MQVL60 / MQVLBG60 Framing – Platform Base A Platform Base has air opening requirements that must be met. Top of Platform Must Have Minimum 550 Square Inches Free Air Opening ⚠ DO NOT COVER TOP OF PLATFORM WITH A SHEET OF PLYWOOD. -
Page 15: Vl60Eg Grill Installation
VL60EG Grill Installation- -Option- Compatible with Vented Chase *This Grill Meets Minimum Opening Air Free Requirements* Parts List: This Kit comes with two installation options: [1] Louver Grill (ready to paint) Outer Trim Grill Mount - For a Quick and simple installation. [1] Outer Trim Grill Mount (ready to paint) Hidden Grill Mount - For a very clean installation with only the grill [1] Upper Frame for Hidden Grill Mount... -
Page 16: Vl60Egs Side Grill
VL60EGS Side Grill Installation -MQVL60 / MQVLBG60- Option Not compatible with HDS System. ⚠ Grill openings must be flush or within 3/4” of Contents of Kit: [Qty 2] Side Grill assemblies (ready to paint). enclosure top. This is to prevent excess heat from becoming trapped in the top of the chase. -
Page 17: Clearance To Combustibles
MQVL60 / MQVLBG60 Clearance to Combustibles Front (Furniture, etc. from glass) 36” [92cm] ⚠ NOTE If using insulation in Side (from Stand-off) MQVL60 0” [0cm] vented chase (i.e. for Side (from glass doors) MQVLBG60 18” [46cm] outside wall), wall board / drywall is required to Back (from Stand-offs) 0”... -
Page 18: Mantel Clearances / Adjacent Wall
MQVL60 / MQVLBG60 Mantel Clearances SIDE VIEW (MQVLBG60 Shown) A Combustible Mantel can be placed immediately Min 200 Sq. In. Free Air above the fireplace opening. A Combustible Hearth can be placed immediately 28-1/2” below the fireplace (55” TV) opening. An Adjacent Side Wall may project directly from Drywall... -
Page 19: Mqvl60 Single Side
MQVL60 Single Side Locating Your Appliance LOCATION KEY: Left Side Corner Flat on Wall 45° Corner As a Room Divider As an Island* Right Side Corner Exterior Wall Chase 20’ MAX *Island installation with a top vent is possible as long as the horizontal portion of the vent system does not 20’... -
Page 20: Nailing Tab Guide
MQVL60 Single Side -Nailing Tab Guide- [Qty] 4 Nailing Tabs are located on each side of the front frame. NOTE: If using the rear nailing tabs for cantilevered chase etc., refer to the Nailing Tab page for MQVLBG60 Bay Peninsula. Flat Pull up 90°... -
Page 21: Single Side Framing
MQVL60 Single Side Framing TOP VIEW BACK WALL Double Studs Double Studs 20-5/16” Framing Flush with Face FRAMING OVER FRONT TOP OF FIREPLACE FRAMING FRONT FIREPLACE Variable – Can be built out to desired depth EXTENDED FRAMING FRONT FIREPLACE Appliance must be in place with venting connected before area above fireplace is framed in. Fireplace Chase MUST BE VENTED with or without grills. -
Page 22: Using Tile Lip
MQVL60 Single Side - Using Tile Lip A Tile Lip is supplied for attachment above the fireplace opening. This can be used as a standard tile edging or as a mount bracket for other surfaces like drywall or plywood. Set to desired height and attach through holes in face of fireplace. Install before applying the finishing materials. -
Page 23: Vl60S1Bl / Vl60S1Ss -Surround Installation For Mqvl60
VL60S1BL / VL60S1SS -Surround Installation for MQVL60 -Option NOTE: Install before applying the PARTS LIST: finishing materials. Install Tile Lip - [Qty 1] Surround Frame (supplied with fireplace) using second - [Qty 2] Black Side Fillers hole from top, as shown. This will provide - [Qty 1] Bottom Filler the required 5/8”... - Page 24 INSTALLATION: - Fireplace must be installed and wall surface must be finished. -Insert assembled Surround into fireplace opening. [Qty 4] Surround Tabs will fit into [Qty 4] Fireplace Slots. Surround Tabs -Insert [Qty 4] screws through the holes in the Surround Tabs and into the Fireplace.
-
Page 25: Mqvl48Sep Side Extension Panels For Mqvl60
MQVL60 Single Side- MQVL48SEP Side Extension Panels -Option- Contents if Kit: Qty 2 – Side Extension Panels Qty 4 - #6 Black Screws 4” 18-3/16” 19-7/16” Framing Details: FROM EDGE OF FIREPLACE TO OUTSIDE OF 2 X 4 HORIZONTAL FRAMING ABOVE TOP OF 19-3/16”... -
Page 26: Mqvl60 Glass Door Front Removal / Installation
MQVL60 Glass Front Removal / Installation To remove Glass Front: 1. Remove the [Qty 4] Wing Nuts on the Upper Glass Retainer above the Glass Door Front and remove the Retainer. 2. Loosen the [Qty 4] Wing Nuts on the Lower Glass Retainer but do not remove. 3. -
Page 27: Mqvlbg60 Bay Peninsula
MQVLBG60 Bay Peninsula Locating Your Appliance LOCATION KEY: A. Corner Kit- Left Side B. Flat on Wall C. Corner Kit- Right Side D. Corner Kit- Left Side E. Corner Kit- Right Side F. 45° Corner G. As an Island* *Island installation with a top 20’... -
Page 28: Bay Peninsula Framing
MQVLBG60 Bay Peninsula -Framing OPTION A: Framing Attached to Side of Fireplace- For building out around the fireplace. Framing must be self-supporting. DOUBLE DOUBLE DOUBLE SIDE VIEW STUDS STUDS STUDS TOP VIEW FRAMING ON TOP OF FIREPLACE FRAMING IN FRONT OF FIREPLACE VARIABLE Can be built out to desired... -
Page 29: Bay Peninsula Nailing Tabs And Framing
MQVLBG60 Peninsula –Nailing Tabs and Framing Appliance and Framing are OPTION A: Framing Attached to Side of Fireplace- For building out around the fireplace. NOT Load Bearing. SIDE NAILING TAB Optional framing attached to side MIN. 200 of fireplace SQ. IN. ⚠... -
Page 30: Vlbgck Corner Kit For Mqvlbgck60
VLBGCK - Corner Kit - for MQVLBG60 Peninsula Bay Option - MUST BE INSTALLED BEFORE ⚠ Warning: Failure to position the parts in accordance with these UNIT IS INSTALLED INTO FRAMING. diagrams or failure to use only parts specifically approved with this - CORNER KIT CAN BE INSTALLED appliance may result in property damage or personal injury. - Page 31 Do Not Apply Installation: Mill-Pac to IF USING Apply a small bead Front Glass PORCELAIN OR of Millpac to Firebox Gasket FLUTED LINERS: Cover Gasket. Insert Do Not Apply Remove [Qty 4] Firebox Cover into Mill-Pac to Apply Mill-Pac DT Screws from place from front of Front Glass to Gasket of...
- Page 32 Install Inner Liner Panel: Remove Retainer NOTE: If you are from False using a Firebox Back Bottom Liner Kit (Glass, Porcelain, or Fiber), DO NOT INSTALL Inner Liner Panel from Corner Kit. A (Glass, Porcelain, or Fiber), Side Liner Kit will also be required.
-
Page 33: Using Tile Lip
MQVLBG60 Bay Peninsula - Using Tile Lip A Tile Lip is supplied for attachment above the fireplace opening. This can be used as a standard tile edging or as a mount bracket for other surfaces like drywall or plywood. Set to desired height and attach through holes in face of fireplace. -
Page 34: Mqvlbg60 Front Glass Installation
MQVLBG60 Front Glass Installation SILICONE SILICONE ALIGNMENT ⚠ IMPORTANT: Each corner must have a dab of high-temp silicone placed between the ball of the gasket and the corner glass. This Front Glass is placed in front of will fully seal the firebox corners. corner glass edge. -
Page 35: Mqvlbg60 - Side Glass Door Removal And Installation
MQVLBG60 – Side Glass Door Removal and Installation The Side Glass Door must be removed if a Corner Kit is used, or if a component must be replaced. SIDE GLASS DOOR NOTE: It is not necessary to remove the Spring Mechanisms when installing a Corner Kit. Spring Mechanism 60VLBG-126A Replacement Part:... -
Page 36: Door And Glass Information
Door and Glass Information MQVL60 / MQVLBG60 Glass Cleaning It will be necessary to clean the glass periodically. During startup, condensation, which is normal, forms on the inside of the glass, and causes dust, lint etc. to cling to the glass surface. Also, initial paint curing can deposit a slight film on the glass. -
Page 37: Mqvl60 / Mqvlbg60 Glass Safety Barrier Installation / Removal
MQVL60 / MQVLBG60– Glass Safety Barrier Installation / Removal INSTALL SIDE GLASS FIRST. DECAL ON GLASS SHOULD FACE OUTSIDE. 16-3/16” 16-3/16” 66-5/8” 14-3/8” FRONT GLASS PANEL [QTY 1] SIDE GLASS PANELS [QTY 2] GLASS SUPPORTS INSERT GLASS INTO CLIPS PLACE GLASS INTO GLASS SUPPORTS. -
Page 38: Component Locations
MQVL60 / MQVLBG60 Component Locations TOP VIEW GAS LINE 120 VAC 120 VAC LIGHT BATTERY REMOTE PAIRING BUTTON VALVE MODULE OPTIONAL DRIVER BACKUP (SW1 SWITCH) (LED) REMOTE PAIRING BUTTON (SW1 SWITCH) DCHS Cover for Optional Remote Receiver- Millivolt or Proflame 1 Systems Only PROFLAME 1 C/W REMOTE RECEIVER &... -
Page 39: Led Lighting
MQVL60 / MQVLBG60 LED Lighting Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in Canada. LED Light Strip is Located Under the Firebox. LED LIGHT STRIP 584-X10 HARNESS YELLOW CONNECTOR GROUNDING STUD PROFLAME 2 MODULE LED CONTROLLER... -
Page 40: Vl60Plb Porcelain Back Liner Installation
VL60PLB Porcelain Back Liner Installation Option MQVL60RGB - BACK PANEL KIT STEP ONE: Remove Back Clip and screws from inside CONTENTS: NOTE: Install of firebox with a 1/4” hex VL60RGB PORCELAIN driver. Discard Back Clip Before BACK LINER X 3 but Keep Screws. -
Page 41: Vl48Ple Porcelain End Liner Installation
VL48PLE Porcelain End Liner Installation Option ⚠ Note: Warping and Discoloration of Porcelain or Painted -VL48PLE- END PANEL KIT Metal Liners Is Not Covered Under Warranty. Both Porcelain and Painted Metal Liners may discolour and warp during normal operation of your appliance. This is normal, and not considered a defect. -
Page 42: Mqvl60Rgb Glass Back Liner Installation
MQVL60RGB Glass Back Liner Installation Option MQVL60RGB - BACK PANEL KIT STEP ONE: Remove Liner Clips and screws from inside of firebox with a 1/4” NOTE: Install CONTENTS: hex driver. Discard Back MQVL60RGB Before GLASS BACK Clip but Keep Screws. installing LINER X 3 MQVL48RGE... -
Page 43: Mqvl48Rge Glass End Panel Installation
MQVL48RGE Glass End Panel Installation Option -MQVL48RGE - END PANEL KIT ⚠ CAUTION – NOT TEMPERED GLASS- EXTREMELY FRAGILE – HANDLE WITH CARE NOTE: MQVL48RGB must be installed first. Refer to instructions RIGHT LEFT SIDE SIDE included in MQVL48RGB kit. GLASS GLASS NOTE: If using VLBGCK CORNER KIT and you are NOT installing... - Page 44 STEP THREE: Engage Front Slot of Tab with DT Screw in side wall of firebox. There is no bottom attachment Screw. FRONT FIREBOX LEFT SIDE END PANEL Repeat actions for other side. NOTE: if you are using VLBGCK CORNER KIT, only one End Panel will be used. ⚠...
-
Page 45: Mqvl60Rlsb / Mqvl48Rlse Stacked Brick - Mqvl60Rlfb / Mqvl48Rlfe Fluted Liner Installation
MQVL60RLSB / MQVL48RLSE Stacked Brick Liner Installation Option MQVL60RLFB / MQVL48RLFE Fluted Liner Installation Option NOTE: If using VLBGCK CORNER KIT, remove Inner Liner Panel -MQVL60RLSB- BACK LINER KIT from Corner Kit if installed. BACK LINER STEP ONE: Prepare the fireplace. Remove Upper Liner Clips from inside of firebox with a 1/4”... - Page 46 STEP FOUR: Install Lower Liner Clips [x3]. Reinstall Media Fence as shown, with one row of slots exposed. LOWER LINER SLOTS CLIP AT ENDS LOWER LINER LOWER LINER CLIP (X3) CLIP AT CENTER SLOTS MEDIA FENCE MEDIA FENCE STEP FIVE: Install Side Liners. Reinstall End Clips with DT Screws. See Step Five Reference Drawing on Previous Page.
-
Page 47: Mq Dealer Accessories
MQVL60 / MQVLBG60 MQ Dealer Accessories The following Accessories are available through MQ Dealers only. CRUSHED GLASS MEDIA ACCESSORY ITEM DESCRIPTION Spread the glass embers onto the false bottom and burner. MQG5C Ensure the glass embers do not excessively overlap as this will affect Decorative Ember Glass –Bronze the flame pattern. -
Page 48: Mqrock2, Mqrock3, Mqrbd1
MQROCK2, MQROCK3, MQRBD1 - Place rocks randomly onto False Bottom. MQRock2 MQRock3 MQRBD1 NOTE Pilot Area Must Not Be Covered, as delayed ignition can occur. Do Not Cover any part of the burner tube with logs as sooting may occur. ... -
Page 49: Mqrbd3 - 5 Piece Driftwood Log Set
MQRBD3 -5 Piece Driftwood Log Set- OPTION Can be used with MQ Glass, MQ Rock, MQ Stone or MQ Ember. Follow instructions for these accessories. ⚠ NOTE LOG 1 For best flame pattern it LOG 3 is essential to spread supplied Crushed Glass or MQEMBER directly LOG 4... -
Page 50: Mqlogf48D - 6 Piece Driftwood Log Set
MQVLV60 / MQVLBG60 MQLOGF48D OPTION ⚠ WARNING: Failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Place Glass onto front area of Burner and over lights. -
Page 51: Gas Line Installation / Gas Specifications Chart
1/2 PSIG (3.5 KPa). NOTE: The gas line connection may be made of 1/2” rigid pipe or an Approved Kingsman Flex Connector, such as FP15GC. -
Page 52: Millivolt System, Lighting, And Burner Control
Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING This appliance has a pilot which must be lighted by hand. When ... -
Page 53: Troubleshooting The Gas Control System
Troubleshooting the Gas Control System ⚠ WARNING BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE THE GLASS FRONT. NOTE: Before troubleshooting the gas control system, be sure external gas shut off is in the "On" position. Problem Possible Causes Corrective Action Spark igniter will not Defective or misaligned Check for spark at electrode and pilot: if no spark and electrode wire is... -
Page 54: Annual Inspection List For Determining Safe Operation Of A Direct Vent Gas Fireplace
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace Refer to this checklist for proper maintenance, safe use, and operation. See each section for more specific information. 1. Inspect and operate all pressure relief mechanisms (i.e., relief dampers, spring loaded door latches) installed on your appliance to verify relief mechanisms are free from obstruction to operate. -
Page 55: Burner System Maintenance
Burner System Maintenance MQVL60 / MQVLBG60 It is recommended to annually inspect and clean the Burner System to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. ⚠ -CAUTION- Before servicing the burner system ensure that the gas supply is turned OFF and disconnect all electrical connections to the appliance. -
Page 56: Gas Conversion Part A
Gas Conversion Part A MQVL60 / MQVLBG60 MQVL60N, MQVL60NE, MQVL60NE2, MQVL60LP, MQVL60LPE, MQVL60LPE2, MQVLBG60N, MQVLBG60NE, Models: MQVLBG60NE2, MQVLBG60LP, MQVLBG60LPE, MQVLBG60LPE2 Burner Orifice Kit Number Description Pilot Orifice Brass Nipple Air Shutter Hi/Lo Regulator Brass (1000-255) LP Conversion 1001-P167SI 1000-253 1001-P202SI... -
Page 57: Gas Conversion For Top Convertible Pilot - Part B
Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ) Instructions for converting SIT 190 series pilot burner injector from NG to LPG and from LPG to NG only. This information should be considered as supplemental to the Appliance Manufacturer's Instructions. WARNING! The installation of this conversion kit must only be undertaken by a qualified and certified gas appliance installer. -
Page 58: Gas Conversion For Modulator - Part C
Gas Conversion for Modulator – PART C... -
Page 59: False Bottom Removal / Burner Tube Removal
MQVL60 / MQVLBG60 False Bottom Removal (Media Tray) In order to access the Burner Tube and Burner Pan, the False Bottom must be removed. STEP 1 (FOR MQVLBG60 UNITS): Remove Retainers from each end of False Bottom. STEP 2: Remove the [Qty 8] Screws shown below. False Bottom can now be removed from fireplace. -
Page 60: Proflame
Proflame 1 -IPI Electronic Ignition System- Overview The IPI system is an advanced burner controller that provides you with the option of having either a Standing-Pilot, or an intermittent igniting system. This alternating mode is controlled by the Remote Receiver CPI/IPI Switch (Continuous Pilot Module Ignition/Intermittent Pilot Ignition) located on the... -
Page 61: Remote Control Operation
Proflame 1 -Remote Control Operation- The Proflame GTM is configured to control the on/off main burner operation, its flame levels, and provides on/off and Smart thermostatic control of the appliance. Transmitter Remote Receiver Transmitter Room Thermostat ( Transmitter Operation) The Transmitter is powered by 3 AAA type batteries. A Mode The Remote Control can operate as a room thermostat. -
Page 62: Proflame 1 Parts List
Proflame 1 -IPI System Parts List- PART NO. DESCRIPTION 1006-P002SI Valve IPI Hi/Lo NG 11. 1002-P012SI IPI Stepper Kit - LP 907.012 1006-P003SI Valve IPI Hi/Lo LP 12. 1002-P013SI IPI Stepper Kit - NG 907.013 1002-P302SI IPI Ignition Board 13. 1002-P014SI IPI Reg Kit - LP Hi-Lo 907.014 1002-P047SI Pilot Assembly-LP -24”... -
Page 63: Configuration #2: Remote On/Off And Manual Hi/Lo Capabilities
Proflame 1- Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities OPTIONAL: For units with remote HI/LO capabilities, a modulating servo is required to be installed on the valve. The connectors to this servo must be connected to the Remote Harness as shown. SCHEMATIC PICTURE NOTE: Fan Option... -
Page 64: Configuration #3: Remote On/Off, Variable Hi/Lo, And Fan Capabilities
Proflame 1- Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities Refer to the fan installation/removal section for fan installation. NOTE: This Configuration is not available on all models of SCHEMATIC fireplace. Check with your dealer. NOTE: Fan Option PICTURE is not available on some models of fireplace. -
Page 65: Operating The Receiver Without Batteries- Millivolt And Proflame 1
Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls -Wiring Harness P/N 1002-P906si required for both IPI & Millivolt systems. -Millivolt Systems will also require Power Adapter P/N 1002-P850si. The Remote Receiver & IPI or Millivolt system can be powered by the AC Adapter. This is advantageous if you do not want to use batteries. -
Page 66: Electronic Ignition Lighting Instructions
- Lighting Instructions - Intermittent Pilot Ignition System (IPI) FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Always light the pilot whether for the first time or if the gas supply has run out with the glass door opened or removed. -
Page 67: Proflame 2 Parts List
Proflame 2 –NE2 / LPE2 -IPI System Parts List- IPI PROFLAME 2 - COMPONENT PARTS IPI - PF1 and PF2 Common Components PART NO. DESCRIPTION PART NO. DESCRIPTION 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper 12. 1002-P033SI TC - Pilot Burner IPI (Assembled) NG 199.033 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper 13. -
Page 68: Proflame 2 Module And Remote Control
Proflame 2 Module and Remote Control MQVL60 / MQVLBG60 PRESS BUTTON REMOTE PAIRING BUTTON (SW1 Switch) Pairing Remote Control Press the SW1 button until you hear three beeps. Install the 3 AAA batteries in the battery bay, located on the ... -
Page 69: Cold Climates - Cpi Setting - Proflame 2 Remote Control
Cold Climates – CPI Setting - Proflame 2 Remote Control Use the CPI setting during cold weather, otherwise the fireplace may have a hard time starting up and establishing a flame. The CPI (Continuous Pilot Ignition) setting will keep the firebox and fireplace exhaust vent warm during cold weather. When the firebox and exhaust vent are warm, exhaust gasses will readily flow out of the firebox. -
Page 70: Proflame 2 Remote Control Operation
Proflame 2 Remote Control... - Page 71 Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Note: This function is only available in Room Thermostat or Smart Thermostat Control Mode.
-
Page 73: Vent Terminal Clearances
Vent Terminal Clearances Clearances are to the edge of the terminal plate. Add 6-3/4” to clearances to arrive at centerline. Local codes or regulations may require different clearances. WARNING: A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE WHEN REQUIRED BY LOCAL CODES. Canadian installations US installations Clearance above grade, veranda,... -
Page 74: General Vent Installation
FLEX PIPE VENTING Kingsman Flex pipe is shipped in unexpanded length. When installing pipe expand the lengths. Pipe can be expanded to twice their lengths e.g. 4ft to 8ft. Fully expand pipe and cut off excess. Do not use more than 2 couplers (Order ZDV5FC & ZDV8FC – DO NOT fabricate couplers) to extend short pipes. -
Page 75: Venting Routes And Components
Venting Routes And Components Venting Routes and Components How to Use the Horizontal Vent Table Since it is very important that the vent system maintain its 1. Determine the height of the system and the number of balance between the combustion air intake and the flue gas bends required. -
Page 76: Venting Straight Up Through Roof
Venting Straight Up Through Roof An Attic Insulation Shield must be installed where the vent passes from a lower living space into an attic space where the chimney is not enclosed. It is designed to keep insulation materials away from the chimney. When installing the Attic Insulation Shield where the chimney passes from a living space to an attic space, install the shield from below and nail in place using 1"... - Page 77 -Restrictor- Remove for Runs Under 15 Feet Clearances in horizontal venting. Z58VT Clearance to perpendicular wall 24 inches (60 cm). (Recommended to prevent re- circulation of exhaust products. For additional requirements check local codes.) 24” 18” MIN Clearance above highest point of exit on roof 18 inches (45cm) Shortest Vertical Run = 6-1/2ft.
-
Page 78: Approved For Power Vent Pvh58 / Pvh58Fm
Approved for Power Vent PVH58 / PVH58FM - This appliance is approved for use with Kingsman Horizontal Power Vents - A Horizontal Power Vent Termination is intended for use where standard venting configurations are not possible. NOTE: MODELS EQUIPPPED WITH MILLIVOLT/ STANDING PILOT IGNITION: Downward vertical vent runs are NOT permitted. -
Page 79: Pvh58 / Pvh58Fm Parts List
PVH58 / PVH58FM Parts List PART NUMBER DESCRIPTION PVH58 Horizontal power vent termination - Listed for Canada and USA PVH58FM Horizontal power vent termination –Flush Mount- Listed for Canada and USA 5/8 VENTING AND VENTING ADAPTERS -For fireplaces to be converted to hard pipe (M&G-Duravent-DirectVent Pro, etc.) at the fireplace: Z58DFA M&G-Duravent Fireplace Adapter -For Power Vent installations where flex pipe will be used up to the Power Vent unit:... -
Page 80: Fireplace Models
Peninsula Bay Fireplace (Millivolt) Heater Ceramic Glass, Low E Tempered Glass Rated LP, Ceramic Glass, Low E Safety Barrier, Lights Tempered Safety Glass Barrier, Lights MQVL60NE (IPI) Fireplace Heater Rated NG, Ceramic MQVLBG60NE Peninsula Bay Fireplace (IPI), Heater Glass, Low E Tempered Glass Safety... -
Page 81: Mqvl60 / Mqvlbg60 Parts List
System (MQVL60LPE) VL60AVP Adjustable Vented Platform- Mounting 60VL-BNGSIE Burner Assembly- Natural Gas c/w Valve Base for fireplace- Adjusts from 14-3/4” to System (MQVL60NE) 27-5/16”. 60VL-BLPE2 Burner Assembly- Propane c/w Valve MQVL60 / MQVLBG60 Media Options System (MQVL60LPE2) WARNING: DO NOT OPERATE THIS APPLIANCE WITHOUT... -
Page 82: Warranty
Remote Control Millivolt - Thermostat GTMRCN Remote Control Millivolt – Thermostat/Modulating - NG GTMRCP Remote Control Millivolt – Thermostat/Modulating - LP Kingsman Fireplace Venting GTFRCN Remote Control Millivolt – Z58VT Vertical Vent Termination Thermostat/Modulating/Fan - NG Z58HT Horizontal Vent Termination GTFRCP Remote Control Millivolt –... -
Page 83: Limited Lifetime Warranty
During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
