Section 2 - Installation; Connection Diagram - Miller Robotic Interface II Owner's Manual

2-1. Connection Diagram

The proper interface kit must be installed in the interface
unit to allow it to be connected to the robot.
2
1
OM-172 324 Page 2
SECTION 2 – INSTALLATION
3 4
17
15 16
14

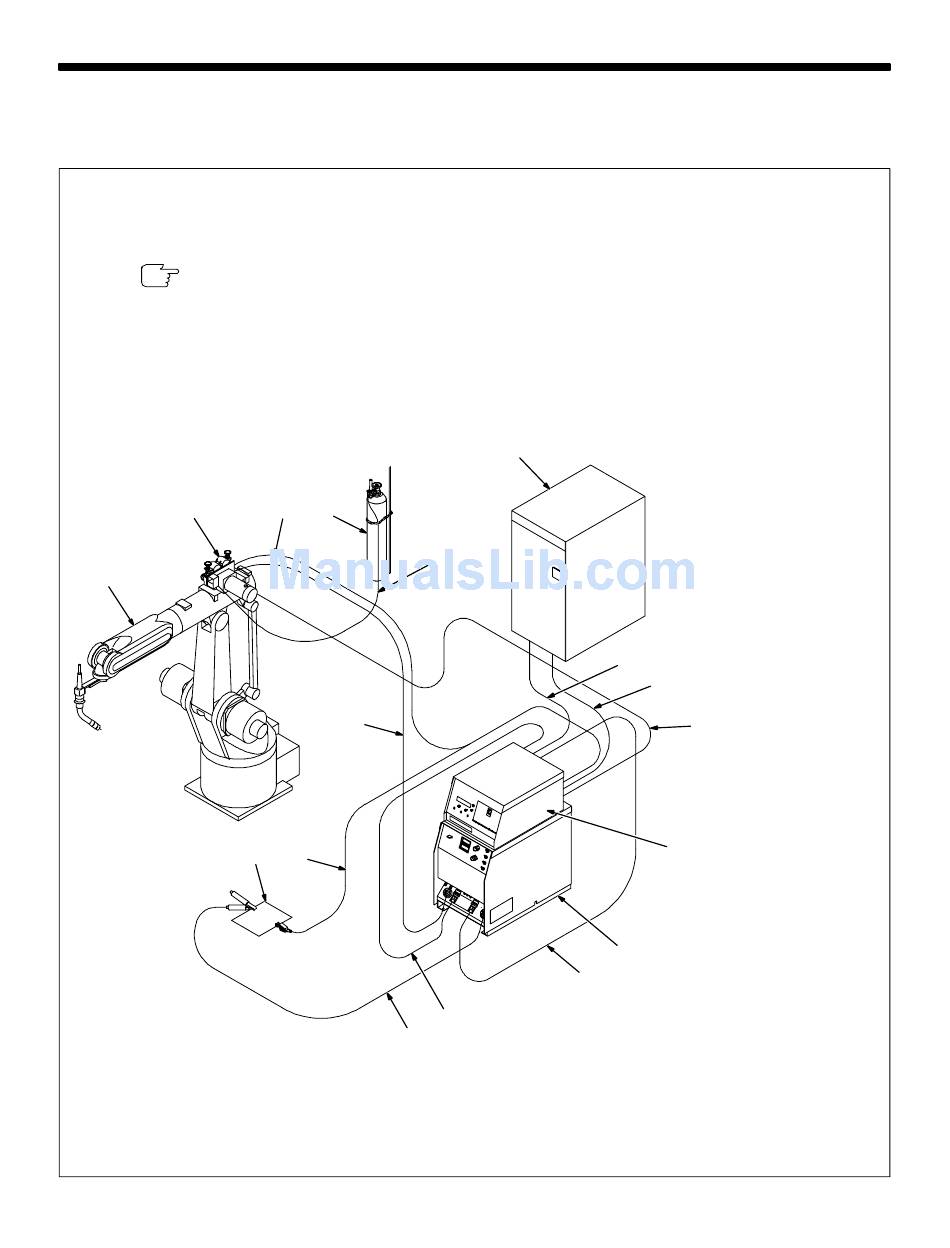

Figure 2-1. Connection Diagram
6
5
12
13
1 Robot (Will Vary According To
Application)
2 Motor/Drive Assembly
3 Positive (+) Voltage Sensing
Lead
4 Gas Cylinder
5 Gas Hose
6 Robot Control
7 Robot Input/Output Cable
8 Remote Program Select
Cable (Optional)
9 Gas And Motor Control Cable
10 Interface Unit
11 Welding Power Source
12 17-Socket Plug And Intercon-
necting Cord
13 14-Socket Plug And Intercon-
necting Cord
14 Negative (–) Weld Cable
15 Workpiece
16 Negative (–) Voltage Sensing
Lead
17 Positive (+) Weld Cable
7
8
9
10
11
ST-801 078-A
