7-3. Teaching A Pulse Welding Program

WARNING
A. Selecting Teach Point Wire Feed Speed
>P r o c e s s
C a r d
S e q u e n c e
Mode
Select
OM-172 324 Page 18
>P r g 1
P u l s e
0 3 5 " S t e e l
3
T e a c h O n
>4 0 0 I P M
3 4 0 A p k
7 0 A b k

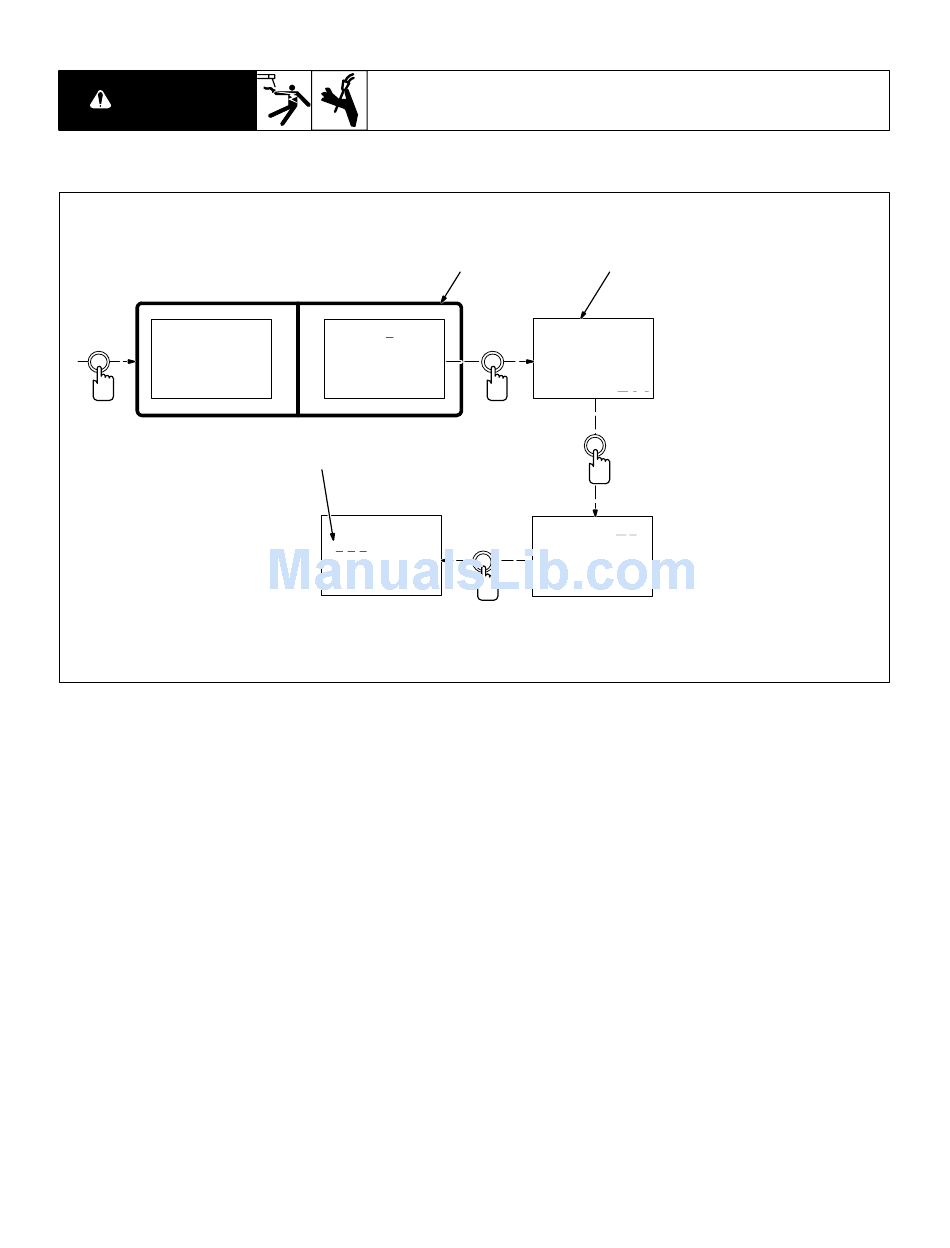

Figure 7-3. Selecting Teach Point Wire Feed Speed
READ SAFETY BLOCKS at start of
Section 7 before proceeding.
1 2
P u l s e
0 3 5 " S t e e l
>T e a c h O f f
Parameter
Select
Increase/
Decrease
>T e a c h O n
4 0 0 I P M
3 4 0 A p k
7 0 A b k
Parameter
Select
1 Process Display
When unit is first turned On, Pro-
cess is the default screen, at other
times use mode select button to se-
lect Process.
2 Teach Display
Use parameter select button to se-
lect Teach.
Use increase/decrease buttons to
select On.
3 IPM (Teach Point)
The parameters associated with
this wire feed speed teach point can
be modified. The wire feed speed
value itself cannot be changed from
this unit.
To set or adjust teach point parame-
ters, go to Figure 7-4.
