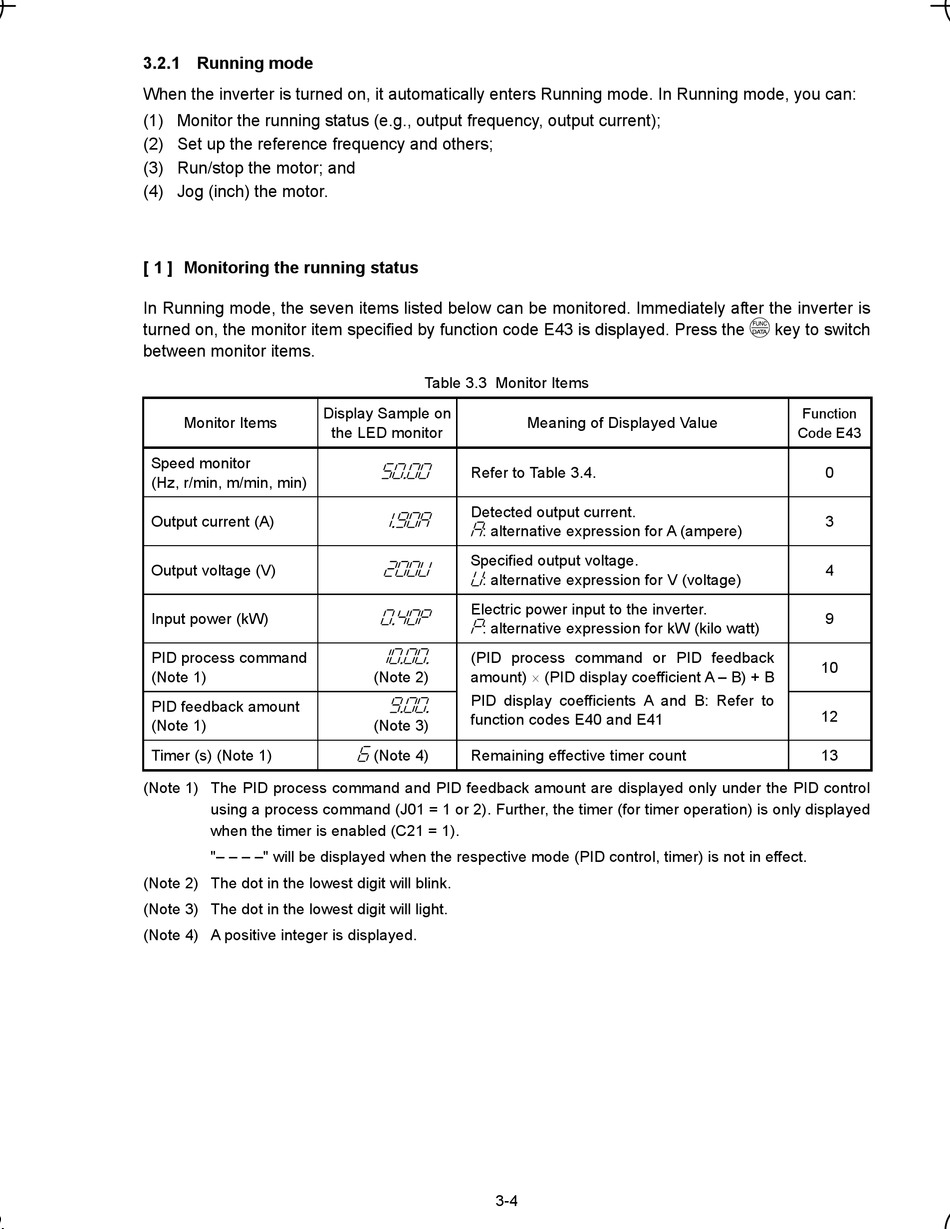

3.2.1 Running mode

When the inverter is turned on, it automatically enters Running mode. In Running mode, you can:
(1) Monitor the running status (e.g., output frequency, output current);
(2) Set up the reference frequency and others;
(3) Run/stop the motor; and
(4) Jog (inch) the motor.

[ 1 ] Monitoring the running status

In Running mode, the seven items listed below can be monitored. Immediately after the inverter is
turned on, the monitor item specified by function code E43 is displayed. Press the
between monitor items.
Monitor Items
Speed monitor
(Hz, r/min, m/min, min)
Output current (A)
Output voltage (V)
Input power (kW)
PID process command
(Note 1)
PID feedback amount
(Note 1)
Timer (s) (Note 1)
(Note 1) The PID process command and PID feedback amount are displayed only under the PID control
using a process command (J01 = 1 or 2). Further, the timer (for timer operation) is only displayed
when the timer is enabled (C21 = 1).
"– – – –" will be displayed when the respective mode (PID control, timer) is not in effect.
(Note 2) The dot in the lowest digit will blink.
(Note 3) The dot in the lowest digit will light.
(Note 4) A positive integer is displayed.
Table 3.3 Monitor Items
Display Sample on
the LED monitor
5*00
Refer to Table 3.4.
Detected output current.
!90a
a
Specified output voltage.
200u
u
Electric power input to the inverter.
*40p
p
1*0*
(PID process command or PID feedback
amount) × (PID display coefficient A – B) + B
(Note 2)
PID display coefficients A and B: Refer to
)0*
function codes E40 and E41
(Note 3)
6
(Note 4) Remaining effective timer count
Meaning of Displayed Value
: alternative expression for A (ampere)
: alternative expression for V (voltage)
: alternative expression for kW (kilo watt)
3-4
key to switch
Function
Code E43
0
3
4
9
10
12
13
