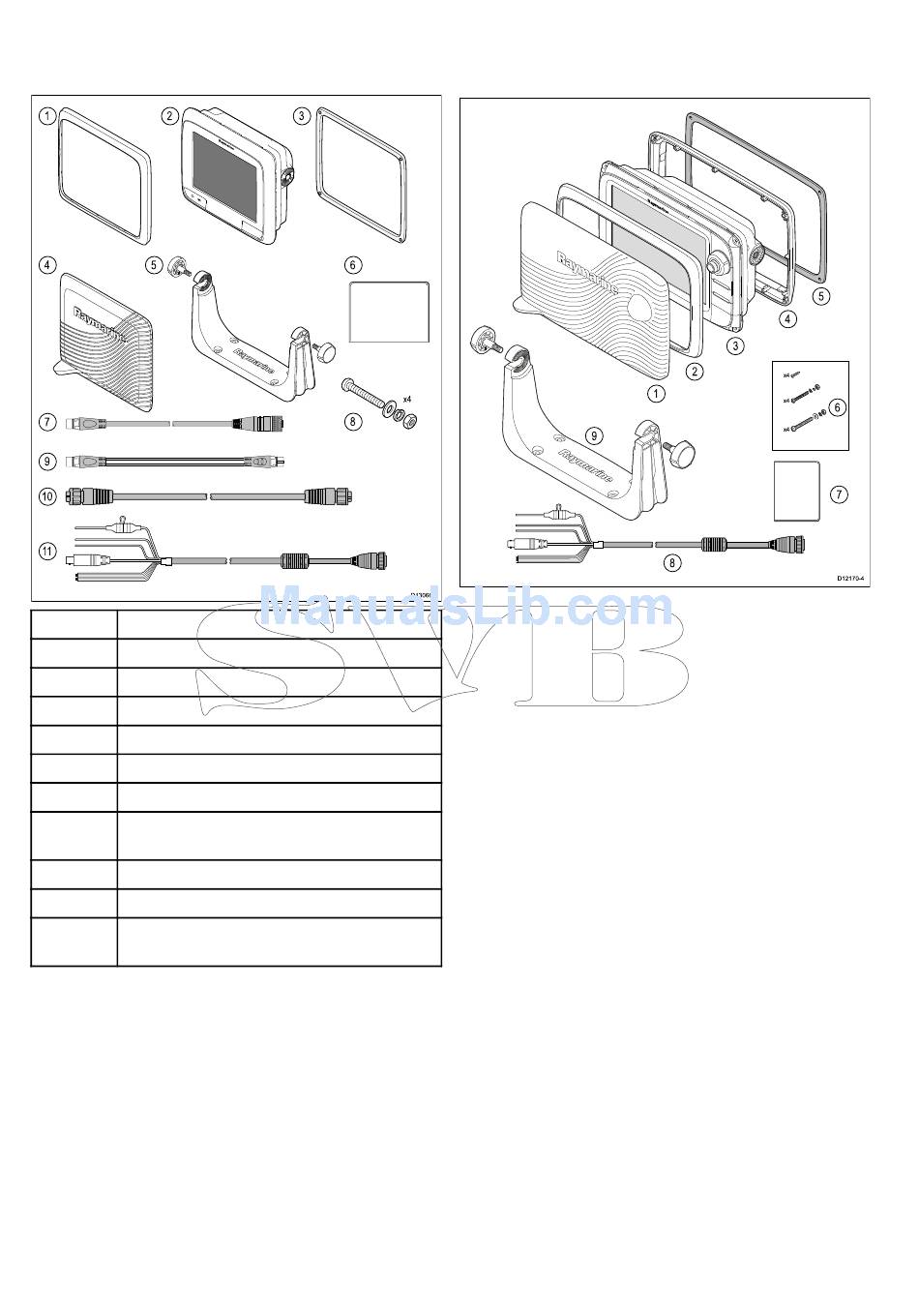

3.10 a9x and a12x parts supplied

The following items are supplied with your a9x and
a12x variant MFD.
1 2
4 5
7
9
10
11
1 Front bezel
2 Multifunction display (MFD)
3 Mounting gasket
4
Sun cover
5 Trunnion bracket kit
6 Documentation pack
7 SeaTalk ng to DeviceNet adaptor cable
8 4x Nuts, bolts, spring washers and washers (can
be used for either surface or bracket mounting.)
9
3 m (9.8 ft.) SeaTalk
10
2 m (6.6 ft.) RayNet cable
11 1.5 m (4.9 ft.) Power and data cable
(Power/NMEA/Video)
44
3
6
8
D13066-1
ng spur cable

3.11 e7 / e7D Parts supplied

The parts shown below are supplied with the e7 /
e7D multifunction display.
9
1. Sun cover.
2. Front bezel.
3. Multifunction display.
4. Rear bezel (required for trunnion bracket
mounting).
5. Gasket (required for flush mounting).
6. Screw pack, includes:
• 4 x rear bezel fixing screws.
• 4 x sets of fixings (for surface mounting).
• 4 x sets of fixings (for trunnion bracket
mounting).
7. Documentation pack, includes:
• Multilingual CD.
• Mounting and getting started multilingual guide
• Mounting template.
• Warranty policy
8. Power and data cable.
9. Trunnion bracket kit.
5
4
3
2
x4
1
x4
x4
8
a Series / c Series / e Series
6
7
D12170-4
