3.6 Typical systems

The illustrations below show examples of possible system configurations, for more details on compatible
Raymarine devices please refer to the System integration section.
Note: In the examples below the multifunction display(s) could be any variant of Raymarine's 3rd
generation multifunction displays e.g. a Series, c Series, e Series or gS Series.

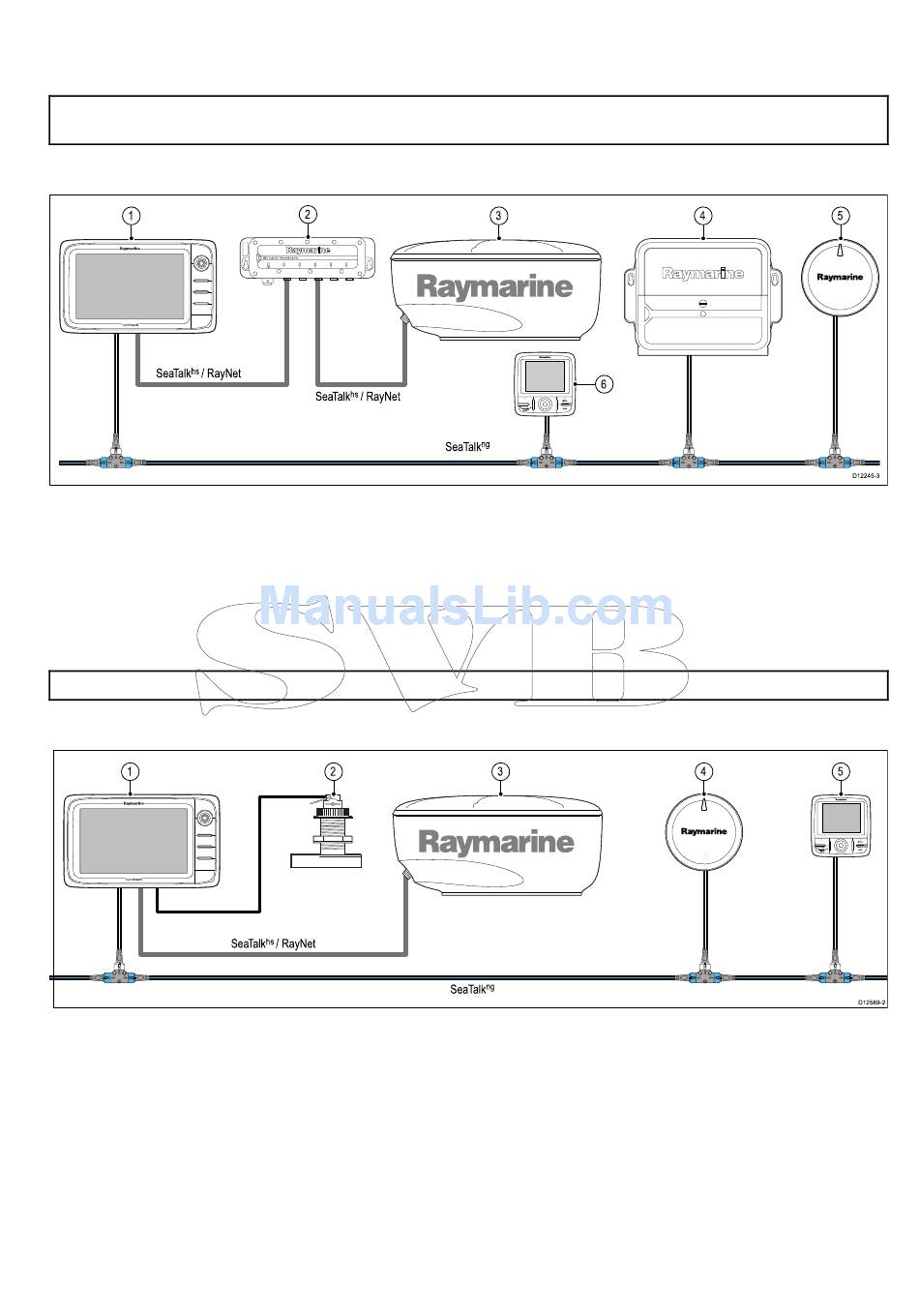

Example: Basic system
1
hs
SeaT alk / RayNet
1. Multifunction display
2. Network switch
3. Radar scanner
4. Actuator Control Unit (ACU)
5. Evolution autopilot
6. SeaTalk ng pilot controller (optional)
Note: A network switch is only required if multiple devices are connected using SeaTalk
Example: Basic system with sonar variant display
1
1. Multifunction display
2. Sonar transducer
3. Radar scanner
4. Evolution autopilot
5. SeaTalk ng pilot controller (optional)
Planning the installation
2
hs
SeaT alk / RayNet
2
hs
SeaTalk / RayNet
3
6
ng
SeaT alk
3
ng
SeaT alk
4 5
D12245-3
hs / RayNet.
4 5
D12589-2
