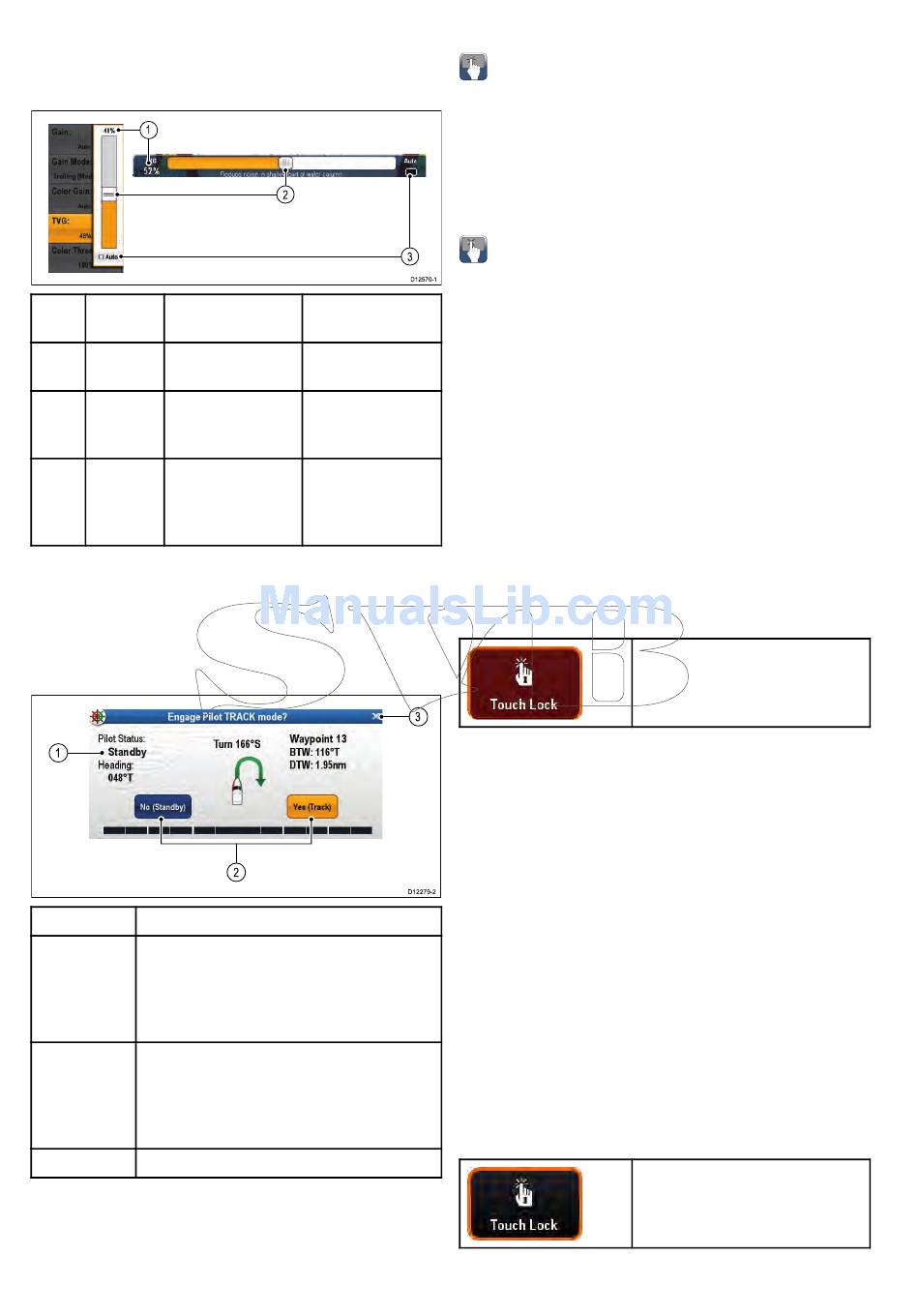

Using slider bar controls
Slider bar controls provide a graphical representation
of numeric data and enables you to quickly change
setting values.
1
Descrip- Non—Touch
Item tion operation
1 Current N/A
value
2 Slider Use the Rotary
control control to adjust
value
3 Auto Press Ok button
to switch between
Auto and manual
adjustment.
Using control dialogs
Control dialogs enable you to control externally
connected equipment, such as an autopilot unit.
The following diagram shows the main features of
a typical control dialog:
1
Screen item Description
1 Status — provides status information for the
connected equipment. For example, the Pilot
Control dialog displays the locked heading
and current navigation mode for a connected
autopilot unit.
2 Control icons — provide direct control of
the connected equipment. For example, the
Pilot Control dialog Standby and Track icons
enable you to instruct a connected autopilot
unit to perform specific functions.
3 Close — Closes the control dialog.
100
2
3
Touch operation
N/A
Slide the slider Up
or Down to adjust
value.
Select to switch
between Auto
and manual
adjustment.
2

6.11 Basic touchscreen operations

Placing and moving the cursor using
touch
To place or move the cursor around the screen on
a touchscreen multifunction display follow the steps
below.
1. Touch the screen at any position on the screen to
place the cursor there.
Touchscreen lock
D12570-1
On a multifunction display with HybridTouch you can
lock the touchscreen to prevent accidental use.
For example, locking the touchscreen is particularly
useful in rough water or weather conditions.
The touchscreen can be locked and unlocked from
the homescreen. The touchscreen can only be
unlocked using physical buttons.
Locking the touchscreen – New e Series
On new e Series multifunction displays the
Homescreen contains a dedicated Touch Lock icon.
With the homescreen displayed:
1. Select the Touch Lock icon.
It changes color to indicate that the touchscreen
is disabled. All functions are still available using
the physical buttons.
3
Locking the touchscreen - touch only
displays
When a touch only display is paired with an optional
remote keypad the touchscreen can be locked.
From the Homescreen:
1. Select the Set-up icon.
D12279-2
2. Select Touch-Lock so that On is highlighted.
The touchscreen is now locked.
Unlocking the touchscreen – New e Series
You can unlock the touchscreen by following the
steps below.
With the homescreen displayed:
1. Use the UniControl to highlight the Touch Lock
icon.
2. Press the OK button.
The Touchscreen is enabled.
Touchscreen is locked. All
functions remain available using
physical buttons.
Touchscreen is unlocked.
a Series / c Series / e Series
