Timed Capture

Usage:
Timed Rapid Capture is useful in fast-moving applications in which symbols
are only in the field of view for a short time and precise timing is required.
Definition:
In Timed Rapid Capture, decoding occurs independent of and simultaneous
with capturing, thus allowing precise timing or no delay at all between
captures.
Also, consecutive captures are regarded as the same symbol if the output
data is the same.

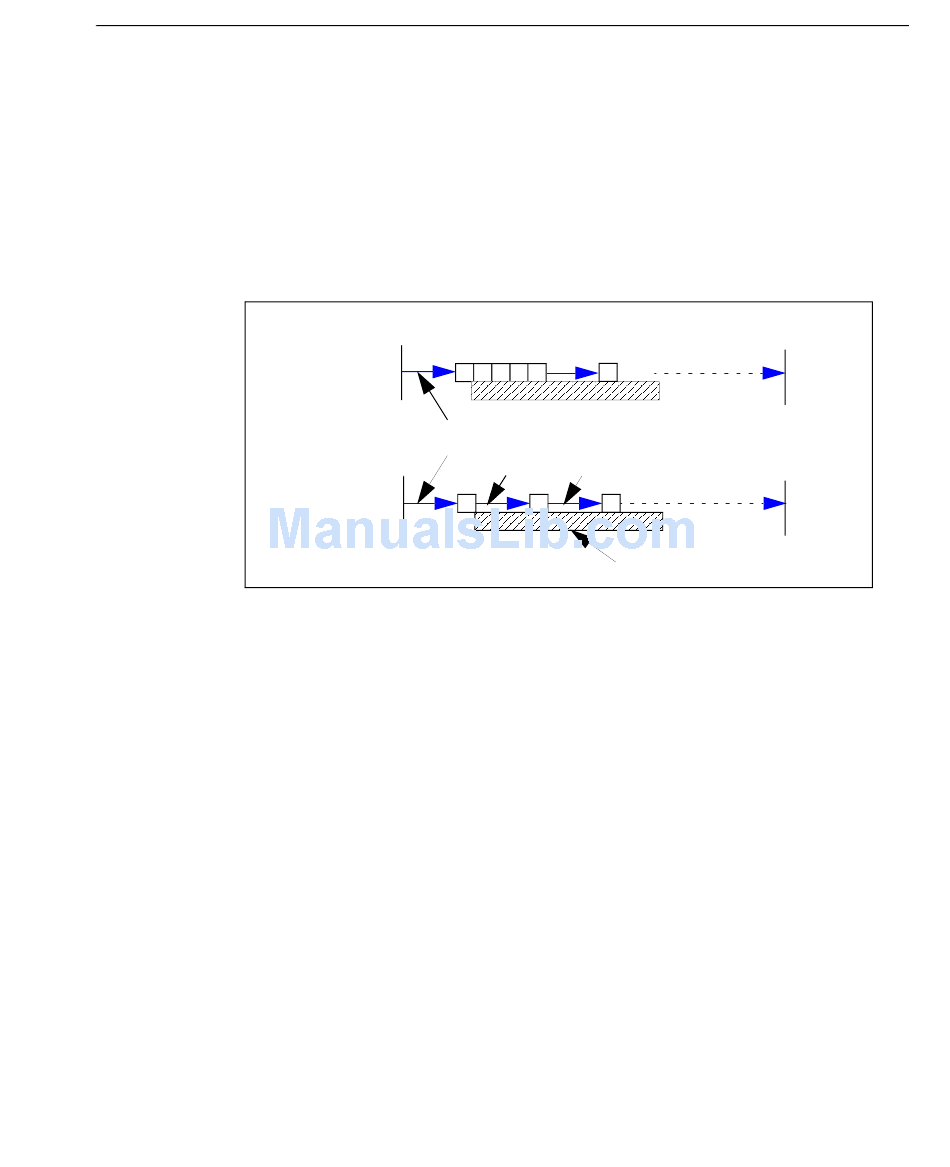

Diagram A
Diagram B
Quadrus MINI Imager User's Manual
Start of Read Cycle
Time Before First Capture
Time Delay Between Captures
No Time Delay Between Captures
n
Processing
Read Cycle
End of
read cycle
End of
read cycle
