Installing and Setting up the Machine > Determining the Connection Method and Preparing Cables
Determining the Connection Method and
Preparing Cables
Check the method to connect the equipment to a PC or network, and prepare the necessary cables for your environment.

Connection Example

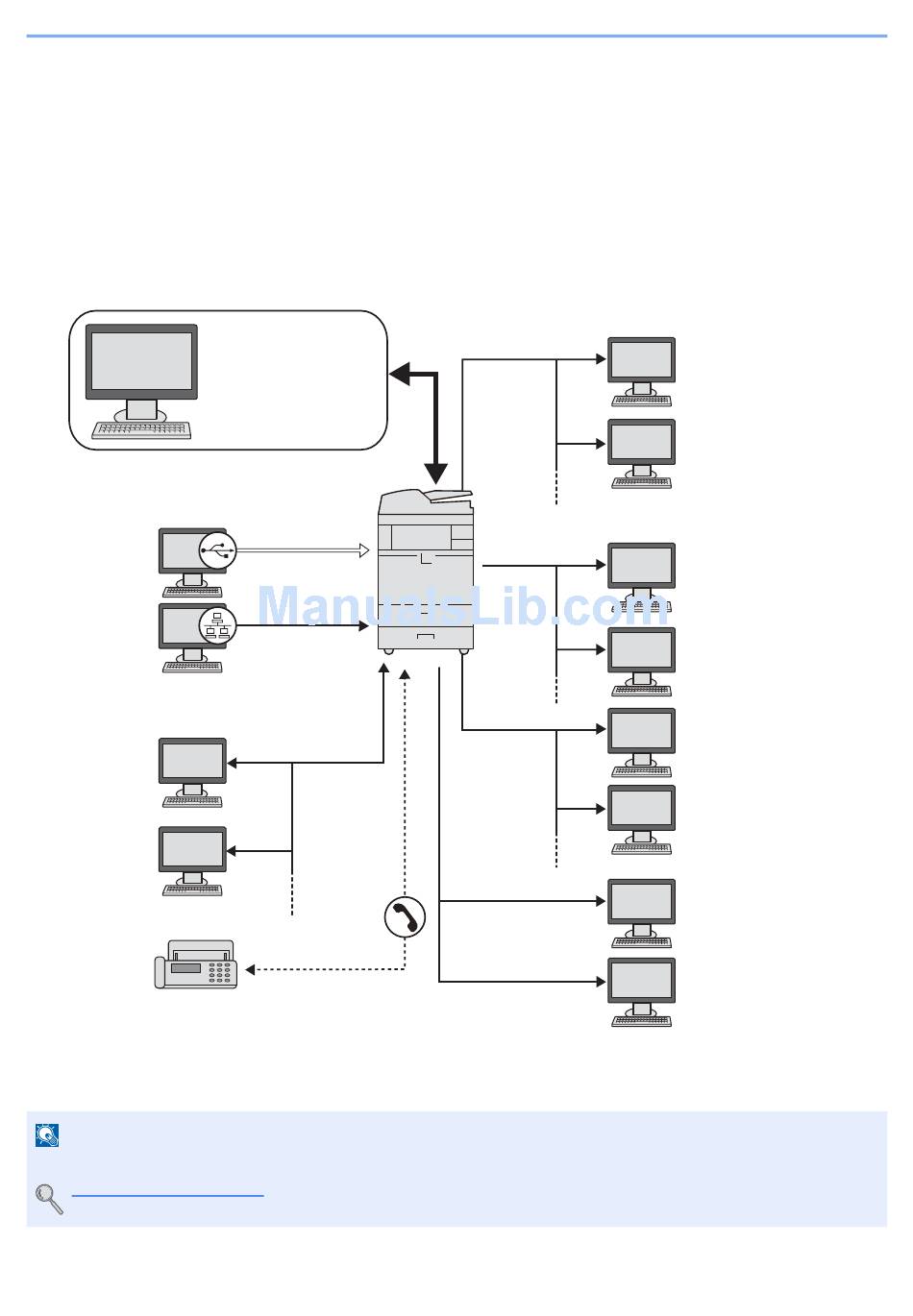

Determine the method to connect the equipment to a PC or network by referring to the illustration below.
Connecting a scanner to your PC network with a network cable (1000BASE-T, 100BASE-TX or 10BASE-T)
Administrator's
PC
Printing
Network FAX
(Option)
FAX
(Option)
NOTE
If you are using the machine with the optional wireless interface kit attached, you do not need to connect the LAN cable.
Optional Network (page 8-47)
Command Center RX
Network settings,
Scanner default settings,
User and destination
registration
MFP
USB
Network
Network
Network
Network
Network
Network
Network
TWAIN and WIA are standardized interface for
communication between software applications
and image acquisition devices.
2-6
Send E-mail
Sends the image data of
scanned originals to the
desired recipient as a file
attached to an E-mail
message.
Send SMB
Saves the scanned image as
a data file on your PC.
Send FTP
Sends the scanned image as
a data file on the FTP.
TWAIN Scanning
WIA Scanning
