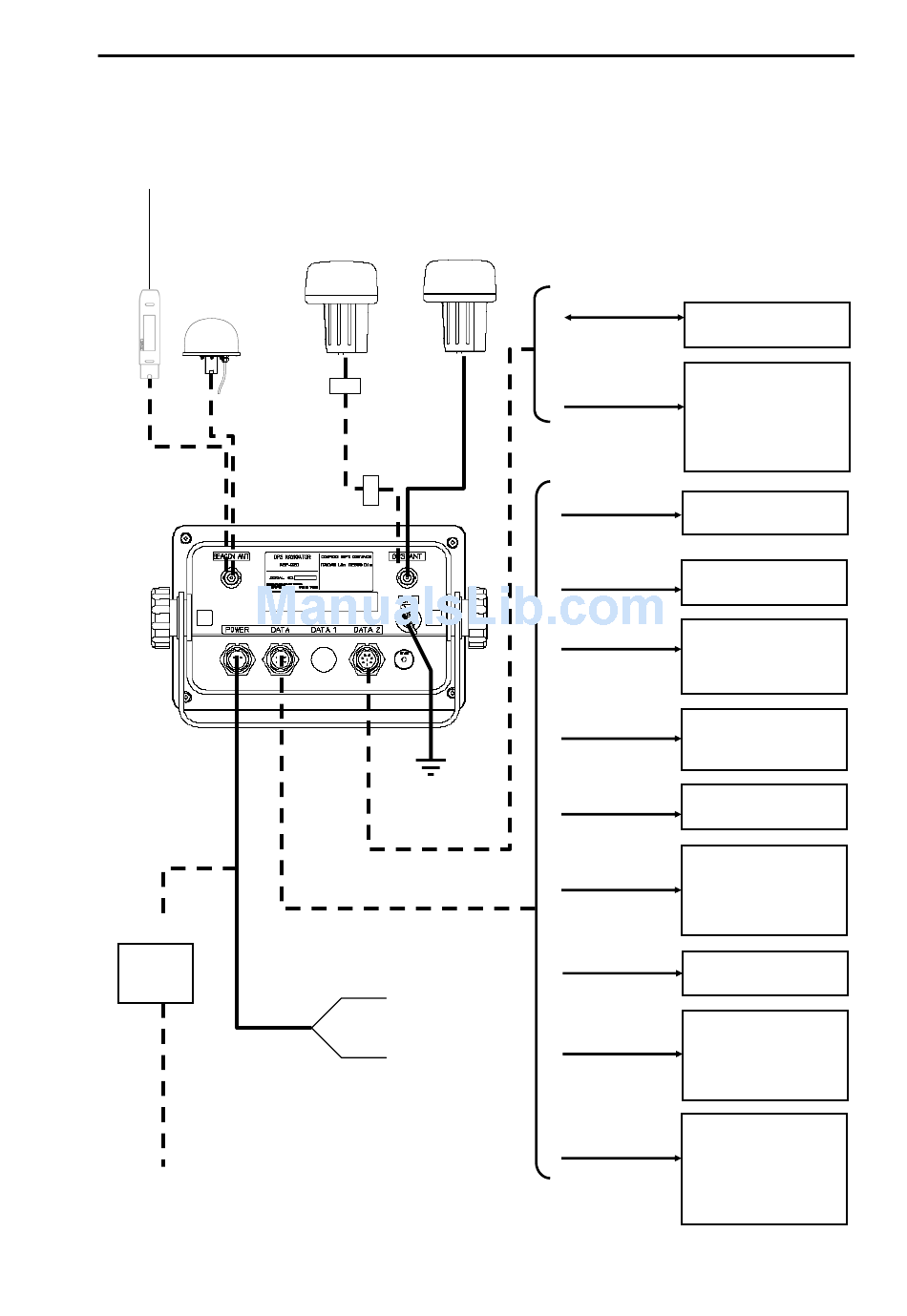

4.7 Cable connections to KGP-920
4.7.1 Single connection
Whip antenna
RA-14
(Option)
Beacon antenna
coupler / unit
(Option)
Antenna extension
cable
CW-839-30M
CW-394-60M
(Option)
(Option)
Power
DC Power cable
rectifier
PS-003A
AC Power cable
VV-2D8-3M
(Option)
100/115VAC
200/230VAC
0093121662-08
Antenna unit
Antenna unit
GA-08-KODEN(10m)
GA-08S-KODEN
GA-08L-KODEN(15m)
(0.5m)
Conversion cable
for extension
CW-826-0.5M
(Option)
Grounding
Wire
(not supplied)
CW-267-1.8M
+ (Red)
10.8 - 31.2VDC
- (Black)
CW-391-1-5M/10M
DGPS
(Option)
beacon receiver
Chart plotter
Marine radar
CW-391-1-5M/10M
Echo sounder
(Option)
Auto pilot
AIS
(Other brand)
CW-373-1-5M/10M
Chart plotter
GTD-110/150
(Option)
Plotter sounder
CW-373-1-5M/10M
CVG-80/200
(Option)
Radar Plotter
CW-373-1-5M/10M
MDP-600series
(Option)
MDP-1200series
Echo sounder
CW-373-1-5M/10M
CVS-841series
(Option)
CVS-842/852series
Echo sounder
CW-374-1-5M/10M
CVS-833series
(Option)
Marine radar
MD-3420/3441series
CW-374-1-5M/10M
MD-3641/3642series
(Option)
MD-3840series
MDC-3560/3510series
CW-373-1-5M/10M
Marine radar
MDC-1800series
(Option)
Marine radar
CW-376-1-5M/10M
MDC-700series
MDC-1000series
(Option)
MDC-1500series
MDL-1100series
Chart plotter
Marine radar
CW-376-1-5M/10M
Echo sounder
(Option)
Auto pilot
AIS
(Other brand)
